Recommended flow
28 - 45 GPM
Cutting widths
6"/ 8" /10" / 12"
Model
1200
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
Made in USA
Crumber bar included
Overview

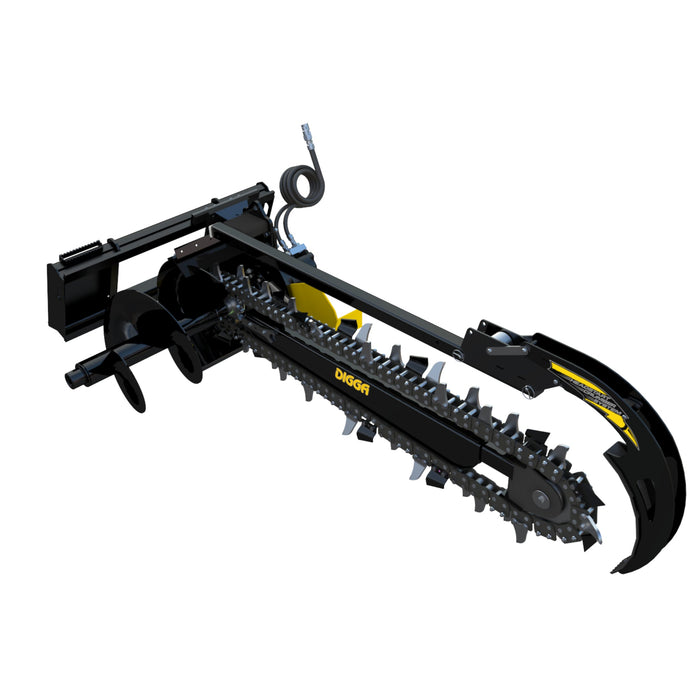

This high-flow skid steer trencher attachment is the Digga Bigfoot XD, and the numbers separate it clearly from the standard Bigfoot: a 6K Bell Eaton motor delivering 67 hp continuous against 34, on 28–45 GPM, digging to 4 or 5 feet. It suits high-flow skid steers and excavators up to 8 tonnes. At this size a trencher stops being an occasional attachment and becomes the machine you bought the carrier for.
Key Features of the Bigfoot XD High Flow Trencher
- Cutting depth: up to 48"
- Cutting widths: 6"/ 8" /10" / 12"
- Recommended flow: 28 - 45 GPM
- Foot depth presets: 24" / 32" /40" / 48"
- Motor type: 6K Bell EATON
- 67 hp continuous against the standard Bigfoot’s 34 — roughly double the power into the chain.
- 6K Bell Eaton motor rather than the 2K used on the standard machines.
- 4-foot or 5-foot dig depth, reaching depths the standard range cannot.
- 28–45 GPM — genuinely high flow, and it will not perform on a standard-flow carrier.
- Fits high-flow skid steers and excavators up to 8 tonnes.
Why This Bigfoot XD Skid Steer Trencher Attachment Earns Its Keep
- Depth capability is the reason to buy it — below 4 feet the standard Bigfoot simply cannot go, regardless of how long you give it.
- Power matters more than depth on hard ground: 67 hp keeps the chain moving through material that stalls a 34 hp machine.
- Only Combo and Diggatac chains are offered — at this power an earth chain is not the right tool.
Bigfoot XD High Flow Trencher Specifications
| Specification | Value |
|---|---|
| Model | 1200 |
| Cutting widths | 6"/ 8" /10" / 12" |
| Foot depth presets | 24" / 32" /40" / 48" |
| Max continuous power | 67 hp |
| Length | 100" |
| Height (horizontal) | 31" |
| Width | 48" |
| Recommended flow | 28 - 45 GPM |
| Motor type | 6K Bell EATON |
| Cutting depth | up to 48" |
| Weight wt 6 chain | 935 lbs |
The Bigfoot XD Skid Steer Trencher Attachment figures above come from Digga’s published data sheet for the 1200 model. Hoses, quick disconnects and the crumber bar ship with it; the mount does not.
Choosing Your Bigfoot XD Skid Steer Trencher Attachment Chain and Cutting Width
The Bigfoot XD Skid Steer Trencher Attachment takes three decisions: chain type, cutting width, and on some models dig depth. Chain type is the one that most affects how the machine behaves in your ground.
| Chain type | Teeth | Best suited to |
|---|---|---|
| Earth Chain | Earth teeth on every second station | Soil, loam and light clay — the lowest-cost chain and the fastest in clean ground |
| Combo Chain | 70% Diggatac carbide teeth, 30% earth teeth | Mixed ground where you hit stone or hardpan intermittently — the general-purpose choice |
| Diggatac Chain | 100% Diggatac carbide teeth | Consistently hard, stony or frozen ground where an earth tooth would be destroyed |
Chain Type
- Combo Chain - 70% Diggatac Teeth and 30% Earth Teeth
- Diggatac Chain
Cutting Width
- 10" Cutting Width
- 12" Cutting Width
- 6" Cutting Width
- 8" Cutting Width
Cutting Depth
- 4' Dig Depth
- 5' Dig Depth
Which Machines Fit the Bigfoot XD Skid Steer Trencher Attachment?
| Fitment factor | Requirement |
|---|---|
| Machine | High-flow skid steer loaders and excavators up to 8 tonnes |
| Auxiliary hydraulic flow | 28–45 GPM |
| Chain pitch | 2" |
| Dig depth options | 4 foot or 5 foot |
| Cutting widths | 6", 8", 10" or 12" |
| Motor | 6K Bell Eaton, 67 hp continuous |
| Mount | Purchased separately |
| Included | Hoses, quick disconnects and crumber bar |
The Bigfoot XD Skid Steer Trencher Attachment uses a standard skid steer quick attach interface, so the common loaders all take it:
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Note your machine make and model at checkout and we confirm the Bigfoot XD Skid Steer Trencher Attachment mount and flow suit it before the order ships.
What to Order Alongside the Bigfoot XD Skid Steer Trencher Attachment
- A mount to suit your machine — the Bigfoot XD Skid Steer Trencher Attachment ships without one, and skid steer slide mounts and excavator hitches are separate items.
- Spare teeth — Diggatac and cup teeth are consumables and are cheaper to keep on the truck than to chase mid-job.
- A spare chain if you run mixed ground — swapping a chain is faster than changing every tooth on it.
- A nose roller kit and drive sprocket, which wear alongside the chain rather than independently of it.
Bigfoot XD High Flow Trencher Questions, Answered
Combo or Diggatac chain on the XD?
Those are the two options, and Digga does not offer an earth chain on this machine. Combo runs 70% Diggatac carbide with 30% earth teeth and covers most ground. Diggatac is 100% carbide for consistently hard, stony or frozen material. At 67 hp an earth chain would be destroyed in ground this machine is bought for.
What is the crumber and why does it matter?
The crumber bar runs behind the chain and pulls loose spoil out of the trench floor. Without one you are left with a bed of loose material in the bottom of the trench, which has to be cleaned out by hand before pipe or cable can be laid to grade. Digga includes the crumber bar on the package.
Will the XD work on my standard-flow skid steer?
No. It needs 28–45 GPM. On a standard-flow machine it will turn slowly and you will have paid for power you cannot use — the standard Bigfoot at 16–30 GPM is the correct machine for that carrier.
4 foot or 5 foot?
Choose by the deepest service you actually lay. The 5-foot machine is longer and heavier — 106" against 100" and 1,016 lbs against 935 — which affects transport and what the carrier can hold at reach.
What is the practical difference from the standard Bigfoot?
Power and depth. 67 hp against 34, 5 feet against 4, and a 6K motor against a 2K. It is a different class of machine rather than a bigger version of the same one.
Will this fit my machine?
Check three things: it is built for High-flow skid steer loaders and excavators up to 8 tonnes; the interface is Purchased separately; and it needs 28 - 45 GPM. Add your machine make and model at checkout and we confirm the fit before the order ships.
How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is shown before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order?
Add the item to your cart and check out online — the order page asks for your machine make and model, so there is no need to call ahead. We check the mount against your machine after the order and come back to you if anything needs changing. If you would rather ask first, email support@eskidsteer.com or use the chat button on your screen.
Contractors reach the Bigfoot XD Skid Steer Trencher Attachment searching for a trencher attachment, a high flow trencher, or a excavator trencher for a machine they already run. It comes up alongside trencher chain and digga trencher when the job is cable, irrigation or drainage rather than post holes. All of it is genuine skid steer trencher equipment made in Dyersville, Iowa.
One thing worth checking before you order: the XD at 5-foot depth is 106" long and just over 1,000 lbs. That is a significant amount of attachment hanging off the front of a loader, and it is worth confirming your machine’s rated operating capacity at reach rather than at the coupler.
Digga Bigfoot XD Skid Steer Trencher Attachment Video
Watch the Digga Bigfoot XD Skid Steer Trencher Attachment in action on YouTube
