Genius Bi-Directional Motor Controller (BDMC) – Low Drive Solid State Control: This controller is designed for operating a small electric motor or actuator in both forward and reverse using your machine’s existing skid steer controls.
Part-Only Listing: This page is for ordering the controller only. If you need a complete system, the full kit version must be ordered separately.
Forward and Reverse Motor Control from Existing Buttons: The BDMC uses two active machine buttons and a standard 2-pin Deutsch input control. Press one button and the controller sends one polarity to the output. Press the second button and the polarity reverses, allowing the connected motor or actuator to run in the opposite direction.
Ideal for Small Electric Motor and Actuator Applications: This controller is built specifically for low-torque electric motors and actuators that require directional control. It creates a cleaner and more OEM-style experience compared to relay boxes or external toggle switch setups.
Important Usage Limits: This product is intended only for motors and actuators with a momentary peak draw of up to 13 amps and a continuous draw of up to 9 amps. It must not be used with solenoids, winches, or larger motors. It is best suited for light-duty motor-driven functions such as chute controls and similar low-current applications.
What’s Included:
Ordering Options:
Built to Solve Real Attachment Control Problems: The BDMC was created in response to customer demand for a dependable way to control reversible electric motor functions through existing skid steer controls without building custom relay boxes or complicated switch systems.

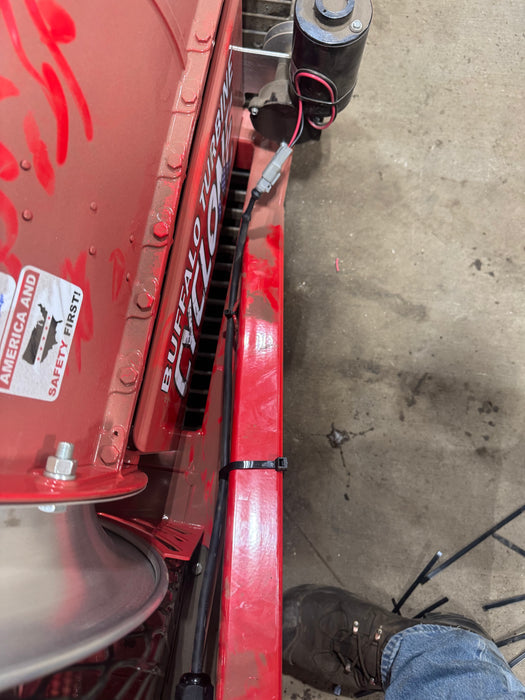

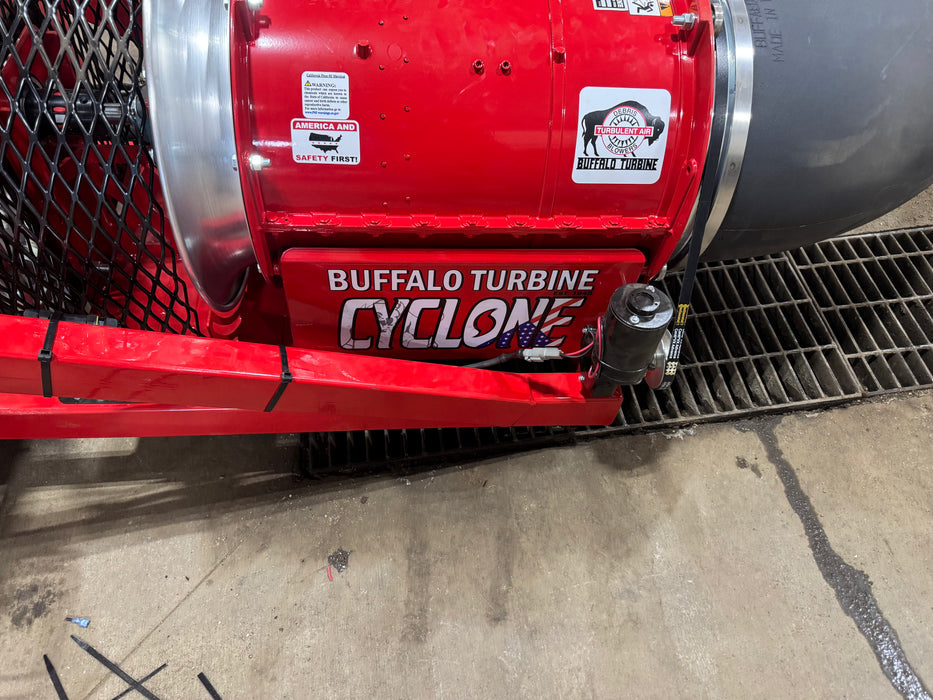

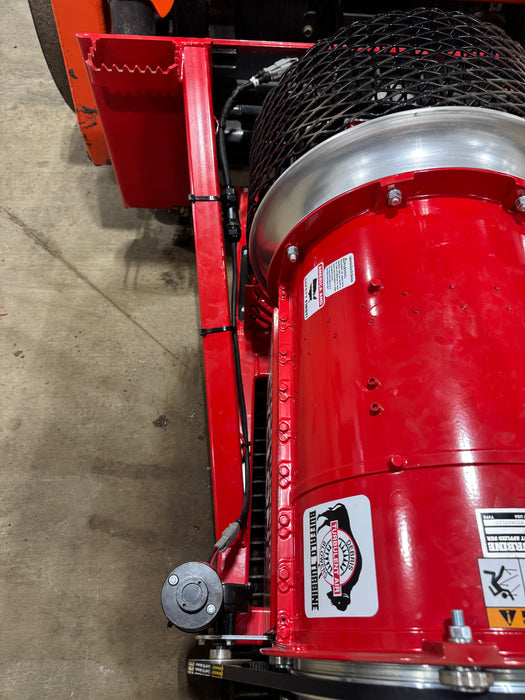

Common Application: These controllers are currently used to operate Buffalo Turbine blowers and other single-motor drive systems with current draws up to 9 amps.

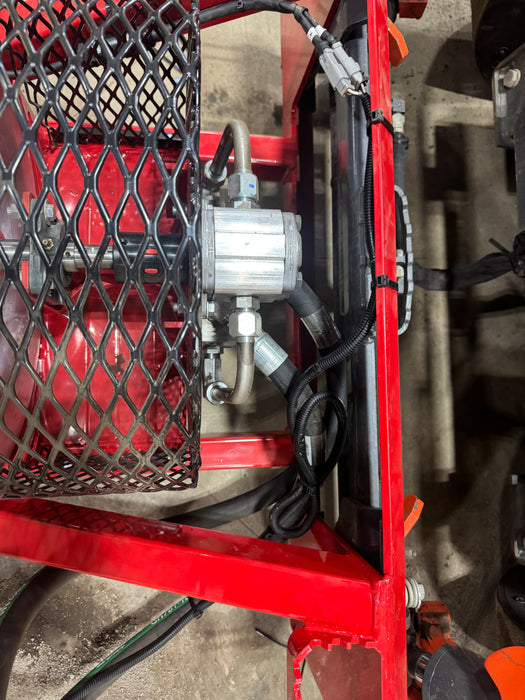

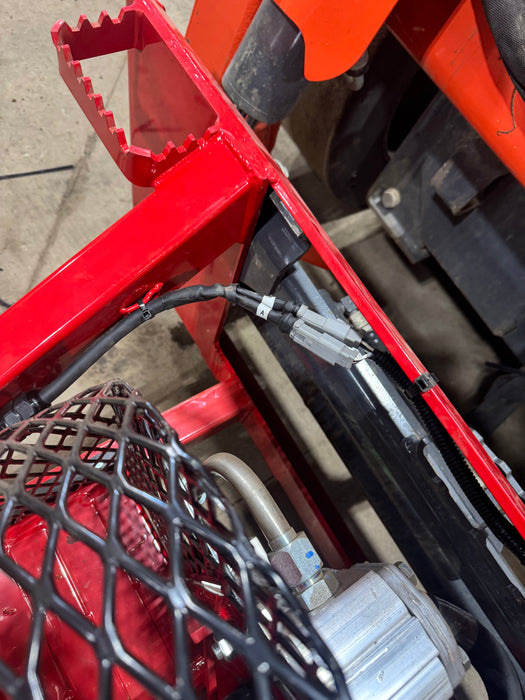

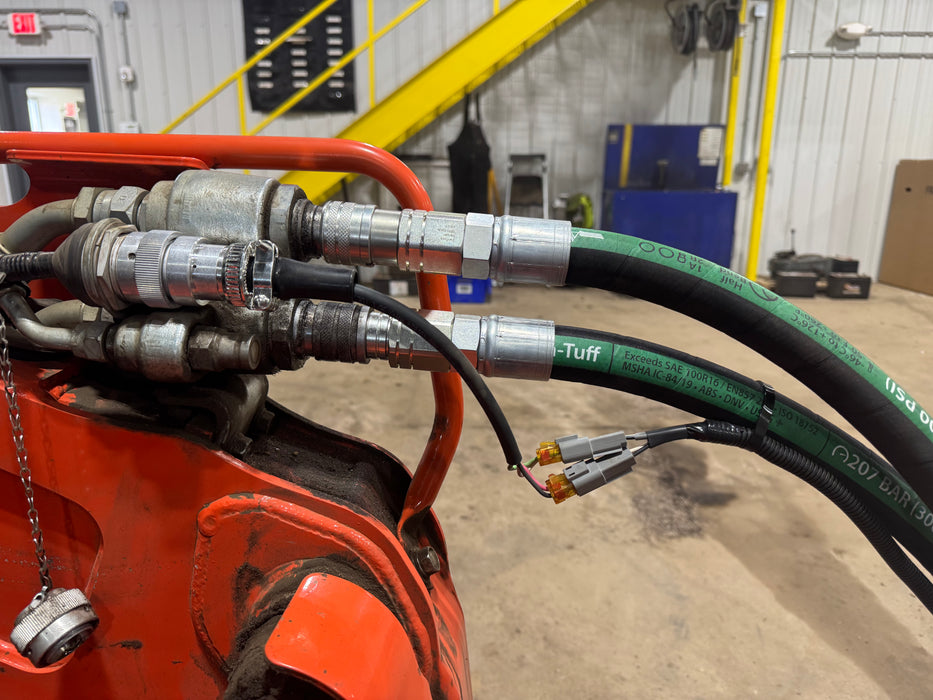

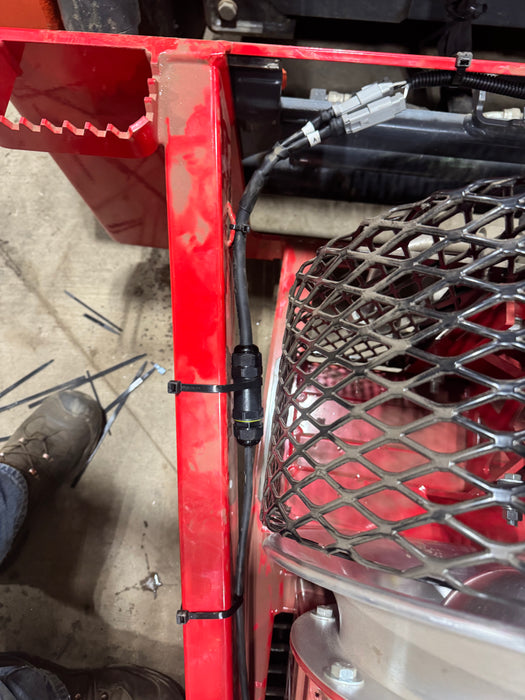

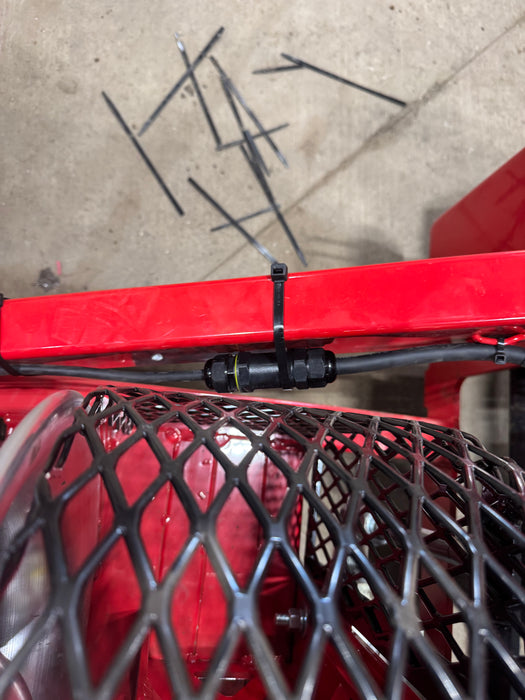

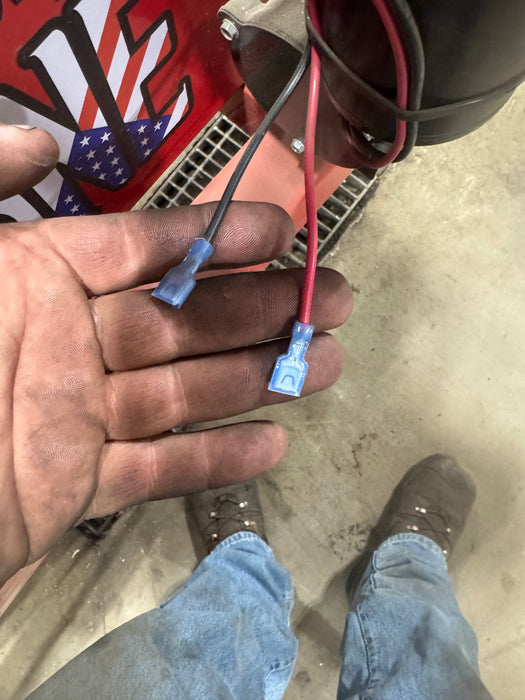

How It Works: The controller installs inline with the motor output. Attach the receptacle to the two existing motor wires, connect the controller output to that receptacle, and plug the two input receptacles into your supply plugs. Once the main connector is plugged into the machine, you can identify the two buttons that control forward and reverse operation.
This controller allows you to run a small electric motor or actuator in both forward and reverse using your machine’s existing control buttons.
Pressing one control sends power in one polarity to run the motor in one direction, while pressing the other reverses the polarity to run it in the opposite direction.
The system requires two active control inputs, typically from your skid steer’s existing buttons.
No, this controller is not designed for solenoids and may damage them if connected.
It is designed for low torque motors with a peak rating of 13 amps and a continuous draw of up to 9 amps.
No, it is not suitable for high-load applications like winches or large motors.

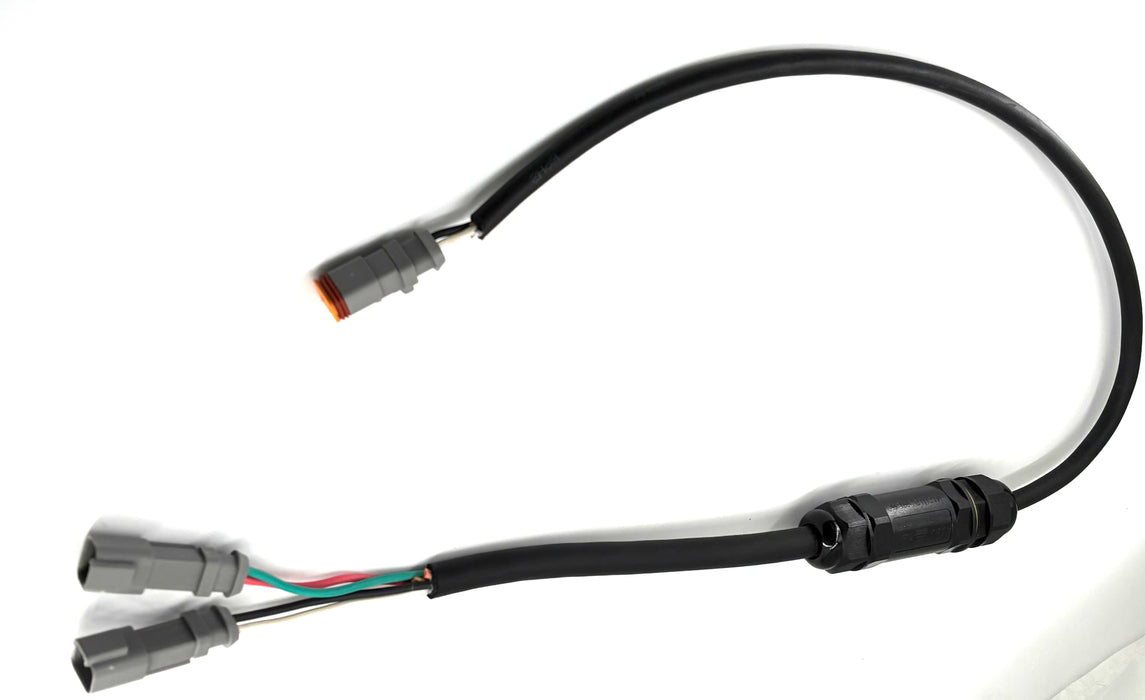

The package includes the controller unit, two Deutsch input connectors, one output connector, and a mating connector for easy wiring.
No, this listing is for the controller only. Additional components are available separately in full system kits.
You can choose configurations for 14-pin, 8-pin, Bobcat 7-pin CAN systems, or setups with added dual switches.
It is commonly used for small motor-driven attachments such as chute controls and similar low-power devices.
