Genius Bi-Directional Motor Controller (BDMC): This controller is designed to operate a single electric motor or actuator in both forward and reverse directions using your existing skid steer controls.
Simple Forward and Reverse Operation: The system uses two active control inputs. Pressing one button sends power in one direction, while pressing the other reverses polarity on the same output, allowing the motor or actuator to run in the opposite direction.
Uses Existing Machine Controls: This controller integrates directly with your loader controls, eliminating the need for external switches, relay boxes, or manual toggle systems. The result is a cleaner and more factory-style operating experience.
Designed for Low Drive Applications: This unit is intended for smaller electric motors and actuators with a maximum peak draw of 13 amps and a continuous draw of 9 amps.
Important Usage Notes: Do not connect this controller to solenoids, winches, or high-load motors. Improper use may damage the connected components or the controller.
What’s Included:
Why This Product Exists: This controller was developed to replace unreliable relay-based setups and provide a more streamlined, dependable solution using your machine’s built-in controls.
How to Order:
Choose Your Connection: Options include 14 Pin (most machines), 8 Pin (CAT ABC Series or Terex/ASV), no controls with added switch option, or Bobcat 7 Pin CAN control.

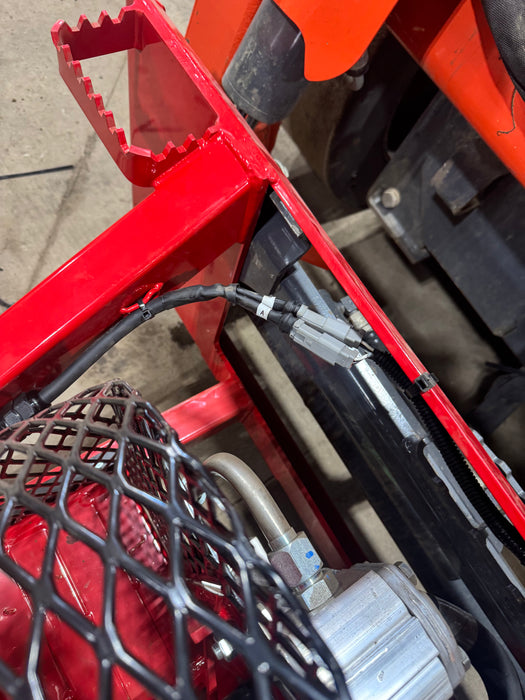

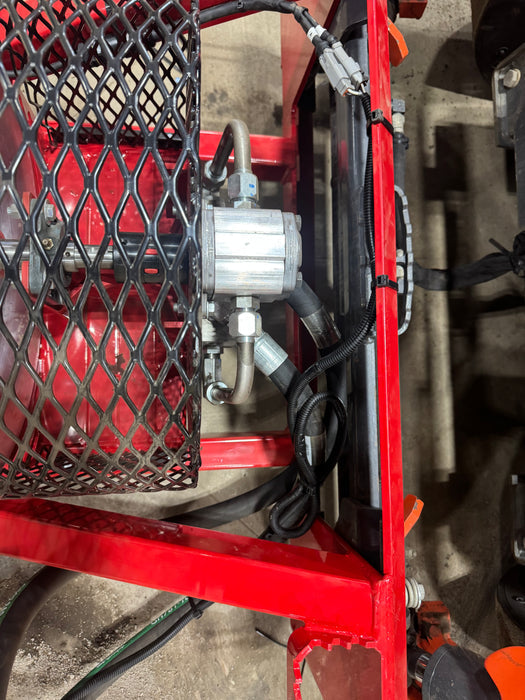

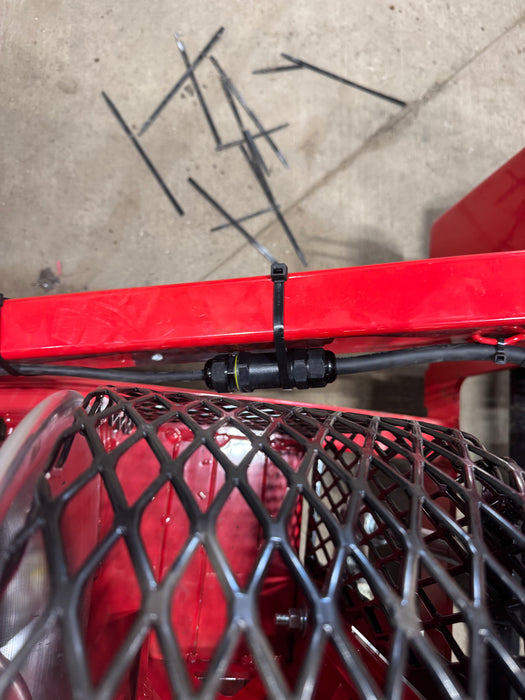

Add Extension Harness: A 9-foot extension harness is available to help route wiring cleanly through your setup.

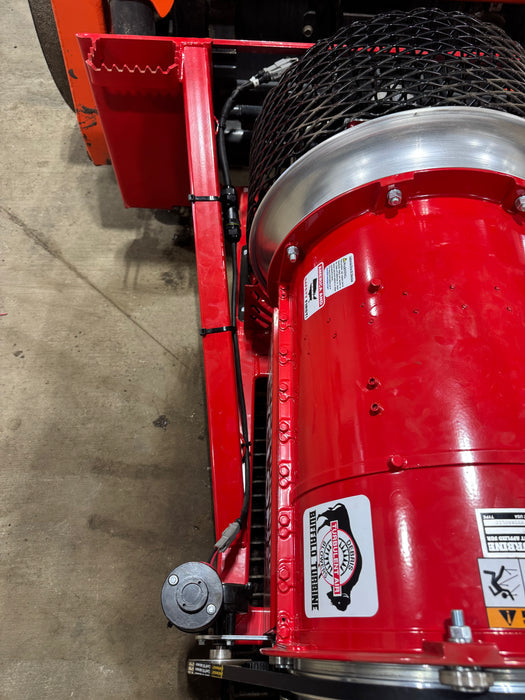

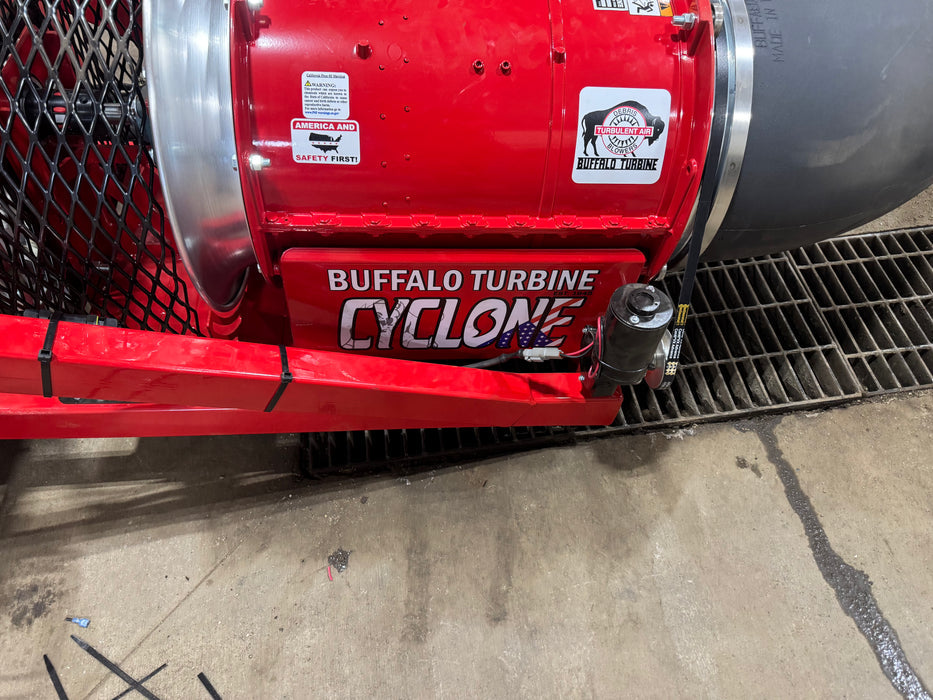

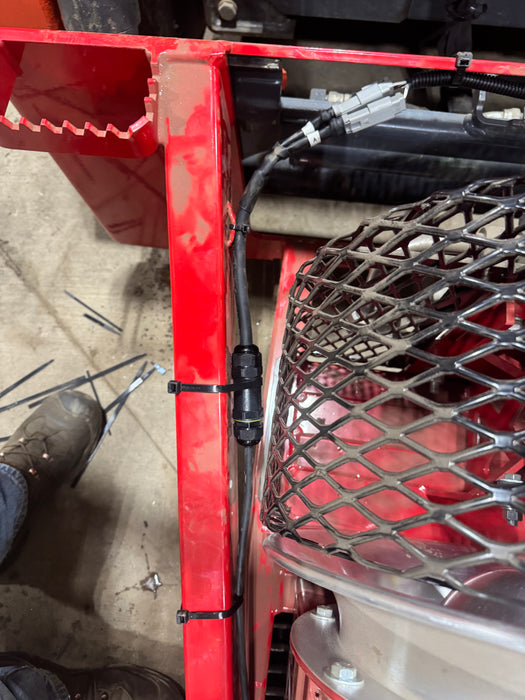

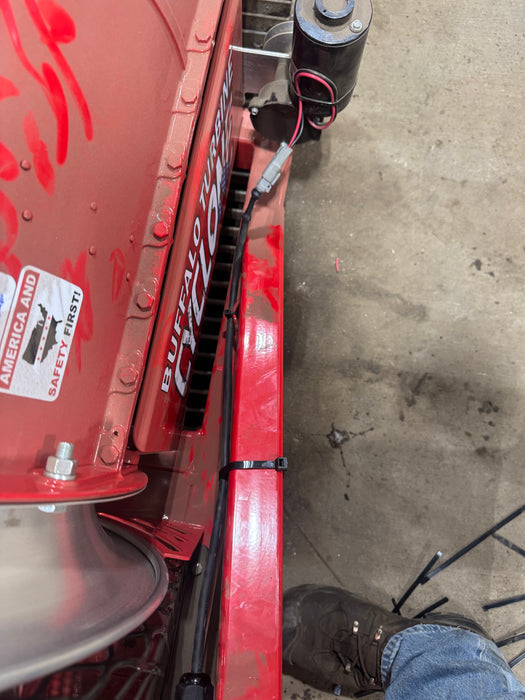

Application Example: Commonly used to control Buffalo Turbine blowers and similar equipment requiring reversible motor control.

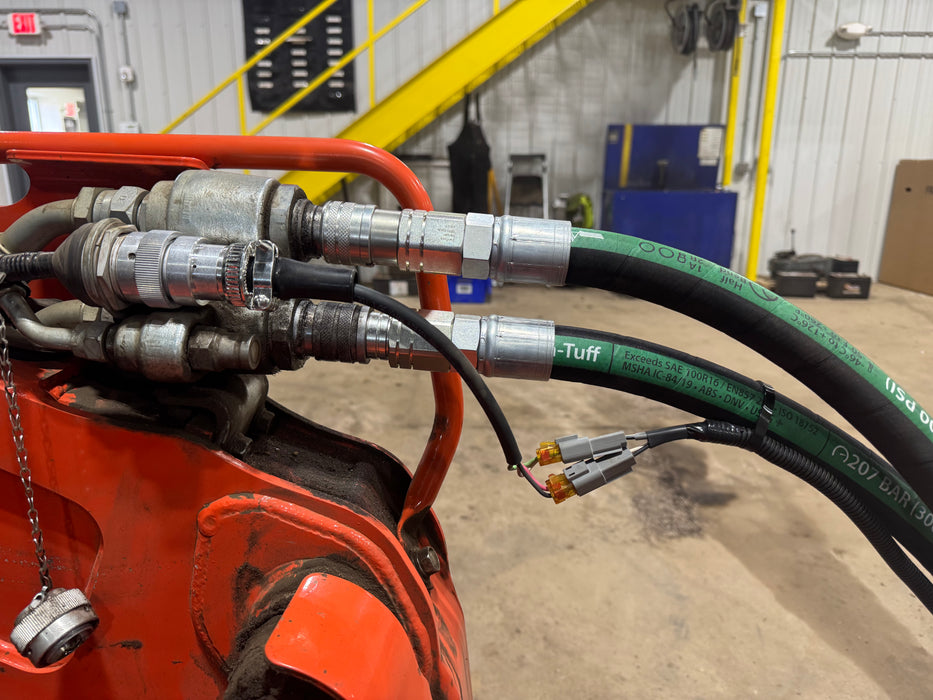

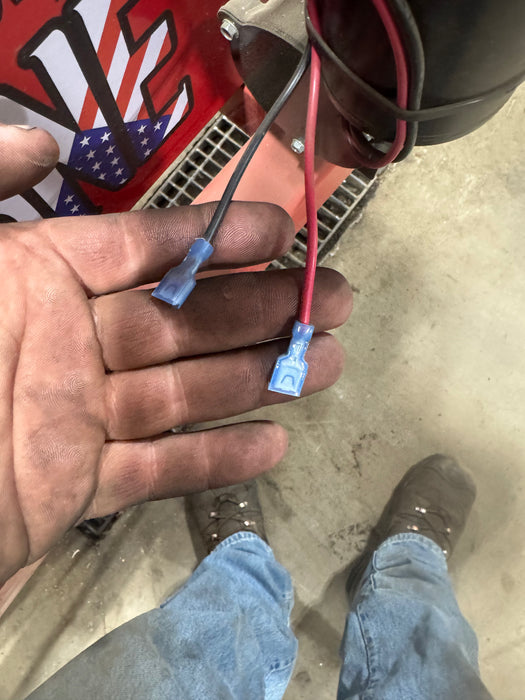

How It Works: The controller installs inline with your motor wiring. Connect your motor leads to the output, plug the controller inputs into your machine controls, and operate using two buttons from your cab.
Operation: One control activates forward motion, while the second control reverses polarity to run the motor in the opposite direction.
The BDMC allows you to run a single electric motor or actuator in forward and reverse using your skid steer’s existing control buttons.
Pressing one button sends power in one polarity, while pressing another reverses the polarity, causing the motor or actuator to run in the opposite direction.
You need two active control buttons to operate forward and reverse functions.
It is designed for low torque electric motors or actuators such as chute controls or similar small motor-driven systems.
The controller supports up to 13 amps peak and 9 amps continuous current draw.
No, it should not be used with solenoids as reverse polarity can damage them instantly.
No, this controller is not designed for high-load applications like winches or large motors.

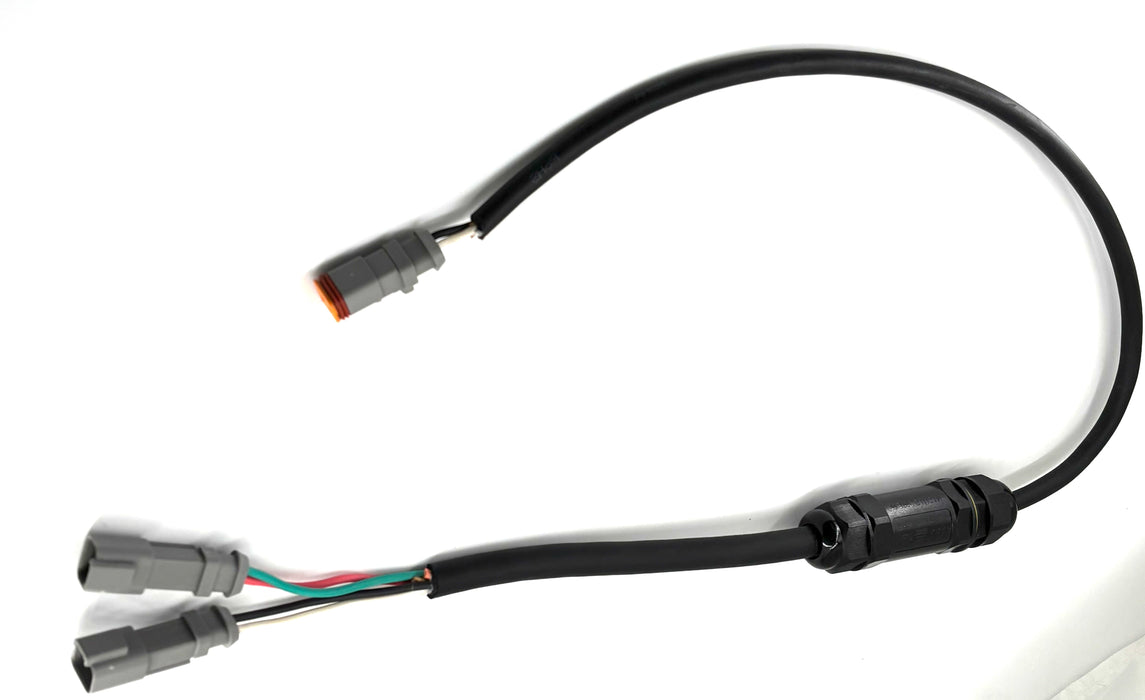

It features two 2-pin Deutsch input connectors and one 2-pin Deutsch output connector.
No, it is designed for simple plug-and-play installation using your existing wiring and controls.
The controller includes the internal circuitry and an output connector mate to allow easy integration with your wiring.
You can choose from 14-pin, 8-pin, Bobcat 7-pin CAN, or a dual switch setup depending on your machine configuration.
Yes, it is commonly used to control Buffalo Turbine blowers and similar motor-driven attachments.
