Hydraulic flow
15-20 GPM standard flow
Working width
8.4 ft
Blade construction
Hardox 450 blade
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🔒1-year warranty
🔩Hardox 450 edge
📘 Overview

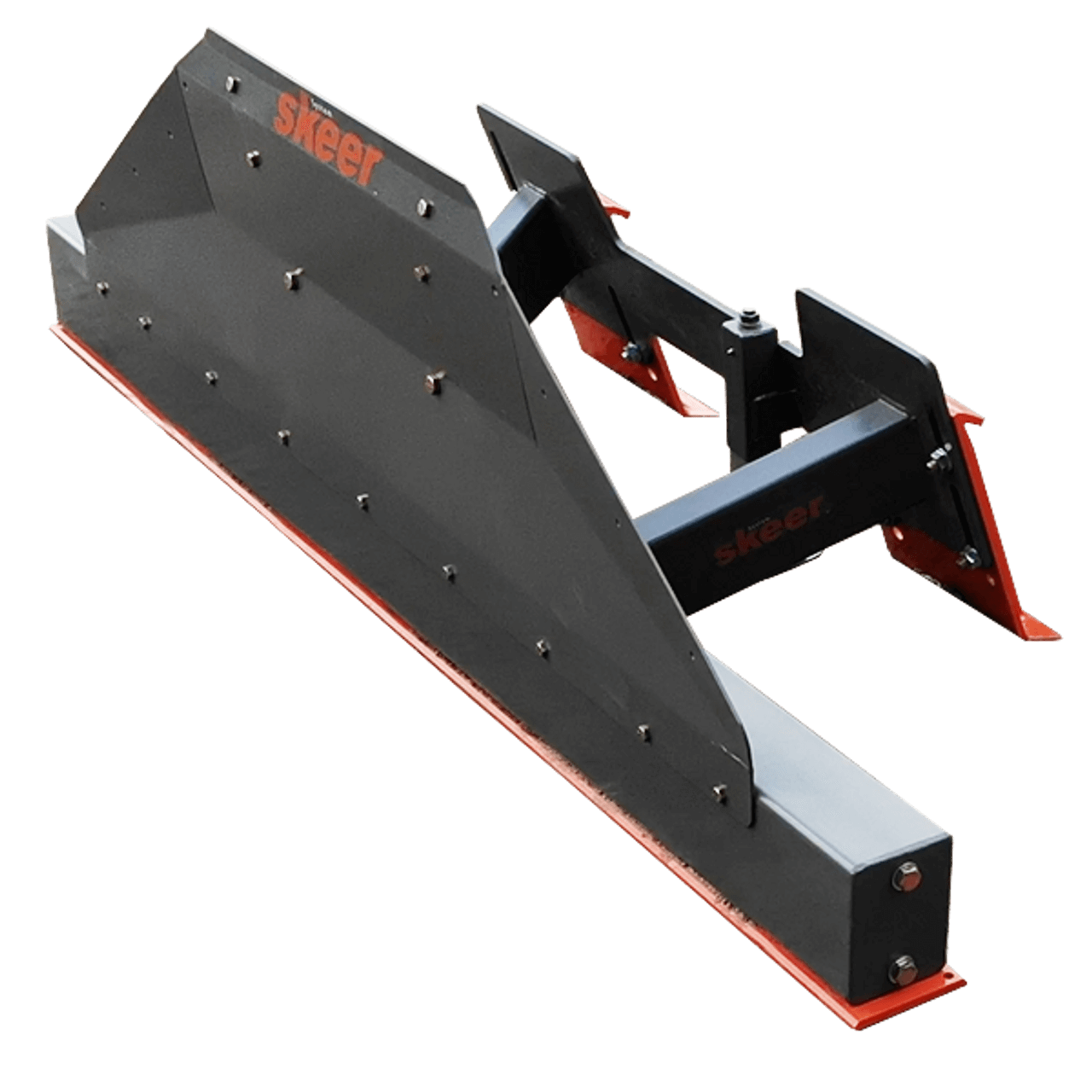

The Skeer Beam is a skid steer grader blade in its simplest form: a fixed 8.4-foot blade that needs only 40 HP, the lowest machine requirement of any Skeer attachment. It is built for excavation, concrete and paving preparation, and landscaping work that has to finish flat. What makes it different from a plain box blade is Skeer's patented traction level adjustment, which sets the cutting edge level with the bottom of your tracks when the loader arms are down, so the blade starts cutting at grade every time it is set back on the ground instead of needing a fresh adjustment. The patented floating base lets the blade ride the surface without wheels and without digging in, and the flat Hardox 450 edge is sharp in both directions so the return pass grades rather than wasting it. This is a single-configuration attachment - there is no size or hand to choose - and it ships with the attachment and an owner's manual.
Buyers usually find the Beam while shopping for a skid steer grader attachment or a skid steer dozer blade, and it sits between the two: flatter and more forgiving than a dozer blade, simpler and cheaper than a full grader attachment for skid steer work with hydraulics and tilt. Used as a skid steer driveway grader it will maintain gravel and re-cut a crown; used as a skid steer leveler it will bring a rough pad to a flat surface. Skeer builds the whole range on the same patented traction level adjustment, so the Beam behaves on the ground like every other Skeer skid steer grading attachment - it simply has fewer controls.
⚙ Key Features of the Skeer Beam Skid Steer Grader Blade
- Hardox 450 blade, front shell and cutting edges — Hardox 450 is an abrasion-resistant steel used because it holds an edge against sand, gravel and crushed stone rather than rounding off after a season.
- Patented traction level adjustment — Sets the cutting edge level with the bottom of the tracks when the arms are at their lowest point, so the Beam returns to grade without a fresh setup each time it touches down.
- Patented floating base — The base floats over the surface to hold a level cut without adding gauge wheels, and it is what stops the blade from grabbing and digging in.
- Flat blade profile — A flat cutting edge in constant ground contact is far harder to dig in with than an angled dozer blade, which is what makes the Beam forgiving for a less experienced operator.
- Grades forward and in reverse — The edge cuts in both directions, so the back-drag pass is a working pass instead of a repositioning pass.
- Reversible, replaceable cutting edge — Flip the edge when the first side dulls, then replace it - two wear surfaces per edge before any parts spend.
- Can cut below grade — The Beam will take material below ground level where an application calls for it, while still resisting unwanted digging and holding.
- Powder coated finish — Powder coat resists the chipping and corrosion that comes from abrasive spoil and washdown.
🔑 Why Contractors Choose the Skeer Beam
- Runs on a 40 HP machine — At a 40 HP minimum the Beam fits compact skid steers and track loaders that cannot carry the Pro or Pro Plus, which need 50 HP and up.
- No setup pass on every touchdown — Traction level adjustment removes the re-levelling most blades need each time they are set down, which is where a large share of an operator's day goes on a pad.
- Two wear surfaces per cutting edge — The reversible Hardox 450 edge doubles the interval before a replacement edge has to be bought and fitted.
- Forgiving for a newer operator — The flat profile and floating base mean a gouge takes deliberate effort, so a crew member who is not a dedicated grading operator can still produce a usable finish.
- One attachment, no configuration to get wrong — A single 8.4-foot fixed model means no wing, hand or tilt option to specify incorrectly at order time.
📊 Skeer Beam Specifications
| Specification | Value |
|---|---|
| Model | Beam (SK-BEAM) |
| Working width | 8.4 ft |
| Minimum machine horsepower | 40 HP |
| Cutting edge | Hardox 450, reversible and replaceable |
| Blade construction | Hardox 450 blade, front shell and cutting edges |
| Base | Patented floating base |
| Level adjustment | Patented ground traction level adjustment |
| Operation | Forward and reverse |
| Finish | Powder coated |
| Mount | Universal skid steer quick attach (SSQA), adjustable |
| Hydraulic flow | 15-20 GPM standard flow |
| Warranty | 1 year parts and labour (Skeer System) |
| Included | Beam attachment and owner's manual |
🚜 Which Machines Fit the Skeer Beam?
The Skeer Beam mounts on a Universal Quick Attach (SSQA) plate, the standard mount fitted to skid steer loaders and compact track loaders, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compatibility is decided by mount type rather than brand. Your machine needs a standard SSQA plate, 15-20 GPM standard-flow auxiliary hydraulics, and a minimum of 40 HP. Everything needed to confirm fitment is on this page — add it to your cart to check delivered pricing for your address.
On delivery: inspect the crate before you sign the Bill of Lading and note any damage on it. A signed clean BOL makes a freight damage claim very hard to pursue, so photograph anything that looks wrong before the driver leaves.
❓ Skeer Beam Questions, Answered
What size skid steer do I need to run the Skeer Beam?
The Skeer Beam needs a minimum of 40 HP and standard-flow auxiliary hydraulics of roughly 15-20 GPM. That is the lowest machine requirement in the Skeer range - the Pro needs 50 HP at 7 ft and 60 HP at 8.4 ft, and the Pro Plus needs 60 HP. If your loader is on the small side, the Beam is the Skeer model that will fit it.
How is the Skeer Beam different from a box blade?
A box blade is an open box with side plates that drags material and relies on the operator to hold depth. The Skeer Beam is a rigid 8.4-foot blade with a patented floating base and traction level adjustment that references the cutting edge to the bottom of your tracks, so it holds grade itself. A box blade is cheaper; the Beam is the tool when the finish has to be flat enough to pave or pour on.
Does the Beam tilt or angle?
No. The Beam is a fixed blade with no tilt plate and no hydraulic wings - that is what keeps it simple and keeps the price and horsepower requirement down. For side-to-side tilt and slope work, the Skeer Grading Blade with Tilt Plate adds 13 degrees of tilt each way and 30 degrees of swivel.
Can the Beam grade going backwards?
Yes. The Beam's Hardox 450 edge is sharp in reverse as well as forward, so the return pass across a pad grades and compacts rather than being wasted travel. Tilting the blade forward while reversing also packs the material and shows up imperfections.
What is the cutting edge made of and can I replace it?
The Beam's cutting edge is Hardox 450, an abrasion-resistant steel. It is both reversible and replaceable - flip it when one side dulls, then swap it out when both sides are worn. The blade body and front shell are the same Hardox 450 material.
Will the Beam fit my Bobcat, Cat or John Deere loader?
The Beam mounts on the universal skid steer quick attach plate (SSQA) that Bobcat, Caterpillar, John Deere, Case, New Holland, Takeuchi, Kubota and Gehl machines use, so fitment is a question of mount type rather than brand. Confirm your machine carries a standard SSQA plate and has 40 HP with standard-flow auxiliary hydraulics.
What is covered by the warranty?
Skeer System provides 1 year of parts and labour on all products sold. Wear items - the cutting edge in particular - are consumables and are not warranty items.
How does the Beam ship?
The Beam ships by LTL freight. Shipping is calculated at checkout - add the Beam to your cart and enter your delivery address, and the freight charge is shown before you complete the order. Lift gate service is available for residential deliveries and can be selected at checkout.
