📏Multiple sizes available
🔗Converts between standards
📘 Overview
A Haugen skid steer auger extension adds digging depth to the auger bit you already own — no need to buy a longer bit. Two types: variable length, which store inside the column of 10" and larger bits and adjust in set increments, and fixed length, which add their full length every time.
Both types come in 24" and 48" lengths, in 2" Hex or 2 9/16" Round shaft to match your drive.
📊 Auger Extension At a Glance
| Specification | Value |
|---|---|
| Machine class | Skid Steer |
| Models available | 8 variants |
| Weight | 32–56 lbs |
| Manufacturer | Marv Haugen Enterprises Inc., Casselton ND |
⚙ Key Features of the Haugen Auger Extensions

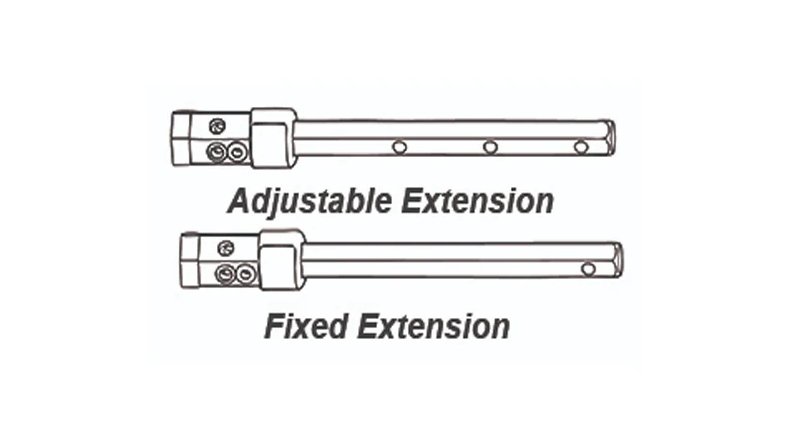

- Two types — variable length or fixed length
- Lengths 24" and 48"
- 2" Hex or 2 9/16" Round shaft
- Variable extensions store inside 10"+ diameter bits
- Variable increments every 6" on 12"–24" extensions, every 12" on 48"–72"
- 32 lbs (24") / 56 lbs (48")
📊 Extension Models
| Model | Type | Length | Shaft | Weight |
|---|---|---|---|---|
| 10900 | Variable | 24" | 2" Hex | 32 lbs |
| 10901 | Variable | 48" | 2" Hex | 56 lbs |
| 10904 | Variable | 24" | 2 9/16" Round | 32 lbs |
| 10905 | Variable | 48" | 2 9/16" Round | 56 lbs |
| 10911 | Fixed | 24" | 2" Hex | 32 lbs |
| 10912 | Fixed | 48" | 2" Hex | 56 lbs |
| 10915 | Fixed | 24" | 2 9/16" Round | 32 lbs |
| 10916 | Fixed | 48" | 2 9/16" Round | 56 lbs |
🔧 Variable or Fixed Length Auger Extension?
- Variable length. The extension stores inside the column of a 10" or larger auger bit when you are not using the extra depth. That means one setup covers shallow and deep holes without carrying a separate part around the site or taking the bit off to change. Adjustment is in increments — every 6" on 12" to 24" extensions, every 12" on 48" to 72".
- Fixed length. Adds its full length whenever it is fitted. Simpler and cheaper — a 24" fixed is $299 against $375 for the variable — and the right choice if you dig to one depth or do not have a bit large enough to store a variable inside.
The variable's advantage only exists if your bit is 10" diameter or larger. Below that, the extension will not store in the column and a fixed extension does the same job for less.
📏 Which Length?
24" or 48", in either type. Extensions can be combined where more depth is needed, but bear in mind that every inch of extension puts the bit further from the drive, and torque reaction increases with it. Add the depth you need rather than the maximum available.
⚙ Match the Shaft to Your Drive
Every extension comes in 2" Hex or 2 9/16" Round. It must match your auger drive's output shaft — the same shaft standard as your bit. If you run drives with both outputs, adapter collars are available to convert between them.
🚜 Shaft Compatibility
Fits between your auger drive and your bit. Shaft must match the drive output — 2" Hex or 2 9/16" Round.
Variable extensions require a bit of 10" diameter or larger if you want the storage feature; they will still function on smaller bits but cannot retract into the column.
❓ Auger Extension FAQs
Variable or fixed length?
Variable extensions retract into the column of a 10" or larger bit when you do not need the depth, so one setup covers both. Fixed extensions add their full length whenever fitted and cost less. If your bits are under 10", the variable's storage advantage does not apply.
How much depth do I gain?
The length of the extension — 24" or 48". Fixed extensions add all of it; variable ones adjust in increments, every 6" on the shorter extensions and every 12" on the longer.
Which shaft do I need?
The same as your auger drive's output — 2" Hex or 2 9/16" Round. Adapter collars are available if you run drives with different outputs.
Can I use more than one extension?
Yes, though each one puts the bit further from the drive and increases the torque reaction you feel through the machine. Add the depth the job needs rather than everything available.
Do I need a longer bit instead?
Not usually. An extension is far cheaper than a second bit and lets you keep the diameter you already have. Bits are available in 3, 4, 5 and 6 ft lengths if you dig deep constantly.
What do they weigh?
32 lbs for a 24" and 56 lbs for a 48", in either type and either shaft.
