Description
📘 Overview

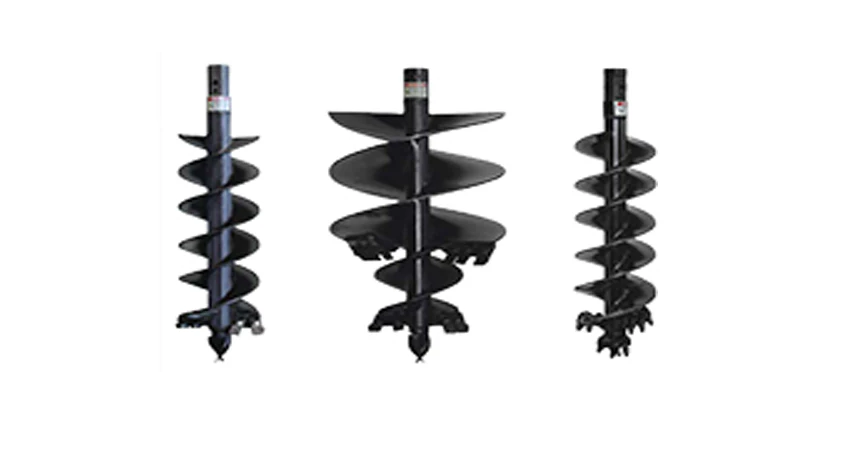

Haugen's skid steer auger bits cover five series for different ground conditions: Standard Duty (fabricated head, bolt-on teeth, 6–36"), Heavy Duty (cast boring head, gage/wisdom teeth, 4–36"), Cast Head (cast steel head, drive-in teeth, 6–36"), Tree Auger (tapered dual-diameter, 18-9" through 48-24"), and Bullet Rock (carbide bullet teeth, cast head, 4.5–36"). All available in 2" Hex and 2-9/16" Round collar configurations. 4-foot standard length with optional 3-ft, 5-ft, and 6-ft lengths. All feature hardened fishtail points and double flighting. Made in USA with a 1-year warranty.
⚙️ Key Features
- 5 series: Standard Duty, Heavy Duty, Cast Head (Aggressive), Tree, Bullet Rock
- Diameters: 4"–36" (series-dependent)
- 2" Hex and 2-9/16" Round collar options
- 4-foot standard length | 3-ft, 5-ft, 6-ft available
- Hardened fishtail point on all series
- Heavy-duty double flighting on all series
- Cast boring head on Heavy Duty, Cast Head, Bullet Rock
- Made in USA | 1-year warranty
🔑 Benefits
- Cast boring head outlasts fabricated heads in abrasive and hard ground conditions — the boring head is the business end of the auger bit that takes the highest abrasive and impact loading during each revolution. A cast head is formed from a single casting of hardened steel, with no seams or welds at the highest-wear point. Fabricated heads have weld seams at the tooth holders and corners that are vulnerable to cracking under hard-soil impact. Choose cast head (Heavy Duty, Cast Head series) whenever drilling in clay, compacted soil, asphalt, or fracturable rock.
- Tree auger tapered design creates the wide-at-top, narrow-at-bottom hole geometry needed for tree planting — conventional cylindrical auger bits create a uniform-diameter hole that provides no natural soil backfill against the root ball. The tree auger's tapered dual-diameter design (e.g., 18" at top, 9" at bottom) creates a flared hole that directs backfill toward the root ball perimeter and provides better root anchoring than a straight-wall hole.
- Bullet Rock carbide teeth eliminate the need for pre-drilling in rock drilling applications — conventional auger bits fail rapidly in solid rock — teeth wear off quickly and the bit body may deflect. The Bullet Rock series uses tungsten carbide "bullet" drive-in teeth on a heavy cast boring head, allowing direct penetration of solid rock, asphalt, and frozen ground without switching to a separate rotary drill or jackhammer approach.
- Universal 2" Hex and 2-9/16" Round collar availability matches all standard Haugen auger drives without adapters — ordering the collar type that matches your Haugen drive unit output directly avoids the need for an adapter, minimizes the drive train length, and maximizes torque transmission efficiency.
📊 Specifications
Series Summary
| Series | Boring Head | Teeth | Sizes | Conditions |
|---|---|---|---|---|
| Standard Duty | Fabricated | Bolt-on (Gage/Wisdom) | 6-36" | Normal dirt, light clay |
| Heavy Duty | Cast | Bolt-on Gage/Wisdom Teeth | 4-36" | Heavy clay, compacted, moderate rock |
| Cast Head (Aggressive) | Cast Steel | Drive-in Teeth | 6-36" | Hard clay, frozen, fracturable rock, asphalt |
| Tree Auger | Tapered/Cast | Bolt-on Gage/Wisdom | 18-9" to 48-24" | Tree planting — creates flared hole |
| Bullet Rock | Cast (thick) | Drive-in Carbide Bullet | 4.5-36" | Solid rock, asphalt, frozen ground |
| Specification | Value |
|---|---|
| Collars | 2" Hex and 2-9/16" Round (all series) |
| Standard Length | 4 feet |
| Optional Lengths | 3 ft, 5 ft, 6 ft (contact eSkidSteer) |
| Point | Hardened fishtail (all series) |
| Flighting | Heavy-duty double flighting (all series) |
| Warranty | 1 year |
| Origin | Made in USA |
🔗 Attachment Compatibility
Select 2" Hex collar if your auger drive has a 2" Hex output shaft. Select 2-9/16" Round if your drive has a 2-9/16" Round output shaft. If your drive output doesn't match, see Haugen's auger adaptors (10921, 10923). Verify your drive unit's maximum torque and recommended bit diameter range before selecting size.
🚜 Machine Compatibility
Compatible with skid steer loaders and compact track loaders with Universal Quick Attach:
| Bobcat | Caterpillar | John Deere | Case |
| New Holland | Takeuchi | Kubota | Gehl |
See attachment and machine hydraulic specifications for aux circuit requirements.
❓ FAQs
|
Q: Which auger series is right for my ground conditions?
Standard Duty: normal loam, topsoil, light sandy clay. Best speed and value for easy ground. Heavy Duty: heavy clay, moderately compacted soil. Cast head provides better durability than Standard Duty for challenging conditions. Cast Head (Aggressive): hard clay, frozen ground, asphalt, fracturable rock where Standard and Heavy Duty wear too quickly. Bullet Rock: solid rock, concrete, asphalt, very hard frozen ground. These bits are for true rock drilling — they underperform in soft soil (too slow, too heavy) but are the only option for solid rock. Tree Auger: any soil condition, specifically when a tapered-hole geometry is needed for tree planting. |
|
Q: What does the auger size designation mean (e.g., 18"-9" for Tree Auger)?
For Tree Auger bits, the two numbers represent the top diameter and bottom diameter of the tapered hole. An 18"-9" Tree Auger drills a hole that is 18" diameter at the top (ground surface) and tapers down to 9" diameter at the bottom. This tapered geometry is used for tree planting to provide a flared hole that supports the root ball and promotes natural backfill settlement. |
|
Q: What length auger bit do I need?
4-foot standard: covers most fence post, sign post, and utility drilling to 4 feet depth. Order 5 or 6 foot when drilling to greater depth (e.g., 48" + 12" to 18" for the bit attachment mechanism above the drill). Contact eSkidSteer at 866-757-8337 for longer bit options. Variable-length extensions (P70 in this catalog) can also extend depth without replacing the bit. |
|
Q: Can I use the same bit on different auger drives?
Yes, as long as the collar size matches. A 2" Hex bit works on any auger drive with a 2" Hex output shaft, regardless of the drive brand or model. If your drives are all Haugen HAD series, the bits ship in the matching collar configuration automatically. If you have multiple drive types or brands, use Haugen's auger adaptors (10921, 10923) to bridge between shaft standards. |
|
Q: Are replacement teeth available for all series?
Yes — see Haugen's Auger Replacement Teeth and Points (P59 in this catalog) for part numbers covering Gage, Wisdom, Chisel, and Fishtail Point in Dirt, Hardfaced, and Carbide grades. For Cast Head and Bullet Rock series drive-in teeth, verify specific part numbers with eSkidSteer at 866-757-8337 as drive-in teeth have different installation geometry than bolt-on teeth. |
