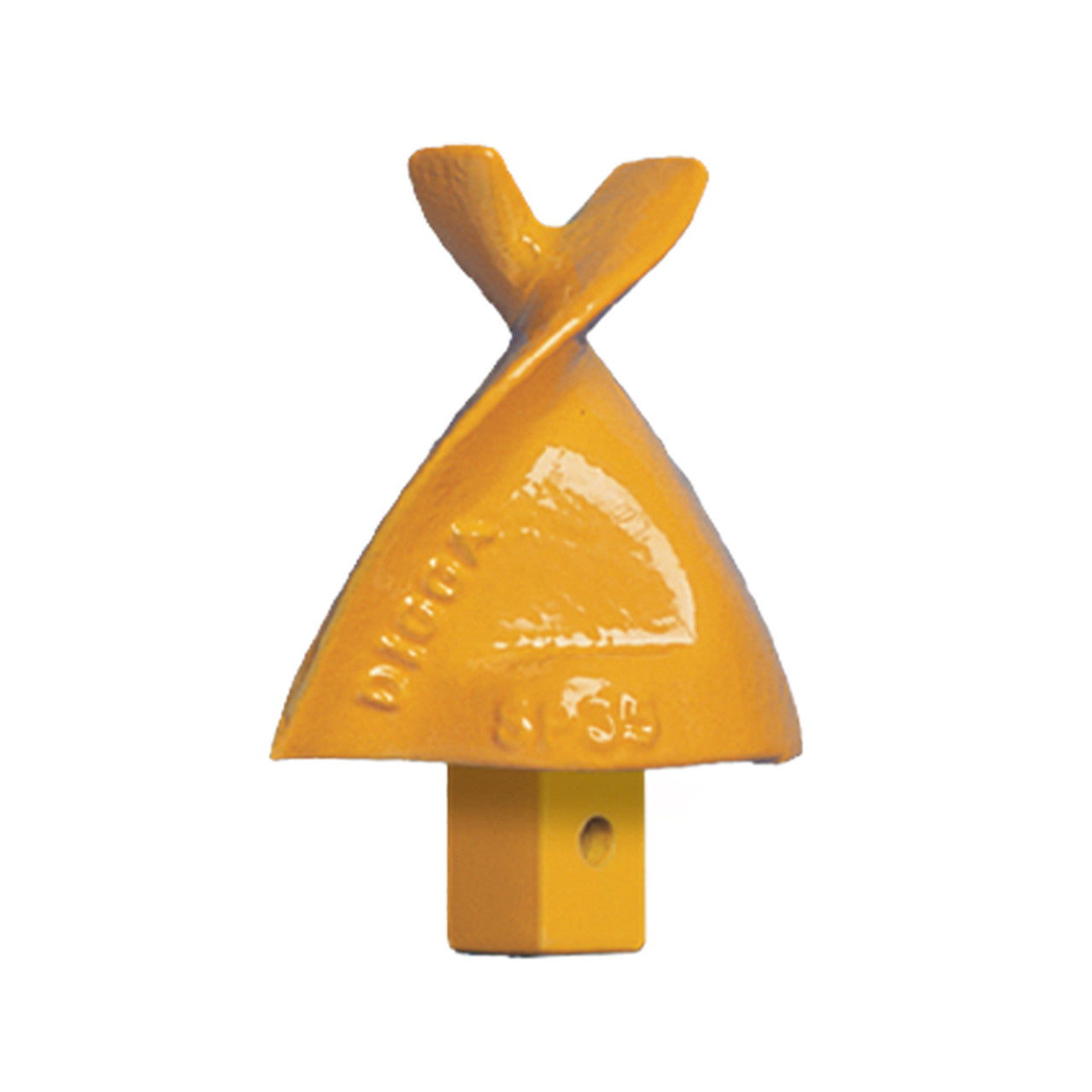

A4 Auger Bit Pilot Tooth - Digga

📘 Overview

The Digga PM-SQ-3 is the multi-facet tungsten (MFT) upgrade pilot tooth for Digga A4 Earth Auger Bits — the step up from the PM-SQ-1 standard pilot for harder, more demanding conditions. Where the PM-SQ-1 uses a standard tungsten carbide tip suited for general earth and clay, the PM-SQ-3 uses a multi-facet tungsten design that concentrates cutting force to penetrate harder earth, compacted clay, frozen ground, asphalt, and soft fracturable rock. Like the PM-SQ-1, it uses the same square-base pocket and TRULOC 3-way locking system. Manufactured by Digga in Dyersville, Iowa, USA.

⚙️ Key Features

• Part No. PM-SQ-3 — multi-facet tungsten (MFT) upgrade pilot for Digga A4 Earth Auger Bits
• MFT tip — angled tungsten faces concentrate force for harder ground penetration
• Upgrade from PM-SQ-1 — for harder earth, clay, frozen ground, asphalt, soft rock
• Square base (PM-SQ) design — fits the same A4 pilot pocket as PM-SQ-1
• TRULOC 3-way locking — PADLOC, RUBBER LOC, PIN LOC
• OEM Digga | Made in Dyersville, Iowa, USA

🔑 Benefits

• MFT geometry focuses cutting pressure to fracture ground the PM-SQ-1 standard tip can slip over — standard tungsten tips rely on impact to break hard material. Multi-facet geometry concentrates that impact into multiple angled contact points, creating directed fracturing force. This is the difference between a standard punch and a chisel — same force, far more penetrating effect on hard material.
• Same pocket and locking system as PM-SQ-1 means no hardware changes to upgrade — the PM-SQ-3 uses the same D650/S74 pocket and TRULOC retention as the standard pilot. Operators switch from PM-SQ-1 to PM-SQ-3 without any modification to the auger body.
• Extending pilot life in abrasive conditions reduces the most frequent maintenance event on A4 augers — in sandy, gravelly, or hard-clay conditions, the PM-SQ-1 standard pilot wears significantly faster than in loose earth. PM-SQ-3's harder MFT tip directly extends service life in these conditions, reducing replacement frequency and total maintenance cost.
• OEM Digga manufacturing ensures correct geometry and carbide grade for the A4 pocket — aftermarket MFT pilots vary in carbide quality and face geometry. The PM-SQ-3 is manufactured to the same tolerance as the original pilot, ensuring consistent performance and pocket wear pattern.

📊 Specifications

🔗 Attachment Compatibility

Designed for Digga A4 Earth Auger Bits with PM-SQ (square base) pilot pockets. Uses the same pocket as PM-SQ-1 — no modification required to upgrade. Do NOT use with RC4 (which uses PM-HX-3 hex base) or A6/A8/RC6/RC8/DR series bits. Verify your auger model is A4 before ordering.

🚜 Machine Compatibility

Replacement wear part for Digga A4 Earth Auger Bits — compatible with skid steers and excavators up to 4.5 tons (9,900 lbs):

Machine compatibility inherited from the parent Digga A4 auger system (0.75T–4.5T skid steers and excavators using Digga 1MDS–4DSS drives).
