Recommended flow
10-30 GPM
Torque at 3,000 PSI
2,829 ft-lbs
Model
3DSS
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
5-yr gearbox warranty
3-yr motor warranty
Lifetime shaft pull-out cover
Overview

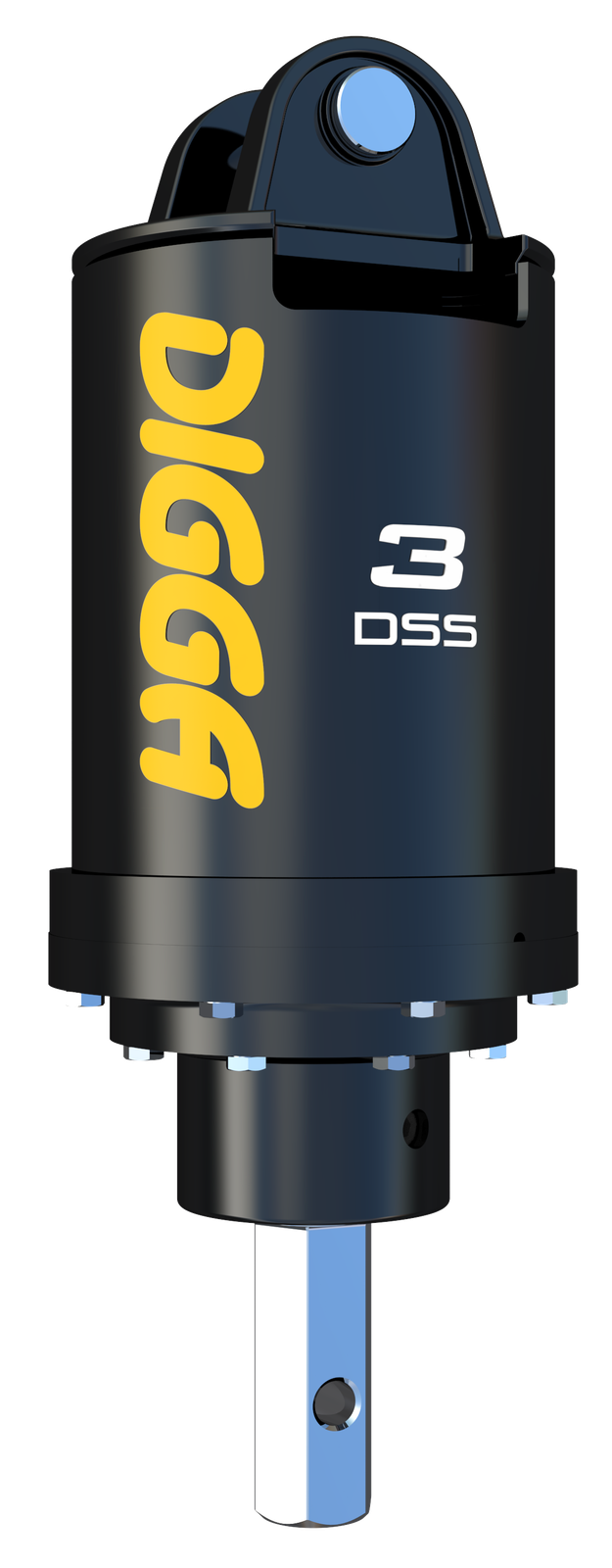

The 3DSS is Digga's planetary skid steer auger attachment for skid steers and compact track loaders of 5,500 - 8,400 lbs: 2,829 ft-lbs at 3,000 PSI, 10-30 GPM, a 2 inch hex shaft, and a universal quick attach frame package with 87 inch hoses and flush-face disconnects. Drive Only comes first for anyone replacing a drive on a frame they already own.
Key Features of the Digga 3DSS Skid Steer Auger Package
- Torque 2,829 ft-lbs at 3,000 PSI, 3,294 ft-lbs at 3,500 PSI
- Recommended flow 10-30 GPM, with 10 GPM the floor for rated torque
- Max speed 98 RPM — the figure that decides how fast a small-diameter hole goes down
- 2 inch hex output shaft taking A4 earth auger bits, AB4 bolt-on auger bits and RC4 rock and earth combo bits; a 2-9/16 inch round shaft is available as an option
- Drills to 30 inches in earth and 24 inches in clay or shale, subject to ground conditions
- The gearbox goes down the hole, so drilling depth is not lost to drive height
- 2-piece shaft design carries side load without putting it through the bearings
- Pressure relief valve optional — integrated into the motor rather than a bulky external valve block
- HALO Alignment Kit optional on every configuration
- 5 year gearbox and 3 year motor warranty for drilling use, plus lifetime shaft pull-out cover
Digga 3DSS Specifications
| Specification | Value |
|---|---|
| Model | 3DSS |
| Max speed (RPM) | 98 |
| Torque at 3,000 PSI | 2,829 ft-lbs |
| Max torque at 3,500 PSI | 3,294 ft-lbs |
| Recommended flow | 10-30 GPM |
| Max pressure — do not exceed | 3,500 PSI at 16 GPM |
| Max flow — do not exceed | 30 GPM at 1,800 PSI |
| Pressure relief valve | Optional |
| Standard output shaft | 2 inch hex |
| Optional output shaft | 2-9/16 inch round |
| Recommended auger bits | A4 / AB4 / RC4 |
| Max drilling diameter — earth | 30 in |
| Max drilling diameter — clay / shale | 24 in |
| HALO alignment | Optional |
| Carrier | Skid steers and compact track loaders of 5,500 - 8,400 lbs |
Choosing How the 3DSS Mounts
| Option | What you get | Choose it when |
|---|---|---|
| Drive Only | The 3DSS drive alone — no frame, hoses or linkage | You are replacing a drive on a frame you already have |

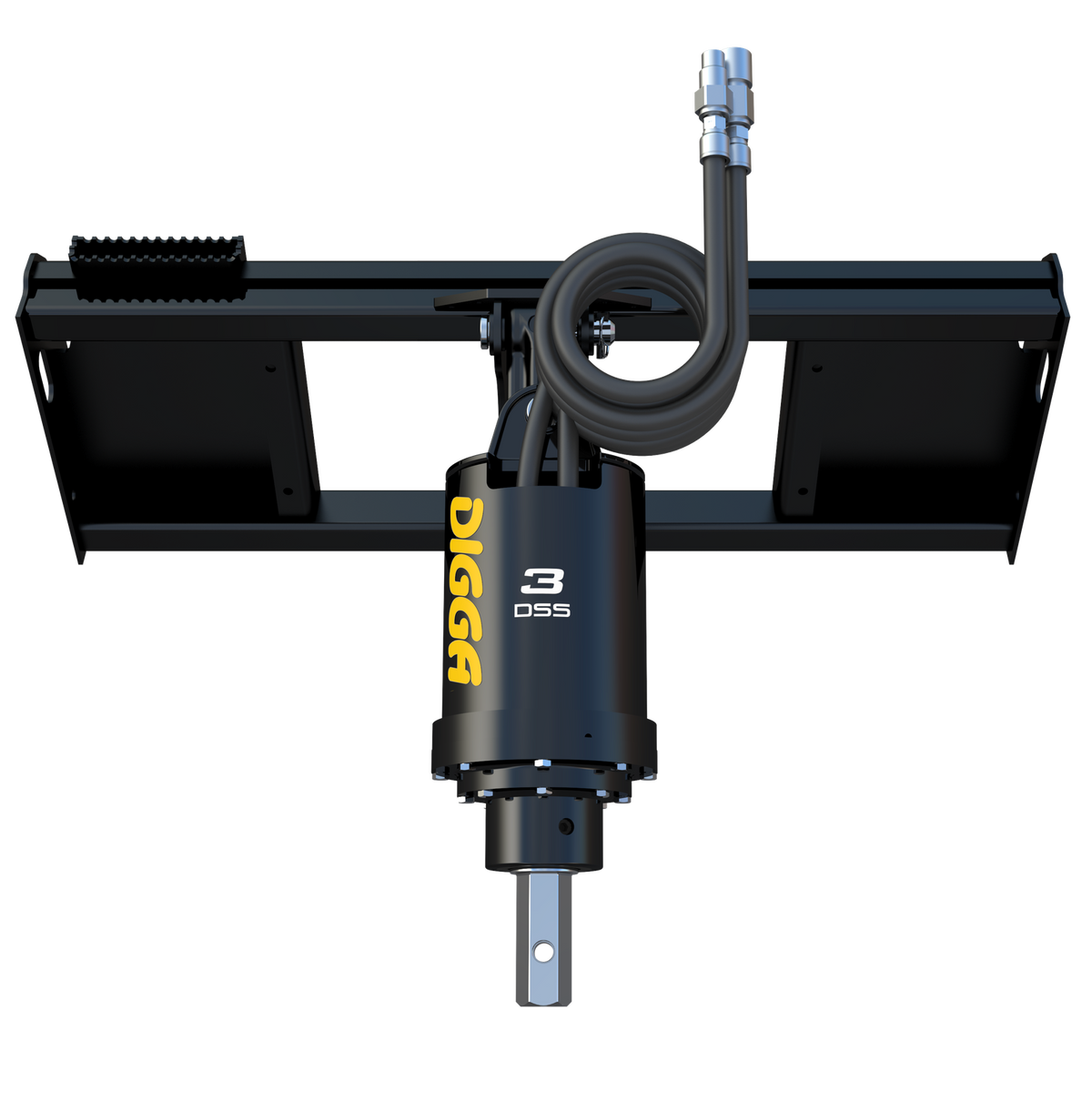

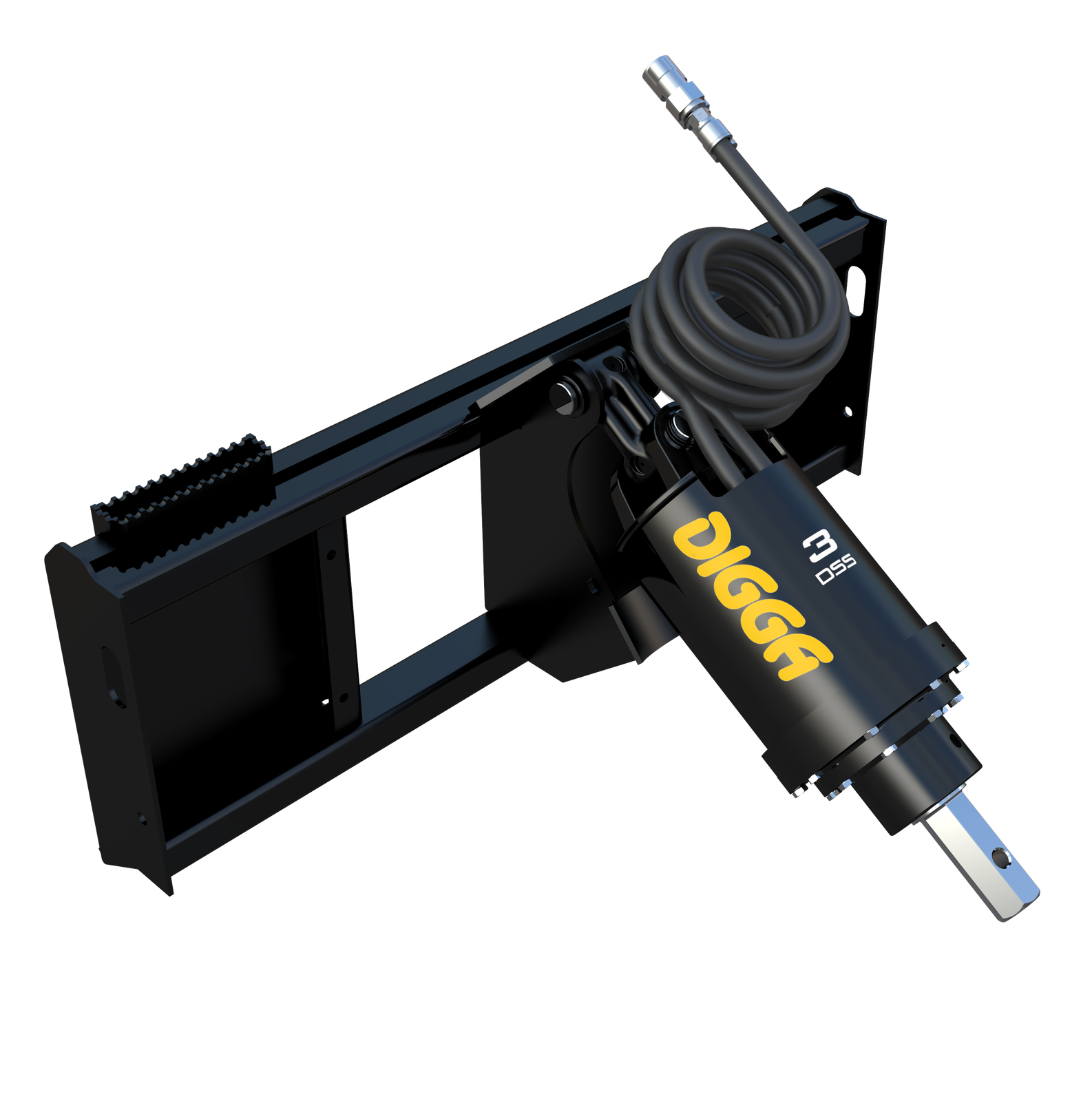

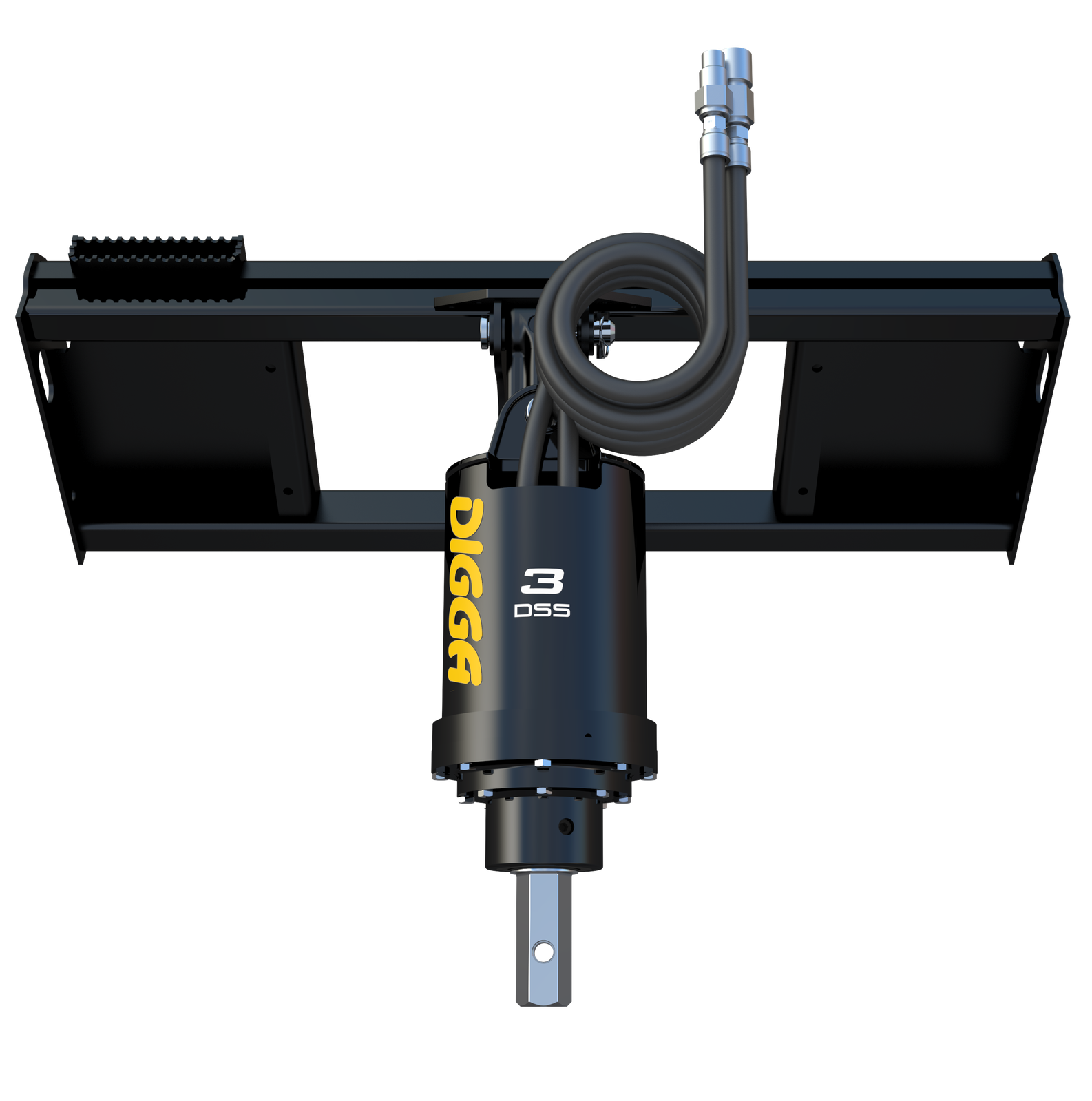

| Universal Quick Attach Frame Package | Drive, universal skid steer frame, 75mm linkage, 87 inch hoses and flush-face quick disconnects | Ordinary drilling at machine reach |
| Extension Frame (TPE) Package | Drive on Digga's telescopic piling and drilling extension instead of the fixed frame | Piling and deeper holes, where the drive needs to travel below machine reach |
A drive working well below the machine needs more hose than the 87 inch set, and Digga's TPE hose kits come in 14 ft and 16 ft for that. Tell us if the package is for TPE work and we will confirm hose length with the order.
HALO Alignment Kit
Every 3DSS option on this page can be taken with No HALO or with the HALO Alignment Kit. The kit is not a bolt-on: the drive arrives with HALO built into its hood, with the extension cable and in-cab 12V plug. A ring of green lights means plumb and red guides the operator back — which is what replaces the second person standing at the hole calling the auger plumb. Retrofitting an older drive is a separate HALO Retrofit Kit.
Where the 3DSS Sits in Digga's Range
Against the 2DSS, the 3DSS adds 26 percent more turning force, from a flow range of 10-26 to 10-30 GPM. The 4DSS above it is another 16 percent up, on the same 30 inch earth ceiling. Max speed is 98 RPM. Speed and torque trade against each other, so the smaller drives in this range spin faster and the larger ones pull harder.
What Comes in the 3DSS Package
- Digga 3DSS auger drive
- Universal skid steer frame and 75mm linkage (HI-000128K), or the TPE extension frame, unless you choose Drive Only
- 87 inch hoses with flush-face quick disconnects on the frame package
- HALO where the HALO Alignment Kit is selected
- Not included: auger bits, and extensions if you need to drill deeper than the bit reaches
Which Loaders Fit the 3DSS?
The 3DSS package mounts on the universal skid steer quick attach plate, so brand does not decide fitment — flow does. It runs on a standard auxiliary circuit from 10 GPM, so it suits ordinary standard-flow loaders.
| Fitment factor | Requirement |
|---|---|
| Mount interface | Universal skid steer quick attach, included with the frame packages |
| Auxiliary flow | 10-30 GPM; 10 GPM minimum for rated torque |
| Circuit pressure | Do not exceed 3,500 PSI at 16 GPM |
| Linkage | 75mm (HI-000128K), included with the frame packages |
| Electrical | 12V for HALO if selected; none otherwise |
| Auger bits | Sold separately — A4, AB4 and RC4 on the 2 inch hex hub |
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Digga 3DSS Skid Steer Package Questions, Answered
Will the 3DSS run on my loader's standard flow?
Yes. The 3DSS is rated from 10 GPM and up to 30 GPM, which is ordinary standard-flow territory. High flow is not required.
What size holes will the 3DSS drill?
Digga rates it to 30 inches in earth and 24 inches in clay or shale. Ground conditions decide what is sensible on the day — the same drive that turns a 30 inch auger in loam will struggle at half that in hard clay.
What is the TPE frame for?
It replaces the fixed frame with a telescopic extension so the drive travels below machine reach. It is bought for piling and deep footings, where it removes the need to stack bit extensions.
Can I put a bigger auger bit on the 3DSS?
Only up to the diameters above. Beyond that the drive stalls rather than breaks, but you lose the day. If you need consistently larger holes, the drive above the 3DSS in the range is the answer.
Which bits fit?
A4 earth auger bits, AB4 bolt-on auger bits and RC4 rock and earth combo bits — all on the 2 inch hex hub. If your existing bits have the 2-9/16 inch round hub, auger adapters convert between the two.
Can the 3DSS run a concrete mixing bowl?
Yes. Digga's concrete mixing bowl runs off the same drive and frame, which is why a lot of contractors buy the package rather than the drive alone.
