Shop the 30DDT 2 Speed High Flow Auger Drive - Digga.

Description:

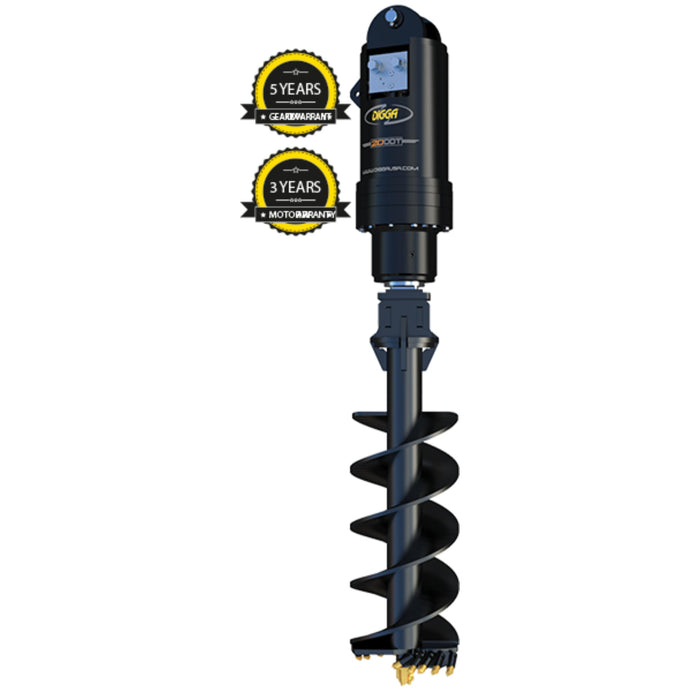

Transform your drilling projects with the 30DDT 2 Speed High Flow Auger Drive—Digga, designed specifically for 18-30T excavators. Featuring a high-torque Digga gearbox and Eaton VIS motor, this cutting-edge unit offers exceptional performance and reduced maintenance. The 2-speed functionality ensures optimal performance for various drilling conditions. It is backed by a 5-year gearbox and 3-year motor warranty. Note: Auger Bit, Hoses, and Mount are sold separately.

Features:

  • Digga-designed Eaton motor minimizes leak points and eliminates bulky valve blocks.
  • 2-piece shaft design ensures maximum side load ratings without extra bearing stress.
  • Integrated Pressure Relief Valve (PRV) prevents motor damage during kickback.
  • Compatible with vehicles producing 20-53 GPM of hydraulic flow at up to 3500 PSI.
  • 100mm square output shaft fits industry-standard auger bits.
  • The compact, high-torque gearbox delivers 31,489 ft-lbs of torque.
  • 2-speed drive unit for versatility in drilling conditions: high torque for hard rock, high speed for soft soils.

Specifications:

SPECIFICATIONS 20DDT 25DDT 30DDT
Max Torque (Ft-lbs @ 3500 PSI) 20,309 25,027 31,489
Recommended Flow (GPM) 20-53 20-53 20-53
Motor Type Eaton Eaton Eaton
Max Pressure 3500 PSI @ 39 GPM 3500 PSI @ 39 GPM 3500 PSI @ 39 GPM
Max Flow 53 GPM @ 2600 PSI 53 GPM @ 2600 PSI 53 GPM @ 2600 PSI
Max Horsepower 80 80 80
Output Shaft 100mm Square 100mm Square 100mm Square
Recommended Auger RC10/RC11 RC10/RC11 RC10/RC11
Max Auger Diameter (Clay/Shale) 60" 60" 60"
Max Auger Diameter (Earth) 72" 72" 72"
Weight (Lbs) 670 670 670
Overall Length (In) 45.9 45.9 45.9
Diameter (In) 14 14 14

What's included?

  • Digga 30DDT 2-Speed High Flow Auger Drive Unit.
  • Integrated Eaton bell motor with pressure relief valve for maximum performance.
  • 10' Powerlead with 2-Pin Connector.
  • Digga 30DDT Operating Manual.
  • Digga 5-Year Gearbox Warranty.
  • Digga 3-Year Motor Warranty.
  • Digga 12-Month Manufacturer Warranty.

Product information brochures:
