Recommended flow
10-26 GPM
Torque @ 3,000 PSI
2,254 ft-lbs
Model
2DSS
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
Made in USA
5-yr warranty
Overview

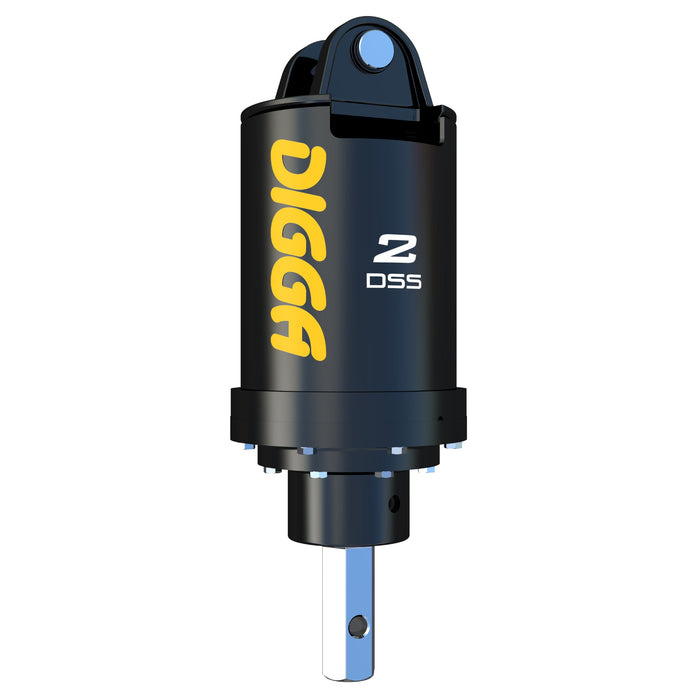

Supplied as a bare drive, this skid steer auger drive is the Digga 2DSS — a step up in torque from the 1DSS on the same 2" hex shaft, for machines that can supply more flow. Because the shaft and mount pattern are unchanged across the standard-flow range, moving from a 1DSS to a 2DSS is a drive swap rather than a rebuild: the same frames, the same hoses and the same A4 and RC4 auger bits carry straight over.
Key Features of the 2DSS Auger Drive Unit
- 2,254 ft-lbs of torque — the figure Digga publishes for the 2DSS
- 10-26 GPM recommended flow — match this against your carrier’s auxiliary circuit
- 2" Hex output shaft — sets which Digga auger bits fit
- Compact high torque Digga manufactured gearbox
- Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- 5 year gear box and 3 year motor warranty / lifetime shaft pull-out warranty
- Over 40 years design and manufacturing experience
- Easily converted to a Screw Anchor Drive with the addition of our patented ‘Anti Kickback Valve’
- TRU-CUT – a 12†auger cuts a 12†hole, no more oversized holes!
Why This Drive Suits Its Machine Class
- A straight upgrade path from the 1DSS — same shaft, same mounts, same bits, more torque, provided your machine can feed it.
- Torque you cannot supply flow for is torque you never get, so check your auxiliary output against the recommended range rather than buying up by default.
- Integrated PRV keeps the hydraulic circuit simple and removes the most common leak point.
- Bell-motor layout puts the gearbox down the hole for more usable depth.
2DSS Auger Drive Unit Specifications
| Specification | Value |
|---|---|
| Model | 2DSS |
| Torque @ 3,000 PSI | 2,254 ft-lbs |
| Max torque @ 3,500 PSI | 2,625 ft-lbs |
| Recommended flow | 10-26 GPM |
| Motor type | Orbital Geroler |
| Max pressure — do not exceed | 3500psi @16gpm |
| Max flow — do not exceed | 30gpm @1800psi |
| Max horsepower | 33 HP |
| Standard output shaft | 2" Hex |
| Recommended auger bits | A4 / RC4 |
| Max drilling diameter — earth | 30" |
| Max drilling diameter — clay/shale | 24" |
| Weight | 123 lbs |
| Overall length | 25.9" |
| Diameter | 9.4" |
| HALO auger alignment | Optional |
| 1dss | 2DSS |
| Carrier weight range | 1-2.5T (2,200-5,500 lbs) |
Every figure above is taken from Digga’s published data sheet for the 2DSS. Add your machine make and model at checkout and we confirm the fit before the order ships.
Which Machines Fit the 2DSS?
For skid steer loaders, compact track loaders and mini excavators supplying the drive’s recommended flow:
| Fitment factor | Requirement |
|---|---|
| Mount | Skid steer frame, mount or pin-on bracket — sold separately |
| Case drain | Not required — single-speed drive on a standard two-line circuit |
| Hoses | Sold separately on the auger-only listings |
| Auger bits | Sold separately — A4 or RC4 on the 2" hex hub |
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Order online — enter your machine make and model with the order and we confirm the mount fits before it ships, coming back to you only if something needs changing. Questions first are welcome at support@eskidsteer.com or on the chat button on your screen.
2DSS Auger Drive Unit Questions, Answered
Can I fit a 2DSS to the frames I use for a 1DSS?
Yes. The standard-flow DSS drives share a mount pattern and a 2" hex output shaft, so frames, linkages, hoses and auger bits carry over.
Does the 2DSS need a case drain?
No. The 2DSS is a single-speed drive and runs on a standard two-line auxiliary circuit. Only Digga’s two-speed DDT drives need a case drain.
What auger bits fit the 2DSS?
Any Digga A4 general-purpose earth bit or RC4 rock/earth combination bit with a 2" hex hub, in diameters from 6" up to the maximum your machine class supports. XO20 extensions add depth in one-foot increments.
Can the 2DSS be used for screw anchors?
Yes, with Digga’s patented anti-kickback valve fitted. Using a DSS drive for anchoring without that valve voids the warranty.
What warranty comes with the 2DSS?
Five years on the gearbox, three years on the motor, and a lifetime shaft pull-out warranty for drilling use, subject to maintenance per the operator’s manual.
What hydraulic flow does it need?
This one is rated for 10-26 GPM. Check that figure against your machine’s auxiliary hydraulic output before choosing — a machine that cannot supply the rated flow will never reach the rated performance, and one that exceeds the limit will run the attachment hot.
Will this fit my machine?
Check three things: it is built for 1-2.5T (2,200-5,500 lbs); the interface is Skid steer frame, mount or pin-on bracket — sold separately; and it needs 10-26 GPM. Add your machine make and model at checkout and we confirm the fit before the order ships.
How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is shown before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order?
Add the item to your cart and check out online — the order page asks for your machine make and model, so there is no need to call ahead. We check the mount against your machine after the order and come back to you if anything needs changing. If you would rather ask first, email support@eskidsteer.com or use the chat button on your screen.
What to Order Alongside the 2DSS
- Auger bits — The 2DSS takes a 2" Hex output shaft, and Digga pairs it with the A4 / RC4 range.
- Mount and linkage — the 2DSS ships without one, so the interface is chosen to match your carrier rather than a generic plate.
- Hydraulic hoses and flush-face quick disconnects — sized to the 2DSS’s 10-26 GPM flow rather than to whatever is on the shelf.
- XO20 auger extensions — cheaper than buying a longer bit for the occasional deep hole on the 2DSS, and they stack.
Contractors reach this page searching for a skid steer auger attachment, for a auger drive, or specifically for a 2dss auger drive. The 2DSS also comes up when people are comparing an skid steer auger against a mini excavator auger, since Digga builds both on shared mounts and shared auger families. Whichever term brought you here, the 2DSS and every other digga auger drive in the range is made in Dyersville, Iowa.
