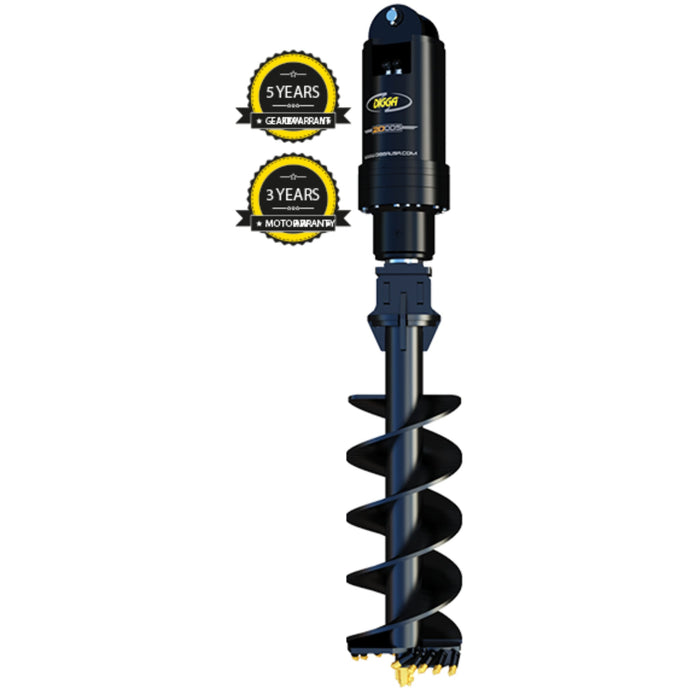

20DDS High Flow Auger Drive - Digga

20DDS High Flow Auger Drive - Digga

$10,490.99 $9,987.99

20DDS High Flow Auger Drive - Digga

$10,490.99 $9,987.99

Shop the 20DDS High Flow Auger Drive - Digga.

Description:
Step up to the elite realm of auger technology with Digga's 20DDS High Flow Auger Drive, designed for 18-30t excavators. A culmination of 30+ years of innovation, it boasts a high-torque Digga gearbox and Eaton motors. Precision meets performance, underscored by a 5-year gearbox and 3-year motor warranty. Note: Auger Bit, Hoses, and Mount are sold separately.

Features:

  • Digga-designed Eaton motor eliminates bulky valve blocks and minimizes leak points.
  • The 2-piece shaft design ensures high side load ratings without additional bearing stress.
  • Compatible with 26-60 GPM hydraulic flow at up to 3500 PSI.
  • 100mm Square Output Shaft aligns with industry-standard Auger Bits.
  • Compact, high-torque gearbox delivers 19,488 ft-lbs of torque, outperforming competitors.

Specifications:

SPECIFICATIONS 20DDS 25DDS 30DDS
MAX TORQUE (FT-LBS @ 3500 PSI) 19,488 24,514 30,771
RECOMMENDED FLOW (GPM) 26-60 26-60 26-60
MOTOR TYPE EATON EATON EATON
MAX PRESSURE (DO NOT EXCEED) 3500 PSI @ 33 GPM 3500 PSI @ 33 GPM 3500 PSI @ 33 GPM
MAX FLOW (DO NOT EXCEED) 61 GPM @ 1800 PSI 61 GPM @ 1800 PSI 61 GPM @ 1800 PSI
MAX HORSEPOWER 67 67 67
PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED
STANDARD OUTPUT SHAFT 100 MM SQUARE 100 MM SQUARE 100 MM SQUARE
RECOMMENDED AUGER RC10 / RC11 RC10 / RC11 RC10 / RC11
MAX AUGER DIAMETER (CLAY/SHALE)* 60 60 60
MAX AUGER DIAMETER (EARTH)* 72 72 78
WEIGHT (LBS) 640 640 640
OVERALL LENGTH (IN) 45.3 45.3 45.3
DIAMETER (IN) 14 14 14

What's included?

  • Digga 20DDS High Flow Auger Drive Unit
  • Operating Manual
  • Digga 5-Year Gearbox Warranty
  • Digga 3-Year Motor Warranty
  • Digga 12-Month Manufacturer Warranty
