Recommended flow
6-16 GPM
Torque at 3,000 PSI
1,452 ft-lbs
Model
1DSS
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
5-yr gearbox warranty
3-yr motor warranty
Lifetime shaft pull-out cover
Overview

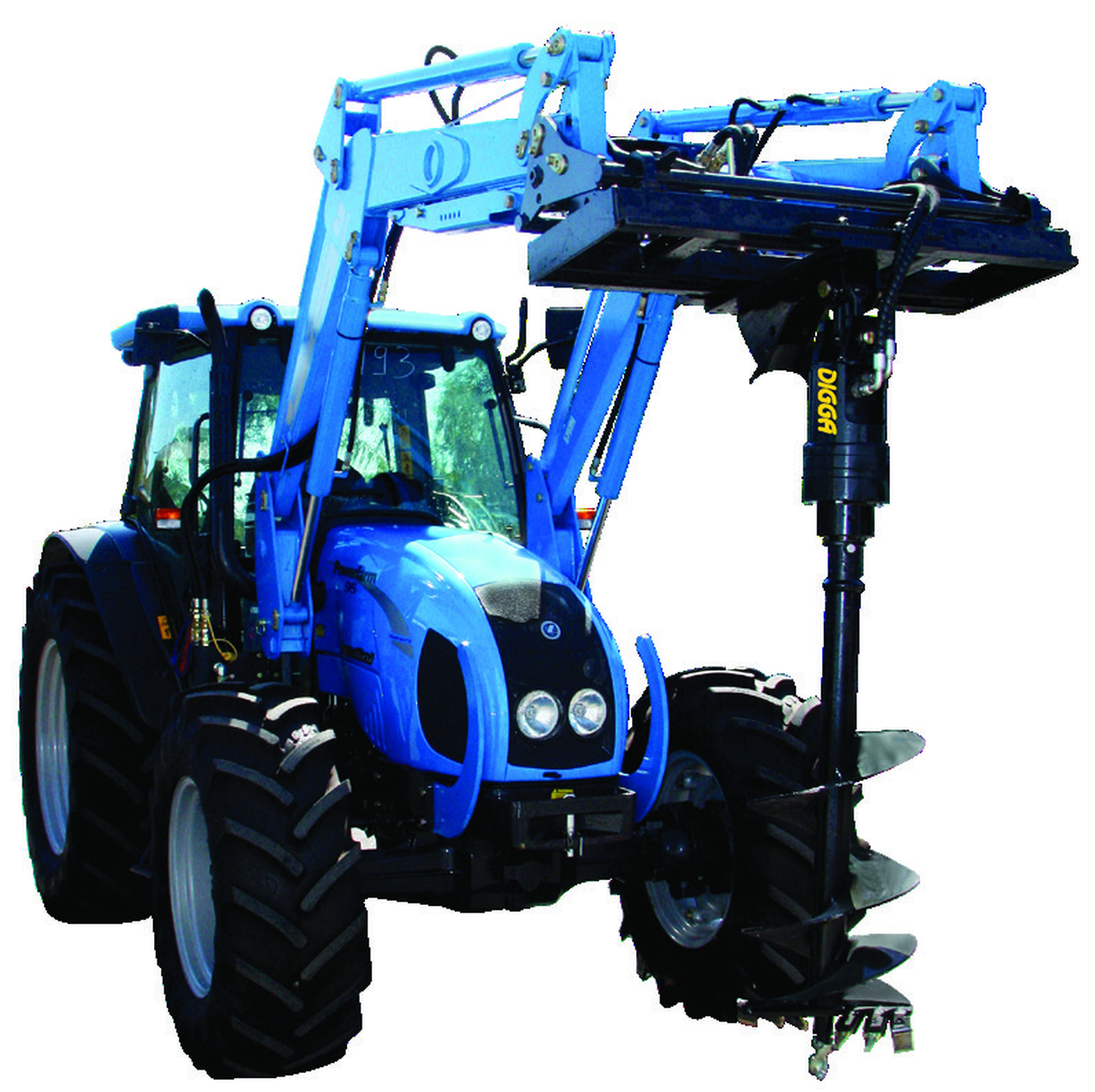

This 1DSS tractor auger attachment mounts on a tractor's front end loader: 1,452 ft-lbs at 3,000 PSI, 6-16 GPM, 2 inch hex shaft. Take it on the Slide Frame Package, which lets the drive shift sideways on the loader, on the Bucket Mount Package, which hangs it from the bucket, or as Drive Only.
Key Features of the Digga 1DSS Tractor Loader Auger Package
- Torque 1,452 ft-lbs at 3,000 PSI and 1,691 ft-lbs at 3,500 PSI
- Recommended flow 6-16 GPM — within reach of most tractor loader auxiliary circuits
- Max speed 100 RPM
- 2 inch hex shaft taking A4 earth auger bits, AB4 bolt-on auger bits and RC4 rock and earth combo bits, with a 2-9/16 inch round shaft available
- Drills to 24 inches in earth and 12 inches in clay or shale
- 87 inch hoses and flush-face quick disconnects with either mount; poppet disconnects are available instead
- HALO Alignment Kit optional
- 5 year gearbox and 3 year motor warranty for drilling use
Digga 1DSS Specifications
| Specification | Value |
|---|---|
| Model | 1DSS |
| Max speed (RPM) | 100 |
| Torque at 3,000 PSI | 1,452 ft-lbs |
| Max torque at 3,500 PSI | 1,691 ft-lbs |
| Recommended flow | 6-16 GPM |
| Max pressure — do not exceed | 3,500 PSI at 16 GPM |
| Max flow — do not exceed | 30 GPM at 1,800 PSI |
| Pressure relief valve | Optional |
| Standard output shaft | 2 inch hex |
| Optional output shaft | 2-9/16 inch round |
| Recommended auger bits | A4 / AB4 / RC4 |
| Max drilling diameter — earth | 24 in |
| Max drilling diameter — clay / shale | 12 in |
| HALO alignment | Optional |
| Carrier | Tractor with a front end loader |
Slide Frame or Bucket Mount for the 1DSS?
| Option | What you get | Choose it when |
|---|---|---|
| Drive Only | The 1DSS drive alone | The tractor already carries a Digga mount |
| Slide Frame Package | Drive, slide frame, hoses and disconnects | You want to shift the drive sideways across the loader to line up a hole without repositioning the tractor |
| Bucket Mount Package | Drive, bucket side mount, hoses and disconnects | You would rather hang the drive off the bucket you already have on the loader |
HALO Alignment Kit
Every 1DSS option on this page can be taken with No HALO or with the HALO Alignment Kit. The kit is not a bolt-on: the drive arrives with HALO built into its hood, with the extension cable and in-cab 12V plug. A ring of green lights means plumb and red guides the operator back — which is what replaces climbing down to check the auger is standing straight. Retrofitting an older drive is a separate HALO Retrofit Kit.
Where the 1DSS Sits in Digga's Range
The 1DSS is the smallest planetary drive in Digga's range, turning at 100 RPM from as little as 6 GPM. The 2DSS above it is another 55 percent up, reaching 30 inches in earth against 24. Max speed is 100 RPM. Speed and torque trade against each other, so the smaller drives in this range spin faster and the larger ones pull harder.
What Comes in the 1DSS Package
- Digga 1DSS auger drive
- Slide frame or bucket side mount, unless you choose Drive Only
- 87 inch hoses with flush-face quick disconnects
- HALO where selected
- Not included: auger bits and extensions
Which Tractors Fit the 1DSS?
Any tractor with a front end loader and an auxiliary hydraulic circuit that reaches 6 GPM. The mount attaches to the loader rather than the tractor, so the loader make and model is what we need at order.
| Fitment factor | Requirement |
|---|---|
| Machine | Tractor with a front end loader |
| Auxiliary flow | 6-16 GPM; 6 GPM minimum for rated torque |
| Circuit pressure | Do not exceed 3,500 PSI at 16 GPM |
| Mount | Slide frame or bucket side mount, included unless Drive Only |
| Machine detail needed at order | Loader make and model |
| Auger bits | Sold separately — A4, AB4 and RC4 on the 2 inch hex hub |
Digga 1DSS Tractor Loader Package Questions, Answered
What is the difference between the slide frame and the bucket mount?
The slide frame carries the drive on a frame that lets it move sideways across the loader, so a hole can be lined up without repositioning the tractor. The bucket mount hangs the drive off the side of the bucket already on the loader, which is simpler and cheaper but fixes the drive in one position.
Will my tractor's hydraulics run the 1DSS?
It needs 6 GPM at the loader's auxiliary circuit to reach rated torque, and must not exceed 3,500 PSI at 16 GPM. Most loader-equipped tractors of any size clear the lower figure; check the upper one if your tractor is a large one.
Can I keep the bucket on?
With the bucket mount, that is the point — the drive hangs off the bucket. With the slide frame, the bucket comes off and the frame goes on.
What size holes will it drill?
Up to 24 inches in earth and 12 inches in clay or shale, per Digga. Post holes, tree planting and fence lines sit well inside that.
Which bits fit?
A4 earth auger bits, AB4 bolt-on auger bits and RC4 rock and earth combo bits on the 2 inch hex hub. Round-shaft bits need auger adapters.
