Description
🔩14 sockets included
🔧Installation tool supplied
🔌Attachment side
📘 Overview
This 14 pin connector kit builds or rebuilds the attachment-side connector on any machine using the 14-pin Deutsch HD standard. It is the female half — the connector that lives on the attachment and receives the machine-side plug. Connector body, all fourteen sockets, cap, seal, strain relief and the installation tool are included.
Connectors of this type are commonly called Deutsch connectors after the connector family. The 14-pin version is the shared standard across most current skid steer and compact track loader brands, so the same kit serves a mixed fleet.
⚙ What Comes in the 14 Pin Connector Kit
- Female Deutsch HD 14-pin connector body — the attachment-side half
- 14 female sockets — a full complement, one per position
- Barrel top cap with seal and strain relief — keeps moisture and vibration out of the termination
- Installation tool — for seating sockets correctly in the connector body
- Instructions — supplied with the kit
🔑 Why Build Your Own Connector
- Fit a standard connector to an attachment that has none — aftermarket and imported attachments frequently arrive with bare wires or a proprietary plug
- Repair without replacing the harness — a broken connector body does not condemn the whole loom
- Full socket count included — a partially populated connector can be fully wired if needed
- Correct seating tool included — sockets that are not fully seated back out under vibration, which is the usual cause of an intermittent circuit
📊 14 Pin Deutsch Connector Kit Specifications
| Specification | Value |
|---|---|
| Part number | SG-KIT-DT-14-F |
| Connector type | Deutsch HD 14-pin, female |
| Side | Attachment side |
| Sockets included | 14 |
| Tool included | Yes — installation tool |
| Standard pin arrangement | B = ground; C, D, E, F, G, H = controls |
| Manufacturer | Skid Steer Genius |
🚜 Which Machines Use the 14 Pin Connector?
The 14-pin connector is a shared standard rather than one manufacturer's design. It is used across Bobcat, John Deere, Kubota, Case, New Holland, Takeuchi, Gehl and Caterpillar D-Series and Next Gen loaders, among others.
| Brand | Models |
|---|---|
| Caterpillar D-Series / D3 | 236D, 242D, 246D, 257D, 259D, 262D, 289D, 299D, 259D3, 262D3, 289D3, 299D3 |
| Caterpillar Next Gen | 255, 257, 262, 265, 270, 275, 289, 299 |
| John Deere | 317G, 323E, 325G, 331G, 331P, 332D, 333G |
| Kubota SVL | SVL65, SVL75, SVL90, SVL95, SVL97 |
| Takeuchi | TL10, TL12, TL130, TL140, TL150, TL240 |
| Case / New Holland | SR117, SR121, SR200, SR210, SR270, TV370, TV380, L220, L328 |
Pin K needs care on a Bobcat. On most machines position K is a ground sense used for high flow, but on a Bobcat it is a keyed hot — leaving a socket in K on the attachment side will blow a fuse immediately. Push pin K through where a Bobcat machine is involved.
This kit is the female, attachment-side half. The machine side takes the male kit instead. Count positions rather than installed terminals when checking what your machine has.
❓ Deutsch Connector Kit Questions, Answered
What is a Deutsch connector?
Deutsch is a family of sealed electrical connectors widely used on off-highway machinery, named after the connector manufacturer rather than any machine brand. The Deutsch HD 14-pin version is the standard attachment connector on most current skid steer and compact track loaders.
Do I need the male or the female kit?
The female kit, SG-KIT-DT-14-F, is the attachment-side connector — it receives the pins and plugs into the machine. The male kit is the machine side. If you are building or repairing the connector on the attachment itself, this female kit is correct.
What is the difference between pins and sockets?
Pins are the male terminals that protrude; sockets are the female terminals that receive them. This kit contains 14 female sockets because it builds the female, attachment-side connector.
Which positions do I wire to?
The standard arrangement uses B for ground, with C, D, E, F, G and H carrying the control circuits. That matches how most machines and controllers are configured.
My attachment has three loose wires — how do I wire them in?
Cut off the original connector, identify the ground (usually black) and install it into position B, then run the remaining two wires into C and D. If you do not have a proper crimping tool, solder the wires into the sockets rather than relying on a poor crimp.
Do I need a special tool to assemble this connector?
An installation tool is supplied for seating the sockets. A crimping tool is needed separately to terminate the wires onto the sockets before they are inserted — or solder them if you do not have one.
What happens if a socket is not fully seated?
It will back out under vibration and produce an intermittent circuit — a function that works one day and not the next. Use the supplied tool and confirm each socket clicks home.
How do I remove a socket if it goes into the wrong position?

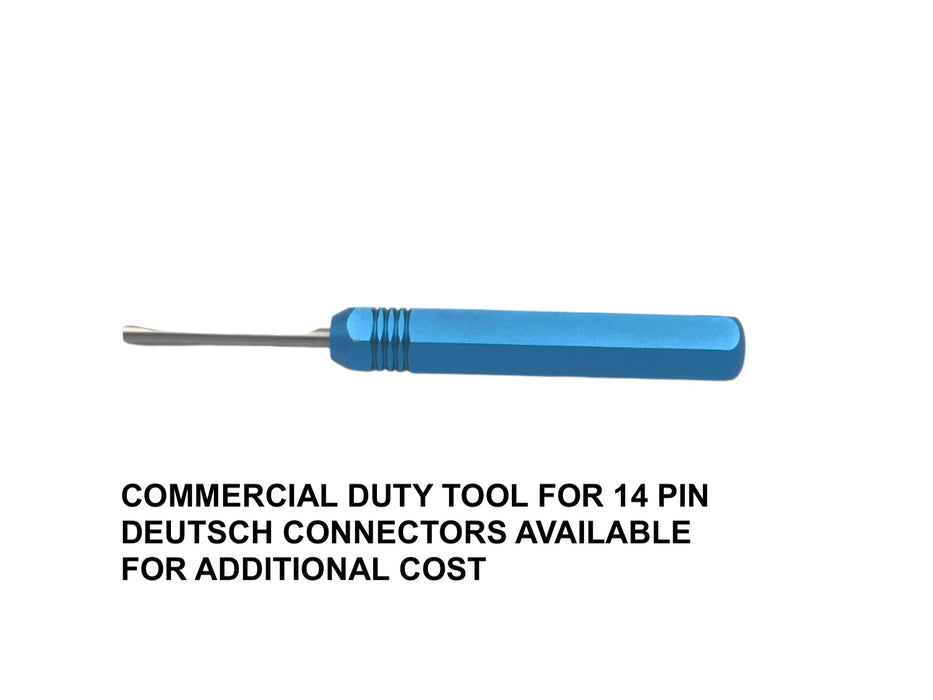

Deutsch connectors are designed to be serviced. A removal tool unseats the retaining mechanism so the terminal can be withdrawn from the back of the connector and reinserted correctly.
My machine is a Bobcat — is there anything I should know about pin K?
Yes, and it matters. On most machines position K is a ground sense used for high flow, but on a Bobcat it is a keyed hot. Leaving a socket in position K on the attachment side will blow a fuse as soon as it is plugged in. Push pin K through where a Bobcat is involved.
My connector only has 8 sockets fitted — is it still a 14 pin connector?
Very likely yes. Manufacturers frequently install fewer terminals than the housing supports, so a connector with seven, eight or nine terminals fitted can still be a 14-position housing. Count the positions including the empty holes.
Does this kit include wire or a harness?
No. It is a connector kit — connector body, 14 sockets, cap, seal, strain relief, installation tool and instructions. Wire and harness are not included.
Will building this connector let me run a Bobcat CAN attachment?
No. A connector kit provides the physical connection; it cannot translate a CAN control signal. Bobcat attachments with a control box on board need a controller rather than a connector.
My machine only has two controls — will fitting this connector give me more?
No. The connector provides the physical interface, but the number of controls is set by the machine and its harness. If the machine only supplies two switched circuits, a connector will not add more — that needs a controller.
Ordering, Shipping & Returns
Ordering. Add the item to your cart and check out online. Have your machine make, model and serial number to hand so fitment can be confirmed before you order.
Shipping. Calculated at checkout — enter your delivery address and the charge is shown before you complete the order.
Returns. Within 7 days of receipt, item new and unused. A 25% restocking fee applies and return shipping is the customer's responsibility unless the error was ours.
Not sure it fits? Email us at support@eskidsteer.com or click the chat icon on any page before ordering — confirming your connector type is the simplest way to avoid a return.
🎥 Deutsch Connector Assembly Video
Watch Product Video on YouTube
