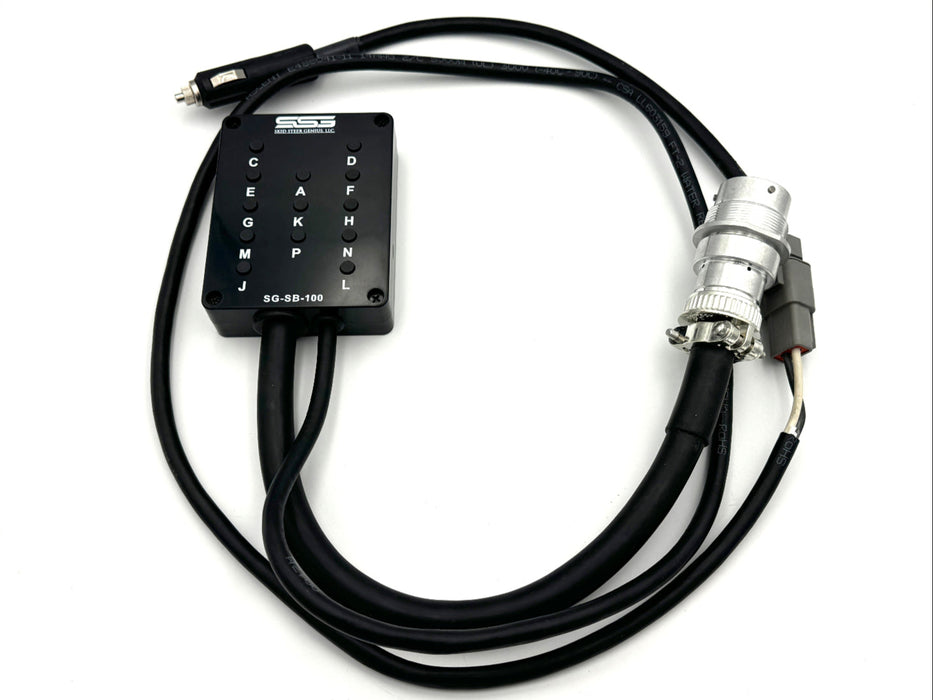

14 Pin Attachment Control Test Box: This custom-built testing unit is designed for diagnosing and mapping functions on skid steer attachments equipped with standard 14 pin Deutsch HD connectors.
Designed for Fast Troubleshooting: This tool allows you to quickly test every function on an attachment before starting repairs or rewiring. It helps identify incorrect wiring, faulty solenoids, or unknown pin configurations without needing to connect directly to the machine.

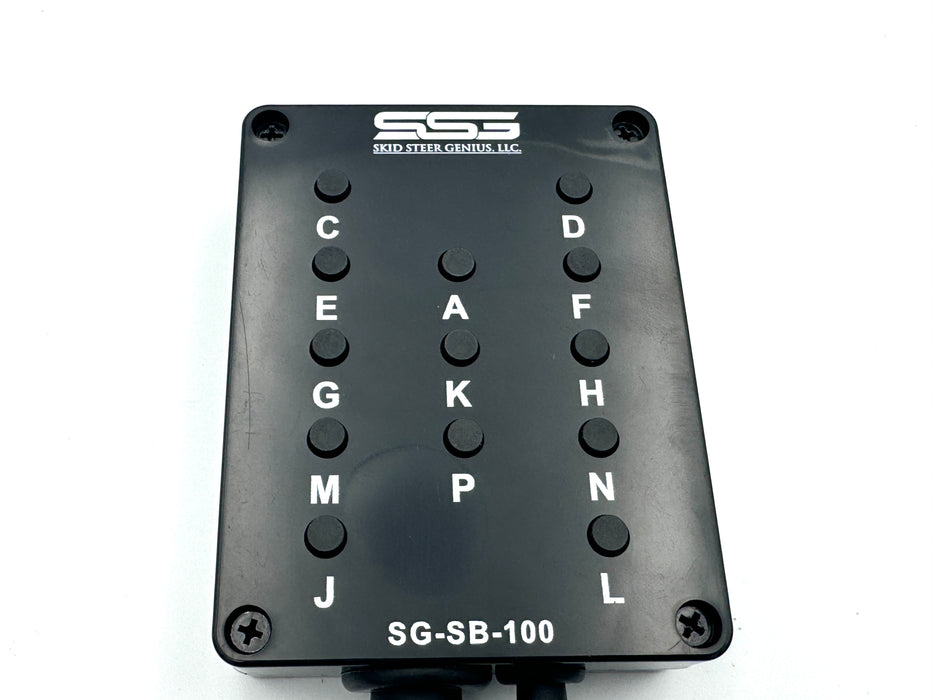

Map Attachment Functions Easily: Each pin on the 14 pin connector can be tested and identified, making it simple to determine which control activates each function. This eliminates guesswork and speeds up both diagnostics and setup.

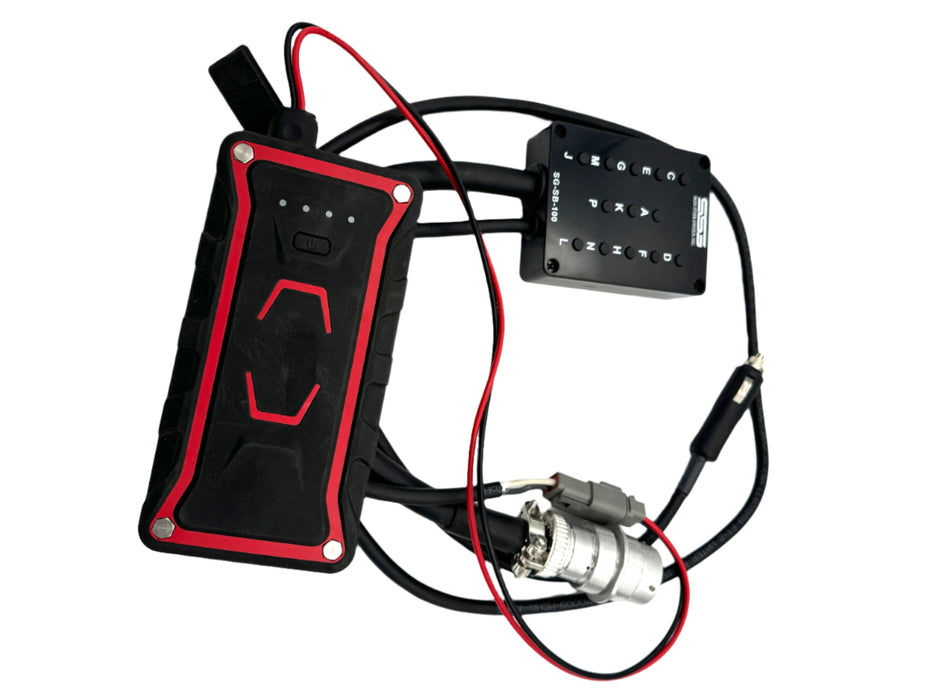

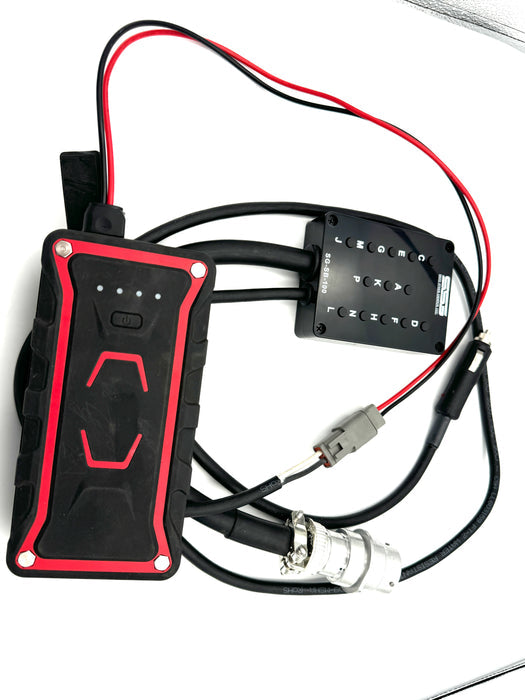

Simple Power Setup: The unit is powered through a standard cigarette lighter outlet in your machine. If your machine does not have one, an optional battery pack can be used for portable operation.
Compatible with 14 Pin Attachments for:
John Deere Compatibility Note: To use this tester with John Deere machines, the ground wire must be repositioned. Move the ground from pin B to pin A inside the connector. The original pin A wire will not be used during testing. Adjusting the attachment wiring instead of the test box is recommended for convenience.
Ideal for Shops and Operators: This tool is extremely useful for mechanics, equipment shops, and operators who regularly work with multiple attachments and need a reliable way to diagnose and verify control functions.
Compatible Machines:
Important Note: Adjusting the ground wire for John Deere compatibility will make the unit specific to that configuration. Ensure your setup matches your intended use before modifying wiring.
Key Features:
This tool is designed to quickly test and diagnose 14-pin skid steer attachments by identifying pin functions and verifying proper operation.
It is ideal for technicians, mechanics, and operators who frequently troubleshoot or repair skid steer attachments.
It works with most 14-pin equipped machines including Case, CAT D-Series, Kubota, New Holland, Takeuchi, Gehl, Mustang, Yanmar, and others.
It works with older Bobcat machines that use 14-pin connectors but not with newer models that use 7-pin CAN systems.
Yes, but it requires moving the ground wire from pin B to pin A for proper operation.
Yes, but modifying it for John Deere may make it incompatible with other brands unless reversed.
It plugs into your machine’s cigarette lighter socket, or it can be used with an optional battery pack.
No, the battery pack is optional and must be purchased separately if needed.
It helps identify wiring issues, verify pin functions, and test solenoid operation before working on the attachment.
No, this test box is specifically designed for 14-pin systems and is not compatible with 8-pin connectors.
The unit provides up to 12 outputs, each mapped to corresponding pins in the 14-pin connector.
Yes, it allows you to easily determine which machine controls activate specific attachment functions.
