Description
📘 Overview

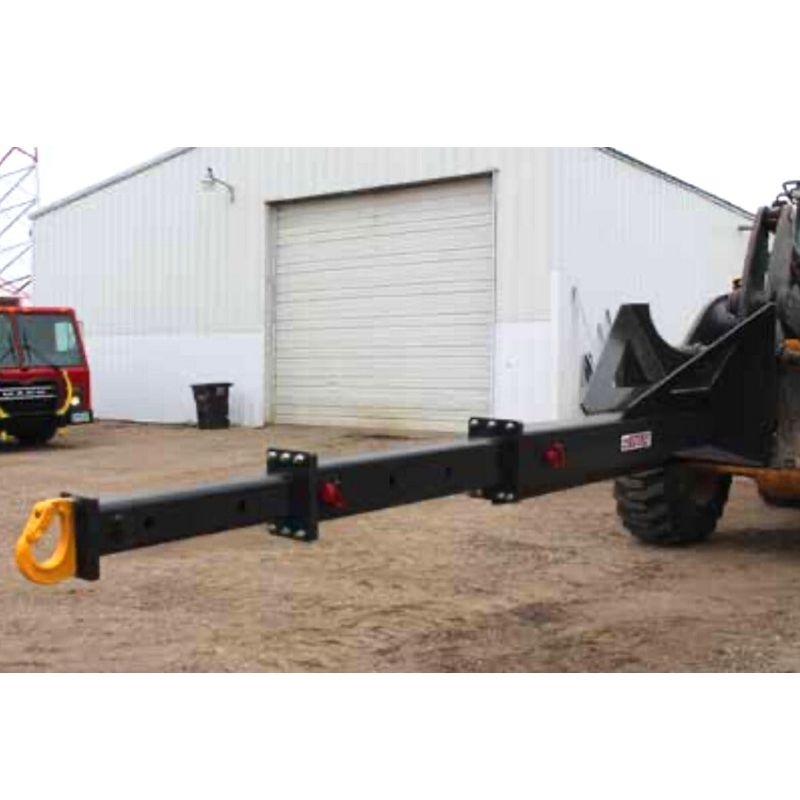

Haugen's wheel loader jib boom (MIJ-WL series) is a heavy-duty adjustable jib built for full-size wheel loaders with JRB 416, JRB 418, or Cat Fusion quick couplers. Maximum capacity: 22,000 lbs. Two slide configurations: Single Slide (max 15 ft reach) and Dual Slide (max 13'2" reach). Heavy-duty weld-on hook standard. Multiple extension positions. 6 SKUs covering all three coupler types in both slide configurations. Over-engineered for high-capacity wheel loaders. Made in USA with a 1-year warranty.
⚙️ Key Features
- Three coupler types: JRB 416, JRB 418, Cat Fusion
- Two slide configs: Single Slide (15 ft max) and Dual Slide (13'2" max)
- Maximum capacity: 22,000 lbs (at shortest position)
- Heavy-duty weld-on hook standard
- Multiple extension positions
- Over-engineered for high-capacity wheel loader applications
- Made in USA | 1-year warranty
🔑 Benefits
- 22,000 lb maximum capacity matches the lifting capacity of large wheel loaders at close load centers — full-size wheel loaders (Cat 950-972, Komatsu WA380-WA500, Volvo L90-L120) are rated at 12,000-22,000+ lbs at rated load center. The MIJ-WL1 jib at position 1 (24", 22,000 lbs) aligns with the machine's closest-center rated capacity, allowing the operator to use the full machine rating at the jib's tightest position.
- Single Slide (15 ft) vs Dual Slide (13'2") covers two reach profiles — the Single Slide extends to 15 feet maximum, providing greater reach at the cost of slightly lower capacity at max extension. The Dual Slide uses two sliding sections that extend telescopically to 13'2", providing a more compact stowed profile and potentially different intermediate position spacing. Select based on your primary reach requirement and space constraints.
- Quick coupler mounting enables rapid jib-to-bucket transitions without dismounting — with a quick coupler, the operator can switch from bucket to jib from the cab without leaving the machine. This is critical on job sites where the same machine alternates between loading and lifting tasks — the transition takes under a minute rather than requiring manual pin changes or coupler hardware.
- Purpose-built for wheel loaders rather than adapted from telehandler jib designs — Haugen specifies the MIJ-WL series as "over-engineered to handle high lift capacity wheel loaders," meaning the frame, pivot, and locking structure are designed for the specific geometry and load cycles of wheel loader applications. The available capacity chart (22,000 lbs at position 1 down to ~2,800 lbs at position 5) reflects wheel loader load center geometry.
📊 Specifications
| SKU | Coupler | Slides | Max Reach |
|---|---|---|---|
| MIJ-WL1-416 | JRB 416 | Single Slide | 15 ft |
| MIJ-WL2-416 | JRB 416 | Dual Slide | 13'2" |
| MIJ-WL1-418 | JRB 418 | Single Slide | 15 ft |
| MIJ-WL2-418 | JRB 418 | Dual Slide | 13'2" |
| MIJ-WL1 | Cat Fusion | Single Slide | 15 ft |
| MIJ-WL2 | Cat Fusion | Dual Slide | 13'2" |
Single Slide Capacity Chart (MIJ-WL1)
| Position | Length | Max Capacity |
|---|---|---|
| 1 | 24" | 22,000 lbs |
| 2 | 48" | 20,000 lbs |
| 3 | 72" | 18,000 lbs |
| 4 | 98" | 11,300 lbs |
| 5 | ~180" | ~2,800 lbs est. |
| Specification | Value |
|---|---|
| Hook | Heavy-duty weld-on hook (standard) |
| Positions | Multiple extension positions — varies by single/dual slide |
| Coupler Options | JRB 416 | JRB 418 | Cat Fusion |
| Application | High-capacity wheel loader crane-substitute lifting |
| Warranty | 1 year |
| Origin | Made in USA |
🔗 Attachment Compatibility
Select coupler type matching your wheel loader's quick coupler. The 22,000 lb maximum capacity applies at the closest extension position only (Position 1, 24"). Never exceed the position-specific rated capacity shown on the load chart. Contact eSkidSteer at 866-757-8337 if your wheel loader's coupler is not listed.
🚜 Machine Compatibility
Designed for wheel loaders with JRB 416, JRB 418, or Cat Fusion quick couplers. Select the coupler style matching your machine:
| JRB 416 | JRB 418 | Cat Fusion |
Verify coupler type with your wheel loader dealer before ordering. Both JRB 416 and JRB 418 are compatible with both single-slide and dual-slide configurations.
❓ FAQs
|
Q: What is the difference between Single Slide (WL1) and Dual Slide (WL2)?
The Single Slide (WL1) has one telescoping section and extends to 15 feet maximum. The Dual Slide (WL2) has two telescoping sections and extends to 13'2" maximum. The dual slide has a shorter maximum reach but a more compact retracted profile and may have different intermediate position spacing. Choose WL1 if you need maximum reach (15 ft); choose WL2 if you have space constraints or prefer the dual-slide mechanism. |
|
Q: How do I know if my wheel loader uses JRB 416, JRB 418, or Cat Fusion?
JRB 416 and 418 are quick coupler standards common on Komatsu, John Deere, Volvo, and some Cat wheel loaders. Cat Fusion is Caterpillar's proprietary quick coupler standard. Consult your wheel loader's operation manual or dealer to confirm the specific coupler on your machine. The coupler style is a mechanical specification of the carriage; it does not depend on machine size or model year, only the coupler installed. |
|
Q: What is the capacity at full extension (15 ft or 13'2")?
The capacity chart provided with the jib shows position-specific ratings. At Position 5 (~180" / 15 ft for Single Slide), capacity drops significantly from the 22,000 lb maximum at Position 1. Based on the published chart, Position 5 is approximately 2,800 lbs — a fraction of Position 1 capacity. Always consult the load chart before lifting and never exceed the position-specific rated capacity. |
|
Q: Can I add a swivel hook to replace the weld-on hook?
The standard hook is a weld-on fixed hook. Haugen offers upgrade options for swivel hooks on the MIJ series (H-M001, H-M002 upgrades). Contact eSkidSteer at 866-757-8337 for availability of swivel hook upgrades on the MIJ-WL series specifically. |
|
Q: Is the MIJ-WL available for other wheel loader coupler standards?
Haugen currently offers JRB 416, JRB 418, and Cat Fusion. For other coupler standards (JRB 412, Volvo, New Holland, etc.), contact eSkidSteer at 866-757-8337. They state "If you don't see the mount you need, please call us to quote the jib for your machine." |
