Description:

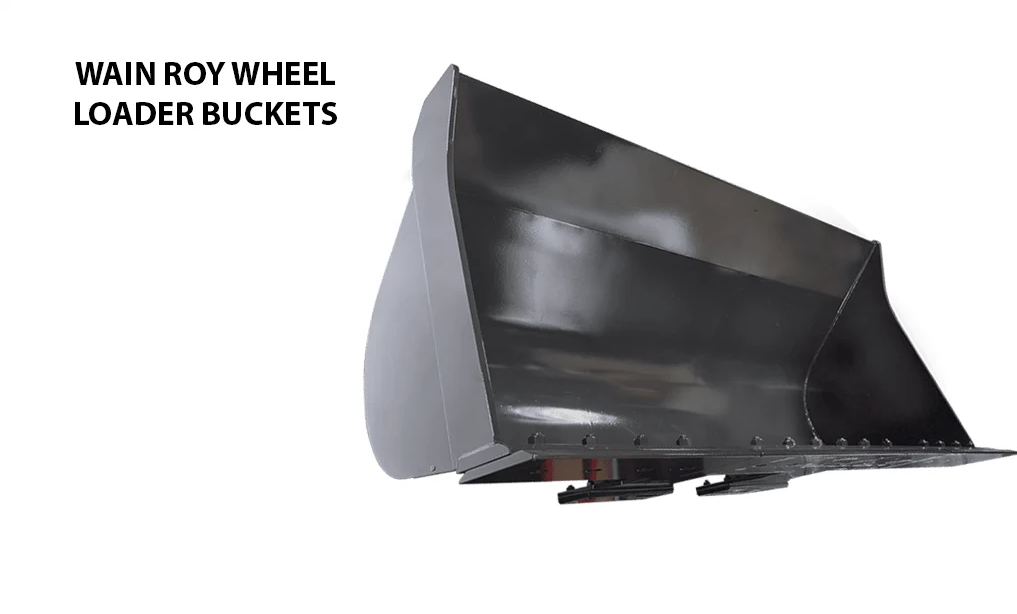

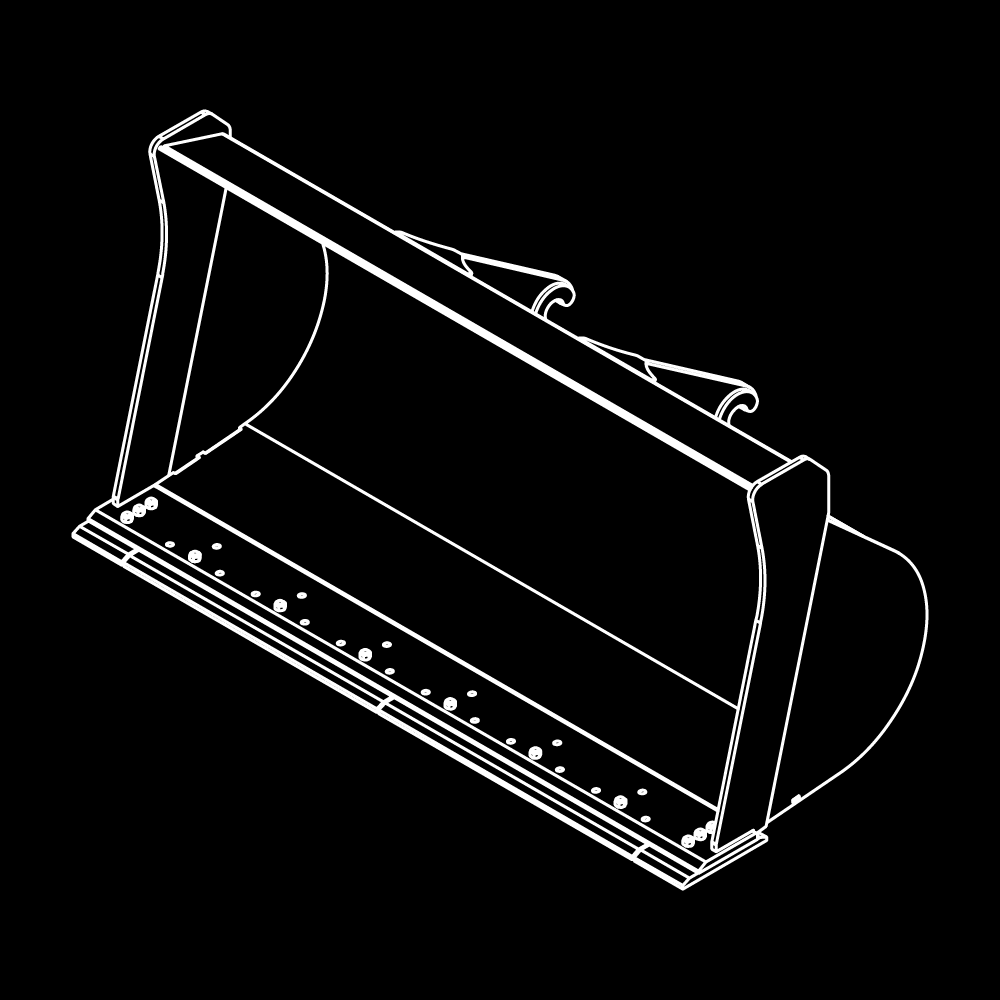

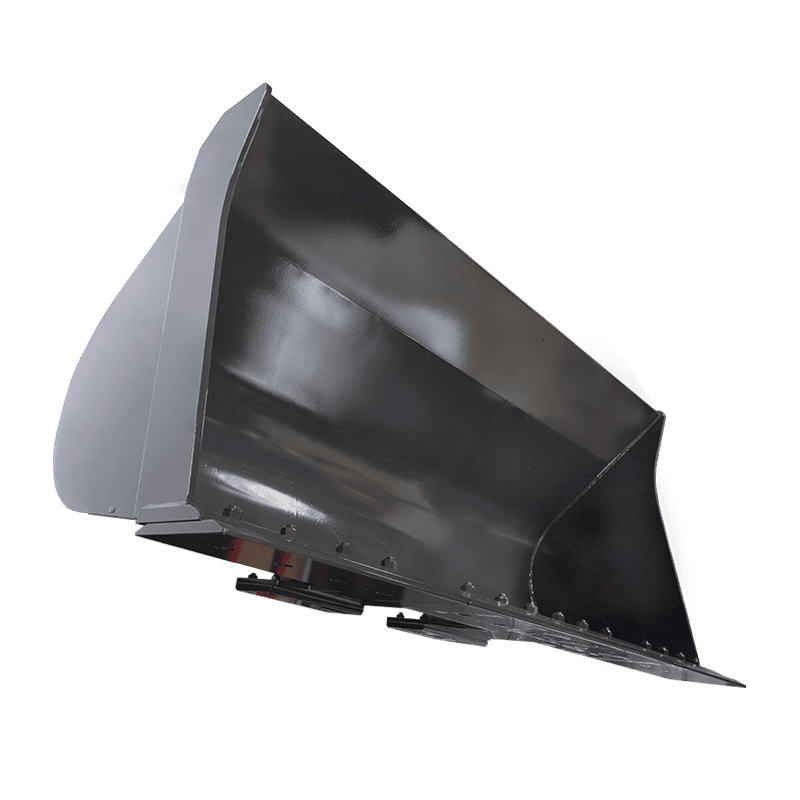

GENERAL PURPOSE WHEEL LOADER FOR JRB® STYLE COUPLER
Compatible with popular JRB® coupler and John Deere® coupler styles. Flat top edge allows you to visually level the bucket. 100 KSI yield material in critical wear areas of bucket, 50 KSI yield material in all other areas. 1‑piece moldboard on 1.5 to 3.75 cubic yard buckets. 1‑piece bridge on all buckets for added strength. Replaceable skid shoes and bolt‑on cutting edges (BOCEs). New slope bottom design features 5% raised dump angle and better roll and fill. Intended for use in dirt, gravel, loose materials up to 3,000 lbs per cubic yard.
Specifications:
| Bucket Class | Width | SAE Heaped Capacity (Cu. Yd.) | Skid Shoe Kit | Lbs |
|---|---|---|---|---|
| Class 2 | 97" | 1.50 | 3 | 1508 |
| Class 2 | 100" | 1.75 | 3 | 1565 |
| Class 2 | 100" | 2.00 | 2 | 1888 |
| Class 2 | 102" | 2.25 | 2 | 1959 |
| Class 2 | 106" | 2.50 | 2 | 2137 |
| Class 3 | 102" | 2.75 | 1 | 2328 |
| Class 3 | 106" | 3.00 | 1 | 2495 |
| Class 5 | 106" | 3.25 | 1 | 2900 |
| Class 6 | 119" | 3.50 | 2 | 3440 |
| Class 6 | 119" | 3.75 | 2 | 3498 |
| Class 6 | 119" | 4.00 | 2 | 4164 |
| Class 6 | 119" | 4.25 | 2 | 4320 |
| Class 6 | 119" | 4.50 |
Fits:
| Make | Model |
|---|---|
| CASE | 521E, 521E XT, 521EXR, 521F, 521G |
| CATERPILLAR | 910M, 912G, 914M, 918M, 924H, 924Hz, IT14G |
| DAEWOO / DOOSAN | DL200, DL60 |
| DRESSTA | 510E, 515E, 515EH, 515EH HL |
| GEHL | 540, 650 |
| HYUNDAI | HL740-9 |
| JCB | 411 HT, 416 HT, 417 HT |
| JOHN DEERE | 324K, 344J, 344L, 444K HL, 444K Powerllel, 444K Z-bar |
| KAWASAKI | 50ZV, 60Z7, 60ZV-2 |
| KOMATSU | WA120-3, WA150-5, WA150-6 |
| LIEBHERR | L508, L509, L510, L514 |
| NEW HOLLAD | LW90, W100B, W110, W110C, W110TC |
| TEREX | SKL160H, SKL844, SKL854, TL120, TL160, TXL160-1 |
| VOLVO | L40B, L45B, L45H, L50D, L50E, L50H |
| YANMAR | V10, V12 |
| Make | Model |
|---|---|
| CASE | 621DXT, 621E, 621E XR, 621F, 621G |
| CATERPILLAR | 628Hx, 926M, 928H, 930H, 930M, 938H, IT38H |
| DAEWOO / DOOSAN | DL200, DL200-5, DL200TC-5, DL220-5, DL250, DL250-5 |
| DRESSTA | 520E, 520EH, 520EH HL |
| GEHL | 750 |
| HYUNDAI | HL540-9, HL757-9, HL760-9, HL940, HL955, HL955 XT, HL960 |
| JCB | 426HT, 427HT, 427ZX |
| JOHN DEERE | 524K HL, 524K HL WH, 524K WH, 524K Z-Bar, 524K-II, 524K-II HL, 524K-II Z-Bar, 544K HL, 544K HL Powerllel, 544K HL WH, 544K WH, 544K Z-Bar, 544K-II HL, 544K-II Powerllel, 544K-II Z-Bar |
| KAWASAKI | 62Z7, 65TMV-2, 65VZ-2, 67TM7 |
| KOMATSU | WA180-3, WA200-5, WA200-7, WA200-8, WA200PZ-6, WA270-7, WA270-8 |
| LIEBHERR | L514, L524 2plus1, L526, L528 2plus1 |
| NEW HOLLAD | W130, W130B, W130C, W130TC |
| TEREX | SKL260H, SKL863, TXL200-2 |
| VOLVO | L60D, L60E, L60F, L60H, L70E, L70F, L70H |
| Make | Model |
|---|---|
| CASE | 721E, 721E XR, 721E XT, 721F, 721G |
| CATERPILLAR | 930M, 938H, 938M, 950GC, 950H, 950M, 962H, 962L, IT38H |
| DAEWOO / DOOSAN | DL250, DL250-5, DL250TC-5, DL280-5 |
| DRESSTA | 530E |
| HYUNDAI | HL740-9, HL757-9, HL760-9, HL955, HL960, HL960 HD, HL960 XT |
| JCB | 436HT, 436ZX, 437 HT |
| JOHN DEERE | 624K HL, 624K Powerllel, 624K WH, 624K Z-Bar, 624K-II, 624K-II HL, 624K-II Powerllel, 624K-II TC, 624K-II Z-Bar |
| KAWASAKI | 67Z7, 70TMV-2, 70Z7, 70Z7 T4F, 70ZV-2 |
| KOMATSU | WA250-3, WA250-5, WA250-6, WA250PZ-6, WA320-3, WA320-5, WA320-6, WA320-7, WA320-8, WA320PZ-6 |
| LIEBHERR | L524 2plus1, L528 2plus1, L538, L538 2plus1, L542 2plus1, L546, L550 Xpower |
| NEW HOLLAD | LW170, LW170B, LW170TC, W170C |
| TEREX | SKL873, TL260, TXL250-1, TXL250-2 |
| VOLVO | L60E, L60F WH, L90E, L90F, L90H |
| Make | Model |
|---|---|
| CASE | 821E, 821E XR, 821F, 821G |
| CATERPILLAR | 950GC, 950H, 950M, 962H, 962L, 962M, 966M XE, 972M XE, IT62H |
| DAEWOO / DOOSAN | DL300, DL300-5, DL350-5 |
| DRESSTA | 530E |
| HYUNDAI | HL757-9, HL760-9, HL770-9, HL960, HL960 HD, HL960XT, HL965, HL965XT |
| JCB | 456HT, 456ZX, 457HT |
| JOHN DEERE | 644K HL, 644K HL WH, 644K Powerllel, 644K WH, 644K Z-Bar, 724K HL, 724K HL WH, 724K WH, 724K Z-Bar |
| KAWASAKI | 80Z7, 80Z7 T4F, 80ZV-2, 85Z7, 85ZV-2 |
| KOMATSU | WA380-3, WA380-5, WA380-6, WA380-7, WA380-8 |
| LIEBHERR | L524 2plus1, L528 2plus1, L538 2plus1, L542 2plus1, L550 2plus2, L550 Xpower Z-bar, L556 Xpower Z-bar |
| NEW HOLLAD | W190, W190B, W190C |
| TEREX | TXL300-1, TXL300-2 |
| VOLVO | L110E, L110H, L120E, L120H, L120LB, L90E, L90F WH |
