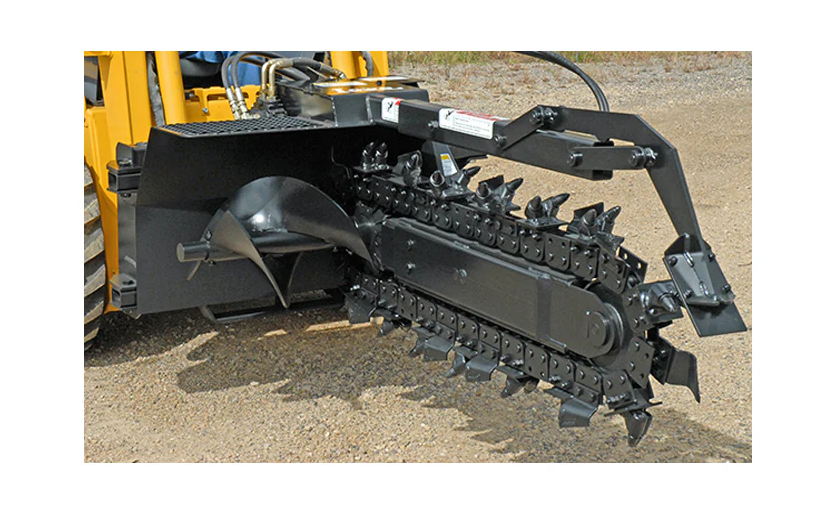

Trenchers For Skid Steers - Haugen Attachments
- $6,703.99
$7,373.99- $6,703.99
- Unit price
- / per
Subtotal:
$6,703.99
Couldn't load pickup availability
📘 Overview
Haugen's skid steer trencher attachment is available in 36" and 48" digging depths, 6" and 8" trench widths, and three chain styles matched to soil type: Earth Chain (standard soil), Combo Chain (mixed conditions), and Rock & Frost (hard ground). Comes with hose kit and manual side-shift Universal Skid Steer mount as standard. Optional hydraulic side-shift and hydraulic mount available. Models span four hydraulic drive sizes (HXR-14 through HXR-35) to match your machine's GPM output. Made in USA with a 1-year warranty.
⚙️ Key Features
- Depths: 36" or 48"
- Widths: 6" or 8"
- Chain styles: Earth Chain (combo), Combo Chain, Rock & Frost ABF
- 4 drive sizes: HXR-14 (10–15 GPM), HXR-21 (16–20 GPM), HXR-25 (19–25 GPM), HXR-35 (25–40+ GPM)
- Includes hose kit and manual side-shift SSQA mount
- Optional: hydraulic side-shift mount (H57-unihyd)
- Optional: trench cleaner (HTC)
- Universal Quick Attach | Made in USA | 1-year warranty
🔑 Benefits
- Chain style selection prevents excessive wear and optimizes digging speed for your soil type — running a Rock & Frost chain in soft loam is overkill that slows digging and wastes chain life. Running an Earth chain in frost or caliche destroys the chain rapidly. Haugen's three chain styles allow matching the chain's tooth geometry to the actual ground conditions, maximizing both digging speed and chain service life.
- Four drive sizes ensure the trencher is matched to your skid steer's hydraulic output — a trencher rated for 25-40 GPM running on a standard-flow machine (17-20 GPM) will be underpowered and stall. The HXR-14 through HXR-35 series spans the full range of skid steer aux flow outputs, so the trencher can be precisely matched to the host machine's actual output.
- Optional hydraulic side-shift (H57-unihyd) enables trench positioning from the cab — with manual side-shift, the operator repositions the trench line by repositioning the entire machine. Hydraulic side-shift moves the trencher boom laterally from the cab, allowing the trench line to track a straight line without machine repositioning, which is critical for accurate utility trenching alongside buildings, curbs, or existing structures.
- 48" depth covers the trench depth requirements for most utility and irrigation work — code depth for electrical conduit is typically 24"; for water lines, 12" in frost-free zones and up to 48" in cold climates; for gas lines, 18-24". The 48" maximum depth of the Haugen HT covers all of these requirements in a single attachment size.
📊 Specifications
Workbook SKUs (depth × width × chain style)
| SKU | Depth | Width | Chain Style | Drive Models |
|---|---|---|---|---|
| HT-36-6E | 36" | 6" | Combo Chain (E) | HXR-14 to HXR-35 |
| HT-36-6C | 36" | 6" | Earth Chain (C) | HXR-14 to HXR-35 |
| HT-36-6RF | 36" | 6" | Rock & Frost (RF) | HXR-14 to HXR-35 |
| HT-48-6E | 48" | 6" | Combo Chain (E) | HXR-14 to HXR-35 |
| HT-48-6C | 48" | 6" | Earth Chain (C) | HXR-14 to HXR-35 |
| HT-48-8E | 48" | 8" | Combo Chain (E) | HXR-14 to HXR-35 |
| HT-48-8C | 48" | 8" | Earth Chain (C) | HXR-14 to HXR-35 |
| HT-48-6RF | 48" | 6" | Rock & Frost (RF) | HXR-14 to HXR-35 |
Hydraulic Drive Sizes
| Drive Model | Required GPM | Notes |
|---|---|---|
| HXR-14 | 10–15 GPM | Industry standard — most compact skid steers |
| HXR-21 | 16–20 GPM | 50% more power than HXR-14 — standard flow machines |
| HXR-25 | 19–25 GPM | High-standard flow skid steers |
| HXR-35 | 25–40+ GPM | High-flow skid steers — largest model |
| Specification | Value |
|---|---|
| Trench Depths | 36" and 48" |
| Trench Widths | 6" and 8" |
| Chain Styles | Earth Chain | Combo Chain | Rock & Frost ABF |
| Standard Includes | Hose kit + manual side-shift Universal Skid Steer mount |
| Optional | Hydraulic side-shift mount (H57-unihyd) | Trench cleaner (HTC) |
| Hose Kit | HKX-100 — 1/2" with FF Couplers (rated to 25 GPM); high-flow kits available |
| Mount | Universal Quick Attach — manual or hydraulic side shift |
| Warranty | 1 year |
| Origin | Made in USA |
🔗 Attachment Compatibility
Match the trencher's HXR drive size to your machine's actual auxiliary hydraulic GPM output. Check your skid steer's spec sheet for aux flow (not total pump flow). If using a high-flow machine (25+ GPM), select HXR-25 or HXR-35 and order the appropriate high-flow hose kit — call Haugen at 877-580-6218 for high-flow kit details.
🚜 Machine Compatibility
Compatible with skid steer loaders and compact track loaders with Universal Quick Attach:
| Bobcat | Caterpillar | John Deere | Case |
| New Holland | Takeuchi | Kubota | Gehl |
Verify auxiliary hydraulic flow rate (GPM) and back-pressure requirements match your machine's aux circuit capabilities before operating.
❓ FAQs
|
Q: What chain style should I choose for my conditions?
Earth Chain: use in loose to firm, non-rocky soil — soft loam, clay, sandy soil without large rocks. Best speed and chain life in ideal conditions. Combo Chain: alternating cupped teeth for mixed conditions — use when soil has moderate rock content, roots, or variable hardness. A good general-purpose choice when conditions are uncertain. Rock & Frost ABF: use in hard frozen ground, heavy rock content, caliche, or hard clay. The alternating cupped and rock-frost teeth are designed for impact against hard material. Using R&F in soft soil wastes wear rate potential — it is slower in soft soil than the Earth chain. |
|
Q: How do I know which HXR drive size to order?
Check your skid steer's spec sheet for "auxiliary hydraulic flow" in GPM. This is not the total pump flow but the aux circuit output. HXR-14: 10-15 GPM (most compact and mid-size standard-flow machines). HXR-21: 16-20 GPM (standard and high-standard flow). HXR-25: 19-25 GPM (high-standard flow). HXR-35: 25-40+ GPM (high-flow machines like Bobcat S770 HF, Cat 262, etc.). Running a too-large HXR on a low-flow machine will underpower the trencher. Running a too-small HXR on a high-flow machine risks over-revving the chain drive motor. |
|
Q: What is the difference between the standard (manual) side-shift and hydraulic side-shift mount?
Manual side-shift: the trencher arm can be shifted laterally by repositioning a pin — requires stopping and dismounting to shift position, or operator repositions the whole machine. Hydraulic side-shift (H57-unihyd): the trencher arm shifts laterally from a second hydraulic circuit controlled from the cab without stopping. Hydraulic side-shift is essential for straight-line trenching alongside obstacles (curbs, walls, foundations) where repositioning the machine would break the trench line. |
|
Q: What is the maximum depth I can trench?
The Haugen HT series goes to 48" (4 feet) maximum depth with the HT-48 series. This covers most residential and commercial utility trenching (water, electric, gas, irrigation). For deeper trenching (5-6 ft), the HXR-21, HXR-25, and HXR-35 drives are also available in 5-foot depth variants — contact Haugen at 877-580-6218. |
|
Q: What does "Combo Chain (E)" mean in the workbook SKU?
The workbook uses "E" to designate the Combo Chain style and "C" for Earth Chain, and "RF" for Rock & Frost. This is internal SKU notation. "Combo Chain" uses alternating cupped teeth for mixed conditions; "Earth Chain" uses cupped teeth optimized for standard soil; "Rock & Frost ABF" uses alternating cupped and specialized rock-frost teeth for hard ground. |
