Machine class
Telehandler/Forklift
Models available
2 variants
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏆Engineer certified
📋Meets ANSI/OSHA
📐Fits existing fork tines
📘 Overview

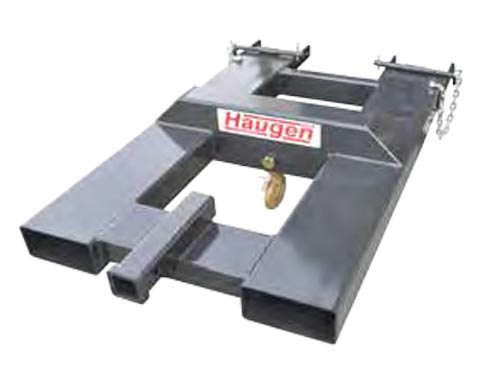

The Haugen forklift trailer spotter that also lifts (MFSH-TS) is a fork-mounted unit combining a swivel hook with a 2" receiver hitch in one fork-pocket frame. Move trailers around a yard or dock with the receiver, then use the same attachment as a lifting hook without swapping anything. Two capacities: 3 ton and 5 ton.
Fork pockets take tines up to 3-1/2" x 7-1/2", and the hook is held at 24" on centre.
📊 Forklift Trailer Spotter At a Glance
| Specification | Value |
|---|---|
| Mount | Fork slot — fits existing tines |
| Machine class | Skid Steer |
| Models available | 2 variants |
| Weight | 205–220 lbs |
| Manufacturer | Marv Haugen Enterprises Inc., Casselton ND |
⚙ Key Features of the Haugen MFSH-TS
- 2" standard receiver — a forklift trailer mover and lifting hook in one frame
- Swivel lifting hook in the same frame
- 3 ton (MFSH-6TS) and 5 ton (MFSH-10TS) capacities
- Fork pockets fit tines up to 3-1/2" x 7-1/2"
- Hook held at 24" on centre
- Secured to the tines with a safety pin
- Empty weight 205–220 lbs
📊 Forklift Trailer Spotter Capacities (MFSH-TS)
| Model | Hook capacity | Receiver | Weight |
|---|---|---|---|
| MFSH-6TS | 3 ton | 2" standard | 205 lbs |
| MFSH-10TS | 5 ton | 2" standard | 220 lbs |
| Specification | Value |
|---|---|
| Fork pocket size | Up to 3-1/2" x 7-1/2" |
| Hook position | 24" on centre |
| Hitch ball | Not included |
| Standards | Built to comply with ANSI/ITSDF B56.6 and CSA B335; tested and certified by a third-party Professional Engineer. Engineering report supplied with the manual, full report available on request |
🚛 A Swivel Hook with Receiver — Two Jobs, One Attachment
Yards that shunt trailers usually solve it twice — something to hitch with, and something to lift with. The MFSH-TS does both from the same fork pockets, which matters when a forklift is the only machine on site and swapping attachments costs more time than the job itself.
- Trailer moving. A 2" standard receiver takes the ball mount of your choice. Hitch balls are ordered separately, so you can match the coupler on the trailers you actually move.
- Lifting. The swivel hook handles ordinary picks up to 3 or 5 ton, with the load turning to face where you want it.
- No changeover. Both functions live in one frame, so moving from spotting a trailer to setting a load is a matter of driving to it.
📐 Why You Don't Need a New Load Chart
Every Haugen fork-mounted swivel hook holds the hook at 24" on centre — the same load centre forklifts are normally rated at. Because the hook sits where the machine's chart already assumes the load sits, your existing forklift load chart normally still applies, less the empty weight of the attachment, the rigging and the load itself. A separate down-rated load chart should not be needed.
That is a practical difference from a jib or a work platform, both of which move the load away from the carriage and require a down-rated chart from the machine manufacturer before use.
The hook's own rating is not the machine's rating. Total load must never exceed whichever is lower, and remember telehandler capacity falls as the boom extends.
⚠ Operating Rules — From Haugen's Manual
- Vertical lifting only. Never use it to pull or drag a load.
- Disable the carriage's hydraulic tilt and swing functions before lifting, and position the tines so the hook holds the load centred on the machine.
- Forks level or slightly rolled back — never tilted forward.
- Safety pins behind the heel of each fork, secured with the cotter pin. Pins are chained to the frame so they cannot be lost. Optional safety chains are an addition to the pins, never a substitute.
- Operator stays seated at the controls with the engine running for as long as a load is on the hook.
- Nobody within ten feet of the fall zone in any direction, and never any part of yourself under a suspended load. Hard hats and steel toe boots for anyone working nearby.
- Level, firm ground before raising. Carry loads low and use tag lines to stop them swinging.
- Never lift people. For personnel, use a certified work platform.
Before each use, check the hook, latch, bolt and sleeve for wear or distortion, look for cracked or broken welds, check the holes for elongation, and confirm the capacity and empty-weight decals are present and legible.
❓ Forklift Trailer Spotter FAQs
Does this fork mounted ball hitch come with a ball?
No. The receiver is a 2" standard, and ball mounts are ordered separately so you can match the couplers on your trailers. Several mount options are available including 2", 2-5/16" and triple-ball versions.
Can I use the hook and the hitch at the same time?
They are separate functions on one frame and are used one at a time. Move a trailer, then lift — but do not attempt both simultaneously, and never lift while a trailer is coupled.
Which capacity do I need?
3 ton for general yard work and lighter picks; 5 ton where loads are heavier. Both use the same fork pockets and the difference in empty weight is 15 lbs. As always, the machine's rating and the attachment's rating are separate limits and the lower one applies.
Do I need a down-rated load chart?
Normally not for the lifting function — the hook sits at 24" on centre, so your existing forklift chart applies less the attachment, rigging and load weights.
How is it secured to the forks?
The tines go fully into the pockets and a safety pin secures it behind the fork. Fit the pin every time, including for short trailer moves — an unsecured attachment can slide forward off the tine tips.
Can it lift people?
No. Material only, vertical lifting only, and never used to drag or pull.
Is a ball mount included with the trailer spotter?
No. The MFSH-TS provides a 2" standard receiver; the ball mount is ordered separately so it matches the couplers on your own trailers. Options include a 2" ball, a 2-5/16" ball, a triple ball mount and an adjustable triple ball with 6" of rise and drop.
What maintenance does the swivel hook need?
Before each use, check the hook, latch, bolt and sleeve for wear or distortion, confirm the safety pins are installed and secured with their cotter pins, look for cracked or broken welds, check the holes for elongation, and make sure the capacity and empty-weight decals are present and legible.
What is the empty weight of each model?
205 lbs for the MFSH-6TS at 3 ton, and 220 lbs for the MFSH-10TS at 5 ton. That weight comes off your machine's available capacity before the load.
Can I tow on a public road with it?
No. This is a yard spotter for repositioning trailers on site at low speed — around a yard, a dock or into a shed.
