Body
3 in channel steel
Finish
Powder coat
Lock type
Barrel-style key cylinder
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA
🔒1-year warranty
🧱Rubberised foam lining
📘 Overview

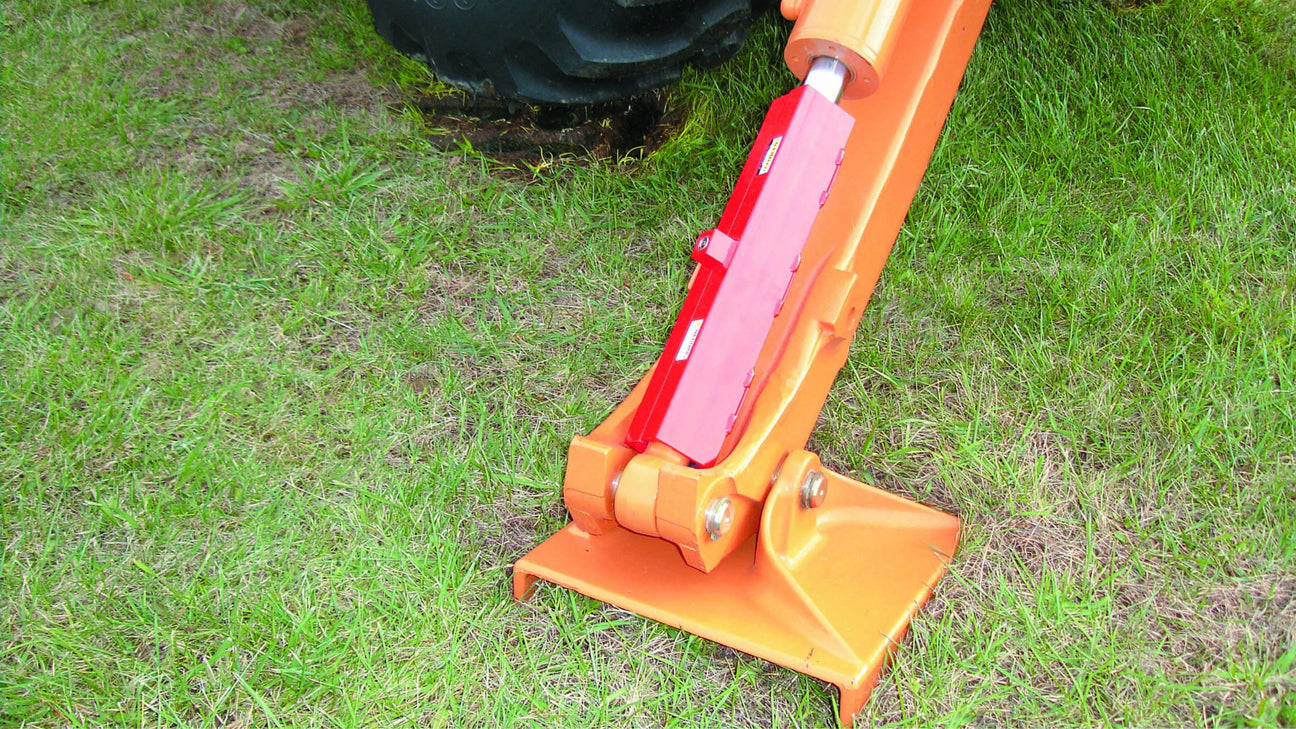

The Stabilizer Lock anchors the stabilizer, outrigger or steering cylinder in the fully extended position, which lifts the wheel clear of the ground and leaves the machine unable to be driven or towed away. Length is the decision you have to make, and it is set by the machine rather than by preference: 27 in for the Case 780, 21 in for New Holland backhoes, 18 in as standard for other full-size backhoes, 15 in or 12 in for mini backhoes, dozer blades and articulating steering cylinders, and 6.5 in for mini excavators and trencher backfill blades. Select your length on this page before adding to the cart. The 3 in channel steel body is lined with rubberised foam so the lock does not score the cylinder rod it is clamped to, and it accepts cylinders up to 2-3/8 in diameter, which covers almost every full-size backhoe. Keying is available differently or alike.
⚙ Key Features of the Stabilizer Lock
- Locks the wheel off the ground — holding the cylinder fully extended means the machine cannot be driven or towed, which is more than a control lock does on its own.
- Six lengths to match the cylinder — 27, 21, 18, 15, 12 and 6.5 in, each mapped to a machine type, so the lock fits the stroke rather than approximating it.

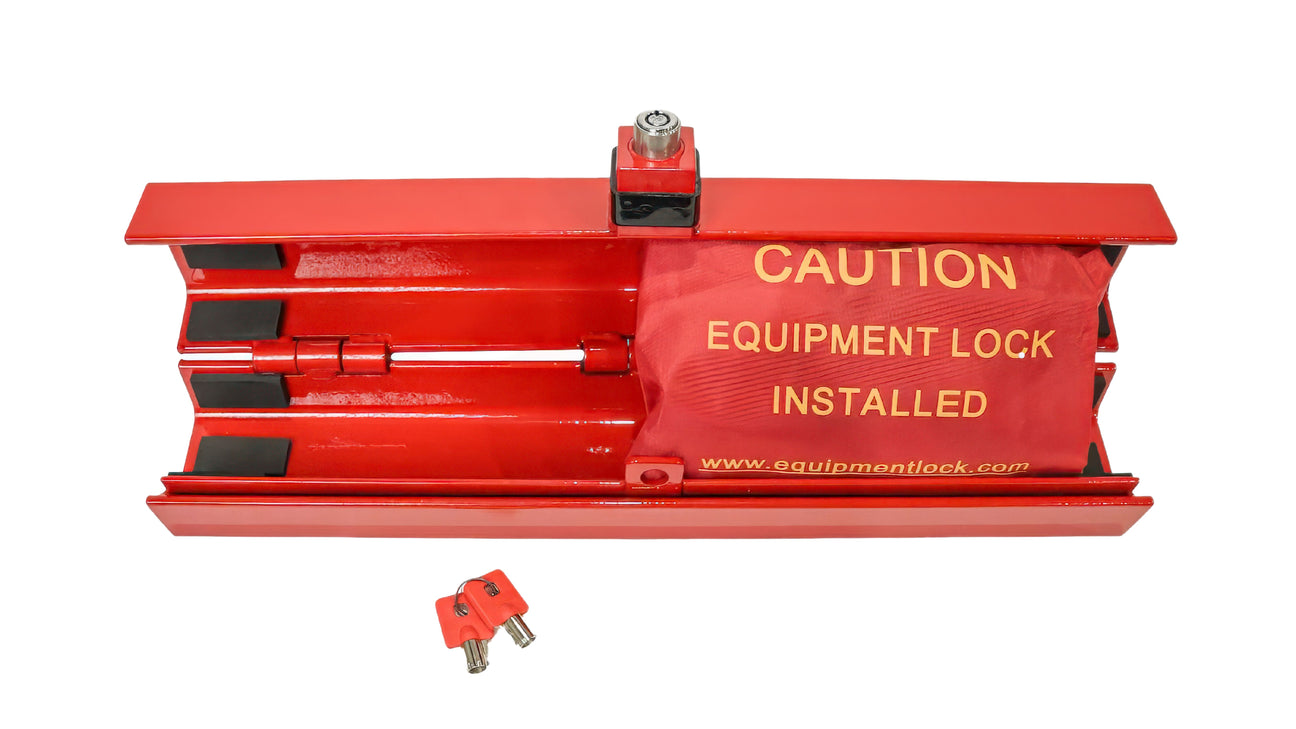

- Rubberised foam lining — the inside face is padded to protect the cylinder rod from the steel it clamps against, which matters on a polished surface that has to seal.

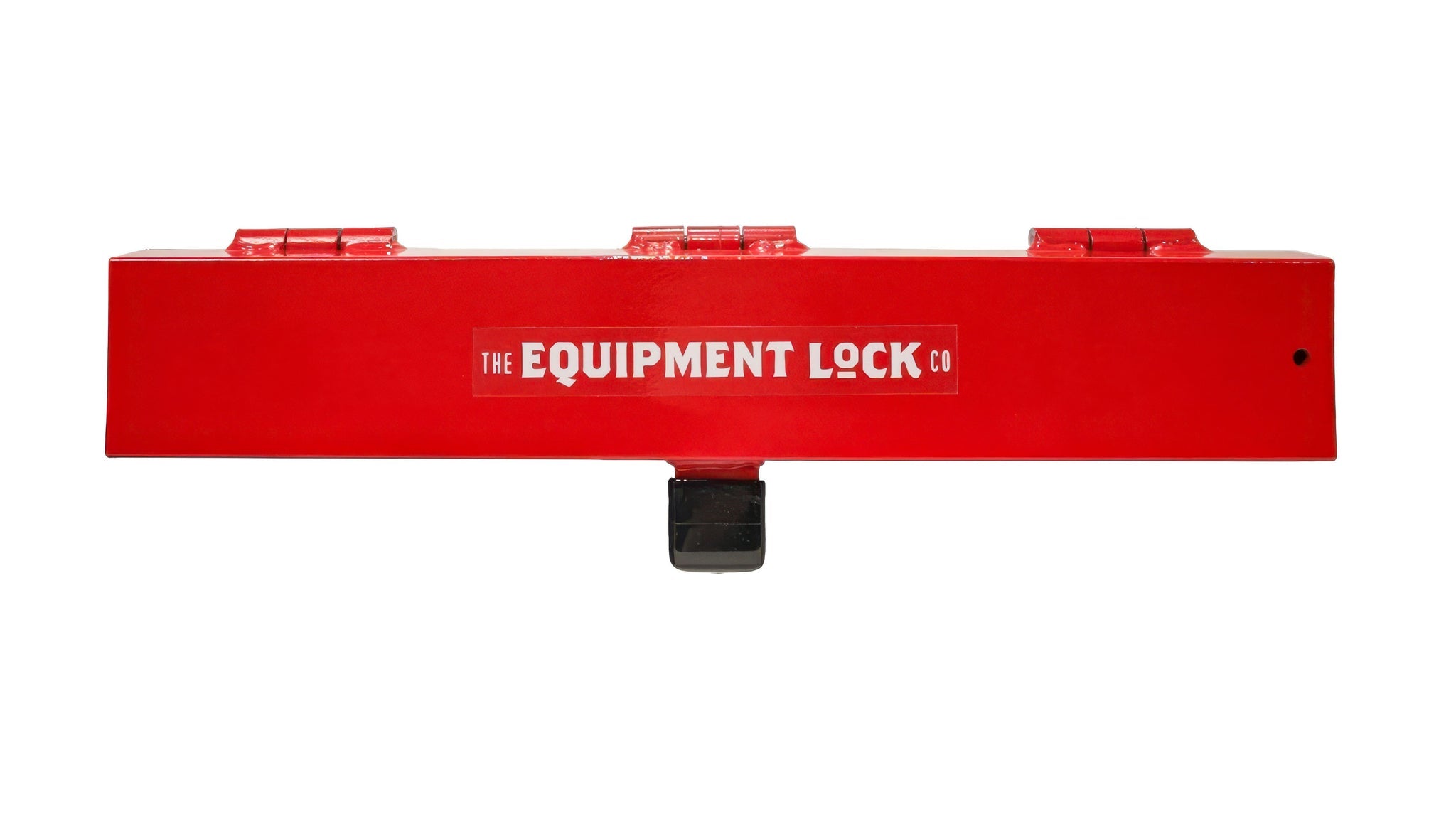

- 3 in channel steel body — structural channel rather than folded plate, chosen for what happens when someone puts a bar through it.
- Accepts cylinders up to 2-3/8 in diameter — the published maximum, covering almost all full-size backhoes.
- Barrel-style key cylinder — resists picking, Freon attack and corrosion, and the body is built to take thousands of pounds of force rather than shear off under a pry bar.
🔑 Why the Stabilizer Lock Stops What Control Locks Cannot
- Defeats towing, not just driving — a control lock still leaves a machine that can be dragged onto a float; a wheel held off the ground cannot be rolled anywhere.
- Protects the cylinder it grips — the foam lining means securing the machine every night does not gradually damage the rod and cost a seal kit.
- One product covers the yard — the same lock in six lengths handles a full-size backhoe, a mini excavator and a dozer blade, so the choice is a length rather than a different device.
- Doubles as the answer for thick-control excavators — the 6.5 in length is what Equipment Lock specifies for mini excavators whose drive controls are too thick for the Excavator Lock.
📊 Stabilizer Lock Specifications
| Specification | Value |
|---|---|
| Cylinder diameter, maximum | 2-3/8 in |
| Body | 3 in channel steel, rubberised foam lined |
| Available lengths | 27 in, 21 in, 18 in, 15 in, 12 in, 6.5 in |
| Finish | Powder coat |
| Lock type | Barrel-style key cylinder |
| Keys supplied | Two per lock |
| Part number | STBL (keyed unit) |
| Warranty | One year against manufacturer defects |
| Origin | Made in USA |
🔄 Which Stabilizer Lock Length Do I Need?
Length is selected on this page. Match it to the machine, not to the look of the cylinder — the lock has to hold the cylinder at full extension.
| Length | Machine it is cut for |
|---|---|
| 27 in | Case 780 |
| 21 in | New Holland backhoe only |
| 18 in | Standard for all other full-size backhoes |
| 15 in | Mini backhoes and dozer blades |
| 12 in | Articulating equipment steering cylinders and dozer blades |
| 6.5 in | Mini excavators, articulating trencher steering and trencher backfill blades |
If you are between two lengths, measure the exposed cylinder rod at full extension rather than guessing from the machine size — the same model can carry different cylinders depending on build.
📋 Stabilizer Lock Keying Options
Length and keying are chosen separately — pick the length for your machine, then the key handling that suits your yard.
| Keying option | When to choose it on the Stabilizer Lock |
|---|---|
| Keyed Differently | Each lock gets its own unique key and no key code is kept on file. Choose this when access needs to stay tightly controlled. |
| Keyed Alike | Your key code is kept on file so every future Equipment Lock you buy opens with the same key. If you already have a code on file, select Keyed Alike and enter your assigned key code at checkout. |
Two keys ship with every Stabilizer Lock at no charge. Additional keys can be added on the product page in packs of 2, 5 or 10 if more people on the crew need access.
🚜 What the Stabilizer Lock Fits
The Stabilizer Lock clamps a hydraulic cylinder rod at full extension. Fitment is decided by rod diameter and by the length you select, not by the machine badge.
Full-size backhoesMini backhoesMini excavatorsTrenchersDozer bladesArticulating steering cylindersOutriggers
Maximum cylinder diameter is 2-3/8 in, which Equipment Lock notes covers almost all full-size backhoes.
Confirm two things before ordering: the diameter of the cylinder rod (2-3/8 in maximum) and the length you need from the table above. Those two numbers, not the machine model, decide fitment.
Everything needed to confirm fitment is on this page — add it to your cart to see delivered pricing for your address.
Inspect the shipment before you sign. If the carton or crate arrives damaged, note it on the bill of lading at the time of delivery — that note is what supports a carrier claim, and it cannot be added afterwards.
❓ Stabilizer Lock Questions, Answered
Which Stabilizer Lock length do I need for my machine?
Full-size backhoes take the 18 in as standard, except the Case 780 which takes 27 in and New Holland backhoes which take 21 in. Mini backhoes and dozer blades take 15 in or 12 in, articulating steering cylinders take 12 in, and mini excavators and trencher backfill blades take 6.5 in.
How does the Stabilizer Lock stop the machine being stolen?
The Stabilizer Lock holds the stabilizer, outrigger or steering cylinder fully extended, which keeps the wheel off the ground. A machine standing on an extended leg cannot be driven away and cannot be rolled onto a trailer either.
Will the Stabilizer Lock damage my cylinder rod?
No. The inside of the Stabilizer Lock is lined with rubberised foam specifically so the steel body does not bear directly on the polished cylinder surface.
What is the largest cylinder the Stabilizer Lock will fit?
The maximum cylinder diameter is 2-3/8 in. Equipment Lock notes this covers almost all full-size backhoes.
Can the Stabilizer Lock be used on a mini excavator?
Yes — the 6.5 in length is made for mini excavators and trencher backfill blades. It is also the option Equipment Lock specifies for mini excavators whose track drive controls are too thick for the Excavator Lock, fitted to the back of the backfill blade cylinder.
How do I choose between Keyed Alike and Keyed Differently on the Stabilizer Lock?
Keyed Alike keeps your five-digit key code on file, so every Equipment Lock you buy afterwards can be cut to the same key — one key for the whole yard. Keyed Differently keeps no code on file and each lock is unique, which is the tighter choice when you want access limited to one machine. If you already have a code, select Keyed Alike and enter it at checkout.
What does the Stabilizer Lock warranty cover?
Equipment Lock covers manufacturer defects for one year from purchase. Damage from a theft attempt, user error or modification falls outside that cover. Email support@eskidsteer.com with your order number to start a claim.
How is shipping calculated on the Stabilizer Lock?
Shipping is calculated at checkout. Add the Stabilizer Lock to your cart, enter your delivery address, and the shipping charge is shown before you complete the order.
📥 Stabilizer Lock Downloads
