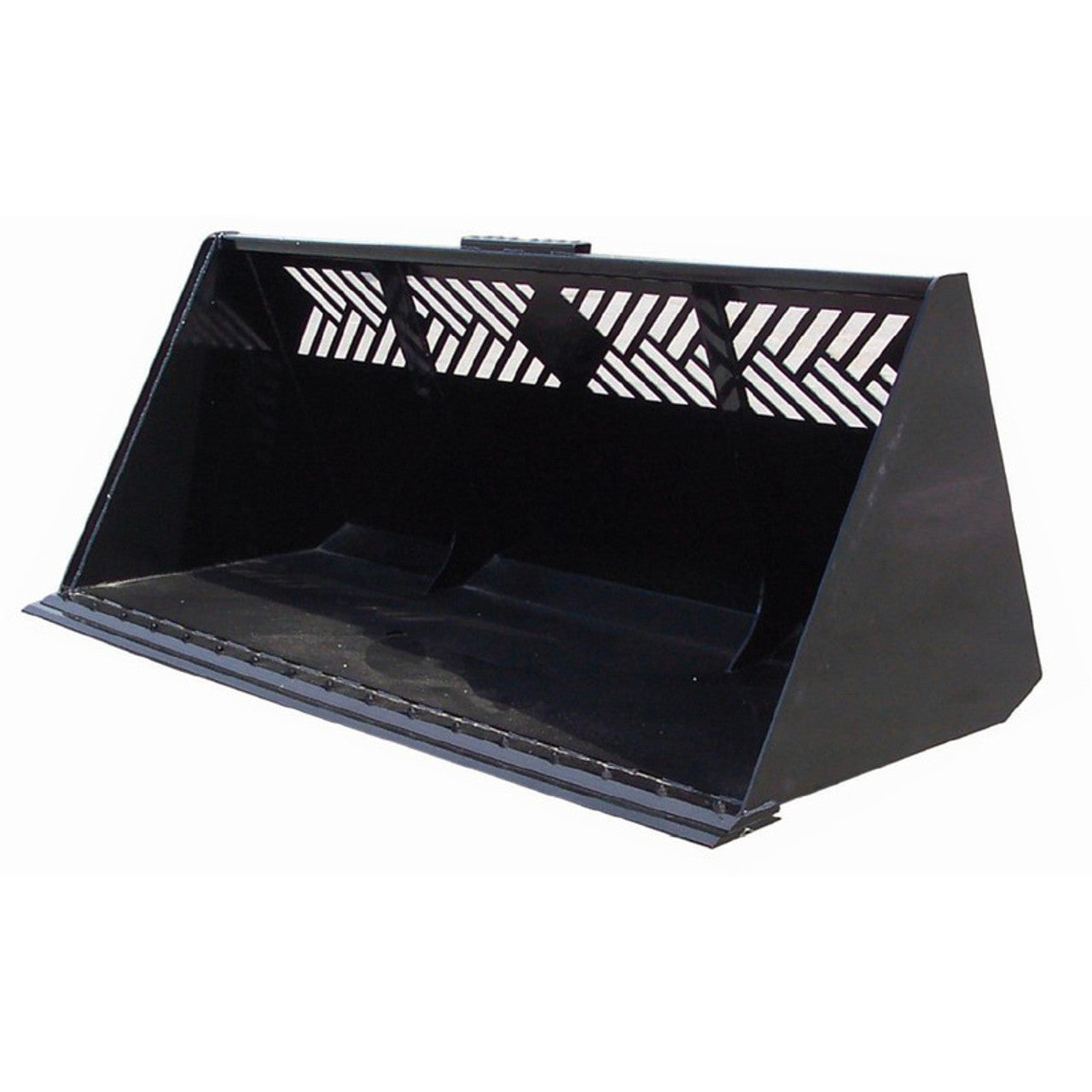

Snow Bucket for Skid Steer - Haugen Attachments

📘 Overview

Haugen's skid steer snow bucket lineup covers three series and 30 SKUs to match every machine size and snow volume requirement. Standard (MSB) in 60–108" widths: heavy-duty 3/4"×6" high-carbon cutting edge, four 1/2"×3" wear bars, inside gussets, steps, and optional Euro/global mount. Medium (MMSB) in 72–102" widths: same construction with a see-through visibility window in the back. Mega (MHSB) in 84–102" widths: maximum volume, 42" bucket height and 42.5" inside depth. Every style is available with or without an optional 5/8"×8" reversible Bolt-On Edge (BOE). All use Universal Quick Attach. Made in USA with a 1-year warranty.

⚙️ Key Features

• Three styles: Standard (MSB), Medium (MMSB), Mega (MHSB)
• BOE option: 5/8" x 8" reversible bolt-on cutting edge — reversible doubles edge life; bolt-on makes field replacement possible without welding
• 3/4" x 6" high-carbon weld-on cutting edge standard on all models
• Four 1/2" x 3" wear bars — protect bucket floor from abrasive pavement contact
• Inside gussets — reinforce corners for heavy side-loading in heavy snow
• Steps standard for operator access
• Medium (MMSB) adds see-through window — operator visibility through the bucket back
• Mega (MHSB): 42" height, 42.5" inside depth — maximum volume for heavy commercial snow removal
• Universal QA | Optional Euro/global mount | Made in USA | 1-year warranty

🔑 Benefits

• BOE (Bolt-On Edge) converts a wear-replacement job from a weld job to a bolt job — standard cutting edges wear and are typically replaced by cutting and rewelding. The 5/8"×8" reversible BOE bolts off and flips or replaces in the field with hand tools, cutting edge service time from hours to minutes and eliminating the need for a welder on site.
• Three series let you match volume capacity to your machine's lift capacity — the Standard MSB is lighter, suited for mid-range machines. The Medium MMSB adds depth and volume. The Mega MHSB maximizes cubic footage per pass for commercial operators running large machines. Choosing the right series prevents overloading smaller machines while maximizing throughput on large ones.
• MMSB see-through window improves operator visibility during tight residential snow work — when clearing narrow driveways or working near obstacles (curbs, posts, landscaping), the operator needs to see what's in front of and below the bucket during approach. The window allows a direct sightline through the back of the bucket, reducing the risk of damage and improving placement accuracy.
• Four wear bars prevent rapid bucket floor wear from pavement contact — without wear bars, the bucket floor contacts pavement directly and wears through. The 1/2"×3" wear bars elevate the floor slightly and act as sacrificial wear surfaces, extending bucket life significantly on hard pavement applications.

📊 Specifications

Standard Snow Bucket (MSB)

Medium Snow Bucket (MMSB)

Mega Snow Bucket (MHSB)

🔗 Attachment Compatibility

All three series use Universal Quick Attach. At weights ranging from ~490 lbs (MSB 60) to 1,190 lbs (MHSB 102), verify your machine's rated operating capacity before selecting. Larger widths and higher series will also place more hydraulic demand on wider machines — ensure your machine's auxiliary circuit can supply required hydraulic flow for any hydraulic attachment used in combination.

🚜 Machine Compatibility

Compatible with skid steer loaders and compact track loaders with Universal Quick Attach:

No auxiliary hydraulics required for the snow bucket itself. The Mega (MHSB) series at 975-1,190 lbs is best suited for high-capacity machines (3,000+ lbs ROC). Optional Euro/global mount available for machines using that interface.
