Hydraulic coupling
¾" flush-face coupling
Spool width range
24"–50"
Construction
Grade 50 material
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA
📘 Overview

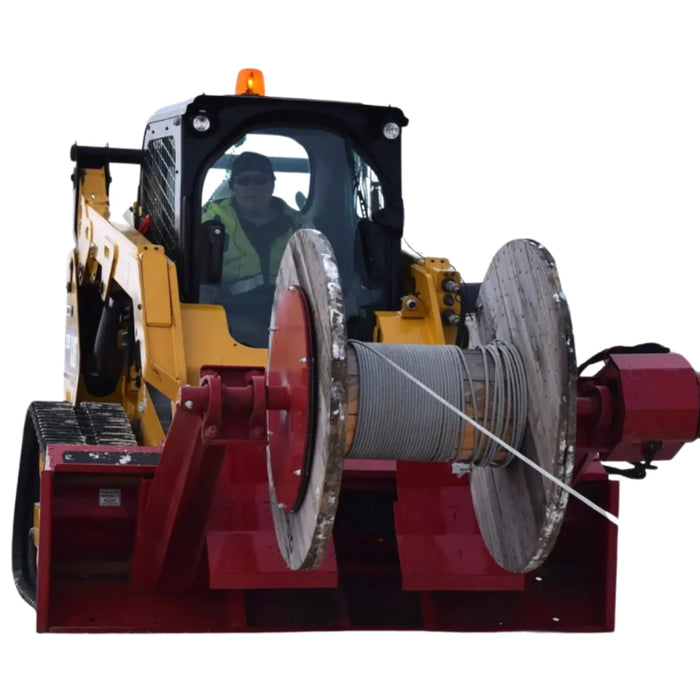

The EZ Spot UR Wire Reel (EZ-WR01) is a skid steer cable reel lifter that picks up, holds and powers the winding of cable spools up to 72 inches in diameter and 5,900 lb loaded. Two Ø2.5 inch 4140 shafts enter the spool centre, a spring-loaded pin catches an outer hole in the spool for a non-slip grip, and a hydraulic motor and planetary gearbox turn it — 46,452 in-lb of torque and 95 rpm at 3,000 psi and 40 GPM. Spool width is handled by moving a pin on the main shaft between two positions, covering 24 to 50 inch spools. It goes where a cable trailer or line truck cannot, and it does not need a rotating base.
⚙ Key Features of the Wire Reel
- Powered winding, not just lifting — a hydraulic motor and 5.2:1 planetary gearbox produce 46,452 in-lb of torque and 95 rpm, so wire is recovered under control rather than hand-fed.
- Handles spools to 72" diameter and 5,900 lb loaded.
- Spring-loaded pin catches the spool’s outer hole for a non-slip grip while winding — the detail that stops the drum spinning on the shaft.
- Two Ø2.5" 4140 shafts enter the spool centre hole.
- Two 2.5" x 12.5" clamp cylinders, each 14,726 lb breakout, with rubber-lined clamping plates.
- Adjustable for two spool width ranges from 24 to 50 inches, set by moving a pin on the main shaft.
- Locating plates line the shaft up with the centre hole on a 72 inch spool.
- Grade 50 material or higher, core welded.
🔑 Why Operators Choose the Wire Reel
- Recovers wire for reuse — powered winding means old line goes back on the drum instead of being cut and scrapped.
- Reaches where a line truck cannot — on a skid steer, spool handling moves off the road and into easements, back lots and rough ground.
- Pulls multiple lines or a single line depending on the job.
- No hand-turning — the gearbox does the work that otherwise takes a crew and a bar.
- Protects the spool — rubber-lined clamping plates grip without crushing the drum flange.
📊 Wire Reel Specifications
| Specification | Value |
|---|---|
| Hydraulic flow required | 20–30 GPM at 3,000 psi |
| Hydraulic coupling | ¾" flush-face coupling |
| Rated burst pressure | 15 ksi (103.4 MPa) |
| Maximum spool diameter | 72" |
| Spool width range | 24"–50", two settings via shaft pin |
| Maximum loaded spool weight | 5,900 lb |
| Attachment weight | 1,945 lb (882 kg) |
| Main shafts | Two Ø2.5" 4140 |
| Clamp cylinders | 2 × 2.5" bore x 12.5" stroke |
| Clamp breakout force | 14,726 lb per cylinder |
| Winding torque | 46,452 in-lb maximum at 3,000 psi and 40 GPM |
| Winding speed | 95 rpm |
| Motor displacement | 18.7 cubic inches per revolution |
| Gearbox ratio | 5.2:1 reduction |
| Clamping plates | Rubber lined |
| Construction | Grade 50 material or higher, core welded |
| Mounting method | Universal Quick Attach (customisable) |
🚜 Which Machines Take This Cable Reel Lifter?
The Wire Reel attaches to skid steer loaders and compact track loaders equipped with a Universal Quick Attach (SSQA) system, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
The machine must supply 20–30 GPM at 3,000 psi through an auxiliary circuit with ¾" flush-face couplings; maximum winding torque and speed are quoted at 3,000 psi and 40 GPM. The Wire Reel weighs 1,945 lb before the spool, so size your machine for that plus a loaded spool of up to 5,900 lb. It is a stand-alone unit and does not use an EZ Spot UR rotating base, and it can be adapted to excavators, wheel loaders, telehandlers and backhoes with a specialty bolt-on mount.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration and auxiliary hydraulic flow before ordering. Everything needed to confirm fitment is on this page — add it to your cart to check delivered pricing for your address.
Freight note: inspect the crate before signing the carrier’s Bill of Lading. Note any damage on the delivery paperwork at the time of delivery — that record is what supports a carrier claim.
❓ Wire Reel Questions, Answered
What size cable spools will the Wire Reel handle?
The Wire Reel takes spools from 24 to 50 inches wide and up to 72 inches in diameter, with a maximum loaded weight of 5,900 lb. Width is set by moving a pin on the main shaft between two positions.
Does the Wire Reel wind wire or only carry the spool?
It winds. A hydraulic motor and planetary gearbox combination drives the spool, producing up to 46,452 in-lb of torque and 95 rpm at 3,000 psi and 40 GPM. That is what lets a crew recover existing line for reuse rather than cutting it out.
What stops the spool slipping on the shaft while winding?
A spring-loaded pin catches an outer hole in the spool, giving a positive non-slip drive. The two clamping plates are also rubber lined for additional grip on the drum flanges.
What size machine do I need for the Wire Reel?
The Wire Reel weighs 1,945 lb empty and can carry a loaded spool of up to 5,900 lb, so your machine's rated operating capacity needs to cover both. Full winding torque and speed are quoted at 3,000 psi and 40 GPM.
Does the Wire Reel need a rotating base?
No. The Wire Reel is a stand-alone unit that mounts directly to the machine's Universal Quick Attach plate.
How is the Wire Reel shipped?
Shipping is calculated at checkout — add the Wire Reel to your cart, enter your delivery address, and the freight charge is displayed before you complete the order. Lift gate service is available for residential deliveries and can be selected at checkout.
📥 Skid Steer Wire Reel Attachment Downloads
Full published specifications for the Skid Steer Wire Reel Attachment, including hydraulic requirements, cylinder data and rated capacities.
