Description
🏭USA
🔧Quick attach
📘 Overview

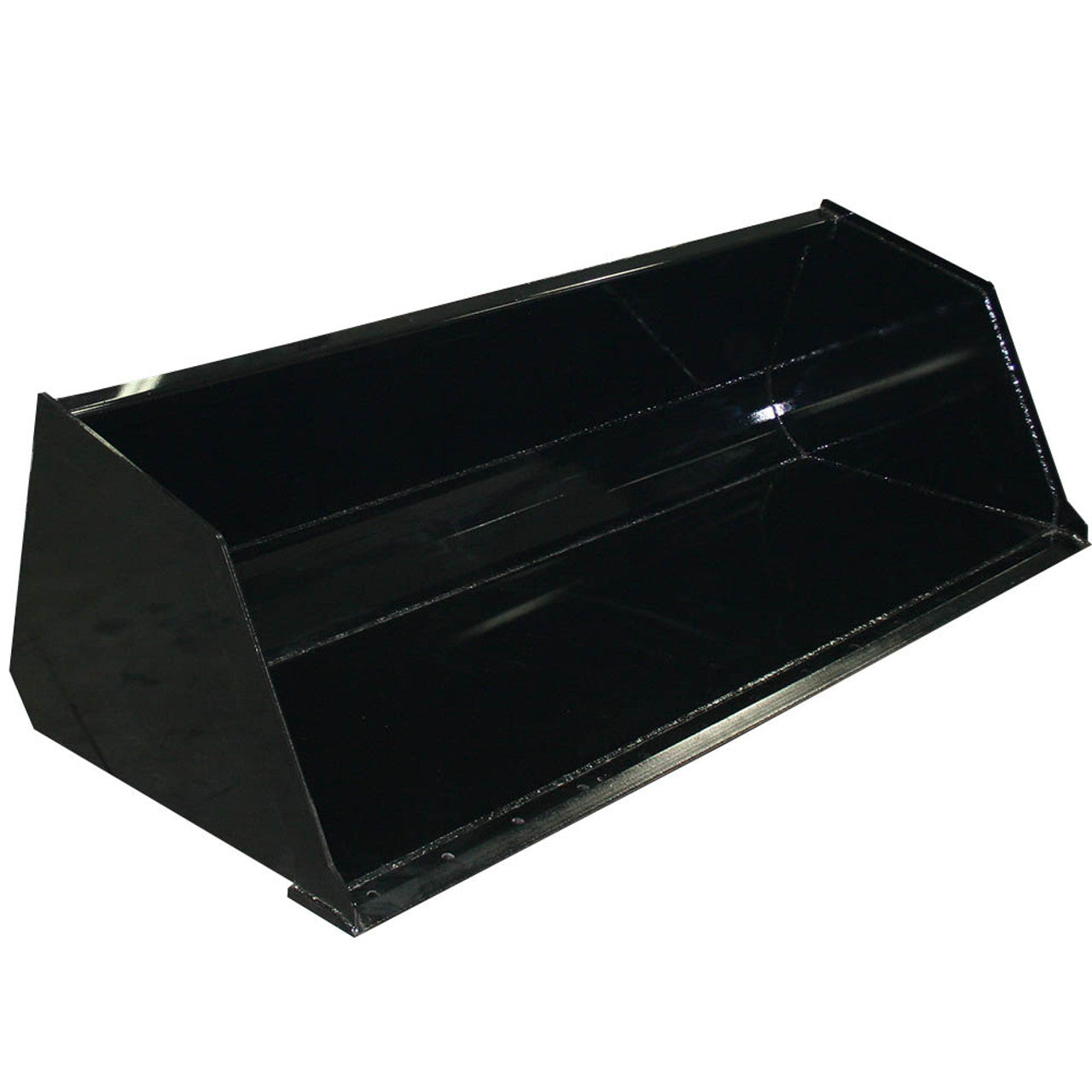

The Top Dog skid steer utility bucket is the general purpose bucket in the range, offered in seven widths from 66" to 102" so you can match capacity to your machine rather than the other way round. Struck capacity runs 20.5 cu ft at 66" to 25 cu ft at 84", with heaped capacity from 24.6 to 30 cu ft. It substitutes for a snow, dirt or general material bucket, and the step-bent insert with extruded grips means the operator has a safe surface to stand on when checking a load. A 3/4" x 6" cutting edge and 3/8" Grade 50 wear bars take the ground contact.
Buyers researching skid steer bucket options usually start from capacity rather than width, which is why the yardage is published per variant here. A general purpose bucket has to do the work of a skid steer digging bucket some days and a light material bucket on others, so skid steer bucket size is a compromise you should make deliberately — undersize and you take twice the passes, oversize and your loader cannot lift a full one. Anyone comparing skid steer bucket types should note that a utility bucket trades the specialist edge of a dirt bucket for depth and a safe standing step.
⚙ Key Features of the Top Dog Attachments Utility Bucket
- Seven widths, 66" to 102" — the widest size range of any bucket in the Top Dog line — match capacity to lift rather than compromising.
- 3/4" x 6" cutting edge — a substantial edge for a general purpose bucket; it holds up to scraping on hard surfaces.
- 3/8" Grade 50 side cutting edges and wear bars — the corners and underside take the most abuse on a utility bucket; both are Grade 50.
- Step bent insert with extruded grips — a purpose-built standing surface rather than an improvised foothold on the bucket lip.
- 5/16" HR steel mounting plate — the mount plate transfers every load to the machine; 5/16" hot-rolled resists deformation.
- 3/16" bucket and side plate thickness — consistent shell gauge through the bucket body and sides.
- One bucket replaces several — substitutes for snow, dirt and general material buckets on machines that do not need a specialist tool.
🔑 Why Choose the Utility Bucket?
- Buy capacity, not just width — published struck and heaped figures let you size the bucket to a yardage target instead of guessing from the width.
- Safe place to stand — the step bent insert with extruded grips is designed for the operator to stand on — most buckets leave you balancing on a cutting edge.
- Covers the jobs a specialist bucket would need three tools for — levelling, digging, loading, hauling and dumping all in one general purpose bucket.
- Sized across the whole machine range — seven widths span compact tractor loaders through to high-capacity skid steers.
📊 Top Dog Attachments Utility Bucket Specifications
| Specification | Value |
|---|---|
| Overall Height | 25" |
| Overall Depth | 38.5" |
| Bucket Thickness | 3/16" |
| Side Plates | 3/16" |
| Step Bent Insert | 3/16" |
| Side Cutting Edge | 3/8" Grade 50 |
| Wear Bars | 3/8" Grade 50 |
| Mounting Plate | 5/16" HR Steel |
| Cutting Edge | 3/4" x 6" |
| Step | Extruded grips |
| Country of Origin | Made in USA |
🔄 Utility Bucket Sizes, Part Numbers and Weights
| Part # | Width | Capacity (cu yd) | Weight |
|---|---|---|---|
| 9000161 | 66" | 0.76 cu yd | 576 lbs |
| 9000162 | 72" | 0.812 cu yd | 630 lbs |
| 9000163 | 78" | 0.862 cu yd | 745 lbs |
| 9000164 | 84" | 0.925 cu yd | 735 lbs |
| 9000165 | 90" | 0.991 cu yd | 820 lbs |
| 9000166 | 96" | 1.05 cu yd | 870 lbs |
| 9000167 | 102" | 1.122 cu yd | 960 lbs |
🔗 What Is a Skid Steer Utility Bucket Used For?
- General material loading and hauling
- Levelling and grading site work
- Digging and backfilling
- Moving snow, dirt, gravel and silage
- Demolition, landscaping, construction and renovation work
If most of your work is digging rather than loading, the dirt bucket is the better shape; if it is rock and soil separation, the rock bucket screens as it loads.
🚜 Which Machines Fit the Utility Bucket?
Available for two machine classes — the Utility Bucket uses a single universal quick attach plate that serves both:
Skid steers and compact track loaders — fits machines with a Universal Quick Attach (SSQA) mount, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compact tractor front-end loaders — fits tractor loaders fitted with a skid-steer-style universal quick attach coupler. Loaders using Euro/Global or John Deere 400/500 mounts require the matching Top Dog adapter plate (Euro 90133219, Euro 2-piece 90133229, JD flat 9033199, JD offset 90133228).
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration before ordering.
❓ Utility Bucket Questions, Answered
What size skid steer bucket do I need?
Size the bucket to your machine’s rated operating capacity, not to the material. The Top Dog utility bucket runs from 0.76 cu yd at 66" (576 lbs empty) to 1.122 cu yd at 102" (960 lbs empty). A bucket that exceeds your loader’s capacity when full is unsafe regardless of how well it fits the mount.
How many yards does the utility bucket hold?
Capacity ranges from 0.76 cu yd on the 66" model to 1.122 cu yd on the 102". In cubic feet, the 66" holds 20.5 struck and 24.6 heaped; the 84" holds 25 struck and 30 heaped.
What is the difference between a utility bucket and a dirt bucket?
The Top Dog utility bucket is deeper at 38.5" and taller at 25", with a step bent insert for the operator to stand on, and it is offered in widths up to 102". The dirt bucket is 39.5" deep and 22" high in five widths up to 84", with a 5/8" x 6" edge rather than the utility bucket’s 3/4" x 6". The utility bucket is the more general tool; the dirt bucket is optimised for digging and earthmoving.
Can the utility bucket be used for snow?
Yes. The Top Dog utility bucket substitutes for a snow bucket on machines that do not need a dedicated one. For high-volume snow work, a purpose-built snow bucket carries far more volume per pass because snow is light and bulky.
Is a bolt-on cutting edge available?
The utility bucket ships with a 3/4" x 6" cutting edge. Top Dog also lists bolt-on cutting edges for utility buckets in 66", 72", 78", 84", 90", 96" and 102" widths as a separate item.
What is the step bent insert for?
The step bent insert is a 3/16" formed section with extruded grips that gives the operator a safe surface to stand on when checking or adjusting a load, rather than balancing on the bucket lip or cutting edge.
Will the utility bucket fit a tractor loader?
Yes, where the tractor front-end loader is fitted with a skid-steer-style universal quick attach coupler. Loaders using Euro/Global or John Deere 400/500 mounts require the corresponding Top Dog adapter plate.
What is the difference between struck and heaped capacity?
Struck capacity is the volume the bucket holds level with its edges; heaped capacity is what it holds with material mounded above them at its natural angle of repose. The Top Dog 66" utility bucket holds 20.5 cu ft struck and 24.6 cu ft heaped. Use struck capacity for planning loads of dense material and heaped for light bulky product.
Which utility bucket width fits my machine?
As a rough guide, the 66" and 72" suit compact tractor loaders and smaller skid steers, the 78" to 90" suit mid-size machines, and the 96" and 102" need high-capacity loaders. The deciding figure is your machine’s rated operating capacity against the bucket weight (576 to 960 lbs empty) plus a full load.
Can I use a wider bucket than my machine is rated for?
It will physically mount, but it should not be loaded to capacity. Exceeding rated operating capacity reduces stability and steering control, and puts loads through the loader arms they were not designed for. Size the Top Dog utility bucket so a full bucket stays within your machine’s chart.
How is the utility bucket shipped?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order a Top Dog utility bucket?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Select your width from the variant options, and have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
