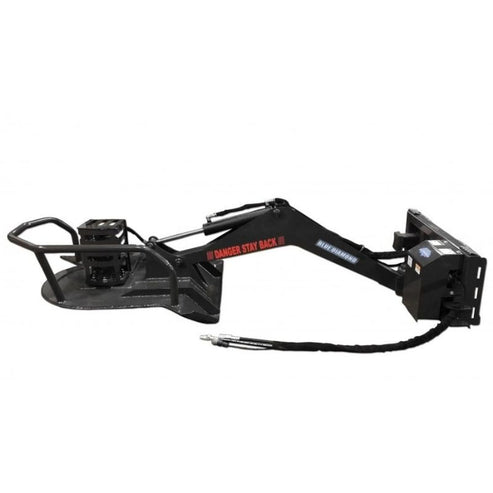

Skid Steer Swing Arm Brush Cutter Attachment - Blue Diamond

The Swing Arm Brush Cutter is designed for skid steer operators who need powerful brush-clearing performance in hard-to-reach areas such as slopes, ditches, embankments, and road edges. With extended horizontal and vertical reach, this attachment helps tackle vegetation in places where a standard front-mounted cutter cannot easily operate.

Its 44-inch cutting width and 4-inch cutting capacity make it a practical solution for controlling brush, grass, and woody overgrowth while maintaining precise positioning through the articulated swing arm design. The hydraulic tilt cylinder gives operators greater control over cutter angle and placement, helping improve productivity on uneven terrain.

Available with geroler or piston motor configurations, this swing arm brush cutter offers flexibility for different hydraulic flow ranges and job demands. Built with AR400 steel blades, a thick blade carrier, and direct drive performance, it is engineered for dependable operation in demanding mowing and vegetation management applications.

• 44-inch cutting width for efficient brush management
• Capable of cutting material up to 4 inches in diameter
• Provides 8 feet of horizontal reach and 16 feet of vertical reach
• Available with 14-20 GPM geroler motor or 17-30 GPM piston motor options
• Direct drive system with maximum pressure rating of 4,000 PSI
• 3-inch by 16-inch tilt cylinder on the swing arm for precise positioning
• Two double-sided 5/8-inch AR400 steel blades
• 5/8-inch thick blade carrier for added durability
• Compatible with universal, 8-pin, or 14-pin wiring harnesses
• Case drain required for operation
• Recommended minimum skid steer weight of 6,500 lbs
• Tracked loaders recommended for improved stability

• Extends mowing reach for clearing vegetation on slopes, ditch lines, and banks
• Improves operator control with articulated positioning and tilt adjustment
• Handles moderate brush and overgrowth without requiring a separate boom mower
• Lets operators match motor type to machine flow and job intensity
• Supports long-term durability with AR400 steel blades and a thick blade carrier
• Works well for roadside maintenance, property cleanup, and land management tasks

This swing arm brush cutter is designed for vegetation control in areas that are difficult to reach with standard front-mounted cutters. It is well suited for mowing along ditch banks, fence lines, slopes, roadsides, and other uneven terrain where extended reach and angle control are important.

Compatible with skid steer loaders that meet the selected model’s hydraulic flow requirements and have a minimum operating weight of 6,500 lbs. Tracked loaders are recommended for superior stability, especially when working on slopes, ditches, and uneven ground.

What is the cutting width of this swing arm brush cutter?
This model has a 44-inch cutting width.

How far can the cutter reach?
It provides up to 8 feet of horizontal reach and 16 feet of vertical reach.

What size material can it cut?
It is designed to cut vegetation and brush up to 4 inches in diameter.

Does this attachment require a case drain?
Yes. A case drain is required for proper operation.

What type of loader is recommended?
A minimum skid steer weight of 6,500 lbs is required, and tracked loaders are recommended for the best stability.

• Brush Cutter - Swing Arm Spec Sheet
• Brush Cutter - Swing Arm Manual

• Watch Swing Arm Brush Cutter Video
