Description
Bradco / Paladin built
Tine spacing to 60"
Open frame, visible tine ends
Overview

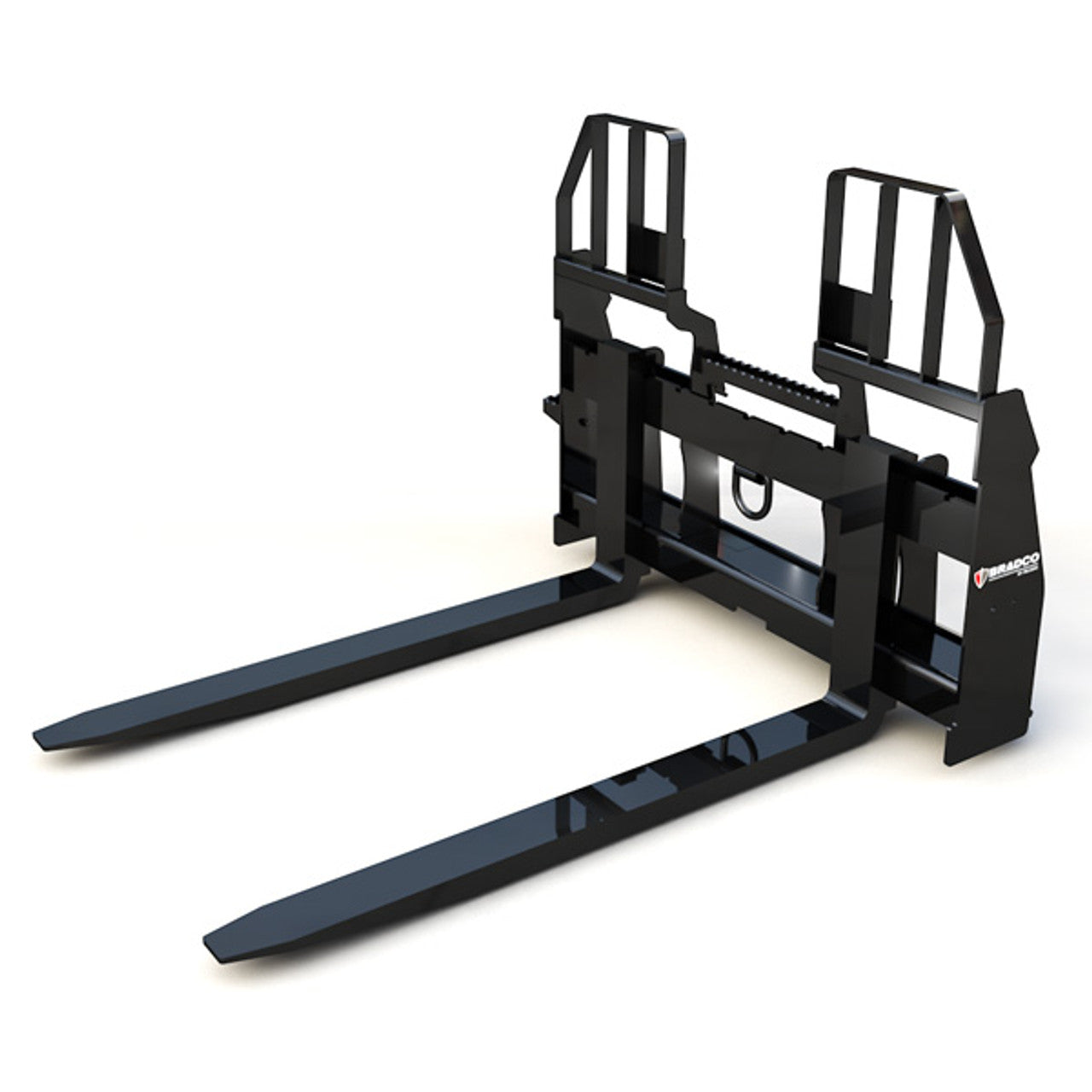

These Bradco skid steer pallet forks — the Signature Series — use a high-strength, lightweight frame designed for a larger payload. Overall widths are 45.88" and 60.75", or 55.5" and 65.75" with the step. Adjustable tine spacing runs from 8 or 9 inches minimum out to 44 or 60 inches, and the open frame lets you see the tine ends from the seat. They fit a standard skid steer quick attach.
Key Features of the Bradco Skid Steer Pallet Forks
- High-strength, lightweight frame — less frame weight means more of the machine's capacity goes to the load.
- Adjustable tine spacing from 8" or 9" minimum to 44" or 60" maximum, depending on frame.
- Open frame design so the operator can see the tine ends when entering a pallet.
- Tine latching mechanism for easy, safe access when adjusting spacing.
- Bolt-on step and angled side corners for safe side access.
- A skid steer pallet fork attachment that takes the SharkBite grapple — the rail accepts a grapple conversion without replacing the forks.
- Adjustable pallet forks rather than fixed-spacing skid steer forks, so one set handles pallets, crates and bundled material.
- Rail style pallet forks on an ISO class II ITA rail — the standard that makes the grapple conversion possible.
Why Choose These Skid Steer Pallet Forks
- Visibility is what stops damage. Entering a pallet blind is how tines go through product; an open frame removes the guesswork.
- Frame weight is payload. Every pound of frame is a pound the loader cannot lift, which is why the lightweight frame matters more than it sounds.
- These forks are the base of a system. The rail accepts the SharkBite grapple, so the same forks can become a grapple later rather than being replaced.
Bradco Signature Series Pallet Forks Specifications
| Specification | Detail |
|---|---|
| Overall width | 45.88" / 60.75" |
| Overall width with step | 55.5" / 65.75" |
| Adjustable tine spacing (min) | 8" or 9" depending on frame |
| Adjustable tine spacing (max) | 44" or 60" depending on frame |
| Weight | 120–265 lbs across the range |
| Frame | High-strength, lightweight, open design |
| Mount | Skid steer quick attach |
The Pallet Fork System — Three Levels
Bradco builds pallet forks as a three-level system. Each level adds capability to the one below it, and each is bought separately.
| Level | Product | What it adds |
|---|---|---|
| 1 | Pallet forks | Carries palletised and rail-mounted loads |
| 2 | SharkBite grapple | Installs on the ISO class II ITA fork rail — turns the forks into a grapple |
| 3 | Reversible Shark Teeth | Bolt onto the SharkBite for extra grip in demanding material |
The fork rail is ISO-standard class II ITA, which means the SharkBite grapple installs directly onto it and turns these forks into a grapple. Reversible Shark Teeth then bolt onto the SharkBite. For wheel loaders and backhoes rather than skid steers, the Heavy Duty rail-style fork is rated at 10,000 lbs lift capacity.
Which Machines Fit These Skid Steer Pallet Forks?
These forks fit a standard skid steer quick attach. Because they are a carrying attachment rather than a powered one, there is no flow requirement — the constraint is what your loader lifts. Frame weight runs 120–265 lbs, and that comes off your rated capacity before the load does.
| Requirement | Specification |
|---|---|
| Mount | Skid steer quick attach |
| Frame weight | 120–265 lbs depending on width |
| Hydraulics | None required |
| Fork rail | ISO-standard class II ITA — accepts the SharkBite grapple |
If you are unsure which level of the system you need, contact eskidsteer.com at (866) 757-8337.
Signature Series Pallet Forks Questions, Answered
What tine spacing do they adjust to?
From a minimum of 8 or 9 inches out to a maximum of 44 or 60 inches, depending on frame size. The tine latching mechanism makes the adjustment straightforward.
Why does the open frame matter?
It lets the operator see the tine ends while entering a pallet, which is what prevents driving a tine through the load.
Can these be converted to a grapple?
Yes. The fork rail is ISO-standard class II ITA, and the SharkBite grapple installs onto that rail — so the forks become a grapple without being replaced.
Do they need hydraulics?
No. Pallet forks are a carrying attachment with no hydraulic function. The constraint is your loader's rated lift capacity, less the 120-265 lb frame weight.
Are pallet forks for skid steer loaders different from forklift forks?
The tines are similar but the carriage is not. These mount to a skid steer quick attach and use a rail the loader can pick up, where a forklift carriage is fixed to the mast.
How is shipping calculated?
Shipping is calculated at checkout — simply add the item to your cart, enter your delivery address, and the shipping charge will be displayed before you complete your order.
Signature Series Pallet Forks Documentation
