📘 Overview

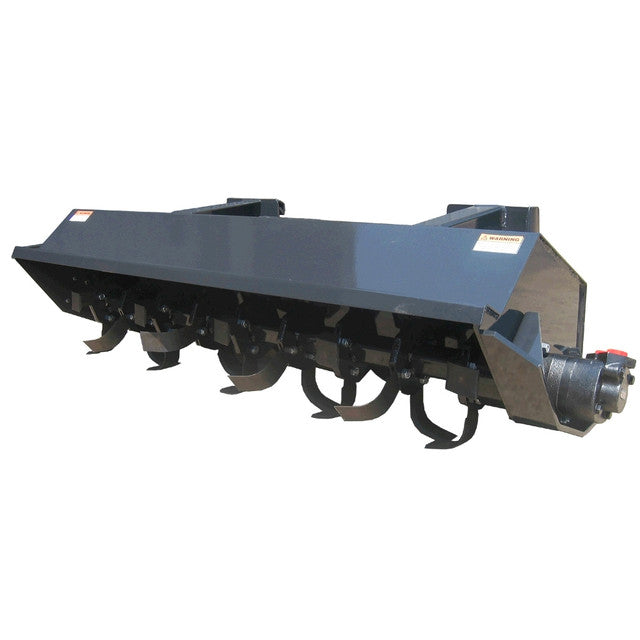

The Haugen Skid Steer Tiller Attachment (Rotary Tiller) prepares seedbeds, breaks up compacted fill, and tills through tough soil in forward and reverse — available in three sizes: HST 44-Mini SKD (44" tilling, 54" overall, 350 lbs, 22 tines), HST 68 (68" tilling, 79" overall, 590 lbs, 36 tines), and HST 76 (76" tilling, 87" overall, 630 lbs, 40 tines). The tiller uses double-edge replaceable tines for extended service life and a tilling depth of 0–6" adjustable via a 1/2" x 4" skid shoe that also protects the motor. Offset to the right-hand side of the machine to cover wheel tracks. Built-in wire guard protects the motor and drive area. Universal Quick Attach with hoses and couplers included. Made in the USA with a 1-year warranty.

⚙️ Key Features

• Tills in forward and reverse (bi-rotational) — operators can make passes in both directions without repositioning, maximizing efficiency on each run.
• Three sizes: HST 44-Mini SKD (mini skid steers), HST 68, HST 76 (full-size skid steers)
• Double-edge replaceable tines — each tine has two working edges; flip or replace individually when worn.
• 0–6" adjustable tilling depth — depth controlled by 1/2" x 4" skid shoe that also protects the motor from ground contact.
• Offset to right-hand side — tiller extends past the right side of the machine to till over the wheel tracks for complete coverage of the pass width.
• Built-in wire guard — protects the hydraulic motor and drive area from debris and wire entanglement.
• Hoses and couplers included
• Universal Quick Attach | Made in USA | 1-year warranty

🔑 Benefits

• Forward and reverse tilling doubles pass efficiency — bi-rotational operation means every run across a field tills soil in both directions, eliminating the need for separate forward and return passes at different tine angles.
• HST 44-Mini SKD makes tilling accessible on compact machines — at 44" tilling width and 350 lbs, this is one of the few USA-made Haugen tillers designed specifically for mini skid steer loaders, covering applications where a full-size skid steer won't fit.
• Offset design eliminates untilled strips — conventional attachments leave the wheel tracks untilled; the right-hand offset ensures the full operating width is worked on every pass without an additional strip pass.
• Double-edge tines reduce replacement frequency and cost — flipping a worn tine to its unused edge doubles tine life before replacement, halving per-hour tine cost on abrasive soils.

📊 Specifications

🔗 Attachment Compatibility

HST 44-Mini SKD: designed for mini skid steers using a universal mini skid steer quick attach. HST 68 and HST 76: use standard Universal Quick Attach for full-size skid steers. Both require an auxiliary hydraulic circuit (18–35 GPM typical range). Hoses and couplers are included with all models. Verify your machine's auxiliary hydraulic flow rate with Haugen if needed.

🚜 Machine Compatibility

Compatible with skid steer loaders and compact track loaders equipped with a Universal Quick Attach system, including:

Compatibility is determined by mount type, not brand — confirm your machine's quick attach configuration before ordering.
