Capacity
3,700 – 5,500 lb
Width
30.5 – 46 in
Models available
2 variants
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA since 1981
🔒5-year factory guarantee
🔨All welded steel construction
📘 Overview

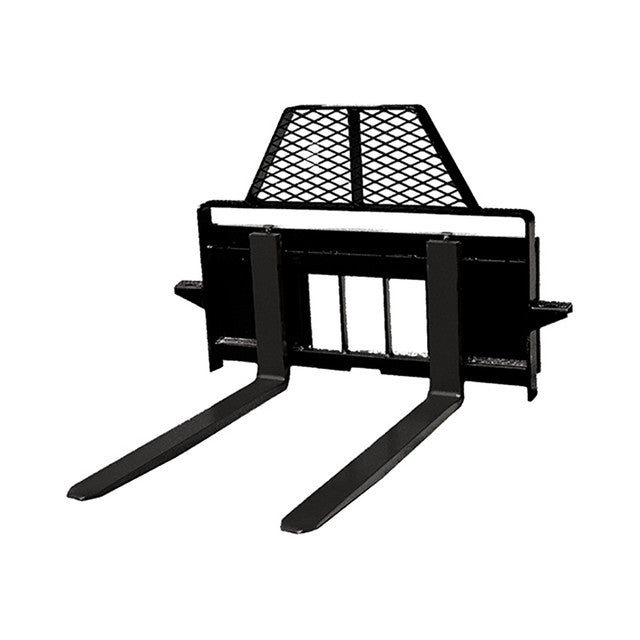

Star Industries skid steer pallet forks turn a loader into a forklift, and the decision here is the frame rather than the tines. The Economy 110EC-ITA is rated 3,700 lb, 30.5 inches wide and 27.5 inches high, and its open design gives a clear view of the forks from the seat. The Heavy Duty Walk-Through 110WT-ITA is rated 5,500 lb on machined ITA fork carriage bars, 46 inches wide and 35 inches high, with safe two-step operator access through the frame. Both take ITA Class 2 tines in 42 or 48 inch lengths, and both are available as frame only or as a complete assembly with tines fitted.
⚙ Key Features of the Star Industries ITA Fork Frame
- Economy frame 110EC-ITA — 3,700 lb capacity, 30.5 in wide, 27.5 in high
- Heavy Duty Walk-Through frame 110WT-ITA — 5,500 lb capacity, 46 in wide, 35 in high
- Walk-Through frame uses machined ITA fork carriage bars
- Walk-Through frame gives safe two-step operator access through the frame
- Economy frame gives a clear view of the forks from the seat
- ITA Class 2 tines in 42 in (F15x4x42CL2) or 48 in (F15x4x48CL2), 1.5 in x 4 in section, 5,500 lb per pair
- Available as frame only or as a complete assembly with tines
- Universal quick-tach mounting
- ITA style forks lock into position and cannot swing out when loads are dumped
- All welded steel construction
- A pallet fork attachment and ita fork frame for skid steers and compact track loaders
- Pallet forks for skid steer and compact track loader use, frame or complete assembly
- A skid steer fork attachment on the universal quick attach coupler
- 5-year factory guarantee, made in the USA since 1981
🔑 Why Buyers Choose the Star Industries ITA Fork Frame
- The frame rating is the limit, not the tines — Class 2 tines are rated 5,500 lb per pair on both frames, so an Economy frame at 3,700 lb is the governing number. Choosing the Walk-Through raises the whole assembly to 5,500 lb.
- Walk-Through means you climb through the frame, not around it — a two-step operator access built into the frame is a real daily difference on a machine you get in and out of constantly, and it is why the WT frame is taller.
- The Economy frame lets you see the tine tips — an open frame at 27.5 inches high gives a clear sightline to the forks, which matters when spearing a pallet at height on a machine with no reach indicator.
- ITA tines lock in and cannot swing out — the hook engages the carriage bar rather than the tine hanging loose, so dumping a load will not throw a tine free.
- Frame only is the cheaper route if you already own Class 2 tines — the assemblies exist for machines starting from nothing, but tines are a standard and yours may already fit.
📊 Star Industries ITA Fork Frame Specifications
| Model | Frame | Capacity | Width | Height |
|---|---|---|---|---|
| 110EC-ITA | Economy ITA style | 3,700 lb | 30.5 in | 27.5 in |
| 110WT-ITA | Heavy Duty Walk-Through ITA style | 5,500 lb | 46 in | 35 in |
🔄 Class 2 Tines for the ITA Fork Frame
| Fork Model | Section | Length | Capacity per pair |
|---|---|---|---|
| F15x4x42CL2 | 1.5 in x 4 in | 42 in | 5,500 lb |
| F15x4x48CL2 | 1.5 in x 4 in | 48 in | 5,500 lb |
📋 Fork Frame Options at Checkout
| Option as shown at checkout | What you get |
|---|---|
| Economy ITA Style Frame | 110EC-ITA — 3,700 lb, 30.5 in wide, 27.5 in high, clear view of the forks |
| Heavy-Duty Walk Through ITA Style Frame | 110WT-ITA — 5,500 lb, 46 in wide, 35 in high, machined carriage bars, two-step access |
| 42" Class 2 Forks | F15x4x42CL2 — 1.5 in x 4 in x 42 in ITA Class 2 tines, 5,500 lb per pair |
| 48" Class 2 Forks | F15x4x48CL2 — 1.5 in x 4 in x 48 in ITA Class 2 tines, 5,500 lb per pair |
| No Forks - Frame Only | Frame supplied without tines, for machines already running ITA Class 2 forks |
🔗 Frames, Tines and Complete Assemblies
Fork frames and tines are sold separately as well as together, so you buy only what you need. Complete assemblies pair a frame with tines already fitted: 110EC-42-ASSY and 110EC-48-ASSY on the Economy frame, 110WT-42-ASSY and 110WT-48-ASSY on the Walk-Through. Frame-only options are 110EC-ITA and 110WT-ITA. Tines on their own are F15x4x42CL2 and F15x4x48CL2, both ITA Class 2 at 1.5 in x 4 in section and 5,500 lb per pair. Locking pin assemblies for ITA Class 2, 3 and 4 forks are available as parts (F001-CL2, F001-CL3, F001-CL4).
🚜 Which Machines Fit These Skid Steer Pallet Forks?
This fork frame skid steer attachment mounts on the universal quick attach coupler and fits skid steer loaders and compact track loaders from Bobcat, Caterpillar, John Deere, Case, New Holland, Takeuchi, Kubota, Gehl and other makers using that standard. No auxiliary hydraulics are needed. Match the frame to your machine rated operating capacity rather than to the fork rating: a 5,500 lb Walk-Through frame on a machine rated well below that gains you nothing, and the machine is always the lower limit.
| Interface | Detail |
|---|---|
| Mount type | Universal quick attach (SSQA) |
| Machine types | Skid steer loaders and compact track loaders |
| Hydraulics required | None |
| Fork standard | ITA Class 2 — tines from other suppliers to the same class will fit |
| Brands supported | Bobcat, Caterpillar, John Deere, Case, New Holland, Takeuchi, Kubota, Gehl and others |
❓ Star Industries ITA Fork Frame Questions, Answered
Which fork frame should I choose, Economy or Walk-Through?
A walk through fork frame and an open frame answer different problems. The Economy 110EC-ITA is rated 3,700 lb and gives a clear view of the skid steer forks from the seat. The Heavy Duty Walk-Through 110WT-ITA is rated 5,500 lb, uses machined ITA fork carriage bars and provides two-step operator access through the frame. Choose the Walk-Through if you need the capacity or get in and out of the cab frequently.
Should I order 42 inch or 48 inch tines?
A 42 inch tine handles standard pallets and turns in tighter spaces. A 48 inch tine supports deeper loads without the weight overhanging the tip. Both are ITA Class 2 at 1.5 in by 4 in section and rated 5,500 lb per pair, so the choice is load depth rather than capacity.
Can I buy the frame without forks?
Yes. The 110EC-ITA and 110WT-ITA are sold as frame only. If you already own ITA Class 2 tines that is the cheaper route, since Class 2 is a standard and tines from other suppliers to the same class will fit.
What does the 3,700 lb or 5,500 lb rating actually limit?
It is the frame rating, and on the Economy frame it is the governing number because the Class 2 tines are rated 5,500 lb per pair. Your machine rated operating capacity is usually lower than either, and that is the real limit on what you can lift.
What does ITA Class 2 mean?
ITA is the fork carriage standard and Class 2 is the carriage size. The tines hook over the carriage bar rather than hanging loose, and lock into position so they cannot swing out when a load is dumped. Class 2 tines from any supplier fit a Class 2 frame.
Do skid steer pallet forks need auxiliary hydraulics?
No. Both Star fork frames are non-hydraulic attachments mounting on the standard universal quick attach coupler.
What is two-step operator access on the Walk-Through frame?
The Walk-Through frame is built so the operator can climb through it to reach the cab, using two defined steps, instead of going around the attachment. On a machine you get in and out of many times a day that is the practical reason to choose the WT frame.
Are locking pins available separately?
Yes. Locking pin assemblies are stocked by fork class — F001-CL2 for ITA Class 2 forks, F001-CL3 for Class 3 and F001-CL4 for Class 4.
What warranty comes with the fork frame?
The Star Industries fork frames carry a 5-year factory guarantee and are made in the USA.
How do I order and how is shipping calculated?
Add the frame, assembly or tines to your cart on eskidsteer.com and complete checkout online. Shipping is calculated at checkout once you enter your delivery address, with lift gate service available for residential deliveries.
