Description
🏭USA
🔧Quick attach
📘 Overview

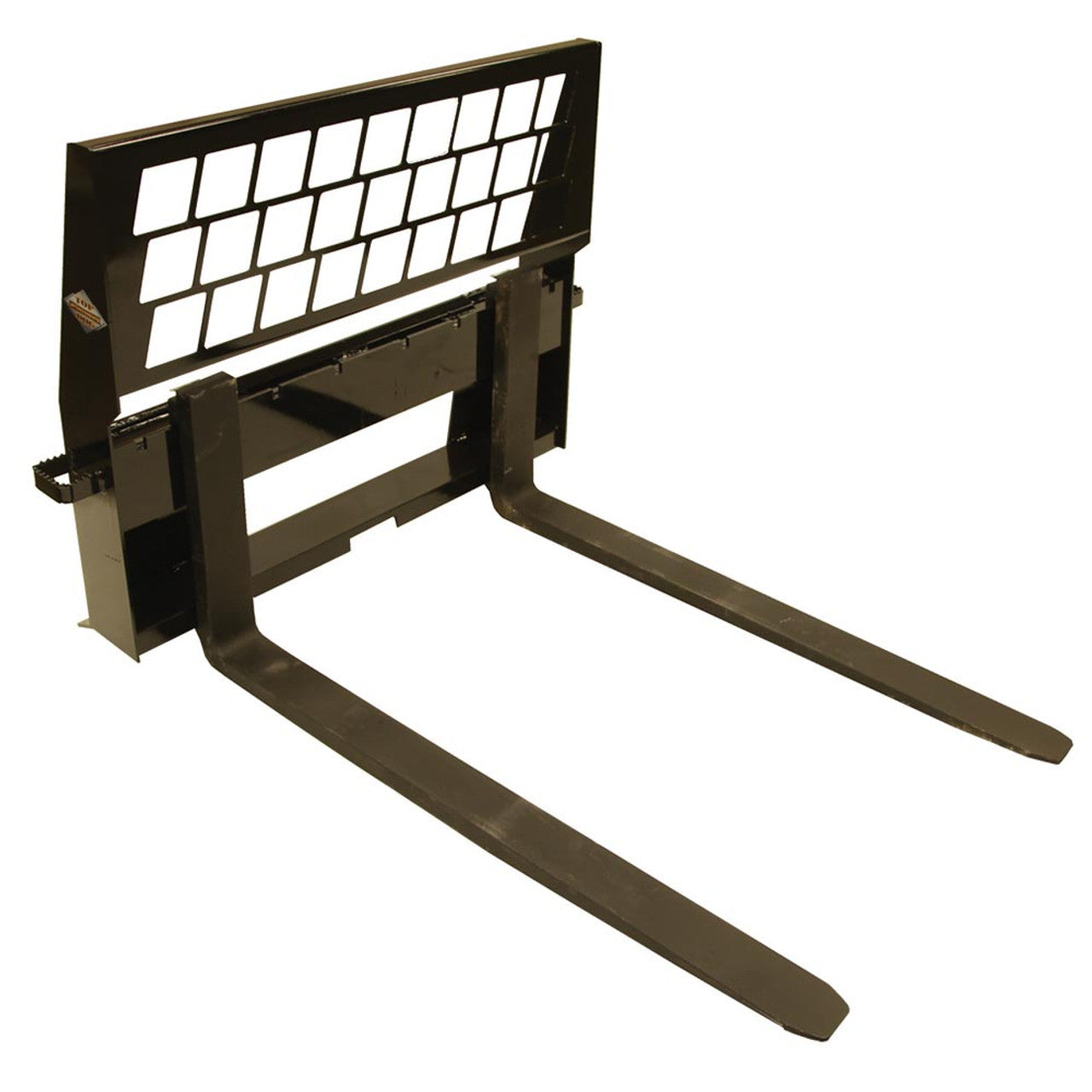

These Top Dog skid steer pallet forks are offered in two builds — Standard (9010010, 380 lbs) and Heavy Duty (9010011, 525 lbs) — both rated at 4,400 lbs per pair on 48" locking forks. Choose Standard for intermittent farm and property pallet handling, and Heavy Duty where the frame is loaded daily at reach; dimensions are identical between them, so the decision is purely about structural mass. Both frames are 50" wide (46" less steps) and 39.5" tall with a reinforced back plate, reinforced side rail and handy side steps.
This is the baseline skid steer pallet fork attachment in the Top Dog range. Buyers searching skid steer pallet forks for sale are usually choosing between duty classes rather than capacities, since the standard and heavy duty pallet forks share the same 4,400 lb per pair rating — the difference is how long the skid steer pallet fork frame survives daily cycling. The same fork and frame attachment doubles as pallet forks for tractor loaders, and buyers wanting to dismount through the frame should look at the walk-through version instead.
⚙ Key Features of the Top Dog Attachments Pallet Fork and Frame
- Two builds, Standard and Heavy Duty — identical geometry and rating — the HD adds 145 lbs of structure for daily commercial duty.
- 48" locking forks — forks lock on the rail so spacing holds under side load.
- 4,400 lbs rated per pair — published capacity on both builds; machine capacity is usually the limiting factor.
- Reinforced back plate and side rail — targets the two highest-stress areas when a pallet is carried at full reach.
- 4" wide fork tines — spreads load across the pallet stringer instead of point-loading it.
- Handy side steps — give the operator access from either side of the frame.
- Made in the USA with imported forks — US-manufactured frame; fork tines imported.
🔑 Why Choose the Pallet Fork and Frame?
- Pick the duty class, not a compromise — Standard at 380 lbs keeps weight off a small loader’s front end; HD at 525 lbs survives daily commercial cycling — same 4,400 lb rating either way.
- Load spacing that holds — locking forks stop the tines walking along the rail when you pick up an off-centre pallet.
- Reinforced against the real failure mode — back plate and side rail reinforcement addresses the bending moment that kills fork frames, not cosmetic areas.
- Works on tractors as well as skid steers — the universal quick attach plate fits tractor front-end loaders with an SSQA coupler, so one attachment covers both machines.
📊 Top Dog Attachments Pallet Fork and Frame Specifications
| Specification | Value |
|---|---|
| Height | 39.5" |
| Width | 50" |
| Width Less Steps | 46" |
| Fork Length | 48" |
| Fork Width | 4" |
| Estimated Load Capacity | 4,400 lbs per pair |
| Country of Origin | Made in USA (imported forks) |
| Rated Capacity | 4,400 lbs per pair |
🔄 Pallet Fork and Frame Sizes, Part Numbers and Weights
| Part # | Model | Catalog Description | Weight |
|---|---|---|---|
| 9010010 | Standard | FF55 Fork and Frame | 380 lbs |
| 9010011 | Heavy Duty | HD FF55 Fork and Frame | 525 lbs |
🔗 What Are Skid Steer Pallet Forks Used For?
- Handling palletized material on site
- Farm and ranch pallet handling
- Loading and unloading delivery trucks
- Moving bagged, boxed or crated product
- Nursery and landscape supply handling
Anyone comparing skid steer forks across brands should check fork length, tine width and whether the forks lock — all three vary more than headline capacity does.
🚜 Which Machines Fit the Pallet Fork and Frame?
Available for two machine classes — the Pallet Fork and Frame uses a single universal quick attach plate that serves both:
Skid steers and compact track loaders — fits machines with a Universal Quick Attach (SSQA) mount, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compact tractor front-end loaders — fits tractor loaders fitted with a skid-steer-style universal quick attach coupler. Loaders using Euro/Global or John Deere 400/500 mounts require the matching Top Dog adapter plate (Euro 90133219, Euro 2-piece 90133229, JD flat 9033199, JD offset 90133228).
Hydraulics: This is a mechanical attachment — no auxiliary hydraulic circuit is needed.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration before ordering.
❓ Pallet Fork and Frame Questions, Answered
What is the difference between the Standard and Heavy Duty pallet fork frame?
The Top Dog Standard fork and frame (9010010) weighs 380 lbs; the Heavy Duty (9010011) weighs 525 lbs. Height, width, fork length and the 4,400 lb per pair rating are identical. The Heavy Duty carries additional structural mass for daily commercial duty cycles.
What is the load capacity of the Top Dog pallet fork and frame?
Both the Standard and Heavy Duty Top Dog fork frames are rated at 4,400 lbs per pair. Actual lift is limited by whichever is lower — the fork rating or your machine’s rated operating capacity at the working load centre.
How long are the forks and can they be adjusted?
The forks are 48" long and 4" wide. They lock in position along the frame rail, so spacing is set by the operator and held under load.
Should I choose the walk-through frame instead?
Choose the walk-through frame if the operator dismounts frequently — it adds a centre step allowing passage through the attachment to ground level. The standard fork and frame has side steps only. Capacity and fork dimensions are the same across both.
Are fork extensions available for this frame?
Yes. Top Dog lists 2" x 6" x 7′ fork extensions as part number 891011, sold separately from the fork frame.
Will the pallet fork and frame fit a tractor front-end loader?
Yes, where the loader is fitted with a skid-steer-style universal quick attach coupler. Tractor loaders using Euro/Global or John Deere 400/500 mounts need the corresponding Top Dog adapter plate.
Does the pallet fork and frame require hydraulics?
No. The Top Dog pallet fork and frame is a mechanical attachment — no auxiliary hydraulic circuit is needed.
How is the pallet fork and frame shipped?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order the Top Dog pallet fork and frame?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
