Description
📘 Overview

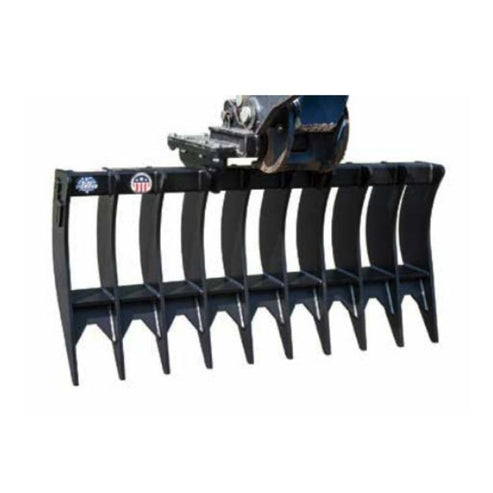

The Blue Diamond Heavy Duty Excavator Rake is an excavator rake attachment that rakes roots, rock, and debris on the end of an excavator arm. It bolts on with an 18″ × 19″ top plate to an excavator quick-coupler mount, and 1/2″ steel plate tines rake material while soil sifts through the spacing — clearing debris while keeping the dirt.
This listing covers 36″, 48″, and 60″ widths matched to excavator weight classes, so you size the rake to your machine. The 6-1/2″ tine spacing lets soil flow through efficiently, while gusseted tine tips add strength where the rake takes the most load.
As a heavy duty excavator rake, it's built for land clearing on excavators. A blue diamond excavator rake handles roots and rock a bucket can't sort; a mini excavator rake fits compact machines in the 6K–10K lb class. As an excavator land clearing rake, the reinforced tines and gusseted tips take the abuse of prying material from packed ground.
The 1/2″ steel plate tines, 6-1/2″ spacing, gusseted tips, and 18″ × 19″ bolt-on top plate make it a durable land-clearing rake for excavators.
⚙ Heavy Duty Excavator Rake Features
- Available sizes: 36″, 48″, and 60″ widths
- Excavator compatibility across weight classes
- 1/2″ thick steel plate tines for superior strength
- 6-1/2″ tine spacing allows efficient soil flow
- Gusseted tine tips for enhanced strength
- 18″ × 19″ bolt-on top plate for easy mounting
🔑 Why Choose the Blue Diamond Excavator Rake

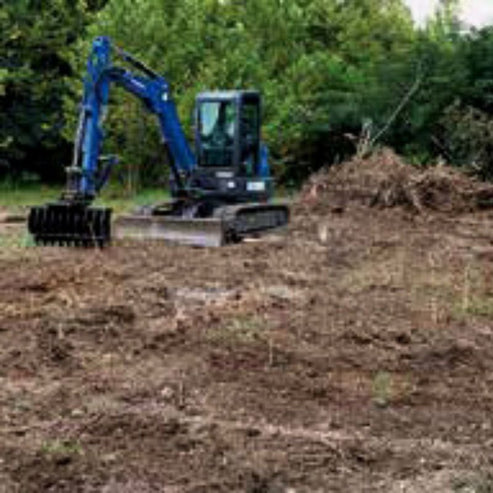

- Rakes where an excavator reaches — mounted on the arm, it rakes roots and debris from slopes, ditches, and spots a skid steer can't drive.
- 1/2″ steel tines resist bending — the thick plate tines take the strain of prying roots and rock without bending like lighter rakes.
- Sifts soil, keeps debris — the 6-1/2″ tine spacing lets dirt flow through while roots, rock, and brush stay in the rake.
- Gusseted tips for strength — the gusseted tine tips reinforce the highest-stress point, extending rake life in tough clearing.
- Standard 18″ × 19″ mount plate — the bolt-on top plate fits common excavator couplers for a straightforward install.
🔄 Excavator Rake Attachment Variant Specifications
| Part Number | Width / Machine | Weight |
|---|---|---|
| 170415 | 36” Wide Fits 6K - 10K lbs | 260 lbs |
| 170425 | 48” Wide Fits 6K - 10K lbs | 300 lbs |
| 170475 | 48” Wide Fits 10K - 15K lbs | 400 lbs |
| 170485 | 60” Wide Fits 10K - 15K lbs | 470 lbs |
🚜 Machine Compatibility
Compatible with excavators using a pin-on or quick-coupler mount matched to your machine's weight class and coupler. Common compatible brands include:
Caterpillar
John Deere
Kubota
Bobcat
Takeuchi
Komatsu
Case
Kobelco
Compatibility is determined by coupler type and machine weight class, not brand — confirm your excavator's coupler and weight before ordering. The 36″ and 48″ suit 6,000–10,000 lb machines, while larger sizes fit 10,000–15,000 lb machines. Not sure it fits your machine? Contact eskidsteer.com at (866) 757-8337.
❓ Frequently Asked Questions
Q: What size rake fits my excavator?
Match the size to your machine's weight class — the 36″ and 48″ fit 6,000–10,000 lb machines, and larger sizes fit 10,000–15,000 lb machines. Running the size matched to your carrier gives proper performance without overloading the arm.
Q: How is this different from a root rake for a skid steer?
This rake bolts to an excavator arm, letting you rake slopes, ditches, and hard-to-reach areas from stable ground. A skid steer root rake pushes and gathers at ground level. Choose based on whether you're running an excavator or a skid steer.
Q: How does it separate dirt from debris?
The tines are spaced 6-1/2″ apart, so as you rake, soil flows through the gaps while roots, rock, and brush stay in the rake. You gather the debris and leave the usable soil behind.
Q: Why 1/2″ steel tines?
The 1/2″ steel plate tines with gusseted tips resist the bending that occurs when prying roots and rock from packed ground. For land clearing on an excavator, the heavy tines are what keep the rake working season after season.
Q: How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Q: How do I order?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
