Description
🏭USA
🔧Quick attach
📘 Overview

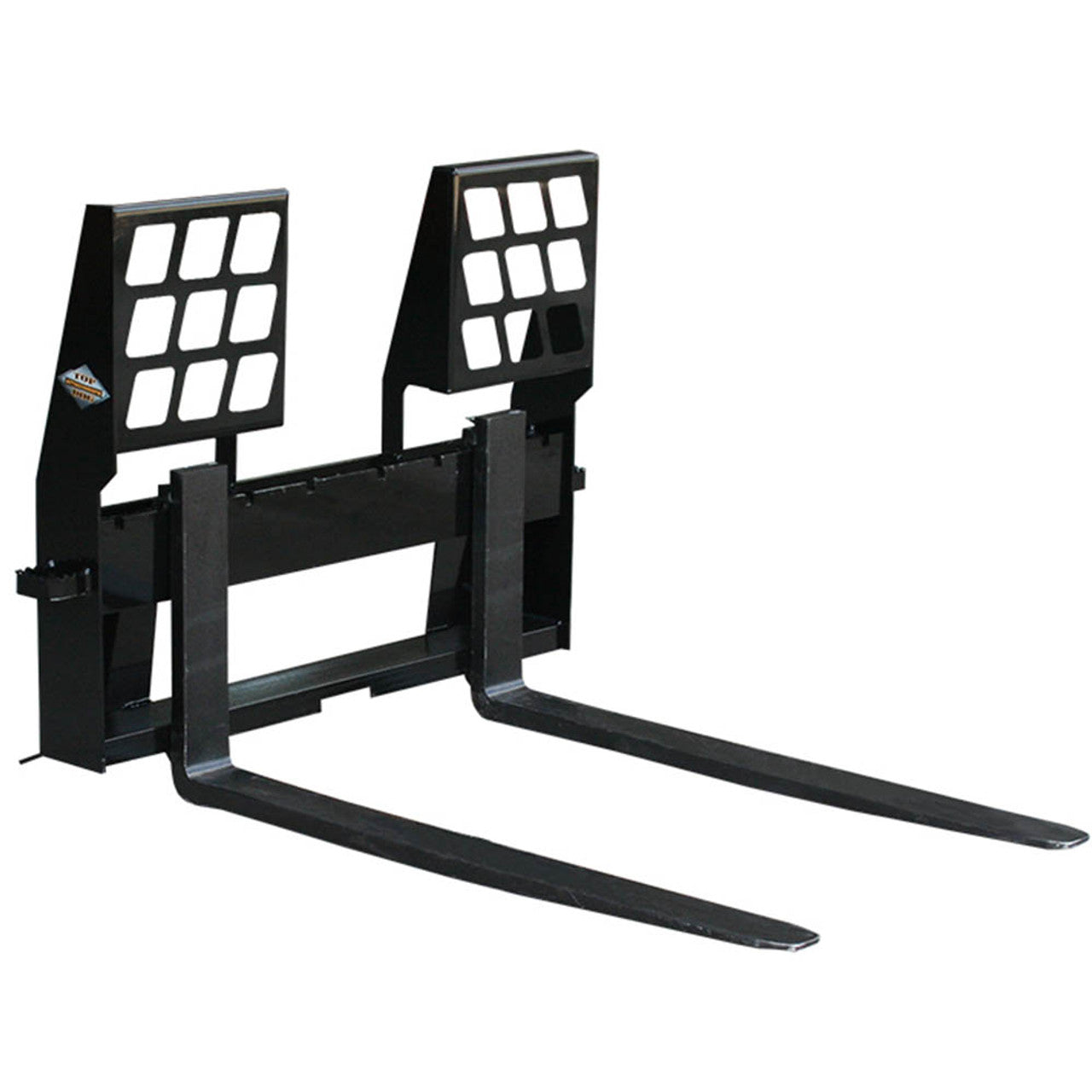

These walk through pallet forks from Top Dog Attachments are offered in two builds — Standard (9010012, 380 lbs) and Heavy Duty (9000015, 525 lbs) — both rated at 4,400 lbs per pair on 48" locking forks. The walk-through design is the point of difference against a conventional fork frame: a centre step lets the operator get from the cab through the frame to ground level without going around the attachment, which matters on repeated load checks and strapping work. Dimensions are identical between the two builds — 50" wide (46" less steps) and 39.5" tall, with a reinforced back plate and reinforced side rail — so the choice is purely about how much structural mass the duty cycle warrants.
Among skid steer pallet forks the walk-through frame answers a specific irritation: on a standard skid steer pallet fork attachment the operator has to walk around the frame every time they check or strap a load. If the machine mostly carries pallets without dismounting, a conventional skid steer pallet fork frame costs less and does the same lifting. These heavy duty pallet forks carry the same 4,400 lb per pair rating as the rest of the range, and work equally as pallet forks for tractor loaders fitted with a universal quick attach coupler.
⚙ Key Features of the Top Dog Attachments HD Walk Through Pallet Fork
- Two builds, Standard and Heavy Duty — identical geometry and 4,400 lb rating — the HD adds 145 lbs of structure for daily commercial duty.
- Centre walk-through step — unique to the walk-through frame — lets the operator pass through the attachment to ground level instead of climbing around it.
- 48" locking forks — forks lock in position so they do not drift along the rail under side load.
- 4,400 lbs rated per pair — load rating on the fork pair; actual lift is limited by whichever is lower, fork capacity or machine capacity.
- Reinforced back plate and side rail — the two areas that fail first on a fork frame carrying pallets at reach.
- 4" wide fork tines — wide tines spread load across the pallet stringer rather than concentrating it.
- Handy side steps — in addition to the centre step, side steps give access from either side of the frame.
- Made in the USA with imported forks — the frame is US-manufactured; the fork tines themselves are imported.
🔑 Why Choose the HD Walk Through Pallet Fork?
- Operator gets through the frame, not around it — the centre walk-through step cuts the walk on every load check — the reason to choose this over a standard fork frame.
- Rated capacity you can plan loads around — 4,400 lbs per pair on 48" forks is a published figure, not a guess, so you can size loads against your machine’s chart.
- Reinforced where fork frames actually fail — the back plate and side rail carry the moment load when a pallet is out at reach; both are reinforced on the HD.
- Forks stay where you set them — locking forks hold spacing under side loading instead of walking along the rail mid-lift.
📊 Top Dog Attachments HD Walk Through Pallet Fork Specifications
| Specification | Value |
|---|---|
| Part Numbers | 9010012 (Standard), 9000015 (Heavy Duty) |
| Height | 39.5" |
| Width | 50" |
| Width Less Steps | 46" |
| Fork Length | 48" |
| Fork Width | 4" |
| Estimated Load Capacity | 4,400 lbs per pair |
| Country of Origin | Made in USA (imported forks) |
| Rated Capacity | 4,400 lbs per pair |
🔄 HD Walk Through Pallet Fork Sizes, Part Numbers and Weights
| Part # | Model | Weight |
|---|---|---|
| 9010012 | Standard | 380 lbs |
| 9000015 | Heavy Duty | 525 lbs |
🔗 What Are Walk Through Pallet Forks Used For?
- Handling palletized material on site
- Farm and ranch pallet handling
- Loading and unloading delivery trucks
- Moving bagged or boxed product
- Yard and warehouse work where the operator dismounts frequently
Operators cross-shopping skid steer forks by capacity should compare rated load at their own working load centre, not just the headline pair rating.
🚜 Which Machines Fit the HD Walk Through Pallet Fork?
Available for two machine classes — the HD Walk Through Pallet Fork uses a single universal quick attach plate that serves both:
Skid steers and compact track loaders — fits machines with a Universal Quick Attach (SSQA) mount, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compact tractor front-end loaders — fits tractor loaders fitted with a skid-steer-style universal quick attach coupler. Loaders using Euro/Global or John Deere 400/500 mounts require the matching Top Dog adapter plate (Euro 90133219, Euro 2-piece 90133229, JD flat 9033199, JD offset 90133228).
Hydraulics: This is a non-hydraulic attachment — the forks are mechanically locked and adjusted by hand, so no auxiliary hydraulic circuit is required.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration before ordering.
❓ HD Walk Through Pallet Fork Questions, Answered
Should I choose the standard or heavy duty walk through pallet fork?
The Top Dog standard walk-through fork and frame (9010012) weighs 380 lbs; the heavy duty walk-through (9000015) weighs 525 lbs. Height, width, fork length and the 4,400 lb per pair rating are identical — the difference is structural mass. Choose the heavy duty build where the frame is loaded daily at reach, and the standard build for intermittent farm and property pallet handling.
What makes a walk-through pallet fork different from a standard fork and frame?
The Top Dog walk-through frame has a centre step that lets the operator pass through the middle of the attachment to reach ground level. A standard fork and frame has no centre opening, so the operator has to walk around the attachment. Both share the same 50" width, 39.5" height and 48" fork length.
What is the load capacity of the HD Walk Through Pallet Fork?
The Top Dog HD Walk Through Pallet Fork is rated at 4,400 lbs per pair. Actual lifting capacity is limited by whichever is lower — the fork rating or the host machine’s rated operating capacity at the load centre you are working to.
How long are the forks?
The forks are 48" long and 4" wide, and they lock in position on the frame.
Are fork extensions available?
Yes. Top Dog lists 2" x 6" x 7′ fork extensions under part number 891011. Extensions are a separate item and are not included with the fork frame.
Will the pallet fork frame fit a tractor loader?
Yes, where the tractor loader is fitted with a skid-steer-style universal quick attach coupler. Tractor loaders using Euro/Global or John Deere 400/500 mounts require the corresponding Top Dog adapter plate.
Does the pallet fork need hydraulics?
No. The Top Dog HD Walk Through Pallet Fork is a non-hydraulic attachment — the forks are mechanically locked and adjusted by hand, so no auxiliary hydraulic circuit is required.
How is the pallet fork frame shipped?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order the HD Walk Through Pallet Fork?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
