Overall Height
32"
Inside Depth
41.5"
Tine Spacing
3"
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭USA
🔧Quick attach
📘 Overview

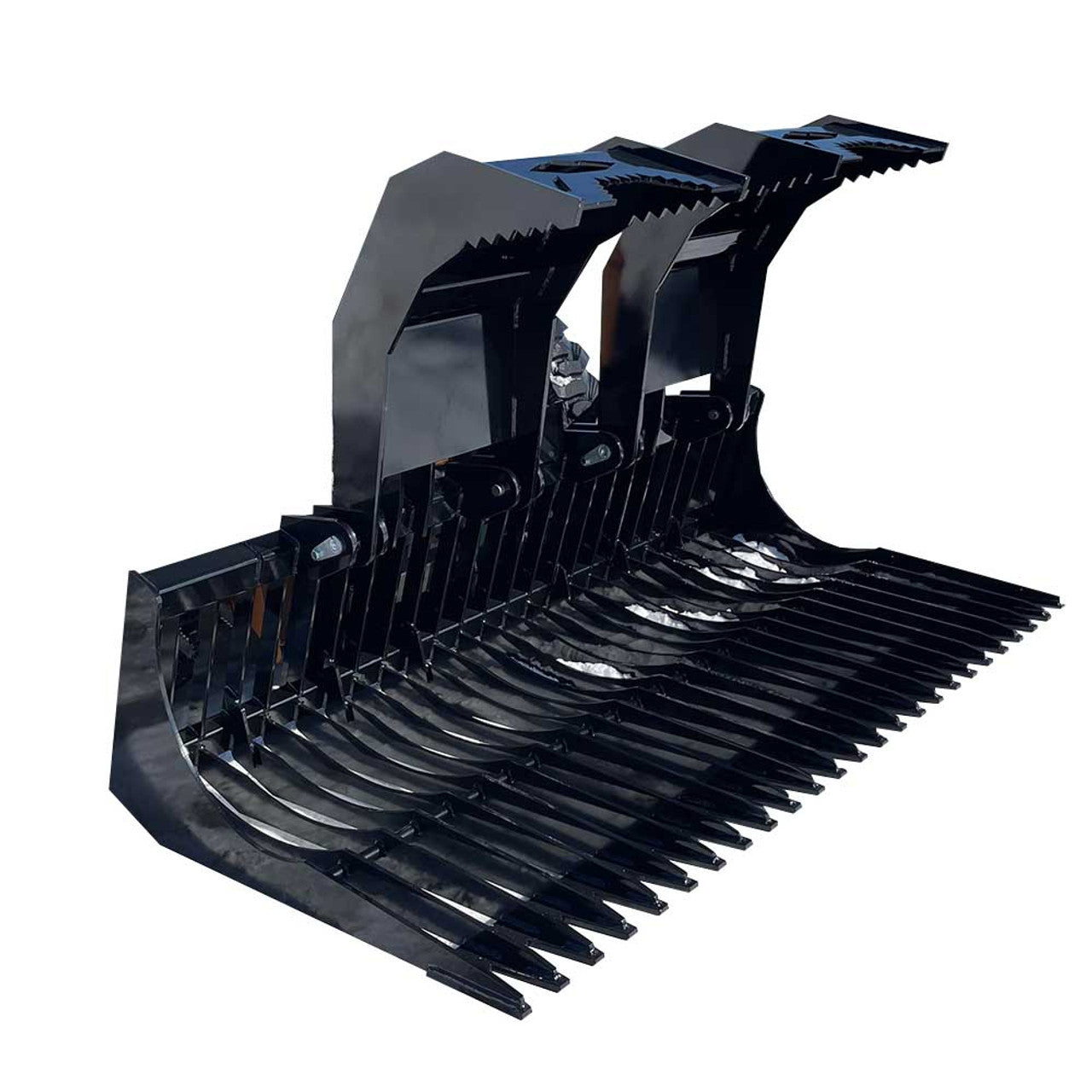

This heavy duty skid steer brush grapple is the reinforced build of the Top Dog Attachments brush bucket with grapple, offered in 68", 75" and 82" widths for continuous commercial land clearing. Compared with the standard model it trades jaw opening for mass and structure: open tine-to-tine height is 46" rather than 50", while weight rises from 833 lbs to 1003 lbs at 68". The HD keeps the open sidewall design that lets you carry limbs and poles longer than the bucket, with A50 steel tines on 3" spacing and 41.5" inside depth.
Buyers usually reach this page after pricing a standard skid steer brush grapple and deciding the duty cycle warrants more steel. As a heavy duty grapple bucket it targets daily commercial clearing rather than seasonal property work: the same open-sidewall brush bucket with grapple geometry, but with the mass concentrated in the frame and arms. If the machine spends most of its year on other work, the standard skid steer grapple bucket is the better buy.
⚙ Key Features of the Top Dog Attachments HD Brush Bucket with Grapple
- Heavy-duty structural build — roughly 120–170 lbs heavier per size than the standard brush bucket, with the mass in the frame and grapple arms where clearing work concentrates stress.
- Open sidewall design retained — carries brush, limbs and poles longer than the bucket width, the same as the standard model.
- A50 steel tines and top cross bar — the grapple contact points resist deformation under repeated commercial clamping cycles.
- 46" open tine-to-tine height — a tighter, more controlled jaw than the standard 50" — trades maximum bite for clamping authority on dense material.
- 3" tine spacing — retains small limbs while shedding soil and fines during pickup.
- 41.5" inside depth — matches the standard model; the load sits back against the bucket while travelling.
- Three widths, 68" to 82" — the HD family starts at 68" — there is no 62" HD model.
🔑 Why Choose the HD Brush Bucket with Grapple?
- Built for duty cycle, not occasional use — at 1003–1085 lbs the HD carries materially more structure than the 833–965 lb standard model, which is what survives daily commercial clearing.
- Tighter clamping control on dense loads — the 46" jaw closes with more authority on packed brush than the wider-opening standard grapple.
- Still handles oversize material — open sidewalls mean the HD keeps the standard model’s ability to carry limbs longer than the bucket itself.
- Sized for high-capacity machines — starting at 68" and 1003 lbs, the HD is matched to loaders with the front-end capacity to justify it.
📊 Top Dog Attachments HD Brush Bucket with Grapple Specifications
| Specification | Value |
|---|---|
| Overall Height | 32" |
| Inside Depth | 41.5" |
| Open Tine to Tine Height | 46" |
| Tine Spacing | 3" |
| Tines & Top Cross Bar | A50 Steel |
| Country of Origin | Made in USA |
🔄 HD Brush Bucket with Grapple Sizes, Part Numbers and Weights
| Part # | Width | Weight |
|---|---|---|
| 9010031-HD | 68" | 1003 lbs |
| 9010032-HD | 75" | 1049 lbs |
| 9010033-HD | 82" | 1085 lbs |
🔗 What Is a Heavy Duty Skid Steer Brush Grapple Used For?
- Continuous commercial land clearing
- Contractor brush and slash removal
- Storm debris cleanup at volume
- Fence line and right-of-way clearing
- Heavy pasture reclamation
As a commercial brush grapple this is the build to specify when the attachment is on the machine most days rather than a few weekends a year.
🚜 Which Machines Fit the HD Brush Bucket with Grapple?
Available for two machine classes — the HD Brush Bucket with Grapple uses a single universal quick attach plate that serves both:
Skid steers and compact track loaders — fits machines with a Universal Quick Attach (SSQA) mount, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compact tractor front-end loaders — fits tractor loaders fitted with a skid-steer-style universal quick attach coupler. Loaders using Euro/Global or John Deere 400/500 mounts require the matching Top Dog adapter plate (Euro 90133219, Euro 2-piece 90133229, JD flat 9033199, JD offset 90133228).
Hydraulic requirement: The HD brush bucket grapple arms are hydraulically actuated and require an auxiliary hydraulic circuit on the host machine.
Machine capacity: The HD brush bucket with grapple weighs 1,003 to 1,085 lbs empty depending on width. It requires a skid steer, compact track loader or tractor loader with the rated operating capacity to carry that mass plus a full grapple load at full reach.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration before ordering.
❓ HD Brush Bucket with Grapple Questions, Answered
What is the difference between the HD and standard Top Dog brush bucket?
The HD Top Dog brush bucket is substantially heavier — 1003 lbs versus 833 lbs at 68" — and reduces open tine-to-tine height from 50" to 46". Inside depth (41.5"), overall height (32") and 3" tine spacing are identical. Choose HD for continuous commercial clearing and the standard model for intermittent farm and property work.
Is there a 62" HD brush bucket?
No. The Top Dog HD brush bucket family starts at 68" and is offered in 68" (9010031-HD), 75" (9010032-HD) and 82" (9010033-HD). The 62" width is available in the standard brush bucket only.
What size machine does the HD brush bucket need?
The HD brush bucket weighs 1003 lbs empty at 68" and 1085 lbs at 82", before any load. It requires a skid steer, compact track loader or tractor loader with the rated operating capacity to carry that mass plus a full grapple load at full reach.
How wide does the HD brush bucket open?
The Top Dog HD brush bucket opens 46" measured tine-to-tine, compared with 50" on the standard model.
Does the HD brush bucket require auxiliary hydraulics?
Yes. The HD brush bucket grapple arms are hydraulically actuated and require an auxiliary hydraulic circuit on the host machine.
Can the HD brush bucket carry material longer than the bucket?
Yes. The HD retains the open sidewall design, so limbs, poles and long slash extend past the sides rather than needing to be cut to bucket width.
How is the HD brush bucket shipped?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order the HD brush bucket?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
