Skid Steer Extreme Duty Auger Drive Series 2 - Blue Diamond

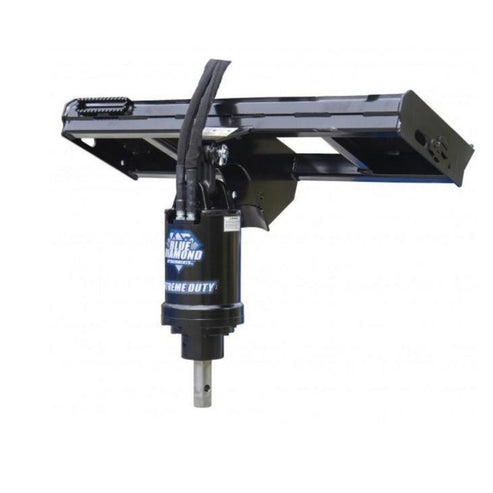

The Extreme Duty Series 2 auger drive is built for operators who need dependable drilling power across a wide range of ground conditions and machine hydraulic setups. Designed for skid steers, this heavy-duty drive lineup combines high torque output, reinforced construction, and multiple model choices to support everything from general earth drilling to more demanding clay and shale applications.

Its compact high-torque gearbox and two-piece shaft design help maximize side load performance while maintaining stable, efficient drilling. The universal skid steer mount uses a welded cradle and dual-pin layout to allow the auger to hang naturally, helping improve hole alignment and drilling control in the field.

With standard-flow and high-flow models available, this auger drive series gives operators flexibility to match the drive to their machine and job requirements. Optional bits, extensions, adapters, and a telescopic skid steer mount further expand its usefulness for fencing, landscaping, construction, and utility installation work.

• Compact high-torque manufactured gearbox
• Two-piece shaft design for maximum side load ratings
• Universal skid steer mount with welded cradle and dual-pin hanging design
• Natural hanging position for stable and controlled drilling
• Available in multiple standard-flow and high-flow models
• Standard 2-inch hex or 2 1/2-inch hex output shaft depending on model
• Pressure relief valve included on selected high-flow models
• Telescopic skid steer mount available for extended reach and drilling depth
• Compatible with auger bits, auger extensions, and auger adapters
• 5-year gearbox warranty
• 3-year motor warranty
• Lifetime shaft pull-out warranty

• Provides strong drilling torque for a wide variety of hole-boring applications
• Supports better drilling stability with a natural hanging cradle-style mount
• Handles higher side loads for improved durability in difficult drilling conditions
• Offers multiple model options to match hydraulic flow and torque requirements
• Expands jobsite versatility with available bits, extensions, adapters, and telescopic mount options
• Delivers long-term value through extended warranty coverage on core components

This auger drive series is ideal for fence installation, sign placement, tree planting, foundation hole drilling, utility work, and general earth boring applications. It is well suited for contractors, landscapers, utility crews, and agricultural operators who need flexible drilling solutions.

Compatible with skid steers that can provide the required hydraulic flow and pressure for the selected drive model. Always verify machine hydraulic capacity, attachment fitment, and auger bit compatibility before operation.

What is the difference between the standard-flow and high-flow models?
Standard-flow models are designed for lower hydraulic flow ranges, while high-flow models provide higher torque and support larger drilling diameters for more demanding applications.

What output shaft sizes are available?
Depending on the model, the auger drive uses either a 2-inch hex or 2 1/2-inch hex output shaft.

Can I use this auger drive with extensions and adapters?
Yes. Compatible auger bits, extensions, and adapters are available for a wide range of drilling setups.

Is a pressure relief valve included?
Yes, selected high-flow models include a pressure relief valve.

What kind of drilling diameters can this series handle?
Depending on the model and soil condition, maximum drilling diameter ranges up to 30 inches in clay/shale and up to 48 inches in dirt.

What warranty coverage comes with this auger drive?
This series includes a 5-year gearbox warranty, 3-year motor warranty, and lifetime shaft pull-out warranty.

• Auger Extreme Duty S2 Spec Sheet
• Auger Extreme Duty S2 Manual
• Auger Bits and Extensions Spec Sheet

• Watch Auger Extreme Duty Series 2 Video
