Description
📘 Overview
The Haugen MHDB Heavy Duty skid steer dirt bucket is a low-profile and general-purpose bucket built specifically for the abuse cycle that rental fleets and commercial job sites demand. Available in seven widths from 60" to 96" in two edge configurations — smooth high-carbon cutting edge and tooth bucket with 6–11 Series 23 replaceable-tip weld-on teeth — all in the Heavy Duty series with 1/2" x 3" wear bars on the bottom, 1/4" wrapper and side plates, and a built-in step. Weights range from 570 lbs (smooth, 60") to 730 lbs (smooth, 90") and 630 lbs (tooth, 60") to 782 lbs (tooth, 90"). Made in USA with a 1-year warranty.
⚙️ Key Features

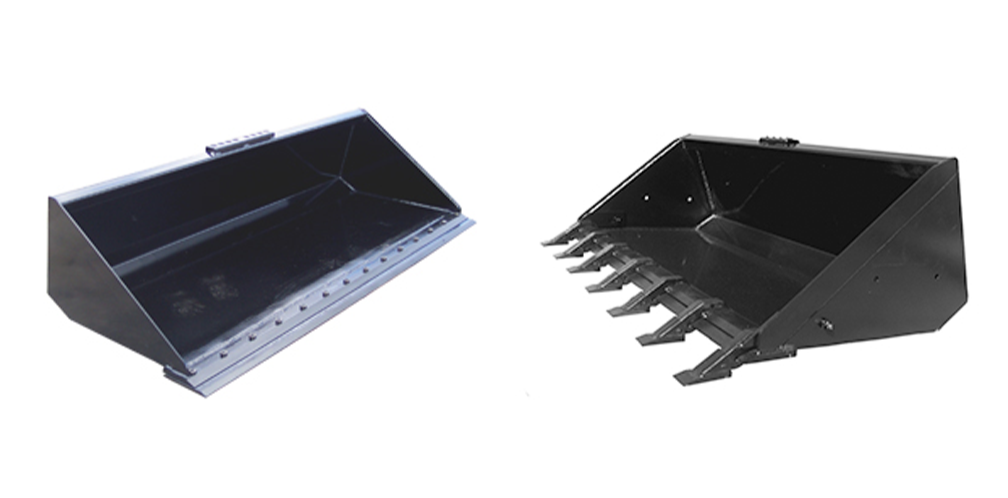

- Seven widths: 60", 66", 72", 78", 84", 90", 96" (workbook lists 60–90 with tooth, 60–96 smooth)
- Two edge options: Smooth 3/4" x 6" high-carbon edge (MHDB) or Tooth (MHDB WT) with 6–11 Series 23 weld-on teeth with replaceable tips
- Low-profile design for maximum visibility over the bucket
- 1/2" x 3" wear bars on the bottom for floor wear and extra bottom strength
- 1/4" bucket wrapper and side plates with extra gusset on leading edge
- 3/4" x 6" high-carbon cutting edge drilled to accept bolt-on edge
- Heavy-duty full universal skid steer quick attach plate
- Built-in step
- Made in USA | 1-year warranty
🔑 Benefits
- Rental-company construction — built for the daily abuse cycle, not light-duty work — the 1/2" x 3" wear bars on the floor, 1/4" wrapper, extra leading-edge gusset, and full quick attach plate are over-engineered relative to economy buckets, which is exactly why Haugen's buckets survive rental fleet cycles that destroy lighter competitors.
- Series 23 replaceable-tip teeth (WT variant) eliminate full tooth replacement on wear — the tip unscrews or pins off the tooth shank when worn; only the tip is replaced rather than the entire weld-on tooth. On abrasive soils, this cuts tooth maintenance cost per hour significantly.
- Low-profile design improves operator sightlines to the cutting edge — lower back height gives the operator a clear view of the cutting edge and bucket lip during precision work (final grade leveling, trench bottom cleanup, material pile entry), reducing the risk of over-digging or striking an obstruction.
- Seven widths cover compact machines (60") through large track loaders (90–96") — with 30 cu ft increments across the range, operators can select the width that maximizes fill per pass without exceeding machine capacity.
📊 Specifications
| Model | Width | Heaped Cap. | Weight | Edge |
|---|---|---|---|---|
| MHDB 60 | 60 in. | 14.25 cu ft | 570 lbs | Smooth |
| MHDB 66 | 66 in. | 15.80 cu ft | 605 lbs | Smooth |
| MHDB 72 | 72 in. | 17.25 cu ft | 635 lbs | Smooth |
| MHDB 78 | 78 in. | 18.75 cu ft | 665 lbs | Smooth |
| MHDB 84 | 84 in. | 20.50 cu ft | 695 lbs | Smooth |
| MHDB 90 | 90 in. | 22.75 cu ft | 730 lbs | Smooth |
| MHDB 60 WT | 60 in. | 14.25 cu ft | 630 lbs | 6-tooth Series 23 |
| MHDB 66 WT | 66 in. | 15.80 cu ft | 662 lbs | 7-tooth Series 23 |
| MHDB 72 WT | 72 in. | 17.25 cu ft | 690 lbs | 8-tooth Series 23 |
| MHDB 78 WT | 78 in. | 18.75 cu ft | 722 lbs | 9-tooth Series 23 |
| MHDB 84 WT | 84 in. | 20.50 cu ft | 752 lbs | 10-tooth Series 23 |
| MHDB 90 WT | 90 in. | 22.75 cu ft | 782 lbs | 11-tooth Series 23 |
| Specification | Value |
|---|---|
| Overall Dimensions | Outer width x 42" x 24" (by model) |
| Inside Depth | 34 in. |
| Bucket Height | 20.5 in. |
| Bottom Wear Bars | 1/2" x 3" |
| Wrapper / Side Plates | 1/4" with extra gusset on leading edge |
| Cutting Edge (Smooth) | 3/4" x 6" high-carbon — drilled for bolt-on |
| Teeth (WT variant) | Series 23 weld-on with replaceable tips |
| Step | Built-in |
| Mount | Universal Quick Attach |
| Warranty | 1 year |
| Origin | Made in USA |
🔗 Attachment Compatibility
The MHDB uses the Universal Quick Attach system. The full-size quick attach plate is over-engineered relative to economy buckets — the plate engages all locking points on the skid steer coupler for maximum retention. Verify the bucket width matches or slightly exceeds your machine's track/tire width for complete coverage on grading passes.
🚜 Machine Compatibility
Compatible with skid steer loaders and compact track loaders equipped with a Universal Quick Attach system, including:
| Bobcat | Caterpillar | John Deere | Case |
| New Holland | Takeuchi | Kubota | Gehl |
Compatibility is determined by mount type — confirm your machine's Universal Quick Attach configuration before ordering.
❓ FAQs
|
Q: Should I choose the smooth edge (MHDB) or tooth bucket (MHDB WT)?
Choose the smooth cutting edge (MHDB) for: clean grading, finish work, material loading from stockpiles, concrete slab cleanup, and applications where a consistent edge contact is needed. Choose the tooth bucket (MHDB WT) for: excavation, digging into compacted fill, breaking frozen ground, rocky subsoil, and applications where penetration is more important than a clean finished grade. The WT adds 60–52 lbs over the smooth version and increases dig capability significantly. |
|
Q: What are Series 23 teeth with replaceable tips?
Series 23 is a weld-on tooth system where each tooth consists of a permanent tooth shank (welded to the bucket cutting edge) and a replaceable tip that attaches to the shank with a pin or bolt. When the tip wears out from abrasion, only the tip is replaced — not the entire tooth and shank assembly. This significantly reduces wear part cost and allows field tip replacement without grinding equipment. |
|
Q: What size should I choose?
Match bucket width to your machine's track or tire width for complete pass coverage. The 60–66" range fits compact skid steers. The 72" covers most mid-size machines. The 78–84" suits full-size track loaders. The 90–96" is for the largest machines. Also verify your machine's lift capacity can handle the bucket weight plus the expected payload — the MHDB 90 WT at 782 lbs empty is already a significant payload against smaller machines. |
|
Q: Can I add a bolt-on cutting edge to the smooth version?
Yes — the 3/4" x 6" high-carbon cutting edge is drilled to accept a bolt-on edge overlay. Contact eSkidSteer at 866-757-8337 to order the bolt-on edge for your specific bucket width. |
|
Q: Are these the same buckets used by rental companies?
Yes — Haugen's Direct Link dealer listing on skidsteersdirect.com specifically calls out that rental companies choose these buckets for their fleets because of the heavy-duty construction that survives repeated daily machine cycling. The 1/2" wear bars, 1/4" wrapper, and full quick attach plate are over-engineered relative to economy alternatives specifically to survive rental abuse. |
|
Q: Is this attachment made in the USA?
Yes — all Haugen Attachments are made in the USA with quality American steel at Marv Haugen Enterprises in Casselton, North Dakota. "Think Quality - Think Safety - Think Haugen." |
