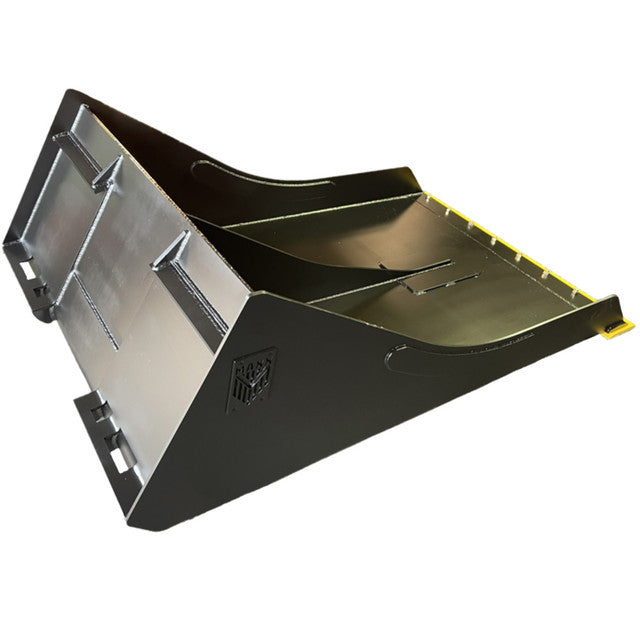

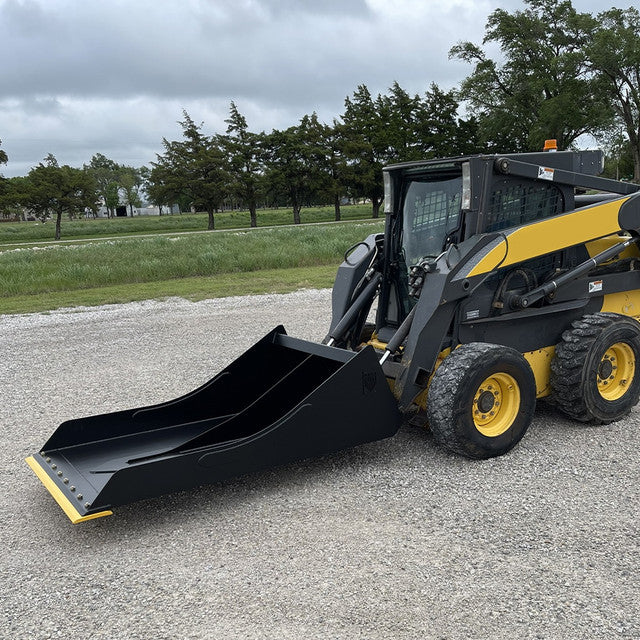

The long floor design is the entire point of this Maxx Attachments skid steer bucket — it reaches under a conveyor and pulls spilled material out from a clearance where a standard bucket cannot work, which is why floor lengths run from 48" all the way to 96". It is purpose-built for quarry and mining operations where conveyor spillover accumulates faster than shovels can handle it. Eighteen configurations cover widths from 30" to 72" and floor lengths from 48" to 96", so the bucket can be matched to the specific clearance and belt width of your installation rather than compromising on a stock size. Every bucket comes equipped with a replaceable bolt-on cutting edge, and all are set up with coupler hooks that work with the skid steer universal coupler or other coupler models found on compact wheel loaders.
| Model # | Size (Width × Floor Length) | Weight |
|---|---|---|
| 6126D1 | 30" × 72" | 900 lbs / 408 kg |
| 6126D36L | 36" × 72" | 975 lbs / 440 kg |
| 6126D42L | 42" × 72" | 1,040 lbs / 471 kg |
| 7032D1 | 48" × 48" | 870 lbs / 395 kg |
| 5878D3 | 48" × 60" | 980 lbs / 445 kg |
| 6483D1 | 48" × 72" | 1,090 lbs / 494 kg |
| 7141D1 | 48" × 84" | 1,200 lbs / 545 kg |
| 7141D96L | 48" × 96" | 1,310 lbs / 595 kg |
| 6734D54W | 54" × 60" | 1,040 lbs / 472 kg |
| 6229D1 | 60" × 48" | 1,020 lbs / 463 kg |
| 3233D1 | 60" × 54" | 1,110 lbs / 504 kg |
| 6734D1 | 60" × 60" | 1,200 lbs / 545 kg |
| 5893D1 | 60" × 66" | 1,290 lbs / 586 kg |
| 5931D1 | 60" × 72" | 1,380 lbs / 627 kg |
| 5931D96L | 60" × 96" | 1,580 lbs / 717 kg |
| 4574D1 | 66" × 60" | 1,330 lbs / 604 kg |
| 3262D1 | 72" × 60" | 1,370 lbs / 622 kg |
| 3168D3 | 72" × 72" | 1,410 lbs / 640 kg |
Select your bucket by width and floor length. Width determines coverage across the spill area; floor length determines how far under the conveyor the bucket can reach.
Available widths: 30" · 36" · 42" · 48" · 54" · 60" · 66" · 72"
Available floor lengths: 48" · 54" · 60" · 66" · 72" · 84" · 96"
Not every width and floor length combination is manufactured — see the specifications table above for the 18 configurations that are available.
Buckets are supplied with coupler hooks that suit two different coupler standards:
Skid steer Universal Quick Attach (SSQA)
Fits skid steer loaders with a standard universal quick attach plate — Bobcat, Caterpillar, John Deere, Case, New Holland, Takeuchi, Kubota, Gehl and others using the SSQA standard.
Compact wheel loader couplers
The same coupler hooks work with other coupler models found on compact wheel loaders. Wheel loader couplers are a separate standard from SSQA, so confirm your specific coupler model rather than assuming it matches.
Compatibility is determined by coupler or mount type, not machine brand — confirm your configuration before ordering. Bucket weights range from 870 lbs to 1,580 lbs depending on configuration — verify your machine's rated operating capacity against the weight of the size you select, plus the material load.
Two measurements drive the choice. Floor length determines how far under the conveyor you can reach — measure the distance from where the machine can position to the far edge of the spill. Width determines how much you move per pass. Longer floors reach further but weigh more, so balance reach against your machine's capacity.
The long floor and low profile. A standard bucket has a short floor and a tall back, which is fine for loading from a pile but cannot reach into the clearance under a conveyor belt. This bucket trades height for reach specifically so it can work under belt lines.
The buckets are set up with coupler hooks that work with the skid steer universal coupler as well as other coupler models found on compact wheel loaders. Compatibility is determined by coupler type, not machine brand. Also check your rated operating capacity against the bucket weight plus material.
Between 870 lbs for the 48" × 48" and 1,580 lbs for the 60" × 96". The full weight for every configuration is listed in the specifications table above — worth checking against your machine capacity before ordering, particularly on the longer-floor models.

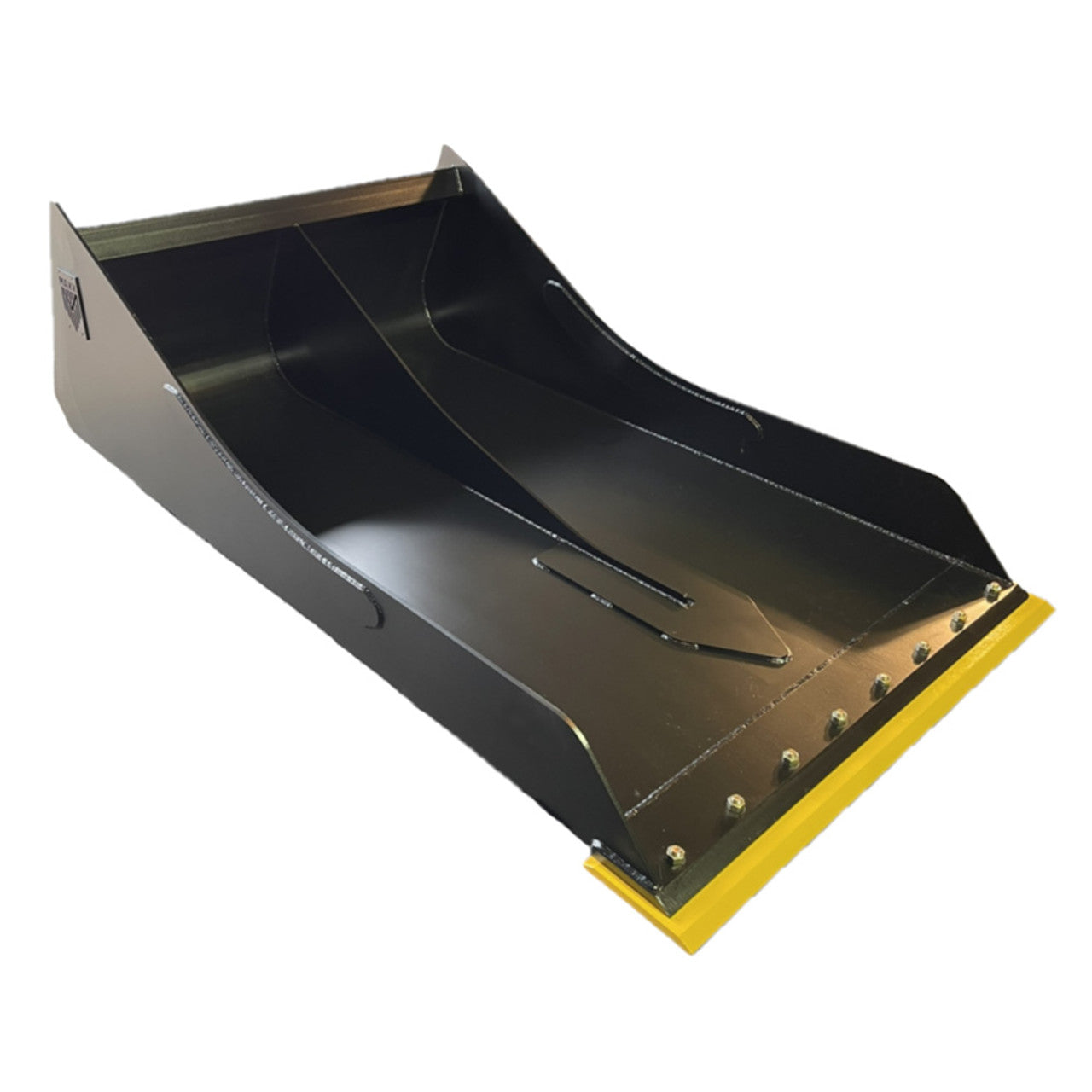

Yes. All conveyor cleaning buckets come equipped with a replacement bolt-on cutting edge as standard. In abrasive aggregate the edge is the wear item, and it unbolts for replacement rather than requiring the bucket to be re-edged.
The long floor and low profile suit any application where you need to reach into a low clearance — under equipment, into transfer points, or in confined plant areas. It is less suited to general loading from a stockpile, where a standard bucket profile is more efficient.
Eighteen configurations, listed in full in the specifications table. Note that not every width and floor length combination is manufactured — for example, 30" is available only with a 72" floor, while 48" and 60" widths have the most floor length options.
Shipping is calculated at checkout — simply add the item to your cart, enter your delivery address, and the shipping charge will be displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
