Machine class
Skid Steer
Models available
2 variants
Hydraulics
None required
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
⚙No hydraulics required
🪝Universal quick attach
📘 Overview

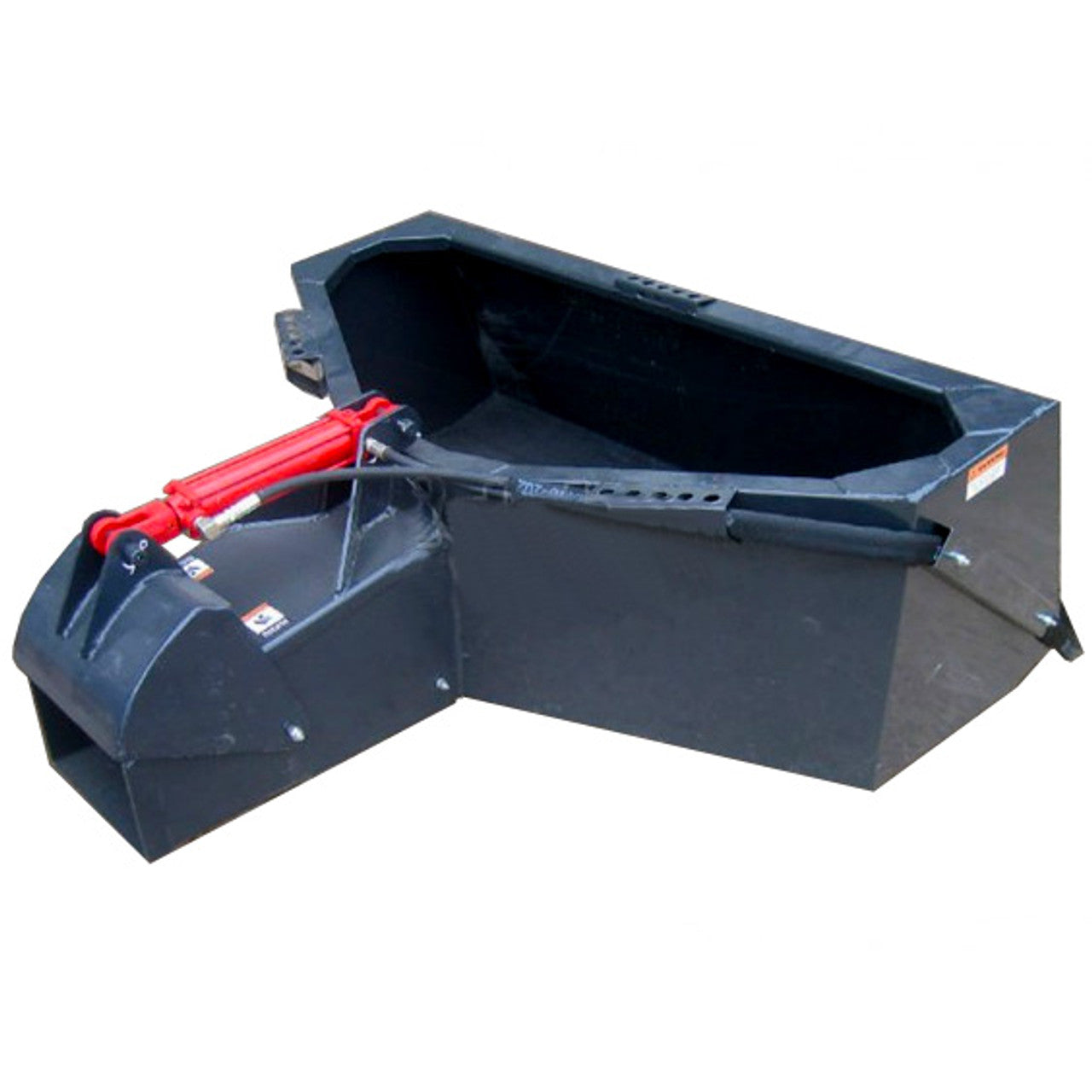

The Haugen skid steer concrete bucket (HCB) is a half-yard placement bucket with a chute and extension for pouring concrete where a ready-mix truck cannot reach. Two versions: an open chute operated manually, or a hydraulic chute controlled from the cab.
400 lbs for the manual version, 470 lbs for the hydraulic.
📊 Skid Steer Concrete Bucket At a Glance
| Specification | Value |
|---|---|
| Mount | Universal Skid Steer Quick Attach |
| Machine class | Skid Steer |
| Models available | 2 variants |
| Weight | 400–470 lbs |
| Hydraulics | None required |
| Manufacturer | Marv Haugen Enterprises Inc., Casselton ND |
⚙ Key Features of the Haugen Concrete Bucket
- 1/2 cubic yard capacity
- Chute with extension
- Open chute or hydraulic chute
- Universal skid steer quick attach
- 400 lbs / 470 lbs
📊 Skid Steer Concrete Bucket Models (HCB)
| Model | Chute | Capacity | Weight |
|---|---|---|---|
| HCB | Open chute with extension | 1/2 yard | 400 lbs |
| HCB-H | Hydraulic chute with extension | 1/2 yard | 470 lbs |
🚪 Open Chute or Hydraulic Chute?
- Open chute (HCB). The gate is worked by hand at the bucket. Simpler, nothing to plumb, and 70 lbs lighter. Fine when someone is at the pour anyway, which on most small placements they are.
- Hydraulic chute (HCB-H). The operator controls the flow from the cab, so nobody needs to be beside the bucket. That matters when the pour is over an excavation, inside formwork, or anywhere it is awkward to stand. Requires an auxiliary hydraulic circuit.
The chute extension on both versions directs concrete into the form rather than dropping it from the bucket mouth, which is what gives you a controlled placement instead of a splash.
🏗 Where This Beats the Alternatives
A ready-mix truck pours as far as its chute reaches. Past that, the options are a concrete pump, a wheelbarrow crew, or a bucket on a machine already on site.
At half a yard, the HCB suits footings, small slabs, post bases, retaining wall cores and repairs — placements too small to justify a pump but too far from the truck to chute directly. A skid steer also gets into back gardens and between buildings where larger equipment cannot.
⚖ Half a Yard Is About 2,000 lbs
Concrete runs roughly 4,000 lbs per cubic yard, so a full half-yard bucket is around 2,000 lbs of concrete plus 400 to 470 lbs of bucket. That is a real load for a mid-size skid steer — check your rated operating capacity before assuming you can fill it.
🚜 Skid Steer Compatibility
Universal skid steer quick attach. The hydraulic chute version needs an auxiliary hydraulic circuit; the open chute version needs nothing.
A full bucket is around 2,000 lbs of concrete plus the bucket's own weight. Work from your machine's rated operating capacity rather than the bucket's volume.
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
❓ Skid Steer Concrete Bucket FAQs
Open chute or hydraulic?
Open chute is simpler, lighter and needs no hydraulics, and works when someone is at the pour. Hydraulic lets the operator control flow from the cab, which is what you need when the placement is somewhere awkward to stand.
How much concrete does it hold?
Half a cubic yard — roughly 2,000 lbs of concrete. Add 400 to 470 lbs for the bucket and check that against your machine's rated operating capacity.
When is this better than a pump?
On small placements a truck chute cannot reach — footings, post bases, small slabs, wall cores. Hiring a pump for half a yard rarely makes sense, and a skid steer gets into spaces larger equipment cannot.
What is the chute extension for?
It directs concrete into the form instead of dropping it from the bucket mouth, so the placement is controlled rather than splashing over the formwork.
How does this compare to the telehandler concrete hopper?
The HCB is half a yard on a skid steer quick attach. The telehandler hopper holds 1 or 1-1/4 yards on fork tines and reaches much higher and further. Choose by the machine you have and the placement you need to reach.
Does the hydraulic version need anything else?
An auxiliary hydraulic circuit on the machine. Beyond that it mounts and runs like any other quick attach attachment.
