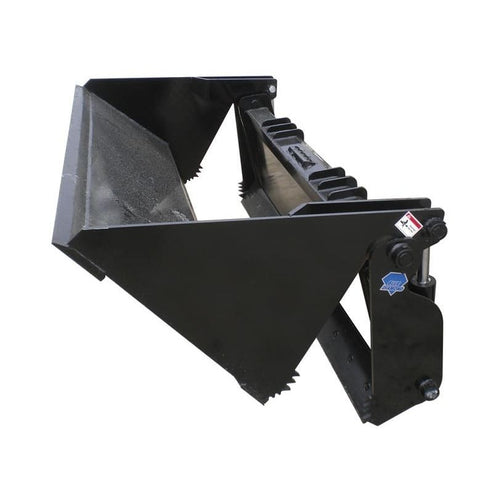

Skid Steer Bucket 4‑N‑1 - Blue Diamond

The 4-in-1 Bucket is designed for skid steer operators who need a versatile attachment that can handle multiple material handling and grading tasks with a single tool. Built for construction, landscaping, agriculture, and property maintenance, this bucket combines the functions of a standard bucket, dozer blade, grapple bucket, and scraper into one heavy-duty attachment.

With strong hydraulic clamping action, reinforced steel construction, and multiple width options, this skid steer 4-in-1 bucket is built to perform in demanding work environments. Its wide bucket opening and durable cutting edges help improve performance when grabbing loose material, leveling soil, backdragging, or moving debris.

Available in smooth-edge and tooth configurations, this attachment gives operators the flexibility to match their bucket setup to the job at hand while benefiting from dependable durability and strong multifunction performance.

• Available in 66-inch, 72-inch, 78-inch, and 84-inch widths
• 39-inch bucket opening for versatile material handling
• Dual 2.5-inch bore by 8-inch stroke hydraulic cylinders
• 1/4-inch reinforced steel floor plate for durability
• 1/2-inch steel side plates for added structural strength
• 1.5-inch thick hinge pins with greaseable pivot points
• Heavy-duty 3/4-inch by 6-inch AR400 front cutting edge
• 5/8-inch by 6-inch AR400 bolt-on reversible double rear dozer edge
• Optional weld-on shanks and teeth available
• Optional bolt-on front cutting edge available
• Treaded step plate for safer access
• Universal skid steer mount

• Combines several attachment functions into one bucket for greater jobsite efficiency
• Handles grabbing, dozing, loading, scraping, and backdragging with a single attachment
• Improves durability in high-wear areas with AR400 cutting edges and reinforced steel construction
• Gives operators the option to choose smooth edge or tooth configurations for different applications
• Supports demanding skid steer work in construction, landscaping, and material handling environments
• Helps reduce downtime by eliminating the need to switch between multiple attachments as often

This 4-in-1 bucket is designed for material handling, grading, backdragging, grappling, clamping, and dozing applications. It is well suited for construction sites, landscaping work, farm use, and general-purpose skid steer operations where versatility is important.

Compatible with skid steer loaders equipped with a universal quick attach system and suitable hydraulic capability for operating the dual cylinder setup. Always verify attachment fitment, hydraulic compatibility, and machine lifting capacity before use.

What can a 4-in-1 bucket do?
This attachment can function as a bucket, grapple, dozer blade, and scraper, making it a versatile tool for multiple skid steer tasks.

What widths are available?
The 4-in-1 bucket is available in 66-inch, 72-inch, 78-inch, and 84-inch models.

Can I choose between a smooth edge and teeth?
Yes. Selected models are available with either a smooth cutting edge or a tooth configuration depending on your application needs.

Are the pivot points serviceable?
Yes. The bucket includes greaseable pivot points to help support long-term durability and maintenance.

Does it fit a standard skid steer quick attach system?
Yes. This attachment is built with a universal skid steer mount for broad compatibility.

• Bucket - 4-in-1 Spec Sheet
• Bucket - 4-in-1 Manual
