📘 Overview

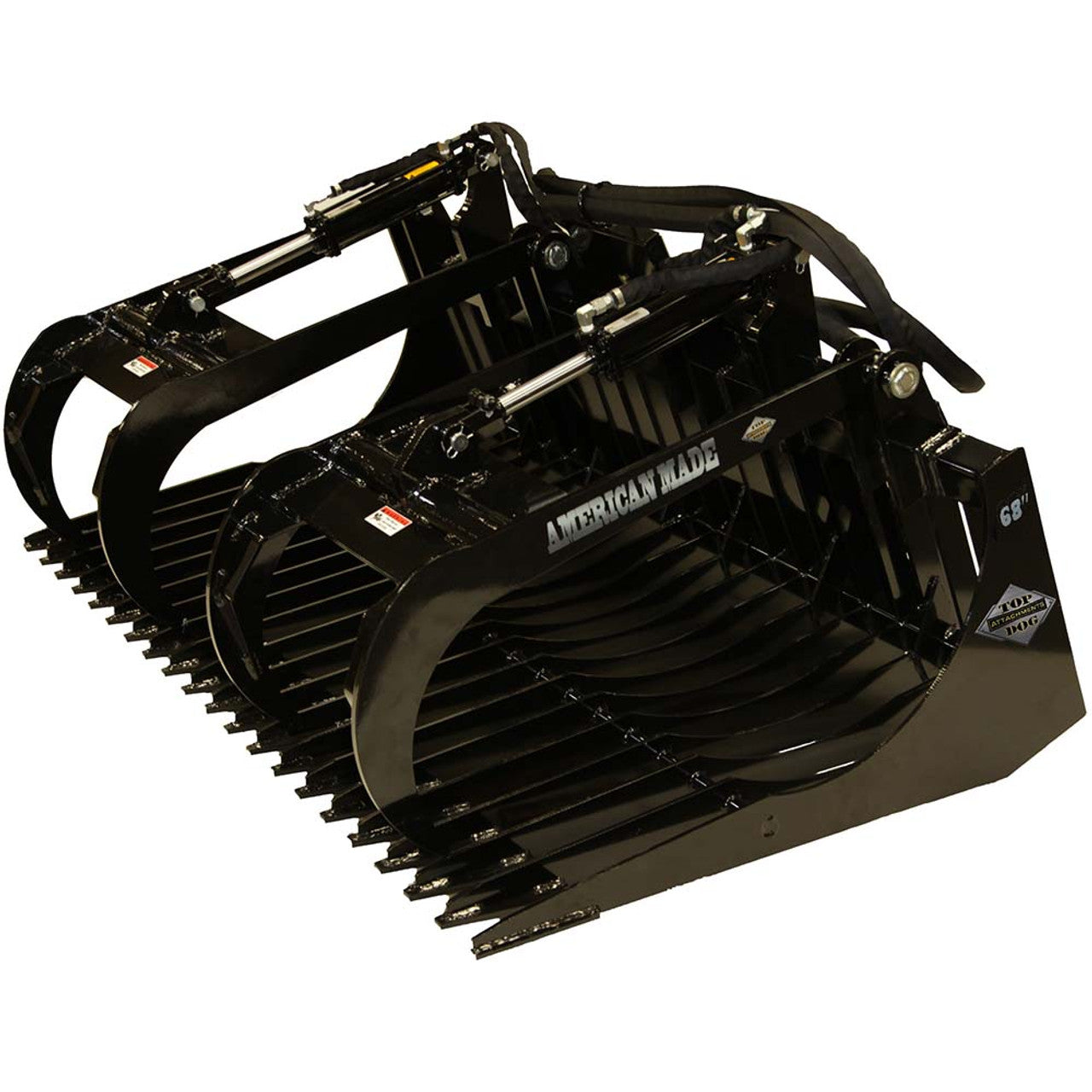

The Top Dog Attachments Skid Steer Brush Grapple is an open-sidewall brush bucket with a dual-arm grapple, built in four widths — 62", 68", 75" and 82" — so you can match the tool to your loader’s lift capacity. The open sides let you carry material longer than the bucket itself, which is the whole point of a brush bucket: limbs, poles and slash ride out sideways instead of being cut to fit. Tines and top cross bar are A50 steel on 3" spacing, with a 41.5" inside depth and 50" open tine-to-tine clearance for grabbing bulky, awkward piles.
As a skid steer grapple bucket this sits in the middle of the range: a plain bucket cannot hold brush at all, a root grapple has no floor to carry loose material, and this brush grapple bucket does both. Buyers cross-shopping a grapple bucket for skid steer work should note the open sidewalls — that is the feature a closed-side skid steer grapple lacks. The same attachment serves as a brush grapple for tractor loaders with a universal quick attach coupler and auxiliary hydraulics.
⚙ Key Features of the Top Dog Attachments Brush Grapple Bucket
- Open sidewall design — carries brush, limbs and poles longer than the bucket width instead of forcing you to cut material down to size.
- A50 steel tines and top cross bar — the grapple contact points are the highest-stress area on a brush bucket; A50 resists deformation under clamping load.
- 50" open tine-to-tine height — jaw opens wide enough to take a full bite of a brush pile rather than nibbling at it.
- 3" tine spacing — close enough to retain small limbs and debris, open enough to let soil and fines drop through.
- 41.5" inside depth — deep throat holds the load against the back of the bucket while travelling.
- Four widths, 62" to 82" — sized across common skid steer and tractor loader capacities.
- Dual grapple arms with independent clamping — two arms conform to uneven loads better than a single centre arm.
🔑 Why Choose the Brush Grapple Bucket?
- Handles material longer than the bucket — open sidewalls mean a 12-foot limb rides in a 62" bucket — no pre-cutting, fewer passes, less chainsaw time.
- Grips irregular loads without dropping them — the dual-arm grapple with 50" of opening closes onto brush piles that a plain bucket cannot hold at all.
- Screens fines during pickup — 3" tine spacing sheds soil and small debris as you scoop, so you are not hauling dirt to the burn pile.
- Matched to machine capacity — four widths from 833 lbs to 965 lbs empty let you pick a grapple your loader can actually carry loaded.
📊 Top Dog Attachments Brush Grapple Bucket Specifications
| Specification | Value |
|---|---|
| Overall Height | 32" |
| Inside Depth | 41.5" |
| Open Tine to Tine Height | 50" |
| Tine Spacing | 3" |
| Tines & Top Cross Bar | A50 Steel |
| Country of Origin | Made in USA |
🔄 Brush Grapple Bucket Sizes, Part Numbers and Weights
| Part # | Width | Weight |
|---|---|---|
| 9010030 | 62" | 837 lbs |
| 9010031 | 68" | 833 lbs |
| 9010032 | 75" | 929 lbs |
| 9010033 | 82" | 965 lbs |
🔗 What Is a Skid Steer Brush Grapple Used For?
- Clearing brush and slash after cutting
- Loading limbs and poles onto trailers or burn piles
- Storm debris cleanup
- Fence line and pasture clearing
- Handling irregular material a plain bucket cannot hold
For continuous commercial clearing, compare this against the HD brush bucket with grapple, which adds roughly 170 lbs of structure per size.
🚜 Which Machines Fit the Brush Grapple Bucket?
Available for two machine classes — the Brush Grapple Bucket uses a single universal quick attach plate that serves both:
Skid steers and compact track loaders — fits machines with a Universal Quick Attach (SSQA) mount, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compact tractor front-end loaders — fits tractor loaders fitted with a skid-steer-style universal quick attach coupler. Loaders using Euro/Global or John Deere 400/500 mounts require the matching Top Dog adapter plate (Euro 90133219, Euro 2-piece 90133229, JD flat 9033199, JD offset 90133228).
Hydraulic requirement: The brush grapple is hydraulically actuated and requires an auxiliary hydraulic circuit on the host machine to open and close the grapple arms.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration before ordering.
❓ Brush Grapple Bucket Questions, Answered
What size brush grapple do I need for my skid steer?
The Top Dog brush grapple is offered in 62", 68", 75" and 82" widths weighing 837, 833, 929 and 965 lbs empty respectively. Choose a width your loader can carry with a full load out front — on most mid-size skid steers the 68" or 75" is the practical maximum, while the 82" suits high-capacity machines.
Can the brush grapple carry material longer than the bucket?
Yes — that is the purpose of the open sidewall design. Limbs, poles and long slash extend out past the sides of the Top Dog brush grapple rather than having to be cut to bucket width.
How wide does the Top Dog brush grapple open?
The brush grapple opens to 50" measured tine-to-tine, with an inside depth of 41.5" and an overall closed height of 32".
What is the difference between the standard and HD brush bucket?
The HD Top Dog brush bucket (part numbers 9010031-HD, 9010032-HD, 9010033-HD) is a heavier build starting at 68" — it reduces open tine-to-tine height from 50" to 46" but raises weight from 833 lbs to 1003 lbs at 68". Choose HD for continuous commercial land clearing; the standard model suits intermittent property and farm work.
Does the brush grapple require hydraulics on my machine?
Yes. The Top Dog brush grapple is hydraulically actuated and requires an auxiliary hydraulic circuit on the host machine to open and close the grapple arms.
Will the brush grapple fit a tractor front-end loader?
Yes, where the loader is fitted with a skid-steer-style universal quick attach coupler. Tractor loaders using Euro/Global or John Deere 400/500 mounts require the corresponding Top Dog adapter plate, and the tractor must have an auxiliary hydraulic circuit to run the grapple.
What steel are the tines made from?
The tines and top cross bar on the Top Dog brush grapple are A50 steel, spaced 3" apart.
How is the brush grapple shipped?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order the Top Dog brush grapple?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
