Bale capacity @ 24"
2,000 – 4,000 lbs
Overall width
45.3 in
Overall height
22.4 in
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
Paladin / FFC built
Forged spears
Universal skid steer plate
Overview

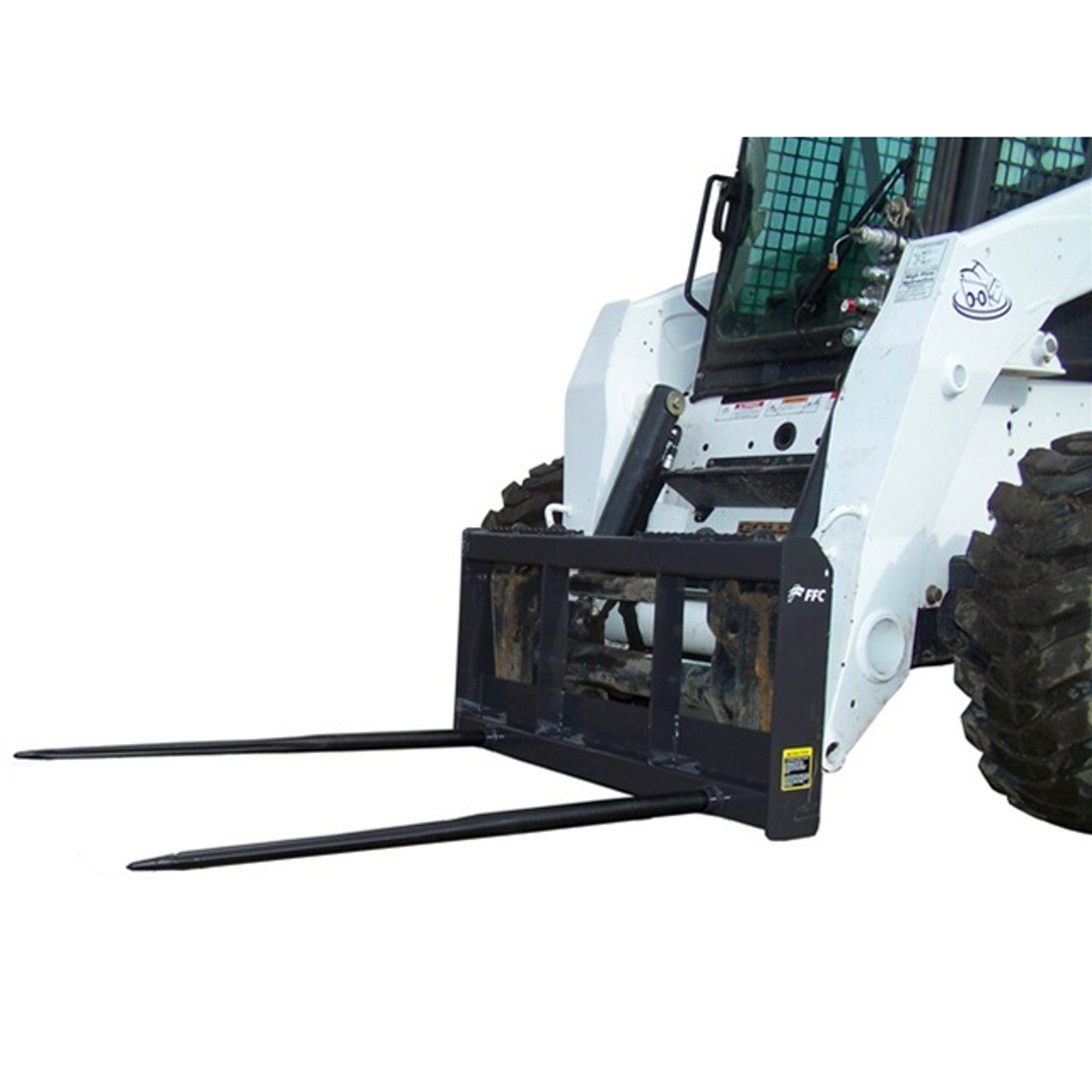

The FFC skid steer bale spear lifts, transports and stacks round or square bales on a universal skid steer mounting plate, with rated bale capacity from 2,000 to 4,000 lbs measured at 24" from the mount. It comes in two duty classes that carry different machine limits: Tractor Duty (17200-0022 and 17212-0022, 145–240 lbs) for prime movers up to 80 HP, and Standard Duty (11910-0022 and 11920-0022, 145–240 lbs) for prime movers up to 110 HP. Choosing the wrong duty class is the most common ordering mistake on this product, so match the class to your machine before you match the capacity.
Key Features of the FFC Skid Steer Bale Spear
- Picks up one large round bale up to 6' in diameter, the standard size on most hay operations.
- Available in single, dual and triple spear configurations, so the same frame covers light handling and heavy stacking.
- Rated 2,000 to 4,000 lbs at 24" depending on model — capacity is measured at a fixed distance from the mount, not at the tip.
- Main spears measure 1.75" x 49" on the dual configuration, with stabiliser tines to stop the bale rotating in transit.
- Handles round or square bales and other organic material, not just hay.
- Universal skid steer mounting plate, so it fits any loader with a standard quick attach.
Why Choose This Bale Spear for Skid Steer Loaders
- Two duty classes instead of one compromise. Tractor Duty keeps weight down at 145–240 lbs for smaller prime movers; Standard Duty adds capacity for machines that can carry it.
- Capacity you can actually plan against. The 2,000–4,000 lb rating is stated at 24" from the mount, so it reflects real leverage rather than a headline number.
- Stacking as well as carrying. Stabiliser tines hold the bale square, which is what makes stacking predictable rather than a balancing act.
- One attachment across the season. A round bale spear for skid steer work in summer becomes a square bale spear for skid steer feeding in winter — the same frame handles both.
- Quick attach, no tools. As a skid steer quick attach bale spear it changes over as fast as a bucket, so bale work does not tie the machine up for the day.
FFC Bale Spear Specifications
| Specification | 17200-0022 TD | 17212-0022 TD | 11910-0022 SD | 11920-0022 SD |
|---|---|---|---|---|
| Duty class | Tractor Duty | Tractor Duty | Standard Duty | Standard Duty |
| Bale capacity @ 24" | 2,000 lbs | 3,000 lbs | 3,000 lbs | 4,000 lbs |
| Weight | 145 lbs | 155 lbs | 200 lbs | 240 lbs |
| Overall width | 45.3 in | 45.3 in | 45.3 in | 45.3 in |
| Overall height | 22.4 in | 22.4 in | 22.4 in | 22.4 in |
| Overall depth | 50.5 in | 50.5 in | 50.5 in | 50.5 in |
Tractor Duty or Standard Duty — Which Skid Steer Bale Spear Attachment Do You Need?
The two classes are not interchangeable, because the machine limits differ. Tractor Duty (17200-0022, 17212-0022) is rated for a prime mover up to 80 HP, an operating weight up to 8,000 lbs and a loader lift capacity up to 4,000 lbs. Standard Duty (11910-0022, 11920-0022) steps up to 110 HP, 11,000 lbs operating weight and 4,500 lbs lift capacity. Within each class the choice is bale weight: 2,000 or 3,000 lbs on Tractor Duty, 3,000 or 4,000 lbs on Standard Duty. Buyers looking for a double bale spear for skid steer use should note that the dual-spear models carry the higher capacity in each class.
Which Machines Fit the FFC Bale Spear?
This bale spear for skid steer and compact tractor use — sold as a skid steer bale spear for sale in single, dual and triple configurations — mounts on a universal skid steer mounting plate, so the interface itself is brand-agnostic. What decides fitment is the prime mover class, and it differs by duty class.
| Prime mover limit | Tractor Duty (17200 / 17212) | Standard Duty (11910 / 11920) |
|---|---|---|
| Maximum horsepower | 80 HP | 110 HP |
| Maximum operating weight | 8,000 lbs | 11,000 lbs |
| Maximum loader lift capacity | 4,000 lbs | 4,500 lbs |
| Mount | Universal skid steer plate | Universal skid steer plate |
Rear ballast should be added as required to maintain full prime mover stability — check your machine and loader manuals for ballasting needs. Exceeding any maximum prime mover specification can damage the attachment and voids the FFC warranty. Confirm your machine's quick attach configuration before ordering; if you are unsure which duty class your loader takes, contact eskidsteer.com at (866) 757-8337.
Bale Spear or Bale Squeeze?
A spear carries the bale on tines driven into the core — quick, light and the cheaper tool for dry hay that will be fed soon after moving. It does pierce the bale, so wrapped silage and netted bales lose their seal. For those, the FFC Bale Squeeze clamps from outside and leaves the wrap intact. Many operations run both — a spear for daily feeding, a squeeze for stacking and transport.
Bale Spear Questions, Answered
How much weight can the FFC bale spear lift?
The FFC bale spear is rated from 2,000 to 4,000 lbs of bale capacity measured at 24" from the mount, depending on model. The 17200-0022 is rated 2,000 lbs, the 17212-0022 and 11910-0022 are rated 3,000 lbs, and the 11920-0022 is rated 4,000 lbs.
What is the difference between Tractor Duty and Standard Duty?
Tractor Duty bale spears (17200-0022, 17212-0022) suit prime movers up to 80 HP, 8,000 lbs operating weight and 4,000 lbs lift capacity. Standard Duty (11910-0022, 11920-0022) suits prime movers up to 110 HP, 11,000 lbs operating weight and 4,500 lbs lift capacity.
Will the FFC bale spear fit my skid steer?
The FFC bale spear uses a universal skid steer mounting plate, so it fits any loader with a standard quick attach. The limits that matter are horsepower, operating weight and loader lift capacity for the duty class you choose.
Can this bale spear handle square bales?
Yes. The FFC bale spear is built to lift, transport and stack round or square bales of organic material.
What size round bale will it carry?
The FFC bale spear picks up one large round bale up to 6' in diameter.
Can it be used as a hay bale spear for skid steer feeding?
Yes. The FFC bale spear handles hay in round or square form, and is rated 2,000 to 4,000 lbs at 24 inches from the mount depending on model, which covers typical hay bale weights.
How many spears does it come with?
The FFC bale spear is available in single, dual and triple spear configurations. The dual configuration uses main spears measuring 1.75" x 49".
Do I need rear ballast?
Add rear ballast as required to maintain full prime mover stability when carrying a loaded bale spear. Consult your prime mover and loader manuals for the ballasting your machine needs.
How is shipping calculated?
Shipping is calculated at checkout — simply add the item to your cart, enter your delivery address, and the shipping charge will be displayed before you complete your order.
