📘 Overview

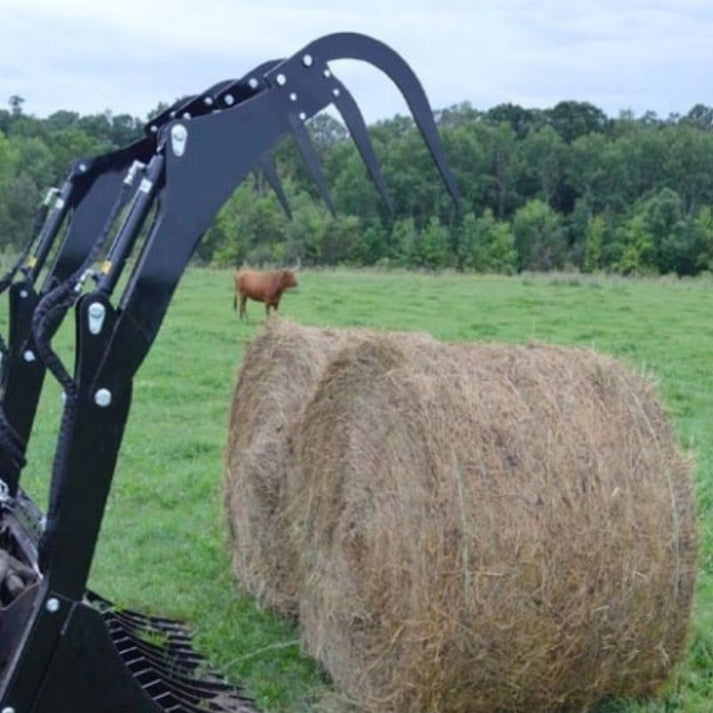

The Top Dog skid steer bale grapple is a tined bucket with a large-jaw grapple built for round bales — a 73" grapple opening is what lets it take a full round bale rather than squeezing one. Three widths are offered (72", 79", 82") plus a grapple-only option (9033225G) for fitting to an existing bucket. Tines are 3/8" Grade 50 with 5/8" T-1 laser-cut grapple tines, on 2-1/2" x 12" welded clevis cylinders rated to 3,000 PSI. Weights run 1,204 to 1,342 lbs, so this needs a machine with real front-end capacity.
A bale grapple and a bale spear solve the same job differently. The spear is light and fast but pierces the bale; this tined bucket grapple clamps around it, which keeps wrapped bales intact and holds bales that have begun to break down. As a round bale handling attachment the 73" jaw is the deciding spec. Buyers comparing a grapple bucket for tractor work should note the weight — at 1,204 lbs before the bale, this needs real front-end capacity. As a hay handling attachment it also moves loose material, which a spear cannot.
⚙ Key Features of the Top Dog Attachments Bale Grapple
- 73" grapple opening — sized to take a round bale whole rather than compressing it — the defining spec on this tool.
- 5/8" T-1 laser cut grapple tines — T-1 is an abrasion-resistant structural grade; laser cutting avoids a heat-affected edge.
- 3/8" Grade 50 bucket tines — the floor tines carry the bale weight while letting loose material fall through.
- 2-1/2" x 12" welded clevis cylinders — a long stroke to drive the wide jaw, in welded clevis construction.
- Grapple-only option available — part 9033225G fits a grapple to a bucket you already own.
- 1/2" x 10" Grade 50 cutting edge — a wide heavy edge for a hay-handling tool that also has to scrape a yard.
- Grease zerks on all pivot points — the pivots see constant cycling through a haying season.
- Flat face couplers at 3,000 PSI — clean connection and contamination resistance.
🔑 Why Choose the Bale Grapple?
- Takes a round bale without crushing it — the 73" opening clears a standard round bale, so the bale arrives intact rather than compressed.
- Handles hay and material both — the tined bucket floor means the same tool moves loose hay, silage and bedding between bale jobs.
- Upgrade path if you own the bucket — the grapple-only option adds capability without buying a complete attachment.
- Built for the cycle count — grease zerks throughout and welded clevis cylinders for a tool used intensively in short seasons.
📊 Top Dog Attachments Bale Grapple Specifications
| Specification | Value |
|---|---|
| Overall Height (Closed) | 55" |
| Overall Height (Open) | 78" |
| Overall Depth | 60" |
| Grapple Opening | 73" |
| Depth of Bucket | 40" |
| Tines | 3/8" Grade 50 |
| Cutting Edge | 1/2" x 10" Grade 50 |
| Top Tube | 3" x 4" x 1/4" |
| Bottom Tube | 3" x 4" x 1/4" |
| Grapple Tines | 5/8" T-1 laser cut |
| Cylinders | 2-1/2" x 12" welded clevis |
| Hydraulic Couplers | Flat face |
| Hydraulic Hoses | 3/8" |
| PSI Max | 3,000 PSI |
| Pivot Points | Grease zerks |
| Country of Origin | Made in USA |
🔄 Bale Grapple Sizes, Part Numbers and Weights
| Part # | Option | Catalog Description | Weight |
|---|---|---|---|
| 9033225 | 72" | 72" Bale Grapple | 1,204 lbs |
| 9033226 | 79" | 79" Bale Grapple | 1,289 lbs |
| 9033227 | 82" | 82" Bale Grapple | 1,342 lbs |
| 9033225G | Grapple Only | Grapple assembly for existing bucket | 524 lbs |
🔗 What Is a Skid Steer Bale Grapple Used For?
- Handling round bales
- Moving loose hay, silage and bedding
- Feeding out and stacking bales
- General farm material handling
- Any hay work where a spear would damage the bale
For square bales, the double and triple bale spears are the lighter and more appropriate tools.
🚜 Which Machines Fit the Bale Grapple?
Available for two machine classes — the Bale Grapple uses a single universal quick attach plate that serves both:
Skid steers and compact track loaders — fits machines with a Universal Quick Attach (SSQA) mount, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compact tractor front-end loaders — fits tractor loaders fitted with a skid-steer-style universal quick attach coupler. Loaders using Euro/Global or John Deere 400/500 mounts require the matching Top Dog adapter plate (Euro 90133219, Euro 2-piece 90133229, JD flat 9033199, JD offset 90133228).
Hydraulic requirement: The grapple runs on 2-1/2" x 12" welded clevis cylinders at up to 3,000 PSI and requires an auxiliary hydraulic circuit on the host machine.
Machine capacity: The bale grapple weighs 1,204 to 1,342 lbs empty across the three widths. This requires a machine with substantial rated operating capacity — check your load chart at working reach rather than the empty weight alone.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration before ordering.
❓ Bale Grapple Questions, Answered
What is the difference between a bale grapple and a bale accumulator?
The Top Dog bale grapple is a tined bucket with a large-jaw grapple built for round bales and loose hay. A bale accumulator collects and groups small square bales for hands-free stacking. They handle different bale types and different jobs — the grapple carries, the accumulator gathers.
What is the "Grapple Only" option?
Part 9033225G is the grapple assembly on its own, at 524 lbs, for fitting to a bucket you already own. Choose it if you have a suitable Top Dog bucket and want to add grapple capability rather than buying a complete attachment.
Will the bale grapple handle a full round bale?
Yes. The 73" grapple opening on the Top Dog bale grapple is sized to take a standard round bale whole rather than compressing it, which matters for bale integrity and for feeding out.
What size machine does the bale grapple need?
The Top Dog bale grapple weighs 1,204 lbs at 72" and 1,342 lbs at 82" before any load, and a wet round bale can add well over half a ton. This requires a machine with substantial rated operating capacity — check your load chart at working reach rather than the empty weight alone.
Why use a grapple instead of a bale spear?
A spear pierces the bale, which is fast but damages the wrap and can drop a bale that has broken down. The Top Dog bale grapple clamps around the bale instead, keeping wrapped bales intact and holding bales that have started to loosen.
Does the bale grapple require auxiliary hydraulics?
Yes. The grapple runs on 2-1/2" x 12" welded clevis cylinders at up to 3,000 PSI and requires an auxiliary hydraulic circuit. Flat face couplers are fitted.
Can the bale grapple move loose hay as well as bales?
Yes. The tined bucket floor handles loose hay, silage and bedding, so the attachment is useful between bale-handling jobs rather than only in season.
Will the bale grapple fit a tractor loader?
Yes, where the tractor front-end loader is fitted with a skid-steer-style universal quick attach coupler and has an auxiliary hydraulic circuit — and the rated capacity to carry 1,204 lbs plus a bale. Loaders using Euro/Global or John Deere 400/500 mounts require the corresponding Top Dog adapter plate.
Will the bale grapple damage wrapped or netted bales?
A grapple clamps around the bale rather than piercing it, so wrap and netting stay intact — which is the main reason to choose a grapple over a spear for wrapped silage bales. Set the clamping pressure to hold the bale without crushing it.
How is the bale grapple shipped?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. These units ship LTL freight; lift gate service is available for residential deliveries and can be selected at checkout.
How do I order a Top Dog bale grapple?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Select your width or the grapple-only option from the variant list, and have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
