Description
📘 Overview

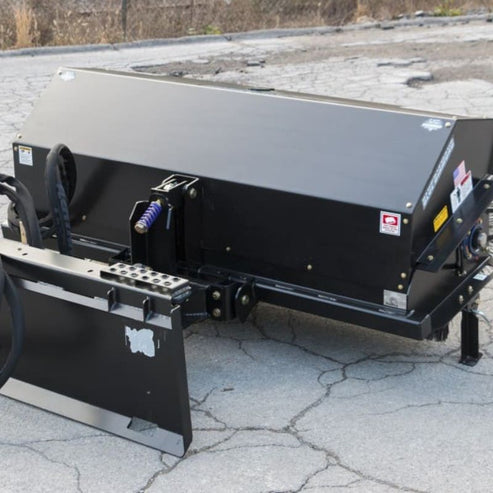

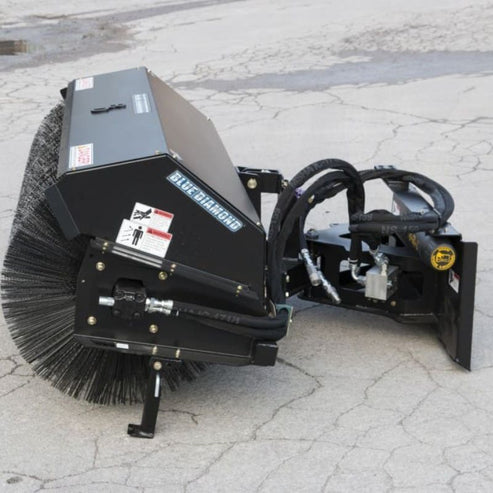

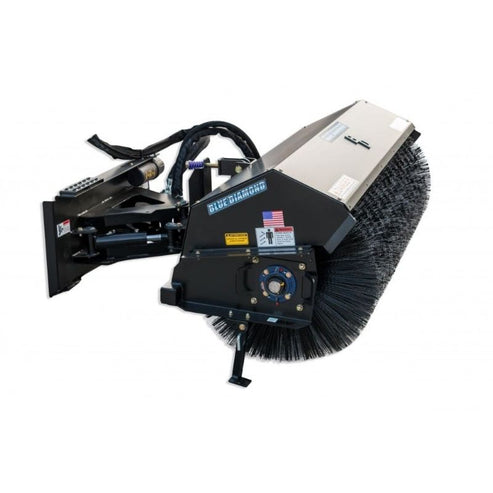

The Blue Diamond Severe Duty Angle Broom is a commercial skid steer angle broom that sweeps and windrows dirt, debris, gravel, and light snow. It mounts to a universal skid steer mount, with 32″ bristles, oversized main shaft spindles, and massive bearings built for continuous heavy sweeping.
This listing covers 84″ and 96″ widths in manual and hydraulic angle, so you match the broom to your machine and workload. A bi-directional motor and hydraulic angle let you windrow material to either side, while heavy-duty bearings and spindles handle the demands of professional daily use.
As a blue diamond severe duty angle broom, it's built for commercial sweeping operations. A skid steer angle broom series 2 windrows material to the side; the 84 96 inch hydraulic angle broom covers wide areas fast. As a commercial sweeper skid steer attachment, the oversized spindles and massive bearings deliver the durability daily use demands. It requires 15–25 GPM.
The 32″ bristles (poly or poly-steel), oversized main shaft spindles, massive bearings, bi-directional motor, welded heavy-duty cylinder, and grease fittings on the pivot points make it a severe-duty broom.
⚙ Severe Duty Angle Broom Features
- 84″ and 96″ widths
- Recommended flow: 15–25 GPM
- Hydraulic angle and bristle operate together
- Oversized main shaft spindles

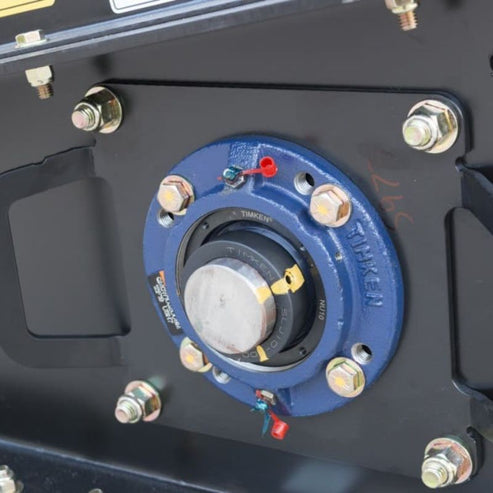

- Massive bearings for durability

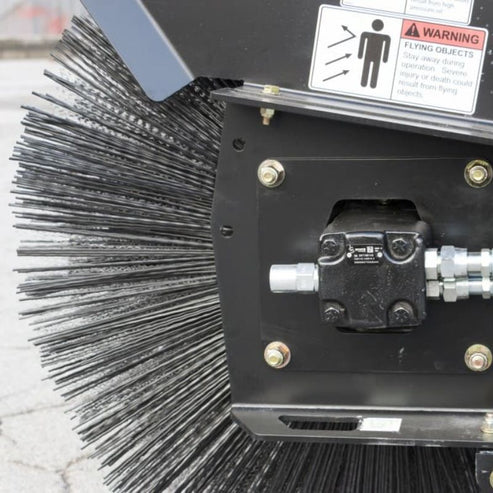

- Bi-directional motor
- Welded heavy-duty cylinder
- Grease fittings on pivot points
- 32″ bristles, poly or poly-steel
🔑 Why Choose the Blue Diamond Severe Duty Angle Broom
- Built for commercial daily use — oversized spindles and massive bearings handle the continuous sweeping that wears out lighter brooms.
- Windrows to either side — hydraulic angle and a bi-directional motor let you cast material left or right and sweep in both directions.
- Wide coverage — the 84″ and 96″ widths clear large lots and roads fast, fewer passes than a narrower broom.
- Large 32″ bristles — the tall bristles sweep efficiently and last longer between replacements, with poly or poly-steel options for different surfaces.
- Greaseable heavy cylinder — the welded heavy-duty cylinder and greaseable pivots stand up to the loads of a big commercial broom.
🔄 Skid Steer Angle Broom Variant Specifications
| Part Number | Width / Control | Weight |
|---|---|---|
| 116418 | 84” Manual | 1010 lbs |
| 116420 | 84” Hydraulic | 1040 lbs |
| 116425 | 96” Hydraulic | 1125 lbs |
🚜 Machine Compatibility
Compatible with skid steer loaders and compact track loaders equipped with a Universal Quick Attach system, including:
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Compatibility is determined by mount type, not brand — confirm your machine's quick attach configuration before ordering. It requires 15–25 GPM; hydraulic-angle models need an additional function for angling. Not sure it fits your machine? Contact eskidsteer.com at (866) 757-8337.
❓ Frequently Asked Questions
Q: How is this different from the heavy-duty broom?
The severe-duty broom steps up with oversized spindles, massive bearings, and wider 84″–96″ widths for commercial daily use. The heavy-duty broom suits lighter, less frequent sweeping. Choose severe-duty if you sweep continuously as part of a commercial operation.
Q: Manual or hydraulic angle — which do I need?
Manual angle is set by hand and costs less; hydraulic angle changes from the cab, better for frequent angle changes and windrowing in different directions as you work. Choose hydraulic for the most productivity on large jobs.
Q: What flow do I need?
It requires 15–25 GPM. Hydraulic-angle models need an additional hydraulic function to power the angling. Confirm your machine's flow and available functions before ordering.
Q: What can I sweep with it?
It handles dirt, debris, gravel, and light snow on lots, roads, and job sites. The bi-directional motor and hydraulic angle let you windrow material to either side, and the poly or poly-steel bristle options adapt to different surfaces.
Q: How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Q: How do I order?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
