Severe Duty Mini Excavator Brush Cutter | Blue Diamond

The Severe Duty Series 2 Mini Excavator Brush Cutter is engineered for operators who require powerful cutting performance in a compact attachment designed specifically for mini excavators. Built to handle demanding vegetation management tasks, this cutter delivers exceptional results when clearing thick brush, overgrowth, and small trees.

With a 42-inch cutting width—the largest in its class—this attachment maximizes productivity while maintaining precision and control. Designed for mini excavators ranging from 10,000 to 19,000 lbs, it offers an ideal balance of power, durability, and maneuverability for tight or challenging jobsite conditions.

The high-torque piston motor, reinforced deck, and aggressive blade exposure design work together to provide reliable cutting power, long service life, and consistent performance across a wide range of applications including land clearing, right-of-way maintenance, and property management.

• 42-inch cutting width, offering one of the largest capacities in its class
• Capable of cutting material up to 6 inches in diameter
• Designed for mini excavators between 10,000 and 19,000 lbs
• Optimized hydraulic flow range of 16 to 26 GPM

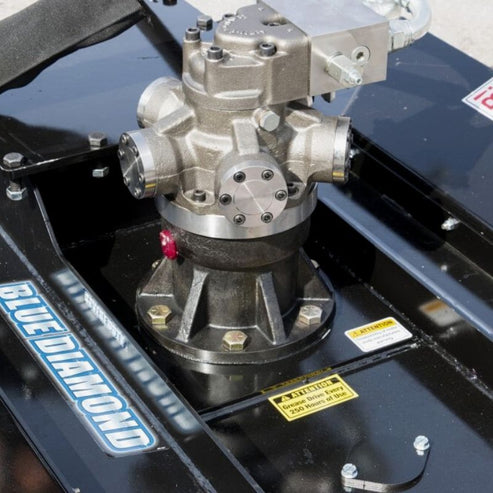

• 80cc high-torque piston motor with oil-filled direct drive system

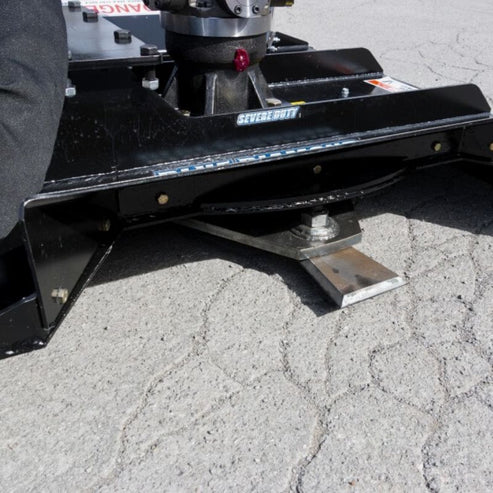

• Three double-sided blades mounted on a 3/4-inch thick blade carrier
• Deck cutouts allow greater blade exposure for aggressive cutting performance
• Reinforced 3/16-inch steel deck for enhanced durability
• Improved protection for hydraulic motor and drive components
• No case drain required for simplified installation

• Clears dense vegetation and small trees efficiently in compact working areas
• Increases productivity with wider cutting coverage per pass
• Delivers strong cutting performance with high-torque motor design
• Extends equipment lifespan with reinforced deck and protected components
• Reduces setup complexity by eliminating the need for a case drain
• Improves cutting aggressiveness with exposed blade design

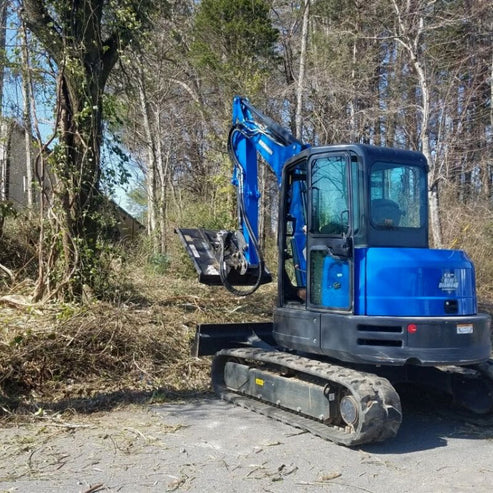

This mini excavator brush cutter is designed for heavy-duty vegetation management, including clearing brush, saplings, and overgrown areas. It is well suited for land clearing, roadside maintenance, and property upkeep where precision and power are required.

Compatible with mini excavators in the 10,000 to 19,000 lb class that provide hydraulic flow within the 16 to 26 GPM range. Always verify machine specifications and hydraulic capacity before operation.

What size excavator is this brush cutter designed for?
This model is built for mini excavators ranging from 10,000 to 19,000 lbs.

What material size can it cut?
It is capable of cutting brush and small trees up to 6 inches in diameter.

What hydraulic flow is required?
The recommended flow range is 16 to 26 GPM.

Does this unit require a case drain?
No, it is designed to operate without a case drain.

What makes this cutter aggressive?
The deck cutout design exposes more of the blades, allowing for more efficient and aggressive cutting performance.
