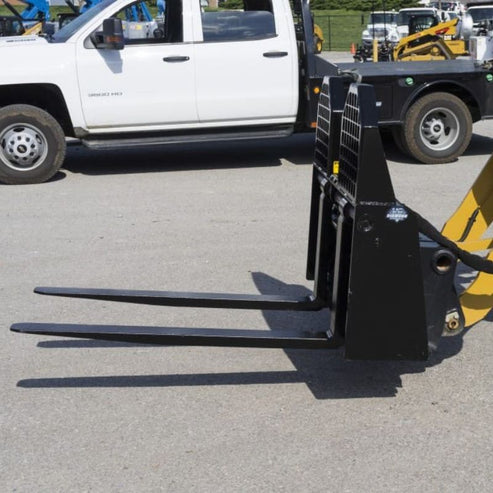

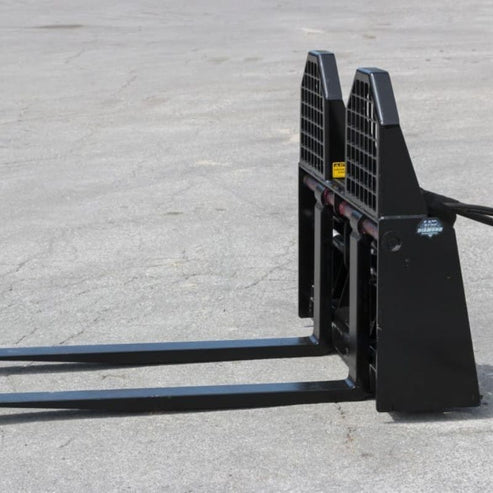

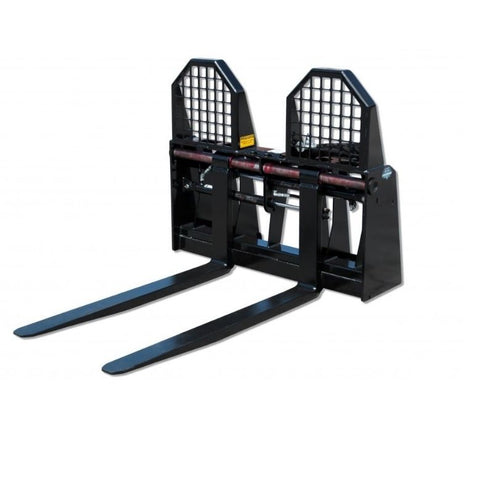

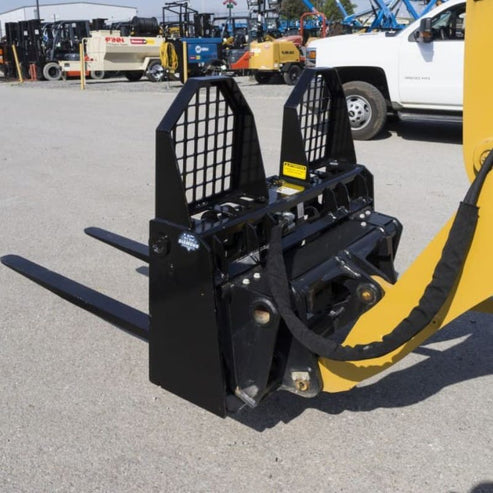

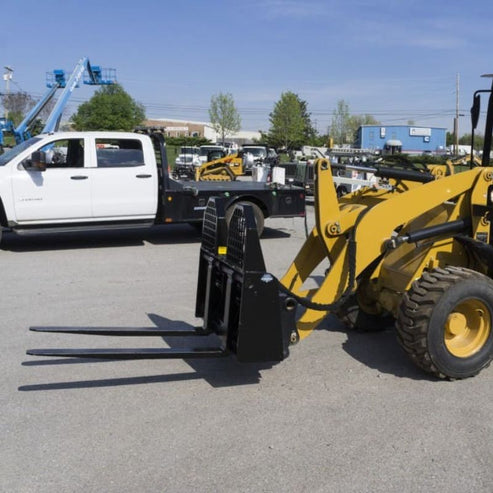

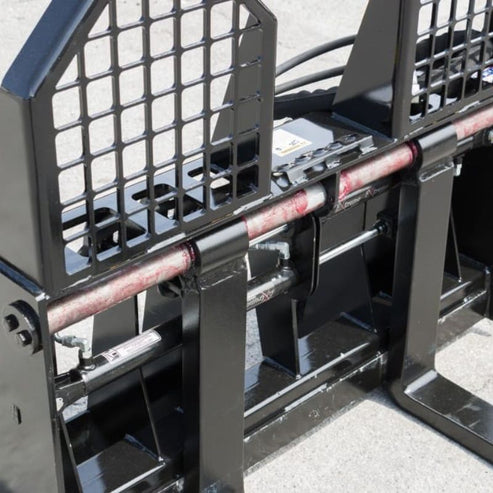

Series 2 Hydraulic Pallet Fork 6,000 lb - Blue Diamond

These hydraulic pallet forks are designed for efficient material handling, allowing operators to adjust fork spacing without leaving the cab. Built for productivity and convenience, they provide precise control when lifting, moving, and positioning palletized loads in demanding work environments.

With a durable walk-through frame design and excellent load visibility, these forks enhance both safety and operator efficiency. The hydraulic adjustment system enables quick spacing changes, making it easier to handle a variety of pallet sizes and materials without manual repositioning.

Available in multiple tine lengths, these pallet forks are ideal for construction, agriculture, warehousing, and general material handling applications where speed, control, and reliability are essential.

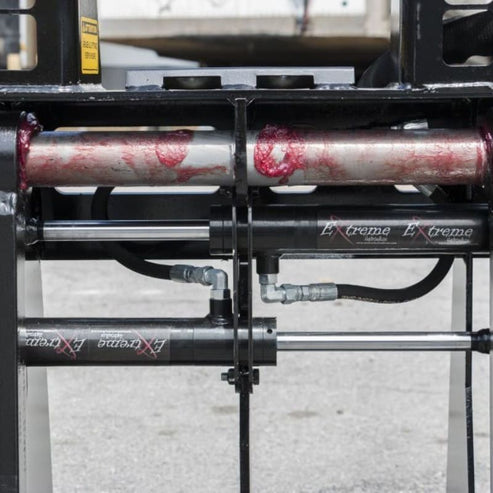

• Hydraulic fork adjustment for in-cab control
• Improved load visibility for safer operation
• Walk-through frame design for easy cab access
• Available tine lengths: 48", 60", and 72"
• Standard tine size: 4" x 1 3/4"
• 6,000 lb lifting capacity

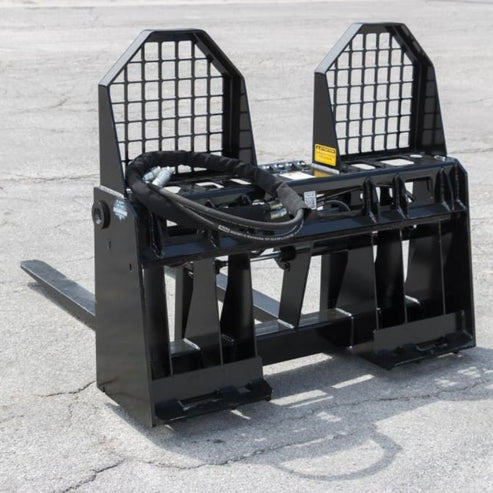

• Includes hydraulic hoses and couplers
• Designed for efficient material handling in demanding environments

• Eliminates manual fork adjustment, saving time and effort
• Increases productivity with quick, precise fork positioning
• Enhances operator safety with better load visibility
• Improves workflow efficiency across different pallet sizes
• Reduces downtime by allowing adjustments from inside the cab
• Supports a wide range of lifting and material handling tasks

These hydraulic pallet forks are ideal for lifting and transporting palletized materials, lumber, construction supplies, and other heavy loads. They are commonly used in construction, agriculture, landscaping, and warehouse environments.

Compatible with skid steers and similar equipment equipped with auxiliary hydraulics. Ensure your machine meets the hydraulic requirements and lifting capacity before operation.

How are the forks adjusted?
The forks can be adjusted hydraulically from inside the cab using auxiliary controls.

What is the lifting capacity?
These pallet forks are rated for up to 6,000 lbs.

What tine lengths are available?
They are available in 48", 60", and 72" tine lengths.

Do the forks come with hoses and couplers?
Yes, hydraulic hoses and couplers are included for easy setup.

What machines are these compatible with?
They are compatible with skid steers that have auxiliary hydraulic capabilities.

What is the benefit of a walk-through frame?
It improves operator access and enhances visibility during operation.

• Hydraulic Pallet Forks Spec Sheet
• Hydraulic Pallet Forks Manual
