Description
Made in USA
ECV fitted
Overview

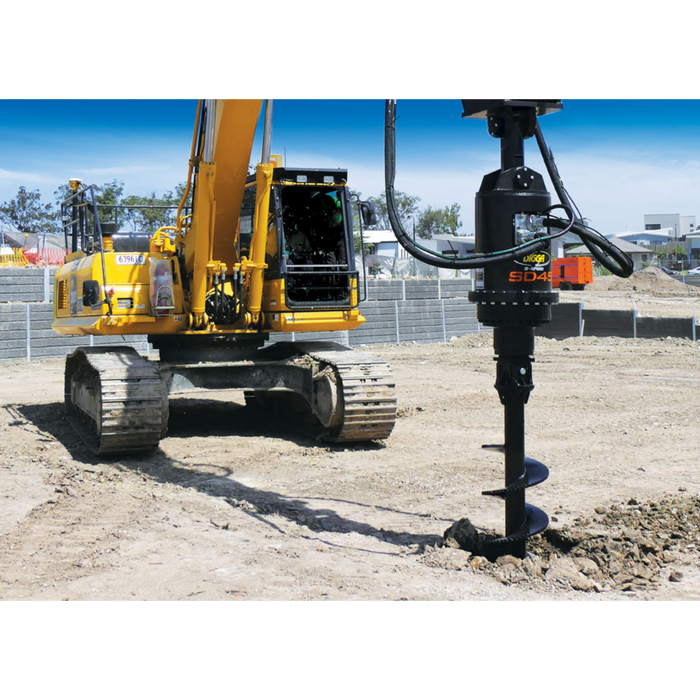

This screw anchor drive is the Digga SD45, part of the Supa range built specifically for helical pile and screw anchor installation rather than adapted from a drilling drive. It is the entry point to the Supa range and the lightest of the five. It uses a radial piston motor instead of the orbital geroler motors in the DDS range, runs a 100mm square output shaft, and ships with both a pressure relief valve and an Energy Control Valve fitted as standard. The ECV is the part that matters for anchoring: it absorbs the reverse energy of pile kick-back that would otherwise travel back through the motor.
Key Features of the SD45 2 Speed "Supa" Anchor Auger Drive
- 32,892 ft-lbs of torque — the figure Digga publishes for the SD45
- 100mm (4") square output shaft — sets which Digga auger bits fit
- 2 speed drive system
- Highest volumetrically efficient motors available, ensure consistent & efficient pile installation throughout the working day
- Compact, High Quality, Digga made gearbox
- Built-in PRV (pressure relief valve) standard
- ECV (Energy Control relief Valve) to prevent rapid decompression of oil, caused by the reverse energy created by pile Kick-back
- Engineered hood & ears for maxiumum strength
- Extreme duty shaft locking system
Why This Drive Suits Its Machine Class
- The SD45 ships with its Energy Control Valve fitted, which is what separates an anchor drive from a drilling drive — Digga’s warranty treats anchoring above 12,000 ft-lbs without one as uncovered, so this is not an optional refinement.
- Radial piston motors hold volumetric efficiency through a full working day, which is the difference between consistent pile installation and output that drops off after a few hours.
- Two speeds from one drive — low speed and high torque to drive the pile, high speed to run down and position.
- The host machine stays in its efficient horsepower range rather than being detuned to suit the attachment, which is the point of matching drive to carrier properly.
SD45 2 Speed "Supa" Anchor Auger Drive Specifications
| Specification | Value |
|---|---|
| Model | SD45 |
| Motor type | Radial Piston |
| Pressure relief valve | Included |
| Energy control valve | Included |
| Standard output shaft | 100mm (4") square |
| Max torque | 32,892 ft-lbs |
| Max flow | 100 GPM @ 3,500 PSI |
| Max pressure — do not exceed | 3,500 PSI @100 GPM |
| Max horsepower | 201 HP |
| Weight | 1848 lbs |
| Overall length | 50.9" |
| Diameter | 23.6" |
| Carrier weight range | 15-30T |
Every figure above is taken from Digga’s published data sheet for the SD45. Add your machine make and model at checkout and we confirm the fit before the order ships.
Which Machines Fit the SD45?
The SD45 is built for 15–30 tonne excavators installing screw anchors and helical piles, and takes a 130mm linkage rather than the 100mm linkage used by the drives below it:
| Fitment factor | Requirement |
|---|---|
| Machine class | 15–30T excavator |
| Mount | Excavator mount and 130mm linkage, sold separately |
| Case drain | Required — single speed and two speed alike |
| Electrical | 10 ft connection, two-speed control box and power lead supplied |
| Hoses | Sold separately |
| Augers | RC11 / DR11 on the 100mm square shaft, sold separately |
Order online — enter your machine make and model with the order and we confirm the mount fits before it ships, coming back to you only if something needs changing. Questions first are welcome at support@eskidsteer.com or on the chat button on your screen.
SD45 2 Speed "Supa" Anchor Auger Drive Questions, Answered
What does the ECV on the SD45 actually do?
On the SD45 the Energy Control Valve prevents rapid decompression of oil caused by the reverse energy of pile kick-back. When a helical pile hits refusal the stored energy has to go somewhere; without an ECV it goes back through the motor. Digga fits it as standard on the anchor drives, and its warranty terms treat anchoring above 12,000 ft-lbs without one as uncovered entirely.
Does an SD drive need a case drain?
Yes. Digga requires a case drain on SD drives in both single-speed and two-speed form. The drives also ship with a 10 ft electrical connection, a two-speed control box, a cigarette lighter power lead and a 50 ft broom extension harness.
What augers fit an SD drive?
The 100mm square output shaft takes Digga RC11 augers, with XO40 and XT40 extensions for depth. The DR11 dedicated rock auger is also available on this shaft for shale, permafrost and hard rock.
What mount and hoses do I need?
Hoses and machine mounts are ordered separately for the SD range. The linkage is a 130mm item — SD45 through SD95 use a different linkage from the 100mm drives below them — and the RYNO bolted base plate is available for piling work.
What warranty applies to the SD range?
Digga covers SD, MD, UD and XD drives for one year on the gearbox and one year on the motor, across all applications. That is deliberately different from the DDS and DDT drilling drives, which carry five years on the gearbox and three on the motor — the SD range works at far higher pressure and is built for anchoring duty, so Digga rates it separately.
Which SD drive should I choose?
All five share the same motor type, shaft, mounts and hydraulics — they differ in torque. Pick by the pile size and ground you are working, and by what your excavator can react against. The SD45 is the lightest; the SD95 the heaviest.
Will this fit my machine?
Check three things: it is built for 15–30T excavator; the interface is Excavator mount and 130mm linkage, sold separately. Add your machine make and model at checkout and we confirm the fit before the order ships.
How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is shown before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order?
Add the item to your cart and check out online — the order page asks for your machine make and model, so there is no need to call ahead. We check the mount against your machine after the order and come back to you if anything needs changing. If you would rather ask first, email support@eskidsteer.com or use the chat button on your screen.
What to Order Alongside the SD45
- Auger bits — The SD45 takes a 100mm (4") square output shaft, and the shaft size decides which Digga bit family fits.
- Mount and linkage — the SD45 ships without one, so the interface is chosen to match your carrier rather than a generic plate.
- Hydraulic hoses and flush-face quick disconnects — sized to the SD45’s rated flow rather than to whatever is on the shelf.
- XO40 and XT40 auger extensions — cheaper than buying a longer bit for the occasional deep hole on the SD45, and they stack.
Contractors reach this page searching for a excavator auger drive, for a anchor auger drive, or specifically for a sd45 supa drive. The SD45 also comes up when people are comparing an auger drive against a piling auger drive, since Digga builds both on shared mounts and shared auger families. Whichever term brought you here, the SD45 and every other digga auger drive in the range is made in Dyersville, Iowa.
