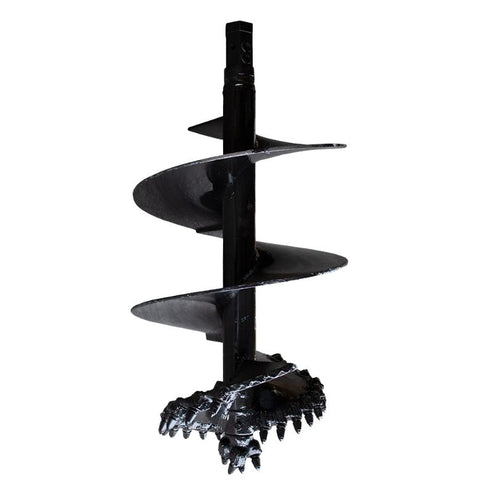

Rock Auger Bits for Skid Steers - Blue Diamond

This rock auger bit is designed for drilling into solid rock, shale, and concrete where standard earth auger bits are not suitable. Built for aggressive penetration in extremely tough ground conditions, it delivers the durability and cutting strength required for demanding foundation, utility, anchoring, and construction drilling applications.

Its rugged construction includes cast tooth pockets, drive-in carbide bullet teeth, and a thick 3/4-inch boring head to help withstand the impact and wear associated with hard-ground drilling. With a standard 4-foot length and multiple diameter options available, this rock auger bit is built for serious performance in high-resistance material.

For best results, this bit requires a minimum down pressure of 3,000 lbs to operate effectively. It is an ideal solution for operators who need dependable drilling power in conditions where conventional auger bits would struggle.

• Designed for drilling in solid rock, shale, and concrete
• Requires a minimum of 3,000 lbs of down pressure for effective operation
• Cast tooth pockets for added strength in extreme drilling conditions
• Drive-in carbide bullet teeth for aggressive cutting performance
• 3/4" thick boring head for heavy-duty durability
• 4' standard overall length

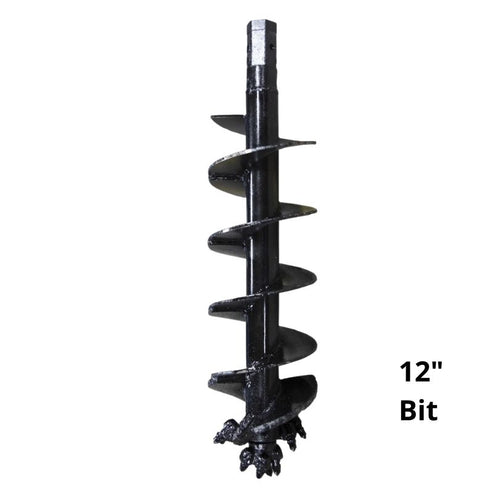

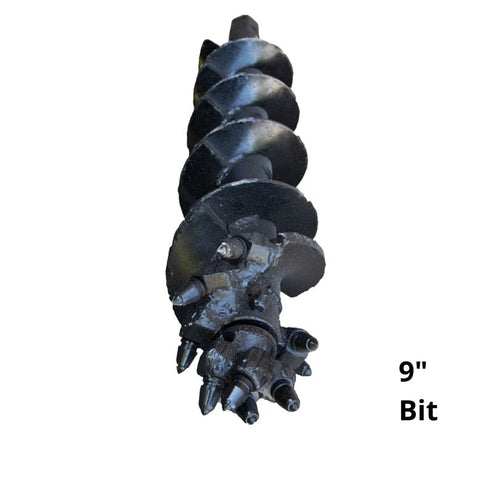

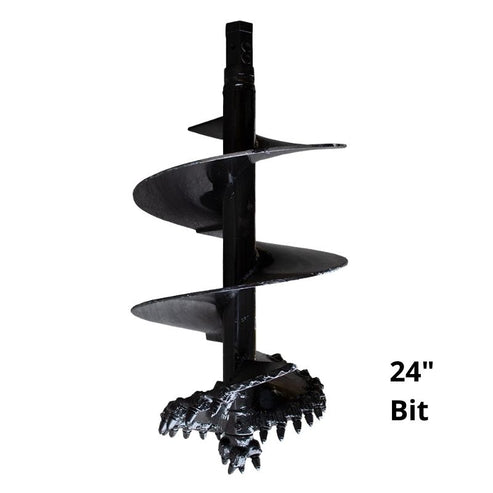

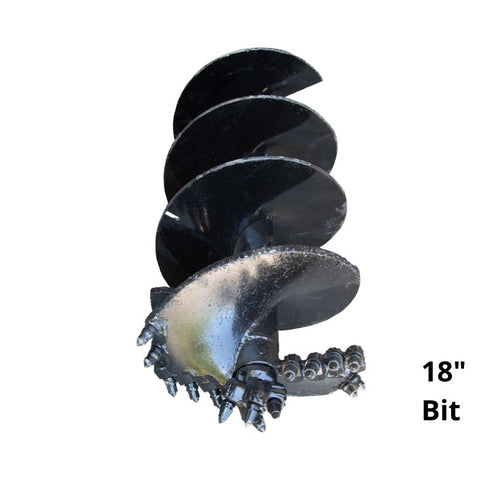

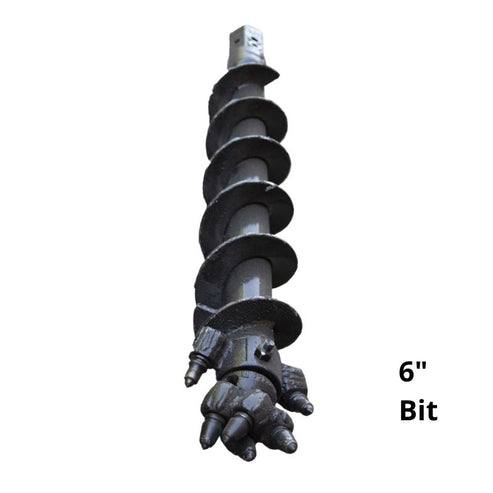

• Available in multiple drilling diameters
• Standard 2" hex connection
• 2" round or 2 9/16" round configurations available upon request

• Handles hard drilling conditions that standard auger bits are not built for
• Improves penetration in rock, shale, and concrete with carbide bullet teeth
• Provides longer service life through reinforced boring head construction
• Supports a wide range of drilling applications with multiple diameter choices
• Offers better durability and cutting confidence in high-resistance ground
• Helps contractors complete demanding hole-drilling jobs with greater efficiency

This rock auger bit is ideal for drilling in shale, concrete, and solid rock for applications such as utility work, anchoring, footing installation, foundation drilling, sign posts, and heavy-duty construction hole boring. It is intended for situations where conventional earth auger bits are not suitable.

Compatible with auger drive systems that can provide the minimum 3,000 lbs of down pressure required for effective rock drilling. Always verify auger drive shaft size, machine hydraulic capability, and ground condition suitability before use.

What ground conditions is this auger bit designed for?
It is designed for solid rock, shale, and concrete drilling applications.

How much down pressure is required?
A minimum of 3,000 lbs of down pressure is required for proper operation.

What type of teeth does this rock auger bit use?
It uses drive-in carbide bullet teeth with cast tooth pockets for aggressive cutting in hard material.

What is the standard shaft connection?
The standard configuration uses a 2-inch hex connection.

Are other shaft styles available?
Yes, 2-inch round and 2 9/16-inch round versions are available upon request.
