Hydraulic coupling
¾" flush-face coupling
Rated capacity, rock
4,000 lb (1,814 kg)
Construction
Grade 50 material
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA
🔧Grade 50 core-welded steel
📘 Overview

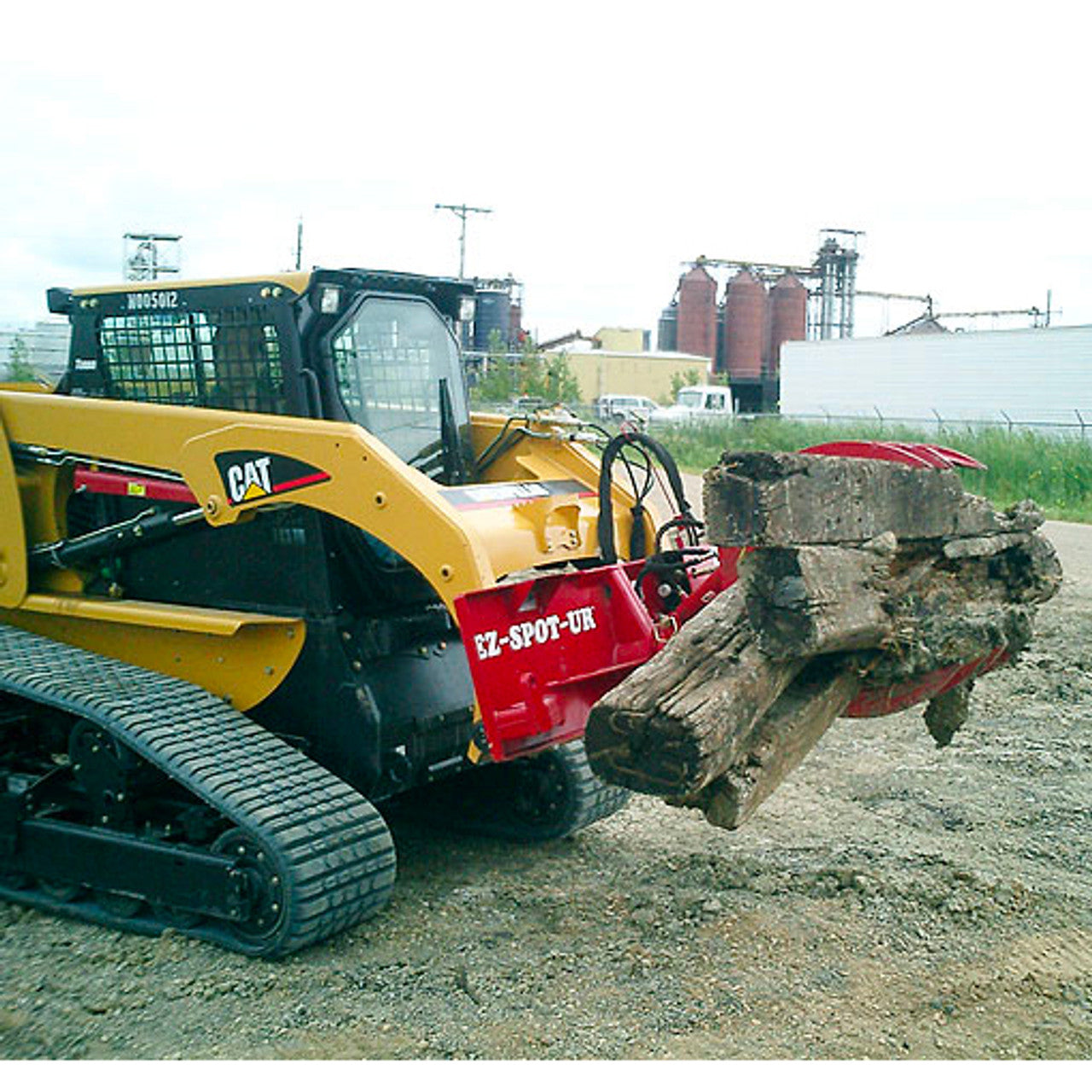

The EZ Spot UR Rock & Brush Grapple (EZ-0009) is a skid steer brush grapple rated to handle 4,000 lb of rock or 2,000 lb of trees, with interlocking jaws that open to 27 inches and close fully to 0 so it holds everything from a single branch to a large log or boulder. The jaws are 43 inches wide. Choose the base for rotation: Double Cylinder Rotating Base for 127 degrees to the operator’s left, which is what lets you place a rock rather than drop it; Fixed Non-Rotating Base for straightforward lifting with nothing to maintain; or No Attachment Base if you already run one. Then match the wiring harness to your machine. It runs on 20–30 GPM at 3,000 psi.
⚙ Key Features of the Rock & Brush Grapple
- Interlocking jaws close to 0" — small branches and brush cannot fall through, which is where a fixed-tine grapple bucket loses material.
- Opens to 27" across 43" wide jaws, taking large logs, root balls and boulders in one bite.
- One 3" x 6" hydraulic cylinder developing 21,206 lb of breakout force holds the grip throughout the lift.
- Rated 4,000 lb on rock, 2,000 lb on trees — published separately, because density changes what the same jaw can safely carry.
- Grade 50 steel, core welded to take repeated impact loading.
- Ships complete with hoses, flush-faced couplers, spring hose mount and wiring harness.
- Adaptable to excavators, wheel loaders, telehandlers and backhoes with a specialty bolt-on mount.
🔑 Why Operators Choose the Rock & Brush Grapple
- One tool for brush and rock — the interlocking jaw closes on fine material and still grips a boulder, so a farm or clearing crew is not switching attachments through the day.
- Places instead of dropping — 127 degrees of rotation positions a rock in a wall or a log on a trailer without repositioning the machine.
- Separate rock and tree ratings mean you can size the load honestly rather than guessing from a single figure.
- Standard flow — 20–30 GPM runs it, so no high-flow machine is needed.
- One-operator clearing — brush piles, storm debris and fallen trees are handled from the cab.
📊 Rock & Brush Grapple Specifications
| Specification | Value |
|---|---|
| Hydraulic flow required | 20–30 GPM at 3,000 psi |
| Hydraulic coupling | ¾" flush-face coupling |
| Rated burst pressure | 15 ksi (103.4 MPa) |
| Rated capacity, rock | 4,000 lb (1,814 kg) |
| Rated capacity, trees | 2,000 lb (907 kg) |
| Jaw opening | 27" (686 mm), closing to 0" — jaws interlock |
| Jaw width | 43" (1,092 mm) |
| Clamp cylinder | 1 × 3" bore x 6" stroke |
| Clamp breakout force | 21,206 lb |
| Rotation | 127° to the operator’s left (Double Cylinder Rotating Base) |
| Construction | Grade 50 material or higher, core welded |
| Mounting method | Universal Quick Attach (customisable) |
| Shaft interface | 2.94" square shaft into a 3" square receiver, 3/4" pin |
📋 Configuring Your Rock & Brush Grapple
- Attachment Base — Double Cylinder Rotating Base for 127 degrees of powered rotation; Fixed Non-Rotating Base for simple lifting with no moving parts to maintain; No Attachment Base for the tool head alone, whether you are replacing a worn head or adding a second head to a base you already own.
- Wiring Harness — nine options, described below.
Every EZ Spot UR rotating attachment needs a wiring harness to switch the base from the machine's auxiliary circuit. Nine options are offered so the harness matches your machine: Universal Skid Steer Wiring Harness for most standard machines; 14 Pin Wire Harness for Cat, Bobcat, Kubota, John Deere, Case, New Holland and Takeuchi machines with a 14-pin connector; 8 Pin Caterpillar/ASV/TEREX Harness for those three brands; Single Pole 7 Pin Bobcat Electrical Harness for 7-pin Bobcat machines; 7 Pin Intermediate Harness and Intermediate Tool Wiring Harness where a tool-side intermediate lead is needed between the machine harness and the attachment; Cigarette Plug In Universal Wiring Harness where no auxiliary electrical connector is fitted and power is taken from the cab accessory socket; Radio Remote Assembly for Telehandlers for telehandler installations run without a cab harness; and None if you already hold a working harness for this machine.
🚜 Which Machines Take This Brush Grapple?
The Rock & Brush Grapple attaches to skid steer loaders and compact track loaders equipped with a Universal Quick Attach (SSQA) system, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
The machine must supply 20–30 GPM at 3,000 psi through an auxiliary circuit with ¾" flush-face couplings. Your working limit is your machine’s rated operating capacity minus the weight of the attachment and base, up to the grapple’s own rating.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration and auxiliary hydraulic flow before ordering. Everything needed to confirm fitment is on this page — add it to your cart to check delivered pricing for your address.
Freight note: inspect the crate before signing the carrier’s Bill of Lading. Note any damage on the delivery paperwork at the time of delivery — that record is what supports a carrier claim.
❓ Rock & Brush Grapple Questions, Answered
How wide does the Rock & Brush Grapple open?
The Rock & Brush Grapple opens to 27 inches and closes fully to 0, with jaws 43 inches wide. Because the jaws interlock rather than meeting flat, the grapple retains fine brush that would fall through a fixed-tine bucket.
How much can the Rock & Brush Grapple lift?
EZ Spot UR rates the Rock & Brush Grapple at 4,000 lb handling rock and 2,000 lb handling trees. The two figures differ because of how the load sits in the jaw. Your practical limit is also your machine's rated operating capacity minus the weight of the attachment and base.
Which base should I choose?
The Double Cylinder Rotating Base powers the tool head through 127 degrees to the operator's left, which matters when you are placing rock or stacking logs rather than just moving them. The Fixed Non-Rotating Base does not rotate under power and has no moving parts to maintain. Choose No Attachment Base only if you already own an EZ Spot UR base.
Which wiring harness do I need?
Match the harness to your machine's auxiliary electrical connector, not to the attachment. Choose the 14 Pin Wire Harness for a Cat, Bobcat, Kubota, John Deere, Case, New Holland or Takeuchi machine with a 14-pin connector, the 8 Pin Caterpillar/ASV/TEREX Harness for those brands, or the Single Pole 7 Pin Bobcat Electrical Harness for a 7-pin Bobcat. If your machine has no auxiliary electrical connector, the Cigarette Plug In Universal Wiring Harness powers the attachment from the cab accessory socket. The Universal Skid Steer Wiring Harness suits most other machines, the 7 Pin Intermediate Harness and Intermediate Tool Wiring Harness add a tool-side lead, and the Radio Remote Assembly for Telehandlers covers telehandler installs. Select None if you already own one.
Can the Rock & Brush Grapple handle brush as well as rock?
Yes, and that is the point of the interlocking jaw design. The Rock & Brush Grapple closes to 0 inches so it grips small branches and brush, and opens to 27 inches for logs and boulders.
What hydraulic flow does the Rock & Brush Grapple need?
The Rock & Brush Grapple runs on 20–30 GPM at 3,000 psi through a standard auxiliary circuit with ¾" flush-face couplings rated to a 15 ksi burst pressure. No high-flow machine and no case drain are required.
How is the Rock & Brush Grapple shipped?
Shipping is calculated at checkout — add the Rock & Brush Grapple to your cart, enter your delivery address, and the freight charge is shown before you complete the order. Lift gate service is available for residential deliveries and can be selected at checkout.
📥 Rock and Brush Grapple Tool Downloads
Full published specifications for the Rock and Brush Grapple Tool, including hydraulic requirements, cylinder data and rated capacities.
