Height
24 – 50"
Width at Shear Arms
66"
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Built in Maize, Kansas
🔒12-month manufacturer warranty
💪Solid cast shear arms
📘 Overview

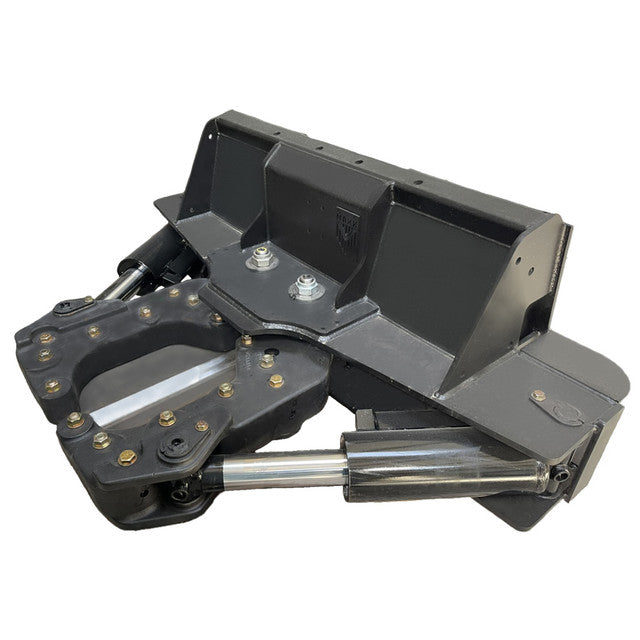

The Ranch Axe skid steer tree shear cuts trees up to 14" or 16" in diameter at near ground level and needs only 1,850 lbs of machine operating capacity to do it — the lowest requirement in the Maxx shear line, which puts it within reach of mid-size skid steers. It is the general land-clearing shear: fence lines, pasture reclamation, lot prep, and property cleanup. The 14" models use solid cast steel shearing arms that are 60% stronger than fabricated equivalents, while 16" models step up to fabricated A572 steel arms sized for larger timber. Arm style is the choice that matters most — standard arms are built for hardwood like mesquite, oak, hedge and locust, while open-end extended arms suit softwoods like cedar. All models carry 3/4" AR400 bolt-on replaceable milled knife blades, guarded hard line for hose protection, and universal skid steer coupler hooks with standard-flow flat face couplings.
⚙ Key Features of the Ranch Axe Tree Shear
- Solid cast steel shearing arms (14" models) — 60% stronger than fabricated steel arms, in both standard and extended configurations.
- Fabricated A572 steel arms (16" model) — sized to take larger-diameter trees than the 14" can handle.
- 3/4" AR400 bolt-on replaceable milled knife — high-tensile blade that swaps out with hand tools when worn.
- Near ground-level cutting — leaves a low stump so the ground stays workable for mowing and follow-up passes.
- Standard or extended arm options — standard for hardwood, open-end extended for softwood species like cedar.

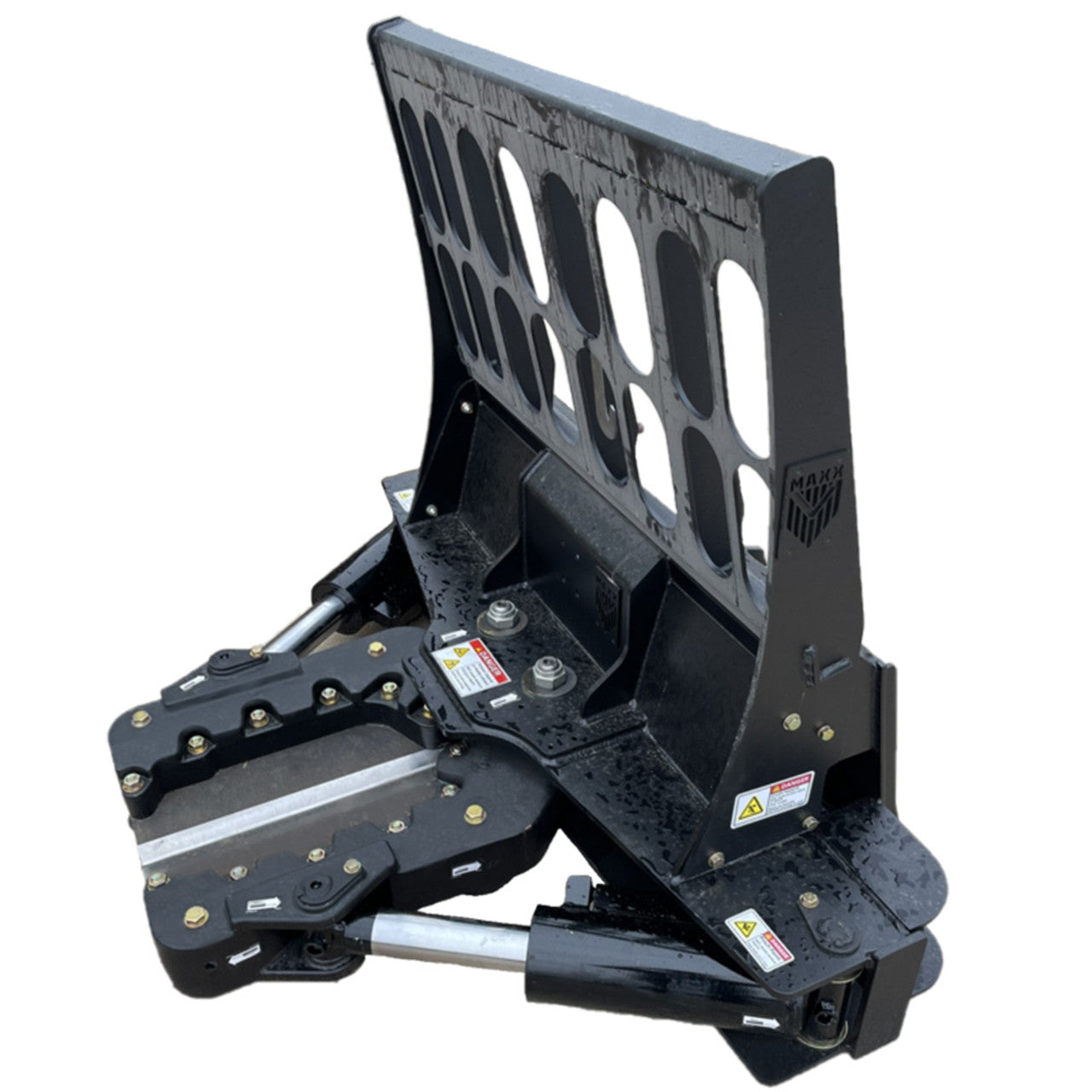

- Optional brushguard — protects the machine and operator when working into standing brush.
- Guarded hard line — improves hose protection against the abrasive conditions of clearing work.
- Universal mount coupler hooks — fits most current skid steer loaders, with standard-flow flat face couplings supplied.
- Optional 5-gallon sprayer kit — applies herbicide to the cut surface to prevent regrowth.
- Twin 5" bore shear cylinders — 3" rod, 10" stroke, rated at 4,000 PSI.
🔑 Why Buy This Skid Steer Tree Shear?
- Fits machines other shears cannot — a 1,850 lb operating capacity minimum means mid-size loaders can run it, not just full-size machines.
- Match the arm to your species and cut faster — standard arms grip hardwood without slipping; extended open-end arms swallow bushy cedar in one bite instead of three.
- Blades bolt out in the field — replaceable AR400 knives mean a worn edge costs an hour, not a day at the shop.
- Low stumps mean no second pass — near ground-level cutting leaves ground that can be mowed or driven without follow-up grinding.
- Stop regrowth at the cut — the optional sprayer kit treats the stump surface as you work, which matters on cedar and other species that resprout.
📊 Ranch Axe Tree Shear for Skid Steer — Specifications
| Specification | 14" Ranch Axe | 14" Brushguard Model | 16" Brushguard Model |
|---|---|---|---|
| Standard Steel Arm Model # | 3458D9 | 3466D9 | 7180D2 |
| Extended Arm Model # | 3460D9 | 3468D9 | Not available |
| Weight | 1,630 lbs / 740 kg | 1,820 lbs / 825 kg | 1,925 lbs / 874 kg |
| Height | 24" | 50" | 50" |
| Width at Shear Arms | 66" | 66" | 66" |
| Overall Depth | 46" standard / 50" extended | 46" standard / 50" extended | 48" |
| Shear Blade Material | 3/4" AR400 bolt-on replaceable milled knife | 3/4" AR400 bolt-on replaceable milled knife | 3/4" AR400 bolt-on replaceable milled knife |
| Shear Cylinders | 2 × 5.00" bore, 3.00" rod, 10.00" stroke | 2 × 5.00" bore, 3.00" rod, 10.00" stroke | 2 × 5.00" bore, 3.00" rod, 10.00" stroke |
📋 Ranch Axe Tree Shear Models and Options
Five configurations are available on this listing:

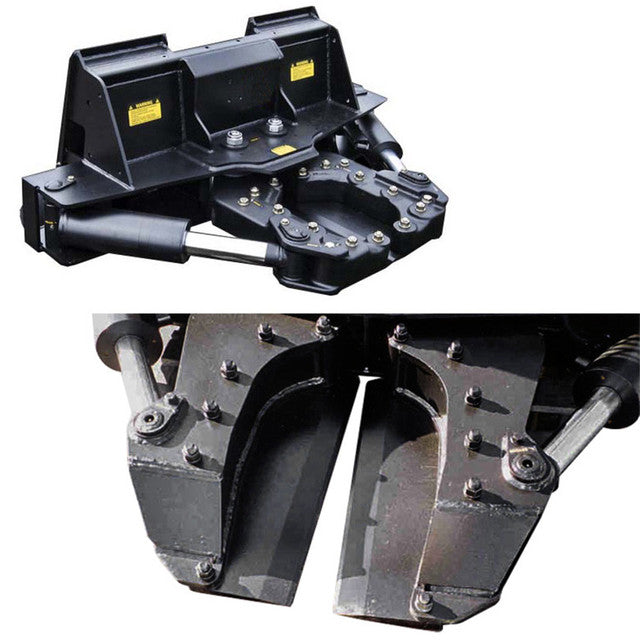

- 14" Standard Arm — hardwood duty, no brushguard (model 3458D9)
- 14" Extended Arm — softwood and cedar, no brushguard (model 3460D9)
- 14" Standard Arm with Brushguard — hardwood duty, guarded (model 3466D9)
- 14" Extended Arm with Brushguard — softwood duty, guarded (model 3468D9)
- 16" Standard Arm with Brushguard — largest capacity, guarded (model 7180D2)
The 16" model is offered with standard arms only — there is no 16" extended-arm configuration.
🔗 What Is a Tree Shear Used For?

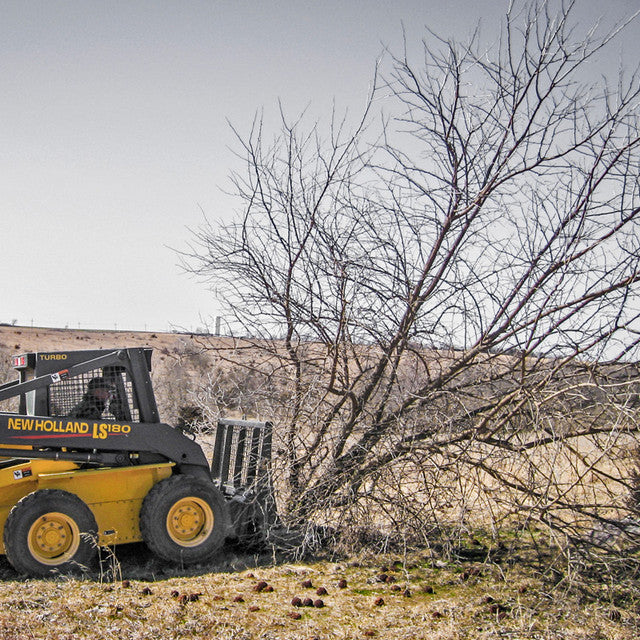

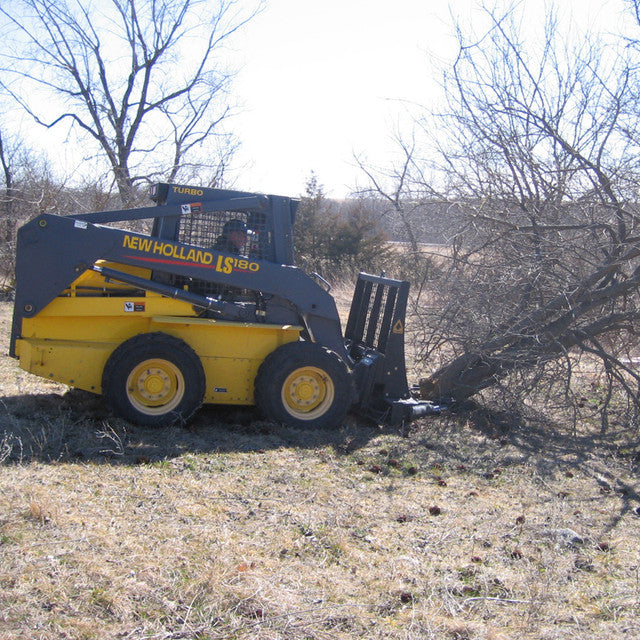

- General land clearing
- Hardwood removal — mesquite, oak, hedge, locust
- Softwood and cedar clearing with extended arms
- Pasture reclamation
- Fence line and right-of-way maintenance
- Property cleanup and lot prep
🚜 Which Machines Fit the Tree Shear?
At 1,850 lbs of machine operating capacity and 15 GPM, the Ranch Axe carries the lowest machine requirement of any shear Maxx builds, which puts it inside the range of mid-size skid steers that cannot run the Timberwolf. It fits skid steer loaders and compact track loaders carrying a Universal Quick Attach system, including:
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Compatibility is determined by mount type, not brand — confirm your machine's quick attach configuration before ordering. This attachment requires a minimum machine operating capacity of 1,850 lbs and a minimum hydraulic flow of 15 GPM. The shear cylinder is rated at 4,000 PSI. Universal mount coupler hooks and standard-flow flat face couplings are supplied. Select your configuration above and add it to your cart to order.
❓ Tree Shear Questions, Answered
Should I get standard arms or extended arms?
It depends on what you are cutting. Standard shear arms are designed for hardwood — mesquite, oak, osage orange (hedge), and locust. Open-end extended arms are suited to softwood species like cedar, where the wider opening lets you take bushy growth in fewer bites. If you cut both, standard arms are the more versatile choice.
What is the difference between the 14" and 16" models?
Cutting capacity and arm construction. The 14" handles trees up to 14" in diameter using solid cast steel arms that are 60% stronger than fabricated equivalents. The 16" handles up to 16" using fabricated A572 steel arms, which allow the larger opening. The 16" is available with a brushguard and standard arms only.

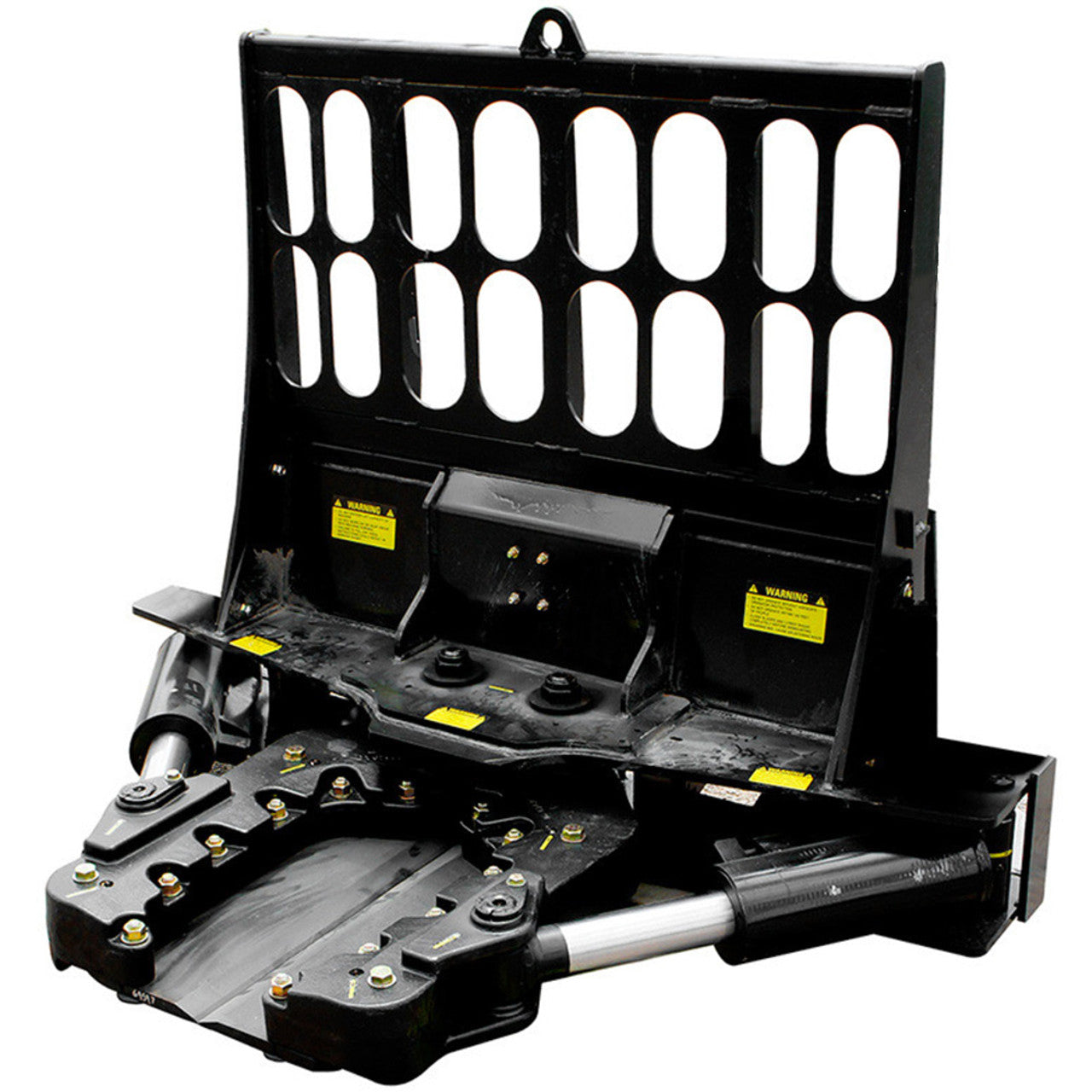

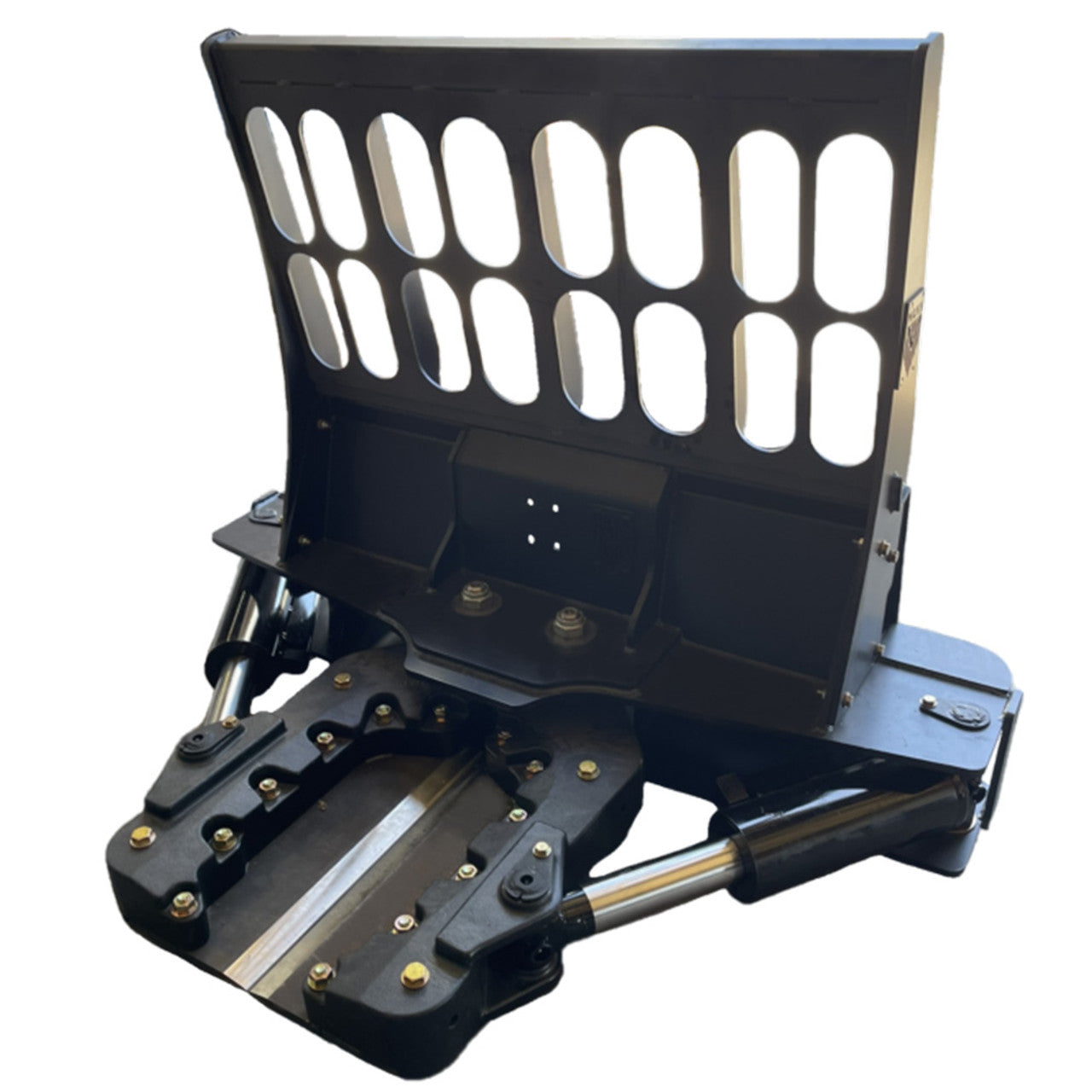

Do I need the brushguard?
If you are working into standing brush or dense growth where material can come back toward the cab, the brushguard is worth having — it adds protection for the machine and operator. On open pasture work with clear sightlines it is optional. Note the brushguard models are taller (50" versus 24") and heavier.
What machine and hydraulics do I need?
A minimum machine operating capacity of 1,850 lbs and a minimum hydraulic flow rate of 15 GPM. The shearing cylinder is rated at 4,000 PSI. This is the lowest capacity requirement in the Maxx shear line, so it fits machines that cannot run the Timberwolf or the 20" Ranch Axe.
Will this fit my skid steer?
All units come with universal mount skid steer coupler hooks that work with most current model skid steer loaders, and are supplied with standard-flow flat face couplings. Compatibility depends on mount type rather than brand — confirm your machine has a universal quick attach plate and meets the 1,850 lb capacity minimum.
Can I add the chemical sprayer to this shear?
Yes — the 5-gallon Ranch Axe Chemical Sprayer System can be added directly on this page using the sprayer option above the Add to Cart button, so the shear and sprayer ship together as one order. The sprayer is factory installed, so adding it at the time of purchase is the intended path. If you already own a shear and want to add one later, the same system is sold on its own as the 14" & 16" Ranch Axe Tree Shear Chemical Sprayer System.

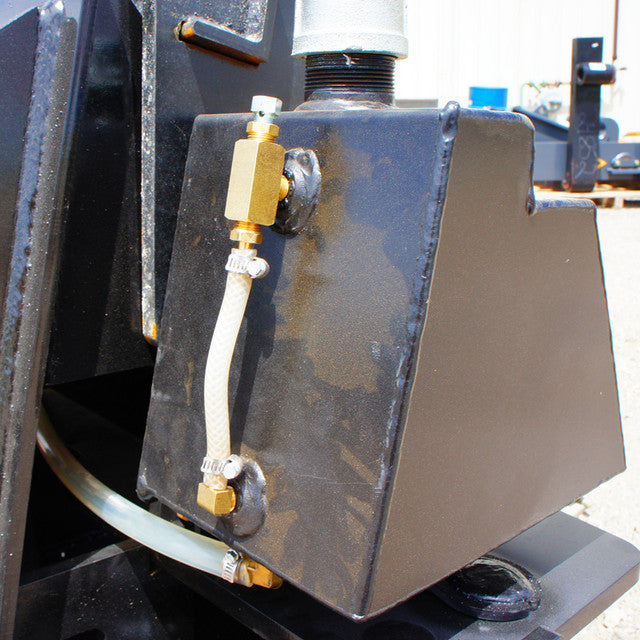

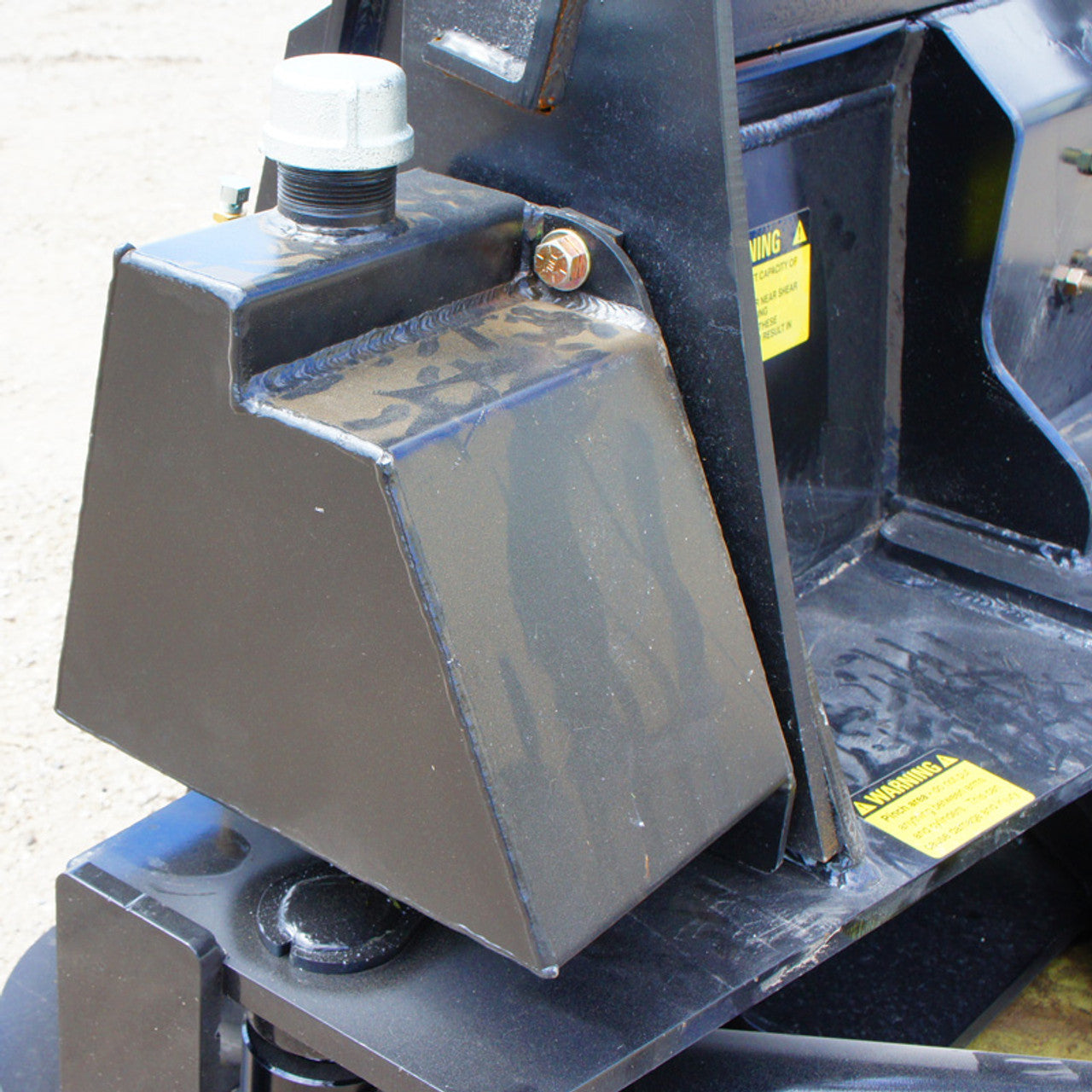

What does the sprayer kit actually do?
It applies herbicide directly to the cut stump surface as you work, which prevents regrowth. On species that resprout aggressively from the stump — cedar in particular — treating at the time of the cut saves a return trip with a separate sprayer.

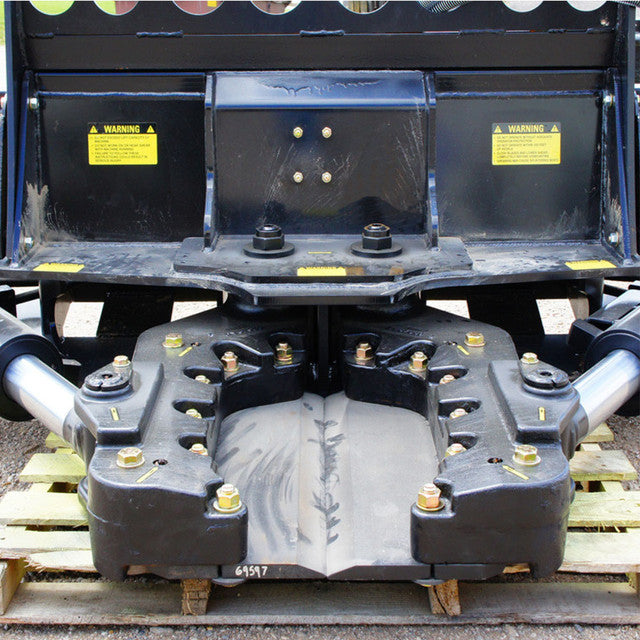

How are the blades replaced?
The 3/4" AR400 milled knives are bolt-on and replaceable. When an edge wears, it unbolts and a new blade goes on in its place — no cutting or welding, and no need to send the attachment out.
Is this a Dymax shear?
It is the same product line. Maxx Attachments is the rebranded Dymax attachment business, now manufactured and supported by Maize Corporation, which supplied Dymax parts and components for years before taking over the line. The DX prefix in the part numbers is a holdover from Dymax.
How is shipping calculated?
Shipping is calculated at checkout — simply add the item to your cart, enter your delivery address, and the shipping charge will be displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
