Effective Length
2 – 15 ft
Models available
9 variants
Style
Low Profile / Wide Back
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA since 1981
🔒5-year factory guarantee
🔨Fully welded square tube construction
📘 Overview

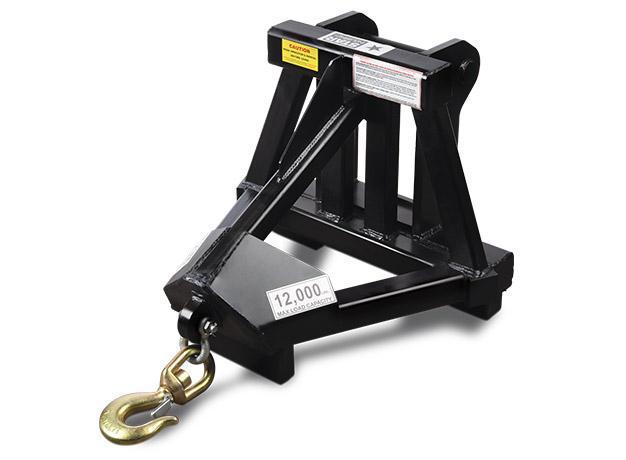

The Star Industries truss boom gives an extendable-reach forklift the placement ability of a crane at a fraction of the cost — setting wooden and steel trusses, erecting metal buildings and putting up post-frame structures. Nine models span two decisions: reach and back style. Reach runs from a 2 ft stub through 6, 10, 12 and 15 ft, and structural capacity runs from 2,000 lb on the long booms up to 22,000 lb on the short 1303. Back style is the fitment decision — the standard Low Profile truss boom fits most machines, while a Wide Back truss boom is required for JCB Q-Fit, Gehl Dynacarrier, Bobcat VersaHandler and Ingersoll-Rand VR518, VR623 and VR638 quick-tach designs. Construction is fully welded square tube.
⚙ Key Features of the Star Industries Quick-Tach Truss Boom
- Nine models covering 2 ft, 6 ft, 10 ft, 12 ft and 15 ft effective length
- Low Profile models 1302, 1302-12K, 1303, 1306, 1310, 1320 and 1330
- Wide Back models 1325 (12 ft) and 1335 (15 ft) for extra-wide quick-tach machines
- Structural capacity from 2,000 lb on long booms up to 22,000 lb on the 1303
- Back width 31 in on standard Low Profile, 40 in on the 1303, 45 in on Wide Back models
- Effective height 26.5 in on most Low Profile models, 36 in on the 1303 and Wide Back models
- 2 ft models supplied with a bolted anchor shackle and a swivel hook with latch
- 10 ft, 12 ft and 15 ft models supplied with a 6-ton pintle hitch
- Fully welded square tube construction for strength and durability
- A quick tach truss boom sized to your machine coupler, not a universal fit
- Suitable for use on muddy and rough job sites as well as prepared surfaces
- 5-year factory guarantee, made in the USA since 1981
🔑 Why Buyers Choose the Star Industries Quick-Tach Truss Boom
- Replaces a crane hire for truss and panel setting — a machine already on site places roof trusses and steel at reach, so a short lift stops being a scheduled crane day.
- Back style is a fitment requirement, not a preference — JCB Q-Fit, Gehl Dynacarrier, Bobcat VersaHandler and Ingersoll-Rand VR518, VR623 and VR638 machines need the Wide Back 1325 or 1335; a Low Profile boom will not mount to them.
- Short booms trade reach for capacity, and the numbers are steep — the 2 ft 1303 is rated up to 22,000 lb where the 15 ft 1330 is rated 2,000 lb, so choosing reach you do not need costs an order of magnitude in lifting capacity.
- Rigging is supplied, not an afterthought — 2 ft models ship with a bolted anchor shackle and a latched swivel hook, and the 10, 12 and 15 ft models ship with a 6-ton pintle hitch, so the boom arrives ready to rig.
- Boom weight and reach both eat your load chart — the boom moves the load centre far forward of the carriage, so the usable capacity is set by the machine chart at that reach, not by the boom rating.
📊 Star Industries Quick-Tach Truss Boom Specifications
| Model | Style | Effective Length | Effective Height | Back Width | Capacity |
|---|---|---|---|---|---|
| 1302 | Low Profile | 2 ft | 26.5 in | 31 in | 10,000 lb |
| 1302-12K | Low Profile | 2 ft | 26.5 in | 31 in | 12,000 lb |
| 1303 | Low Profile | 2 ft | 36 in | 40 in | Up to 22,000 lb |
| 1306 | Low Profile | 6 ft | 32.9 in | 38.9 in | 5,000 lb |
| 1310 | Low Profile | 10 ft | 26.5 in | 31 in | 2,000 lb |
| 1320 | Low Profile | 12 ft | 26.5 in | 31 in | 2,000 lb |
| 1330 | Low Profile | 15 ft | 26.5 in | 31 in | 2,000 lb |
| 1325 | Wide Back | 12 ft | 36 in | 45 in | 2,000 lb |
| 1335 | Wide Back | 15 ft | 36 in | 45 in | 2,000 lb |
📋 Truss Boom Options at Checkout
| Option as shown at checkout | What you get |
|---|---|
| 2' QT Truss Boom - 2' Fixed - 10000 lbs | Model 1302, Low Profile, 2 ft fixed, 10,000 lb, supplied with a 7-ton shackle and 5-ton hook |
| 2' QT Truss Boom - 2' Fixed - 12000 lbs | Model 1302-12K, Low Profile, 2 ft fixed, 12,000 lb, supplied with a 7-ton shackle and 7-ton hook |
| 2' QT Truss Boom - 2' Fixed - 15000 lbs | Model 1303, Low Profile, 2 ft fixed, up to 22,000 lb structural and 15,000 lb as rigged with its 12-ton shackle and 11-ton hook |
| 6' QT Truss Boom - 6' Fixed - 5000 lbs | Model 1306, Low Profile, 6 ft fixed, 5,000 lb, 38.9 in back width |
| 10' QT Truss Boom - 10' Fixed - 2000 lbs | Model 1310, Low Profile, 10 ft fixed, 2,000 lb, supplied with a 6-ton pintle hitch |
| 12' QT Truss Boom - 12' Fixed - 2000 lbs | Model 1320, Low Profile, 12 ft fixed, 2,000 lb, supplied with a 6-ton pintle hitch |
| 15' QT Truss Boom - 15' Fixed - 2000 lbs | Model 1330, Low Profile, 15 ft fixed, 2,000 lb, supplied with a 6-ton pintle hitch |
| 12' Wide Back QT Truss Boom - 12' Fixed - 2000 lbs | Model 1325, Wide Back for JCB Q-Fit, Gehl Dynacarrier, Bobcat VersaHandler and Ingersoll-Rand VR machines, 12 ft fixed, 2,000 lb |
| 15' Wide Back QT Truss Boom - 12' Fixed - 2000 lbs | Model 1335, Wide Back, 15 ft effective length, 2,000 lb. Note the checkout label reads 12 ft Fixed; the 1335 is a 15 ft boom. |
🔗 Rigging Supplied with the Truss Boom
The 2 ft truss booms are supplied with a bolted anchor shackle and a swivel hook with latch, matched to the model rating — the 1302 with a 7-ton shackle and 5-ton hook, the 1302-12K with a 7-ton shackle and 7-ton hook, and the 1303 with a 12-ton shackle and 11-ton hook. The 1310, 1320, 1330, 1325 and 1335 are supplied with a 6-ton pintle hitch. Replacement hooks and shackles are available separately by capacity, from a 2-ton swivel hook up to an 11-ton, and from a 2-ton bolted anchor shackle up to a 12-ton.
🚜 Which Telehandlers Fit the Star Industries Truss Boom?
Mounting is by telehandler quick-tach, and back style decides fitment. The standard Low Profile truss boom is used with most forklift models. A Wide Back truss boom is required for machines using an extra-wide quick-tach design — specifically JCB Q-Fit, Gehl Dynacarrier, Bobcat VersaHandler and Ingersoll-Rand models VR518, VR623 and VR638 — and the 1325 and 1335 are the Wide Back options. Because the boom is built to the coupler, the forklift make, model, year and quick-tach style are required when ordering. The published capacities are for the truss boom alone and do not reflect what your forklift can lift at reach; check the machine load chart for the height and extension you will work at.
| Machine quick-tach | Truss boom required |
|---|---|
| Most extendable-reach forklifts | Low Profile — 1302, 1302-12K, 1303, 1306, 1310, 1320 or 1330 |
| JCB Q-Fit | Wide Back — 1325 (12 ft) or 1335 (15 ft) |
| Gehl Dynacarrier | Wide Back — 1325 or 1335 |
| Bobcat VersaHandler | Wide Back — 1325 or 1335 |
| Ingersoll-Rand VR518, VR623, VR638 | Wide Back — 1325 or 1335 |
❓ Star Industries Quick-Tach Truss Boom Questions, Answered
Do I need a low profile truss boom or a wide back truss boom?
Most extendable-reach forklifts take the standard low profile truss boom. A Wide Back truss boom is required for machines with an extra-wide quick-tach design: JCB Q-Fit, Gehl Dynacarrier, Bobcat VersaHandler and Ingersoll-Rand VR518, VR623 and VR638. For those machines order the 1325 at 12 ft or the 1335 at 15 ft — a Low Profile boom will not mount.
Which truss boom length should I choose?
Reach and capacity trade off sharply on the Star Industries truss boom. The 2 ft models carry 10,000 to 22,000 lb, the 6 ft 1306 carries 5,000 lb, and the 10, 12 and 15 ft models carry 2,000 lb. Take the shortest boom that reaches the work: choosing 15 ft when 2 ft would do costs most of the lifting capacity.
How much can the 1303 truss boom actually lift?
The 1303 is rated up to 22,000 lb structurally, and is supplied with a 12-ton bolted anchor shackle and an 11-ton swivel hook, which set the rated capacity of the assembly as delivered at 15,000 lb. The lower of the boom rating, the rigging rating and your forklift load chart at that reach is what governs the lift.
Does the truss boom come with a hook or a hitch?
Yes, and which one depends on the model. The 2 ft booms (1302, 1302-12K, 1303) are supplied with a bolted anchor shackle and a swivel hook with latch. The 10, 12 and 15 ft booms (1310, 1320, 1330, 1325, 1335) are supplied with a 6-ton pintle hitch. Replacement hooks and shackles are available separately by rating.
Does the truss boom rating mean my telehandler can lift that much?
No. The published load ratings are for the truss boom by itself and do not reflect actual forklift load capability. A boom moves the load centre well forward of the carriage, so the governing figure is your machine load chart at the height and extension you are working at.
What information do I need to order a truss boom attachment?
Because the boom mounts to the machine quick-tach, the forklift make, model, year and quick-tach style are required. Enter these on the order page when you check out and eskidsteer confirms the correct back style before the boom is built.
What is the difference between the 1302 and the 1302-12K?
Both are 2 ft Low Profile truss booms with 26.5 in effective height and 31 in back width. The 1302 is rated 10,000 lb and is supplied with a 7-ton shackle and 5-ton hook; the 1302-12K is rated 12,000 lb and is supplied with a 7-ton shackle and a 7-ton hook. Choose the 12K where the extra 2,000 lb is needed.
Can this forklift truss boom be used on muddy or rough ground?
Yes. This telehandler truss boom is intended for use on most surfaces including muddy and rough job sites, which is the practical advantage over bringing in a crane. Construction is fully welded square tube for strength and durability.
The 1335 is listed as 12 ft Fixed — is it a 12 ft or a 15 ft boom?
The 1335 is a 15 ft Wide Back truss boom with 36 in effective height and 45 in back width. The checkout label reading 12 ft Fixed is a labelling error on the option, not a different product.
What does the 1306 six-foot truss boom offer?
The 1306 is a 6 ft Low Profile truss boom rated 5,000 lb, with 32.9 in effective height, 38.9 in back width and 6 ft 7 in overall length. It sits between the short high-capacity 2 ft booms and the long 2,000 lb booms, so it is the model to choose when you need real reach and more than 2,000 lb of capacity.
How do I order a truss boom and how is it shipped?
Add the truss boom to your cart on eskidsteer.com and complete checkout online, entering your forklift make, model and year on the order page. Shipping is calculated at checkout once you enter your delivery address.
📥 Star Industries Quick-Tach Truss Boom Downloads
🎥 Video
