📘 Overview

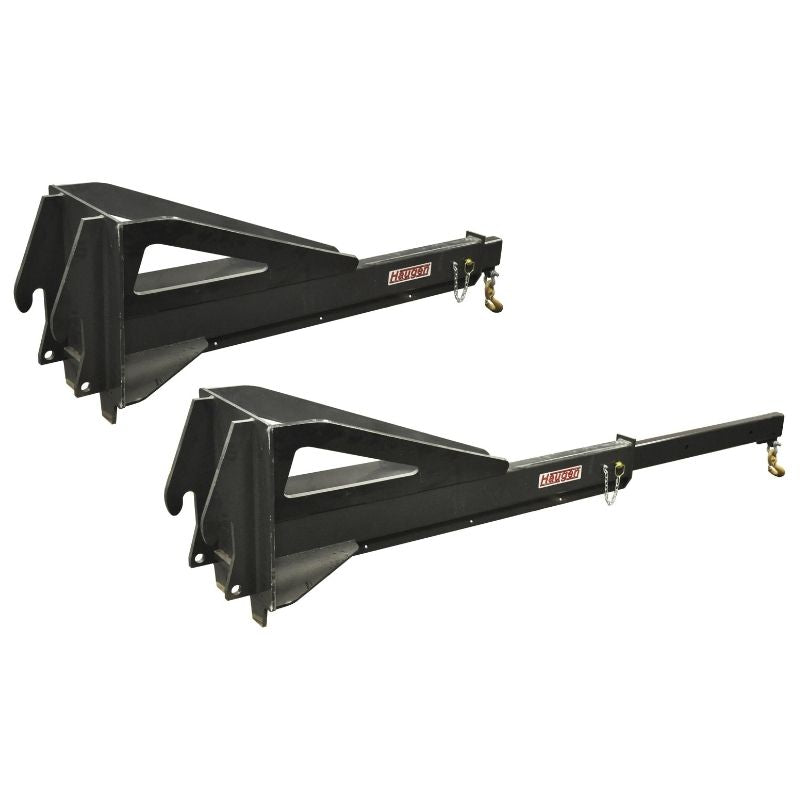

The Haugen MIJ-QN is a quick-attach adjustable jib boom for skid steers — a jib that mounts directly to Universal Skid Steer Quick Attach and telescopes manually from 2 feet to 12 feet with 8 locking positions. Rated at 2,000 lbs at 12 feet. Weighs 645 lbs. Standard pocket 3.5"×7.5". Position indicators on the jib arm. Includes a 5-ton Crosby swivel hook. OSHA/ANSI compliant. The MIJ-QN-M005 upgrade adds a second 5-ton swivel hook for rigging flexibility. Made in USA with a 1-year warranty.

⚙️ Key Features

• Quick Attach mount — Universal SSQA
• Adjustable from 2 to 12 feet — 8 locking positions
• Rated: 2,000 lbs at 12 feet
• Weight: 645 lbs
• Standard pocket: 3.5" x 7.5"
• 5-ton Crosby swivel hook standard
• Position indicators on jib arm
• OSHA/ANSI compliant
• MIJ-QN-M005: adds extra 5-ton swivel hook
• Made in USA | 1-year warranty

🔑 Benefits

• Quick Attach mounting means no fork pockets or coupler change required — the MIJ-QN connects like any other SSQA attachment, with the operator remaining in the cab during connection. Industrial jib alternatives (MIJ series) require fork pocket mounting; the QN variant swaps directly on the quick-attach plate, allowing the machine to go from jib to bucket to grapple without dismounting.
• 8 locking positions from 2-12 feet let the operator match reach to the task without crane overhang — shorter jib positions (2-4 ft) allow lifting loads directly above the machine; longer positions (8-12 ft) allow reaching loads below or beyond obstacles, over walls, or into truck beds. Position indicators make it easy to reproduce a specific extension setting without measuring.
• 2,000 lb at 12 feet is the rated capacity at maximum extension — at shorter extensions, capacity increases. The 5-ton (10,000 lb rated) Crosby swivel hook provides substantial safety margin on the rigging hardware itself relative to the jib's rated load, ensuring the weakest link in the system is the jib structure, not the hook.
• The MIJ-QN-M005 second swivel hook enables balanced multi-point lifts — for lifting structural members, equipment skids, or machinery that requires two lift points to remain level, the dual-hook configuration provides two independent pick points on the same jib, with the operator able to position the jib arm and select two lift positions independently.

📊 Specifications

🔗 Attachment Compatibility

The MIJ-QN mounts to any Universal Skid Steer Quick Attach system. No fork pockets or coupler required. At 645 lbs attachment weight plus 2,000 lbs maximum rated load, confirm your machine's rated operating capacity can safely operate the jib at its rated capacity. Jib is manually adjusted — no hydraulics needed for length adjustment.

🚜 Machine Compatibility

The MIJ-QN quick-attach jib mounts directly to any Universal Skid Steer Quick Attach (SSQA) — usable on skid steers, compact track loaders, and any machine with a skid steer quick-attach interface:

Standard pocket: 3.5" x 7.5". No aux hydraulics required — jib extension is manual with 8 locking positions. OSHA/ANSI compliant for personnel and material lifts.
