Hydraulic coupling
¾" flush-face coupling
Maximum pole length
100 ft
Construction
Grade 80 material
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA
📘 Overview

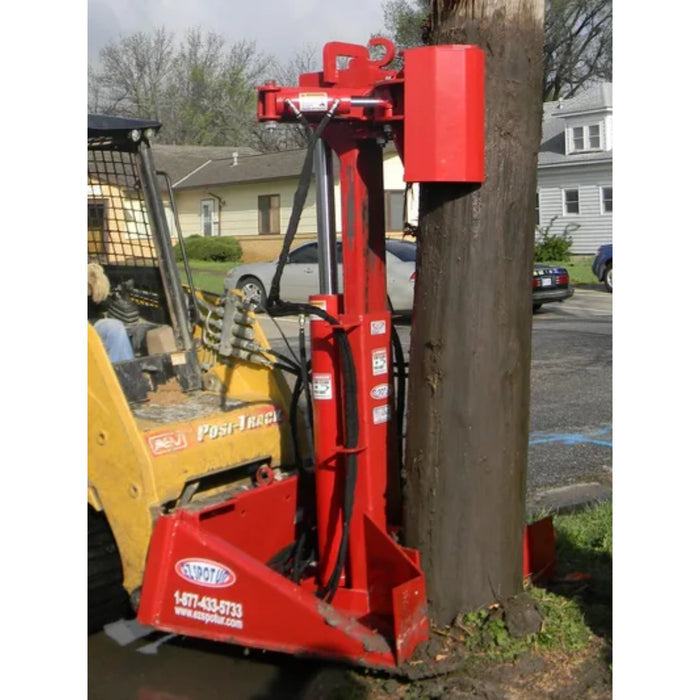

A pole puller for the poles a derrick cannot reach. Pulling a utility pole is the part of the job that used to need a derrick, a crew and a chain. The EZ Spot UR Pole Jack (EZ-PJ001) does it from the cab of a skid steer, extracting poles up to 100 feet in length in all terrain including hard and frozen ground. Two 3" x 6" clamp cylinders hold the pole while a massive 6" x 36" cylinder does the pulling, developing 84,823 lb of breakout force — the highest rated capacity in the EZ Spot UR pole jack range at 10,000 lb. Jaws open from 9" to 31 inches, so it takes everything from small posts to transmission poles, and it removes foamed and cleated poles as well as plain timber. It is a stand-alone unit — no rotating base is needed. Choose the wiring harness that matches your machine.
⚙ Key Features of the Pole Jack
- The highest-rated puller in the range — 10,000 lb, so it covers the poles the smaller jacks leave behind.
- 6" x 36" extraction cylinder developing 84,823 lb of breakout force, which is what breaks a pole free of frozen or compacted ground.
- 2 × 3" bore x 6" stroke, each 21,206 lb, holding the pole through the pull.
- Jaws open from 9" to 31", covering posts through to transmission poles.
- Removes foamed and cleated poles, not just plain timber.
- Grade 80 material or higher, core welded.
- Rubber inserts available for removing metal and aluminium poles without marking them.
- Ships complete with hoses, flush-faced couplers, spring hose mount and wiring harness.
🔑 Why Operators Choose the Pole Jack
- Pole Jack: fewer people on the job — pole pulling that took a team and a derrick becomes one operator and a skid steer, which is where the labour saving is.
- Works frozen and hard ground — the extraction cylinder does what a chain and a bucket cannot, without digging the pole out first.
- Operator stays in the cab throughout the pull, away from a pole under load.
- No broken parts downtime — purpose-built extraction beats improvised chain and strap methods that fail mid-job.
- Handles poles others leave behind — foamed and cleated poles come out with the same tool.
📊 Pole Jack Specifications
| Specification | Value |
|---|---|
| Hydraulic flow required | 20–30 GPM at 3,000 psi |
| Hydraulic coupling | ¾" flush-face coupling |
| Rated burst pressure | 15 ksi (103.4 MPa) |
| Maximum pole length | 100 ft |
| Rated weight capacity | 10,000 lb (4,536 kg) |
| Maximum jaw opening | 31.2" (792 mm) |
| Minimum jaw opening | 9" |
| Clamp cylinders | 2 × 3" bore x 6" stroke |
| Clamp breakout force | 21,206 lb per cylinder |
| Extraction cylinder | 6" x 36" |
| Extraction breakout force | 84,823 lb |
| Attachment weight | 2,200 lb (998 kg) |
| Rotation | Stand-alone unit; does not rotate |
| Construction | Grade 80 material or higher, core welded |
| Mounting method | Universal Quick Attach (customisable) |
📋 Configuring Your Pole Jack
- Jaw Inserts — No Jaw Inserts leaves the standard 9 inch minimum opening, which suits full-size utility poles; Medium Jaw Inserts reduce the minimum so smaller poles and posts are gripped securely rather than slipping in the jaw.
- Wiring Harness — the nine options below match the harness to your machine’s connector.
Every EZ Spot UR rotating attachment needs a wiring harness to switch the base from the machine's auxiliary circuit. Nine options are offered so the harness matches your machine: Universal Skid Steer Wiring Harness for most standard machines; 14 Pin Wire Harness for Cat, Bobcat, Kubota, John Deere, Case, New Holland and Takeuchi machines with a 14-pin connector; 8 Pin Caterpillar/ASV/TEREX Harness for those three brands; Single Pole 7 Pin Bobcat Electrical Harness for 7-pin Bobcat machines; 7 Pin Intermediate Harness and Intermediate Tool Wiring Harness where a tool-side intermediate lead is needed between the machine harness and the attachment; Cigarette Plug In Universal Wiring Harness where no auxiliary electrical connector is fitted and power is taken from the cab accessory socket; Radio Remote Assembly for Telehandlers for telehandler installations run without a cab harness; and None if you already hold a working harness for this machine.
🚜 Which Machines Take This Pole Puller?
The Pole Jack attaches to skid steer loaders and compact track loaders equipped with a Universal Quick Attach (SSQA) system, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
The machine must supply 20–30 GPM at 3,000 psi through an auxiliary circuit with ¾" flush-face couplings, plus an electrical connection for the harness. The Pole Jack is a stand-alone unit and does not use an EZ Spot UR rotating base. It can also be adapted to excavators, wheel loaders, telehandlers and backhoes with a specialty bolt-on mount.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration and auxiliary hydraulic flow before ordering. Everything needed to confirm fitment is on this page — add it to your cart to check delivered pricing for your address.
Freight note: inspect the crate before signing the carrier’s Bill of Lading. Note any damage on the delivery paperwork at the time of delivery — that record is what supports a carrier claim.
❓ Pole Jack Questions, Answered
Will the Pole Jack pull a pole out of frozen ground?
Yes. EZ Spot UR rates the Pole Jack for extracting poles in all terrain including hard and frozen ground. The 6" x 36" extraction cylinder develops 84,823 lb of breakout force, which is what separates it from chain-and-bucket methods that stall in frozen soil.
Does the Pole Jack need a rotating base?
No. The Pole Jack is a stand-alone unit that mounts directly to the machine's Universal Quick Attach plate. Unlike the EZ Spot UR grapples and claws, it does not use a Double Cylinder or Fixed Non-Rotating Base.
Can the Pole Jack remove metal or aluminium poles?
Yes, and rubber inserts can be purchased for exactly that. The inserts protect the pole surface during extraction. The Pole Jack also removes foamed and cleated poles as well as plain timber.
How much can the Pole Jack pull?
The Pole Jack is rated at 10,000 lb, the highest of the three EZ Spot UR pole jacks. The extraction cylinder is a 6 inch by 36 inch unit developing 84,823 lb of breakout force, and the 36 inch stroke is what gives the long single-stage lift on a deeply set pole.
How do the three EZ Spot UR pole jacks differ?
The Pole Jack is rated at 10,000 lb with two clamp cylinders and a 6 x 36 inch extraction cylinder, and its jaws start at 9 inches, so it suits larger poles. The Heavy Duty Pole Jack uses four clamp cylinders and a 7 x 36 inch cylinder at 115,453 lb for transmission poles. The Mini Pole Jack is the compact option at 1,400 lb with a 6 x 12 inch cylinder, offering the operator better visibility.
Do I need the Medium Jaw Inserts on the Pole Jack?
Only if you pull smaller stock. Without inserts the Pole Jack jaws close to 9 inches, which is sized for full-size utility poles. Medium Jaw Inserts reduce that minimum so smaller poles and posts are held securely instead of slipping as the extraction cylinder takes the load.
Which wiring harness do I need?
Match the harness to your machine's auxiliary electrical connector, not to the attachment. Choose the 14 Pin Wire Harness for a Cat, Bobcat, Kubota, John Deere, Case, New Holland or Takeuchi machine with a 14-pin connector, the 8 Pin Caterpillar/ASV/TEREX Harness for those brands, or the Single Pole 7 Pin Bobcat Electrical Harness for a 7-pin Bobcat. If your machine has no auxiliary electrical connector, the Cigarette Plug In Universal Wiring Harness powers the attachment from the cab accessory socket. The Universal Skid Steer Wiring Harness suits most other machines, the 7 Pin Intermediate Harness and Intermediate Tool Wiring Harness add a tool-side lead, and the Radio Remote Assembly for Telehandlers covers telehandler installs. Select None if you already own one.
What hydraulic flow does the Pole Jack need?
The Pole Jack runs on 20–30 GPM at 3,000 psi through a standard auxiliary circuit with ¾" flush-face couplings rated to a 15 ksi burst pressure. A high-flow machine is not required.
How is the Pole Jack shipped?
Shipping is calculated at checkout — add the Pole Jack to your cart, enter your delivery address, and the freight charge is displayed before you complete the order. Lift gate service is available for residential deliveries and can be selected at checkout.
📥 Pole Jack Attachment for Skid Steers Downloads
Full published specifications for the Pole Jack Attachment for Skid Steers, including hydraulic requirements, cylinder data and rated capacities.
