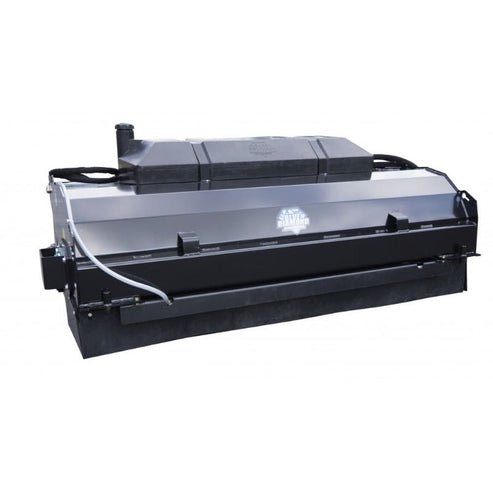

The Pickup Broom - Series 2 is built for operators who need efficient sweeping, debris collection, and surface cleanup in demanding environments. Designed for jobsite maintenance, pavement cleanup, parking lot sweeping, and municipal work, this attachment combines aggressive broom performance with durable construction for reliable day-to-day use.

Available in 60-inch, 72-inch, 84-inch, and 96-inch working widths, this pickup broom uses a 26-inch poly/steel wafer combination to sweep and collect dirt, gravel, dust, and loose debris effectively. Its reinforced crash bar, heavy main shaft, and oversized bearings help deliver long service life in harsh operating conditions.

With adjustable broom height settings, bolt-on rubber skirting, and compatibility with optional gutter brush and water suppression accessories, this series is designed to improve sweeping efficiency while helping operators maintain cleaner surfaces and better debris control.

• Available in 60-inch, 72-inch, 84-inch, and 96-inch working widths
• 26-inch diameter poly/steel bristles for aggressive sweeping performance
• Reinforced 7-inch front crash bar for impact protection
• Heavy-duty 2-inch main shaft with oversized 6-inch bearings
• Motor and shaft guards for added component protection
• Heavy-duty dump stops for improved structural strength
• Grease fittings on all pivot points and bearings for simplified maintenance
• Rear-mounted steps for safer operator entry and exit
• 1 1/2-inch by 7-inch zinc height adjustment pins with four settings
• Bolt-on rubber skirting helps contain swept material
• Optional gutter brush available for edge cleaning
• Predrilled for optional 37-gallon pressurized water system kit
• Low-profile water tank option helps maintain visibility
• Overall dimensions of 28 inches high by 58 inches deep

• Helps sweep and collect debris efficiently in a single pass
• Improves surface cleanup on pavement, concrete, and hard-packed areas
• Supports long-term durability with reinforced structural components
• Allows operators to fine-tune broom height for different surface conditions
• Helps reduce airborne dust with optional water system compatibility
• Improves edge cleaning performance with the optional gutter brush
• Makes routine service easier with greaseable bearings and pivot points

This pickup broom is designed for sweeping and collecting debris from parking lots, streets, sidewalks, warehouses, construction sites, and other paved or hard-packed surfaces. It is well suited for general cleanup, dust control, and edge sweeping applications.

Compatible with skid steer loaders and other host machines that support the required mounting and hydraulic flow range of 15 to 25 GPM. Always verify attachment fitment, hydraulic capacity, and operating limits before use.

What broom widths are available in the Series 2 pickup broom?
This broom is available in 60-inch, 72-inch, 84-inch, and 96-inch working widths.

What type of bristles does it use?
It uses 26-inch diameter poly/steel wafer bristles for aggressive sweeping and debris collection.

Can I add a water system for dust control?
Yes. The broom is predrilled for an optional 37-gallon pressurized water system kit with a low-profile tank.

Is a gutter brush available?
Yes. An optional gutter brush is available for improved curb and edge cleaning.

How is broom height adjusted?
The broom uses 1 1/2-inch by 7-inch zinc adjustment pins with four height positions.
