Description
📘 Overview

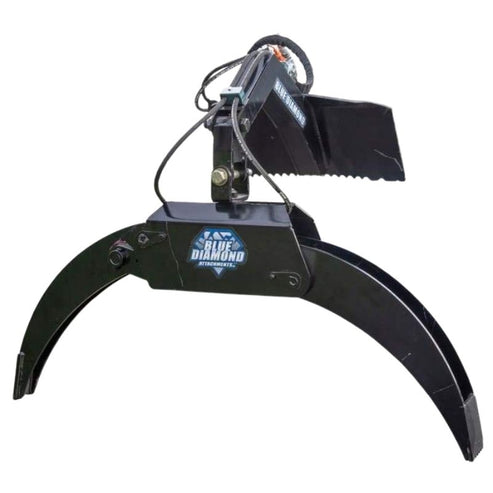

The Blue Diamond Mini Log Grapple is a mini skid steer log grapple that grabs, lifts, and moves logs and brush on compact machines. It mounts to a mini quick-attach plate, opening to 63″ to swallow large logs and closing to under 4″ to grip small material, with a heavy-duty welded cylinder for strong clamping.
This listing covers manual and hydraulic rotation options, so you match the grapple to how you handle logs. Rotation lets you turn logs to position them for loading, stacking, or feeding a processor — manual for occasional turning, hydraulic for frequent work.
As a blue diamond mini log grapple, it's built for firewood, land clearing, and log handling on compact machines. A mini skid steer log grapple lets a small carrier move logs a plain bucket can't hold; the rotating log grapple mini skid steer option turns logs for precise placement. As a 2000 lb log grapple mini, it lifts substantial logs for a compact machine.
A load stabilization brace, serrated quick attach and boom to stabilize and push material, a heavy-duty welded cylinder, and a 2,000 lb lift capacity make it a capable log handler. It requires 8–26 GPM.
⚙ Mini Log Grapple Features
- Opens to 63″
- Closes to under 4″
- Load stabilization brace
- 2,000 lb lift capacity
- Serrated quick attach for load stabilization
- Heavy-duty welded cylinder
- Serrated boom to stabilize and push
- Available in manual or hydraulic rotation
🔑 Why Choose the Blue Diamond Mini Log Grapple
- Log handling on a mini machine — the wide 63″ opening and 2,000 lb capacity let a compact carrier grab and move logs a plain bucket can't hold.
- Grips large and small — opens to 63″ for big logs and closes to under 4″ to grip small branches and brush, covering a wide range of material.
- Rotation positions logs — manual or hydraulic rotation turns logs for loading, stacking, or feeding a processor, with hydraulic best for frequent work.
- Serrated boom stabilizes loads — the serrated quick attach and boom grip and push material, keeping logs stable during handling.
- Heavy welded cylinder — the welded cylinder delivers strong, durable clamping force for repeated log work.
📊 Mini Skid Steer Log Grapple Specifications
| Specification | Detail |
|---|---|
| Opening | 63″ open / under 4″ closed |
| Lift Capacity | 2,000 lbs |
| Rotation | Manual or hydraulic (by model) |
| Cylinder | Heavy-duty welded |
| Stabilization | Serrated quick attach + boom |
| Required Flow | 8-26 GPM |
| Mount | Mini skid steer quick-attach |
| Part Numbers | 106715, 306720-25, 306720-26 |
📋 Mini Log Grapple Variant Options

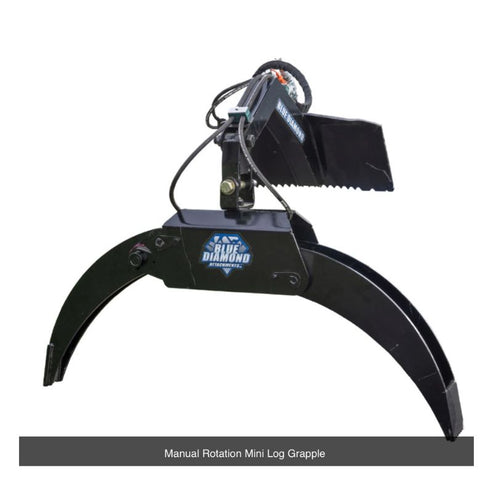

- Manual rotation (#106715) — rope tie-off rotation set by hand; the economical choice for occasional log turning.

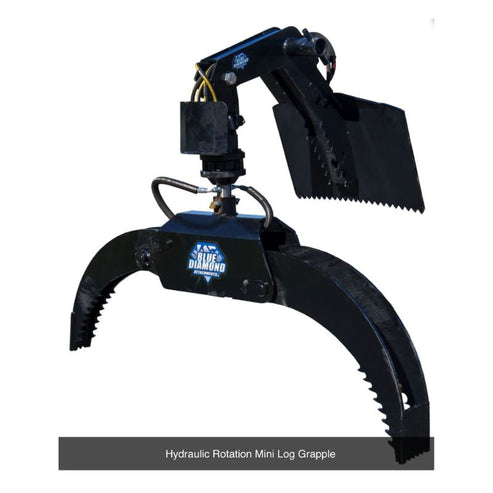

- Hydraulic rotation (#306720) — powered rotation controlled from the cab, available in two mount configurations; best for frequent log handling, stacking, or feeding a processor.
🚜 Machine Compatibility
Compatible with mini skid steers and compact tool carriers equipped with a mini universal (mini quick-attach) mount, including:
Bobcat MT
Ditch Witch
Vermeer
Toro Dingo
Boxer
Kubota
Compatibility is determined by mount type, not brand — confirm your machine's mini quick-attach configuration before ordering. It requires 8–26 GPM. Not sure it fits your carrier? Contact eskidsteer.com at (866) 757-8337.
❓ Frequently Asked Questions
Q: Manual or hydraulic rotation — which do I need?
Manual rotation is set by hand and suits occasional log turning; hydraulic rotation turns logs from the cab, better for frequent handling, stacking, or feeding a processor. Choose hydraulic if you rotate logs often, manual for simpler needs.
Q: How big a log can it handle?
It opens to 63″ to grab large logs and closes to under 4″ for small branches and brush, with a 2,000 lb lift capacity. That range covers firewood, land clearing, and general log handling on a compact machine.
Q: Will it fit my mini machine?
It's designed for mini skid steers and compact tool carriers with a mini quick-attach plate and auxiliary hydraulics (8–26 GPM). The hydraulic-rotation model needs an extra function. Have your machine details ready and we'll confirm fitment.
Q: What does the serrated boom do?
The serrated boom and quick attach grip and stabilize logs, letting you push and hold material securely. It keeps logs from rolling or shifting during handling, which matters on a compact machine.
Q: How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Q: How do I order?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
